1994 JAGUAR XJS
4.0L
6 CYL
2WD
AUTOMATIC
75,000 MILES
Does not fire coil unsure wires from ignition amphitheater correct routing. Need ignition wiring diagram switch to coil.
Thursday, December 27th, 2018 AT 9:59 AM
1 Reply
DANNY L
MECHANIC
5,648 POSTS
Hello, I'm Danny.

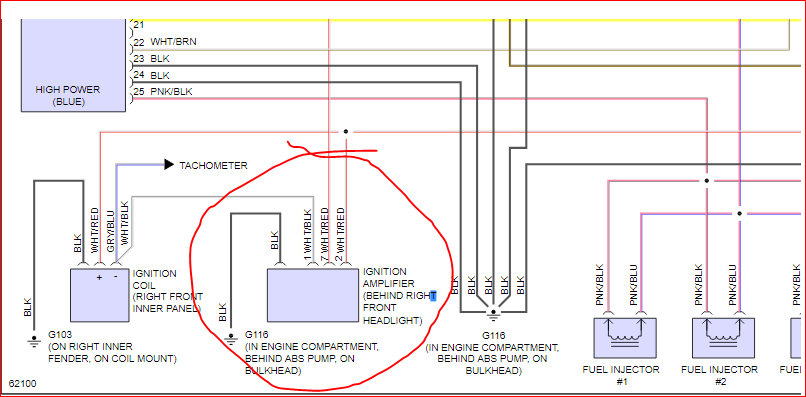

Here is the wiring diagram you requested. I have attached a link showing how to test the wiring if needed.
https://www.2carpros.com/articles/how-to-check-wiring

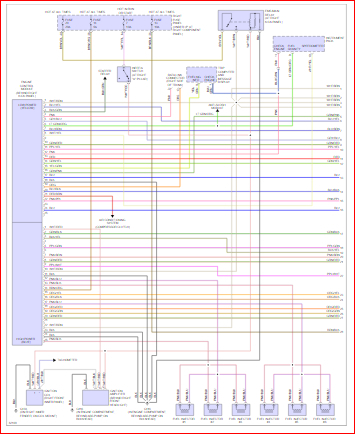

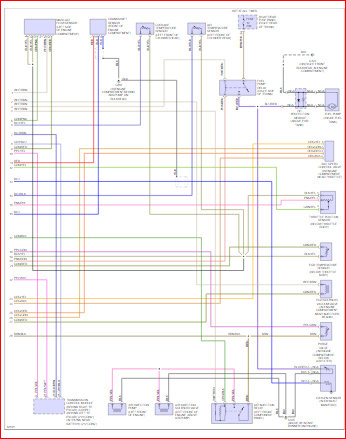

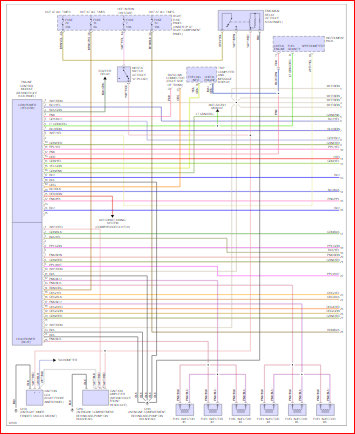

Below I've attached three pictures. Hope this helps and thanks for using 2CarPros.
Danny-
Images (Click to make bigger)
