My car has a separate relay box. Which relay is for the A/C compressor switch?
May 25, 2020 at 11:22 AM
A/C compressor switch relay location
2010 DODGE AVENGER
KERRIE CANNON
- MEMBER
- 1 POST
- FOLLOW
Advertisement
ASEMASTER6371
- ✓ASE Certified Mechanic
- 52,796 POSTS
Good afternoon,
The relay is part of the relay box and is non serviceable.
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit
What is the issue with the A/C system?
https://www.2carpros.com/articles/car-air-conditioner-not-working-or-is-weak

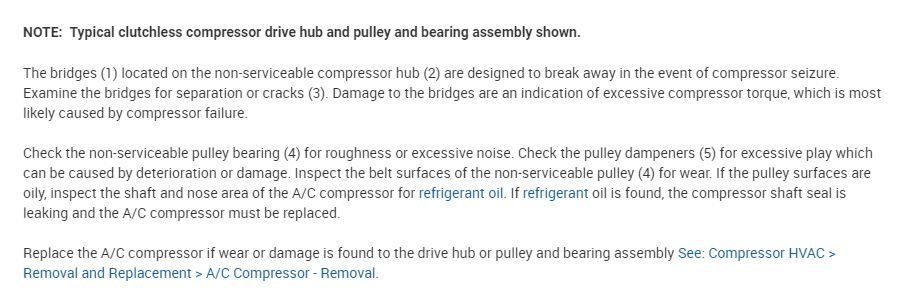

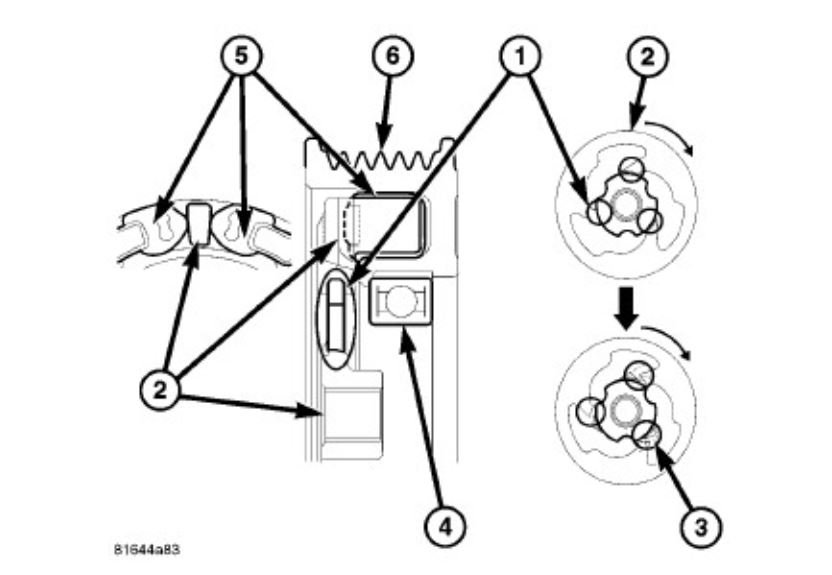

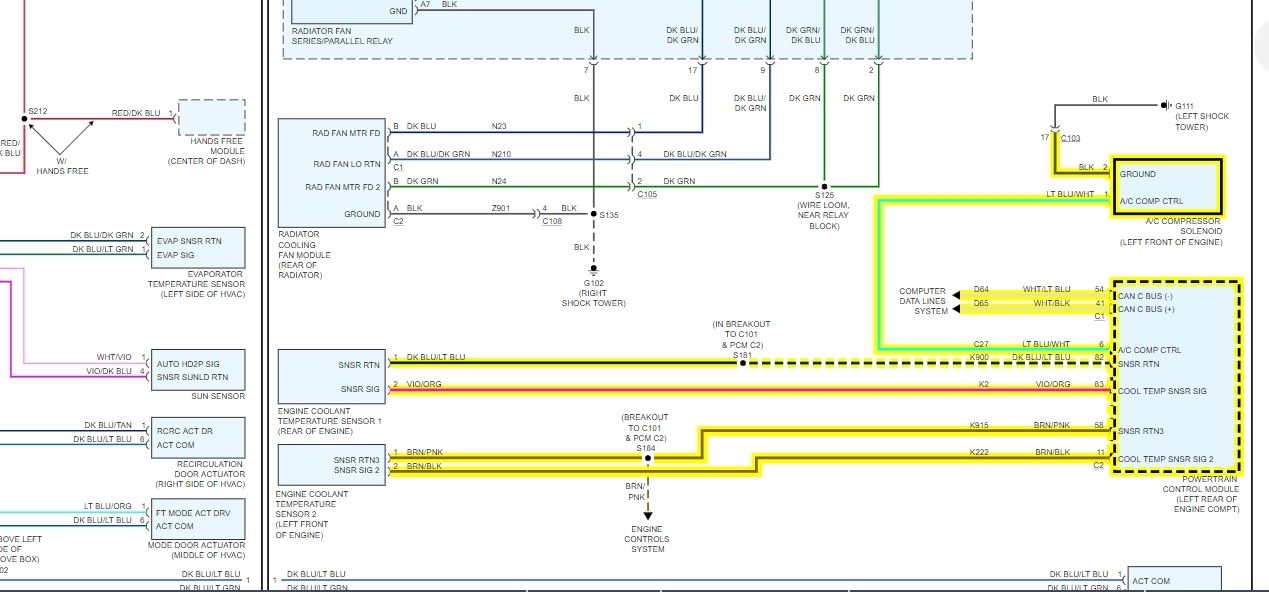

I attached a wiring diagram for you of the system.
https://www.2carpros.com/articles/how-to-check-wiring
Roy
The relay is part of the relay box and is non serviceable.
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit
What is the issue with the A/C system?
https://www.2carpros.com/articles/car-air-conditioner-not-working-or-is-weak
I attached a wiring diagram for you of the system.
https://www.2carpros.com/articles/how-to-check-wiring
Roy
