Easy step by step guide on how an automotive internal combustion engines work, though appearances may vary to concept is the same for most engine.

Step 1
- An internal combustion engine is designed to compress and combust a fuel air mixture which is controlled by the driver.


Automotive Internal Combustion Engine Cutaway

Step 2 - The engine begins by pulling air through the air intake throttle actuator which is controlled via the computer, and foot actuator that is located in the drivers compartment. This air flow is monitored by the mass air flow sensor and cleaned by the air filter.

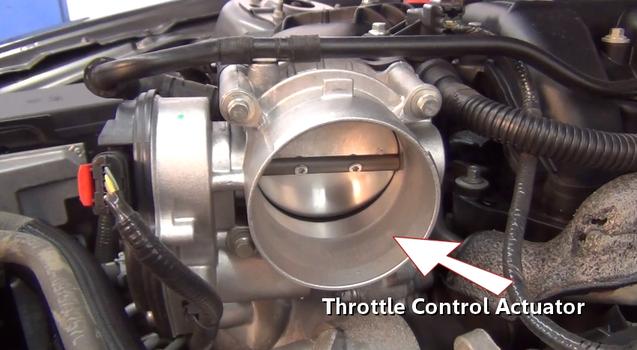

Electronic Throttle Actuator

Step 3 - Once air has passed through the throttle actuator, it enters the intake manifold were it is divided among individual cylinder intake ports.

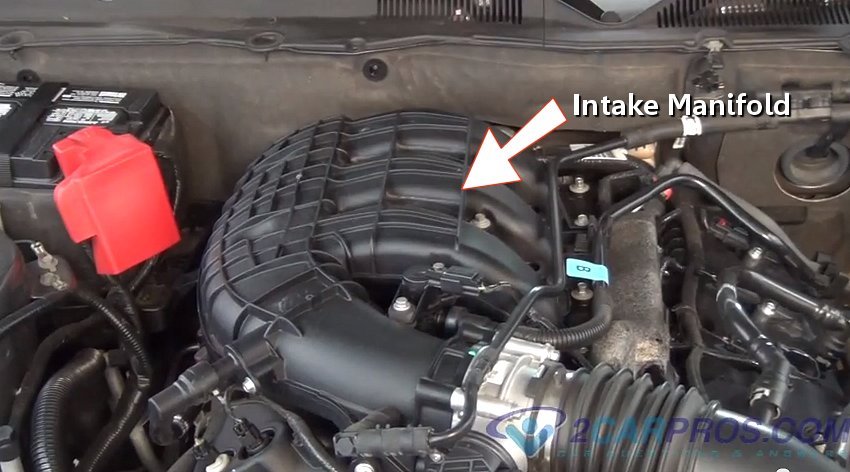

Intake Manifold

Step 4 - Air is then routed through the intake manifold were it enters individual intake ports contained within the cylinder head, which is controlled by a valve (intake.)


Intake Port Cutaway

Step 5 - Fuel enters the intake port or directly into the combustion chamber via a fuel injector which is controlled by the computer.

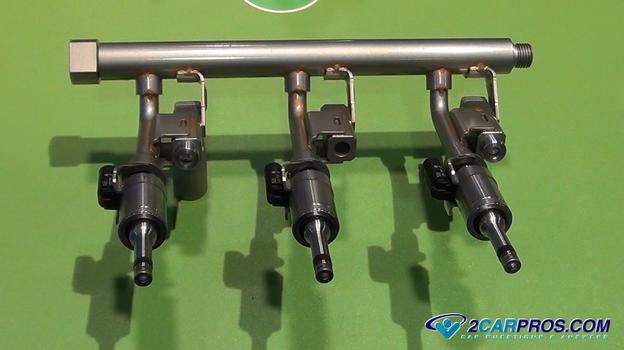

Port Fuel Injector

Step 6 - A camshaft is used to open each valve while it rotates as the engine is operating. A spring returns the valve to the closed position which is called a "valve spring". (Overhead camshaft configuration shown.)

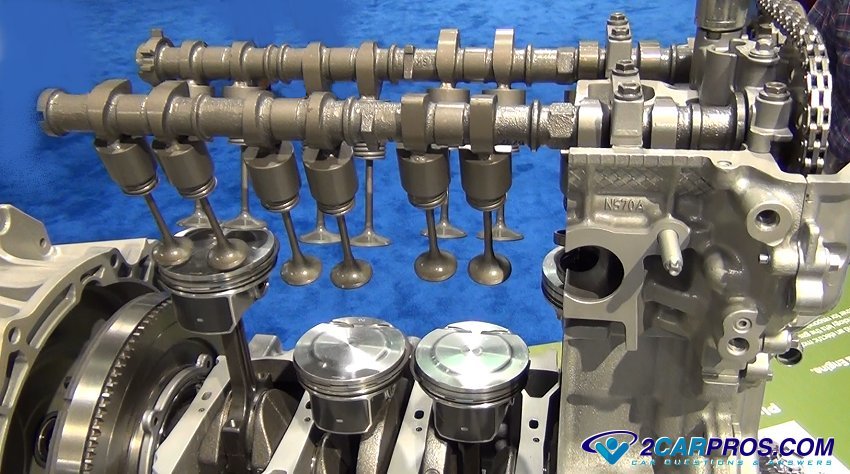

Camshaft

Step 7 - The camshaft is connected to the engine crankshaft via a timing chain. As the crankshaft turns, the chain is pulled while turning the camshaft at a 2 to 1 ratio 2:1. (Crankshaft turns twice to once of the camshaft.) A camshaft actuator is used to control the angle in which the camshaft is positioned compared to the crankshaft. This position is controlled by the computer.

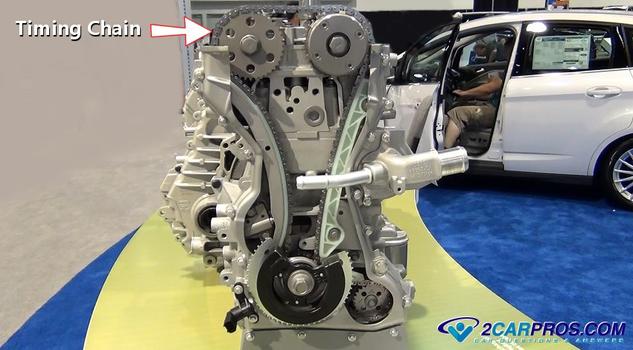

Timing Chain

Step 8 - A timing chain tensioner is used to take up slack which helps keep the chain tensioned. This tensioner is activated by engine oil pressure.


Timing Chain Tensioner

Step 9 - The timing chain is driven at the crankshaft using a drive gear near the front seal and harmonic balancer.


Crankshaft Driven Timing Chain

Step 10 - Once the fuel air mixture has entered the combustion chamber the piston is thrust upward compressing the mixture for ignition.

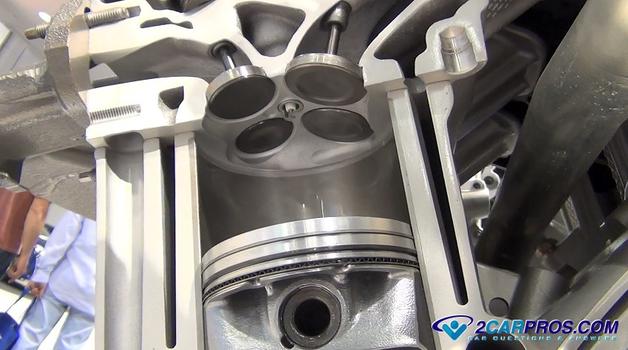

Combustion Chamber Cutaway

Step 11 - After the fuel air mixture is compressed, an ignition coil supplies a high voltage, low amperage charge to the spark plug.

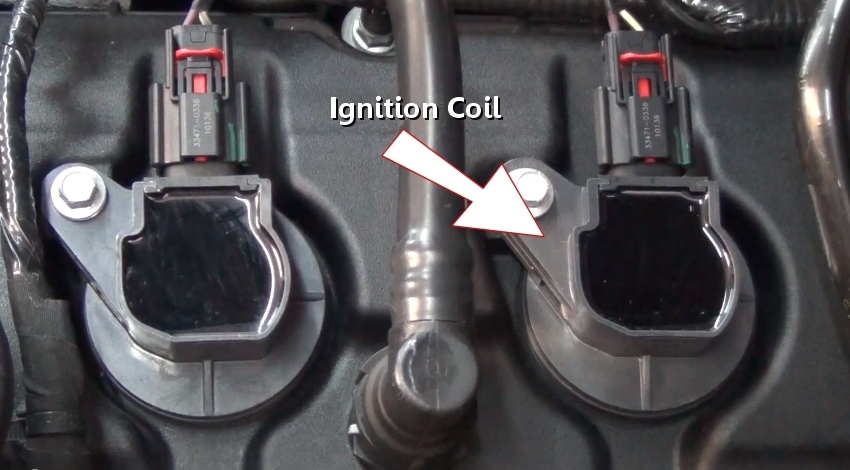

Ignition Coil

Step 12 - This operation is controlled by the computer which gathers data from the crankshaft position sensor (CKS), camshaft angle sensors (CAS) and other various sensors.


Crankshaft Angle Sensor

Step 13 - After this flammable charge has been compressed, an electronic charge crosses the spark plug, igniting the mixture which then forces the piston downward.


Spark Plug (Block and Cylinder Head Cutaway)

Step 14 - As the piston is thrusting downward the energy is contained within the crankshaft via the piston rods.


Pistons (Engine Block Cutaway)

Step 15 - The piston rod is designed to transfer energy to a rotating crankshaft which is created by the piston.

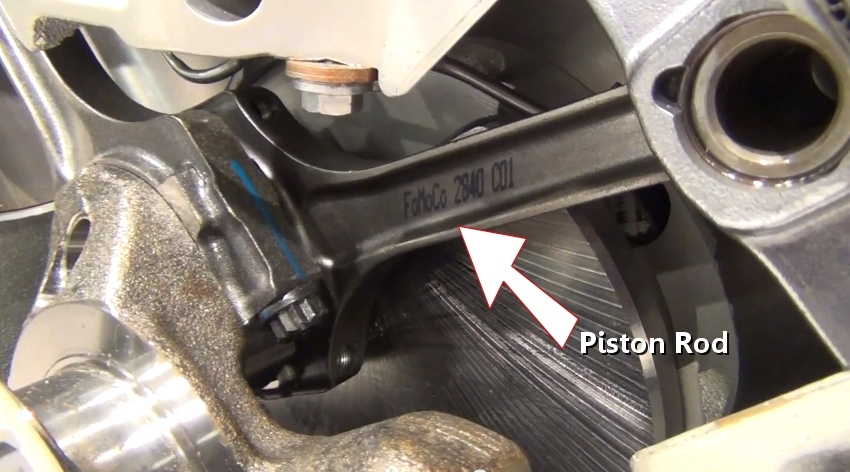

Piston Rod

Step 16 - The crankshaft is supported along the engine block and each piston rod attaches to it. Bearings, which are oiled, are then fitted between rotating surfaces.

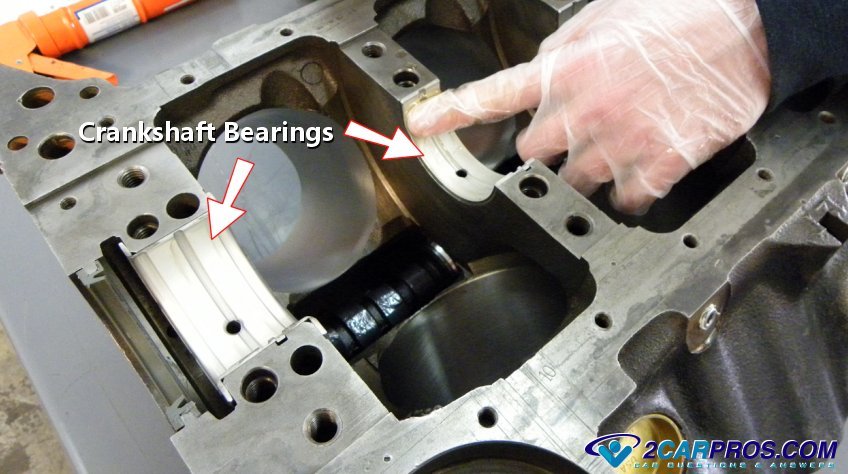

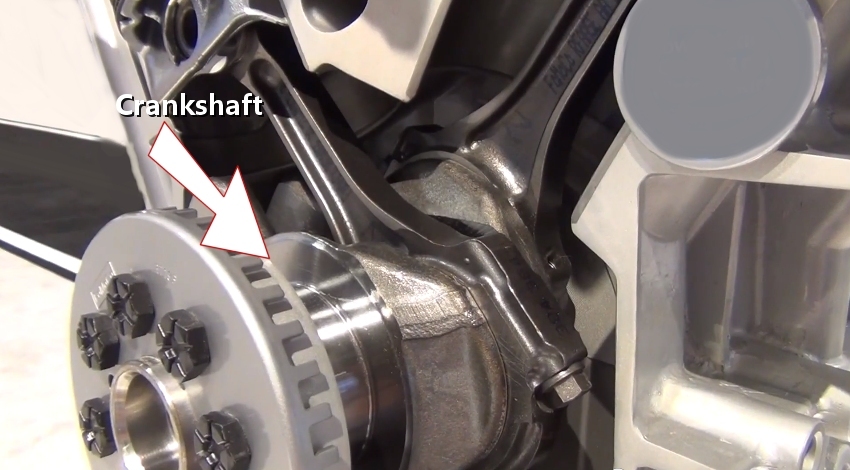

Crankshaft (Block Cutaway)

Step 17 - Once the intake charge has been spent, the exhaust valve opens while the piston is thrust upward, forcing exhaust gases to be removed from the cylinder and into the exhaust manifold.


Exhaust Valves (Block - Cylinder Head Cutaway)

Step 18 - While the crankshaft is rotating seals are used to control motor oil from leaking from the engine oiling system.


Front Crankshaft Seal

Step 19 - An oil pump is driven from the crankshaft or camshaft and is located in or near the oil pan of the engine. This pump circulates oil under pressure throughout the engine to prevent heat through lubrication among bearing and piston surfaces.

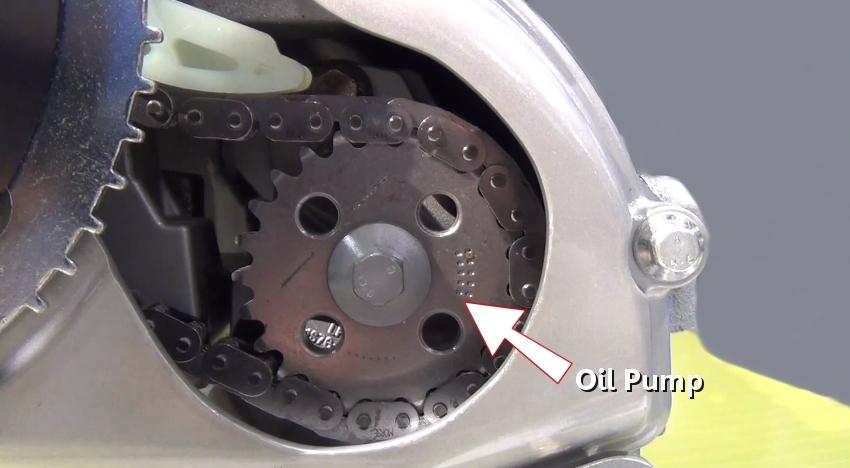

Oil Pump

Step 20 - Oil pressure is monitored by an oil pressure sender, oil is also cleaned by and oil filter which should be serviced regularly.


Oil Pressure Sender with Filter

Step 21 - Coolant is used to cool the engine while in operation. A thermostat is used to stop the coolant from flowing to the radiator until the engine is at operating temperature.


Coolant Thermostat

Step 22 - A water pump is used to circulate coolant throughout the block, cylinder head and cooling system.

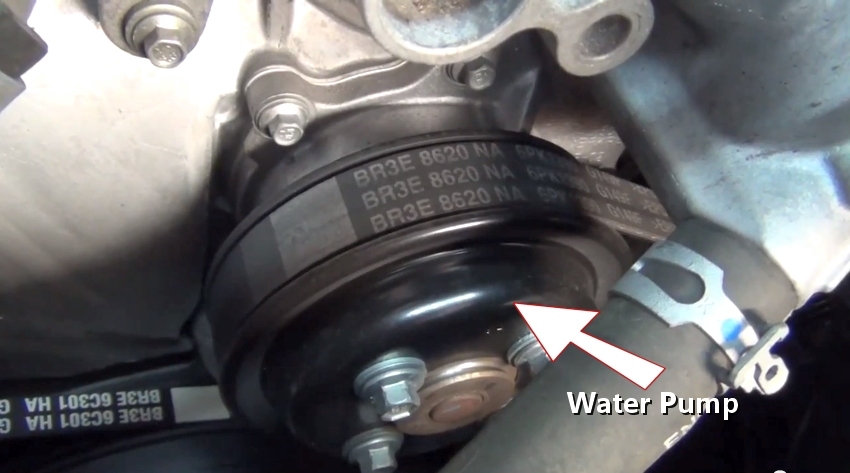

Water Pump

Step 23 - Together these parts create the engine which rotates while consuming fuel.

Engine Operating (Animation)

Helpful Information

Engine's are designed to have any number of cylinders and are created in all sizes. The pistons are designed to fire consecutively to rotate the crankshaft inside the engine block. Motor oil is used to cool and lubricate internal engine parts including the crankshaft, camshaft, cylinders, pistons, piston rings, wrist pin, lifters, rock arm, followers, intake and exhaust valves, timing gears and chain. The oil then travels back into the oil pan creating a recirculation system. The oil pump determines the amount of oil pressure the engine will have via a pressure spring fitted into a relief valve of the pump.

There are primarily two styles of valve train systems, "overhead cam" which consists of a camshaft mounted on top of the cylinder head, and  "in block" systems which consist of a camshaft mounted inside the engine block, designs to perform this action will vary depending manufacturer. The cylinder head is bolted to the engine block using a gasket to seal the engine parts together.

An engine's power output rating is known as horsepower, which has been rated differently in the past. A more standardized system is used today. Acceleration is the process of changing the rate of velocity or movement of a vehicle, when a turbocharger or supercharger accompanies the engine, it increases the rate of acceleration by increasing horsepower.

The compression ratio of an engine is the measurement of how many times the volume of the combustion chamber can be fitted into the cylinder when the piston is at the bottom of its stroke. The compression ratio determines the octane required for optimum performance and dictates the rate in which fuel that can be compressed without self igniting. If self ignition does occur, its represented by an engine "ping" or "knock" sound. Manufacturers create automobiles with improved horsepower and lighter, stronger construction. This combination improves vehicle performance with increased mileage. The measurement of horsepower has been successfully used to motivate car buyers.

History

Horsepower was first conceptualized by James Watt, in 1782. This well known 19th century engineer developed the term while observing a horse working on a treadmill. With some calculations, he determined one unit of horsepower was equal to a specific amount of work a horse could perform in a given amount of time. This method similar to calculations used today.

Watt associated this new term to describe the power of a steam engine which would be used for farming.

Common Problems

  • Neglect of scheduled oil changes result in premature engine failures
  • Cooling system neglect causing overheating resulting in premature engine failures
