Fuse box diagram

Tiny
JON ALEXANDER
  • 2005 FORD FREESTAR

Electrical problem
2005 Ford Freestar 6 cyl Two Wheel Drive Automatic 90000 miles

where in the car is the flasher for turn signal hidden

Do you
have the same problem?
Yes
No
Sunday, May 23rd, 2010 AT 10:40 PM

3 Replies

Tiny
RASMATAZ
  • MEMBER


http://www.2carpros.com/forum/automotive_pictures/12900_sjb_1.jpg

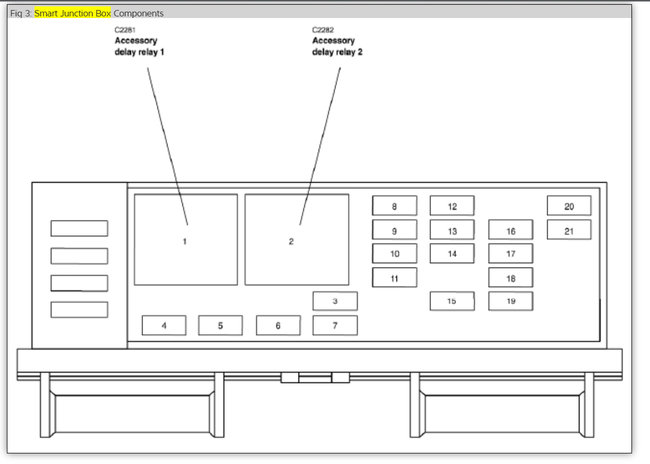

The flasher function for this vehicle is provided by the Smart Junction Box.

Note: The fuse panel is located below and to the left of the steering wheel by the brake pedal.

Was this
answer
helpful?
Yes
No
Monday, May 24th, 2010 AT 12:22 AM
Tiny
WISDOMCB
  • MEMBER

I pulled that "smart Junction" module with the hazard lights engaged and they still ticked on and off regardless, turn signals too.

The actual "tic-toc sound" is coming from near the instrument panel and that's the module I am looking for, but can't seem to grab it to install my EP27L Led module. It's not floor level or by my knees or with the box with the smart junction modules. Do I need to remove the instrument panel to get to the "tic-toc'ing" module?

Was this
answer
helpful?
Yes
No
Friday, October 23rd, 2015 AT 3:34 PM
Tiny
2CARPROS KEN
  • ADMIN
  • 7,612 POSTS

Hello,

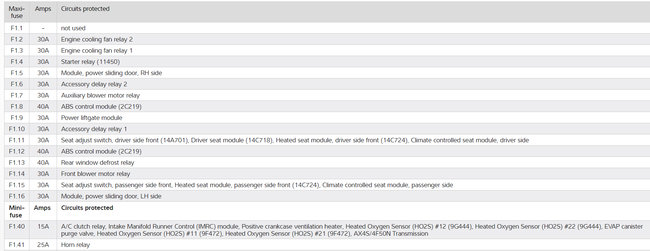

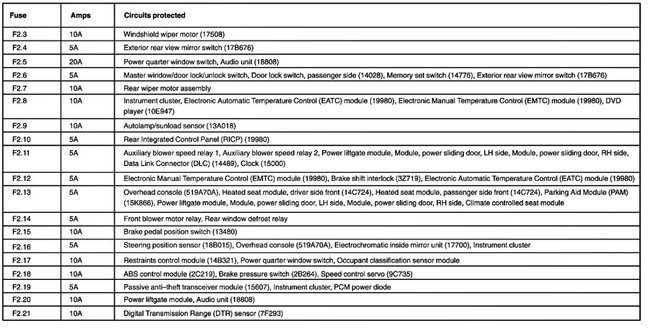

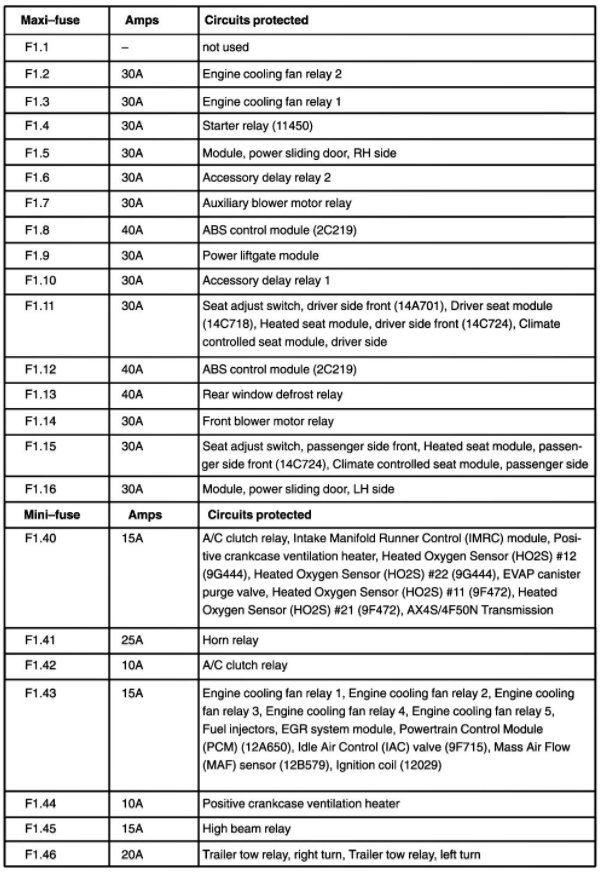

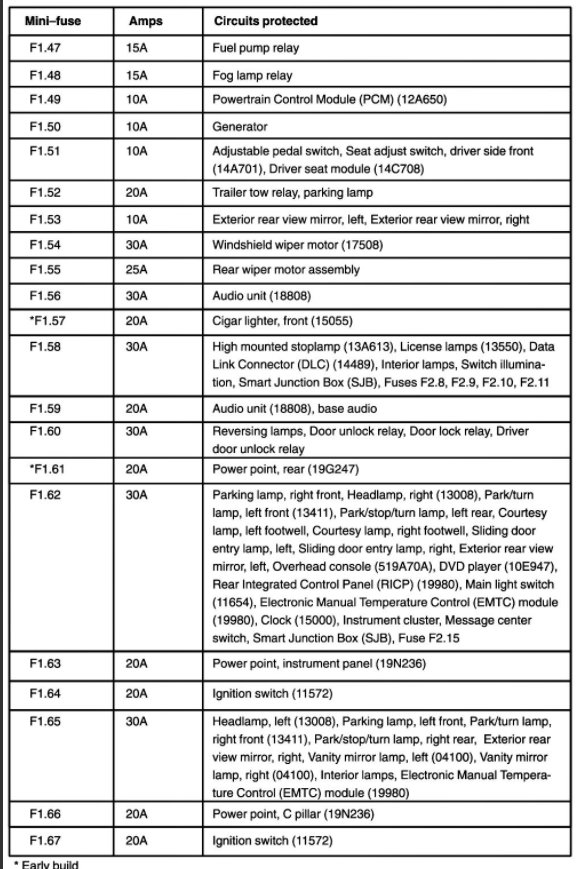

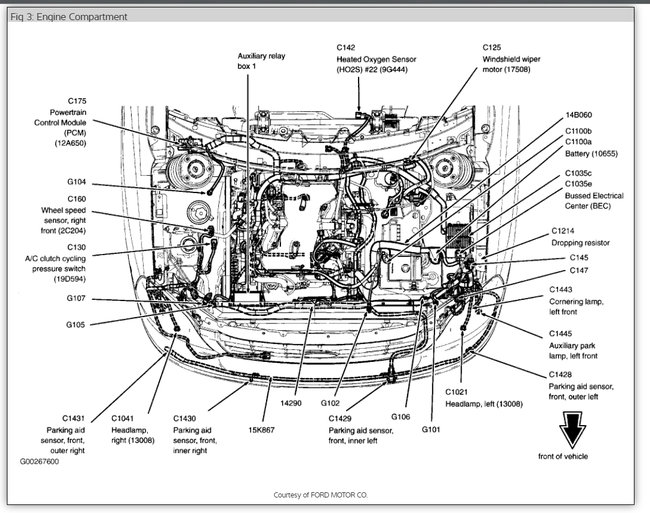

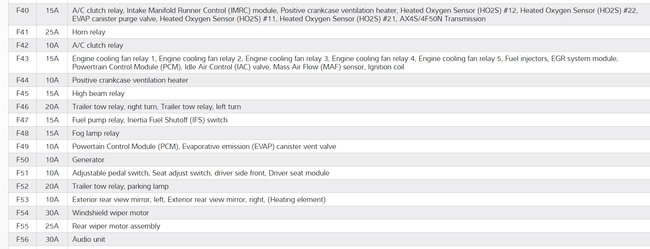

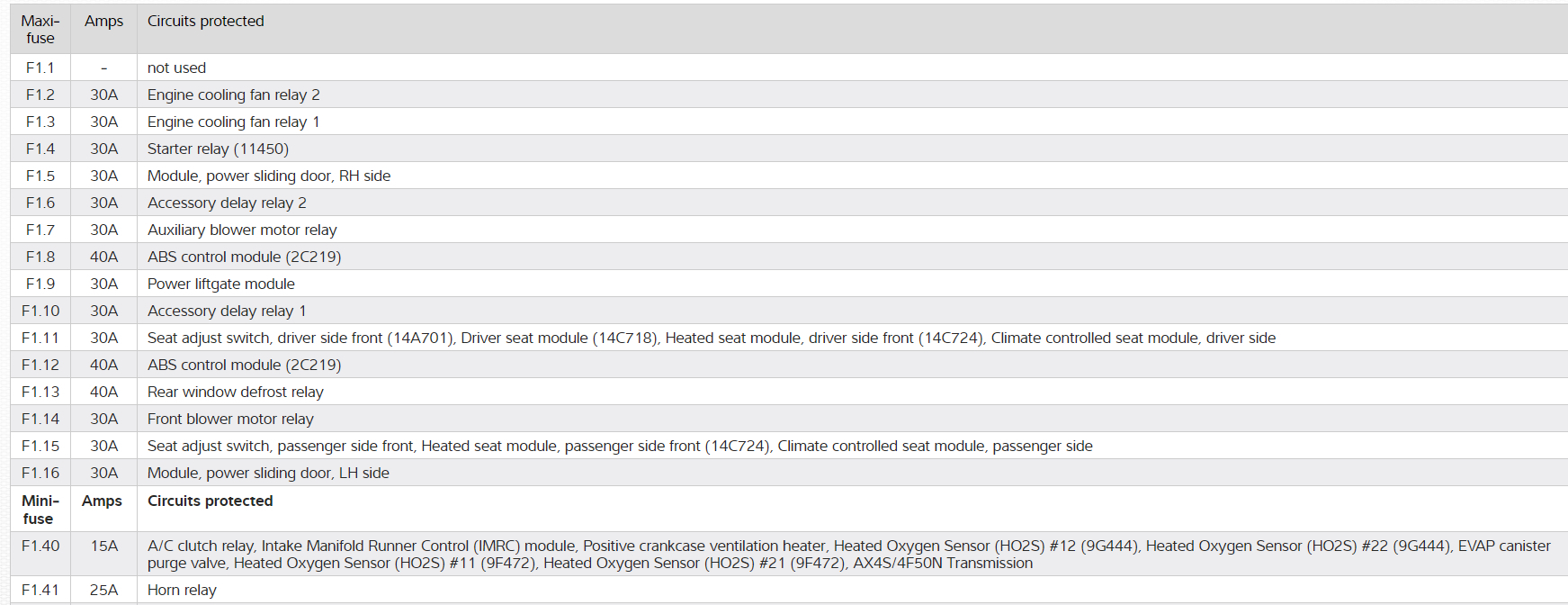

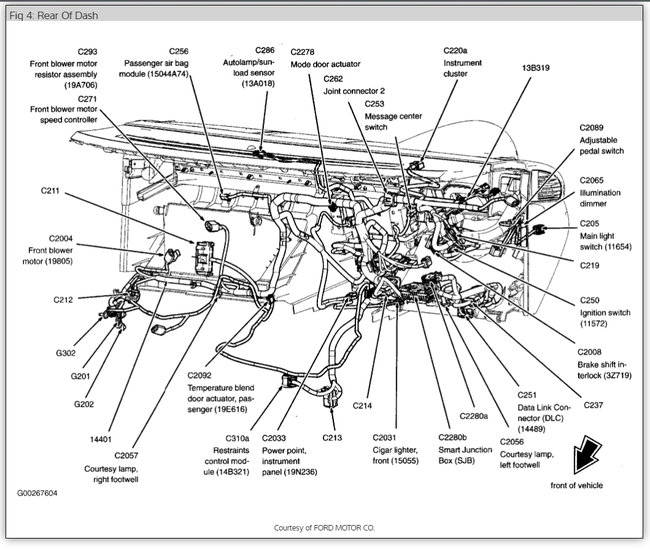

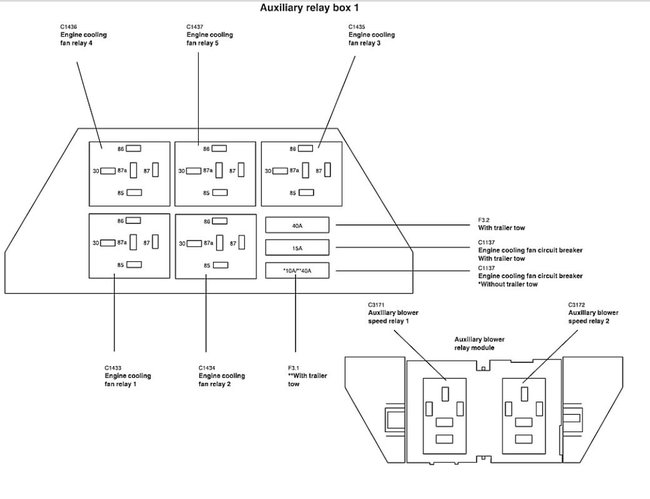

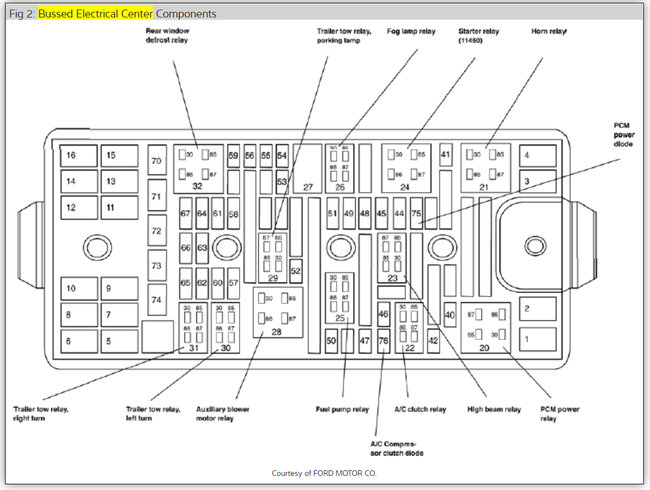

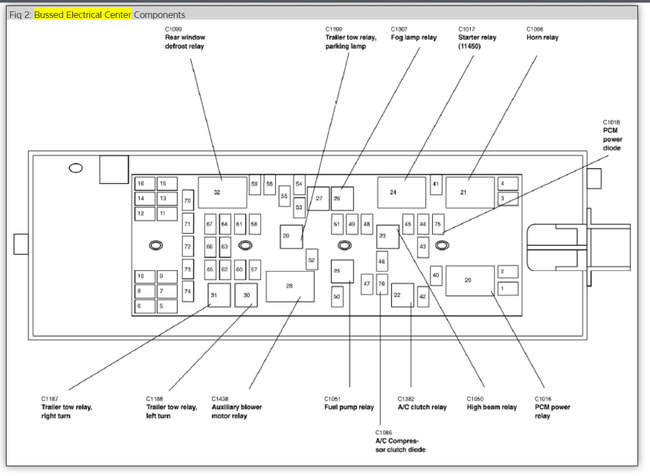

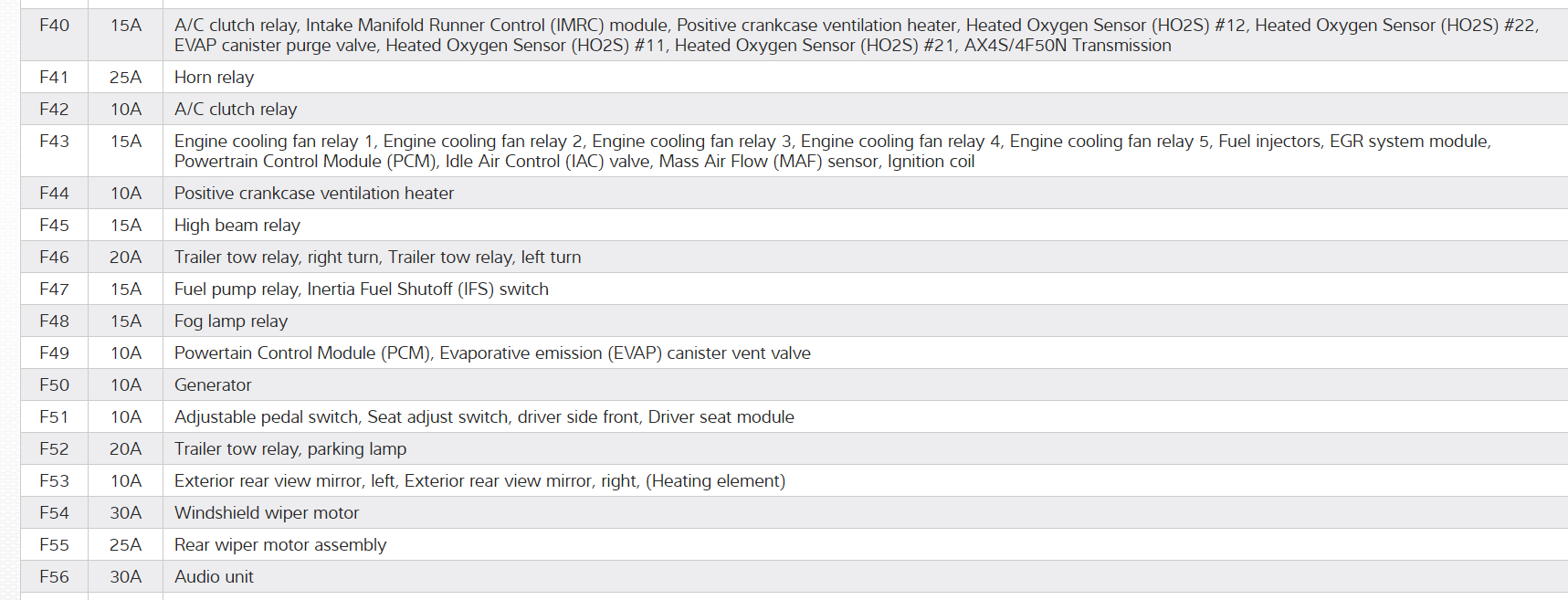

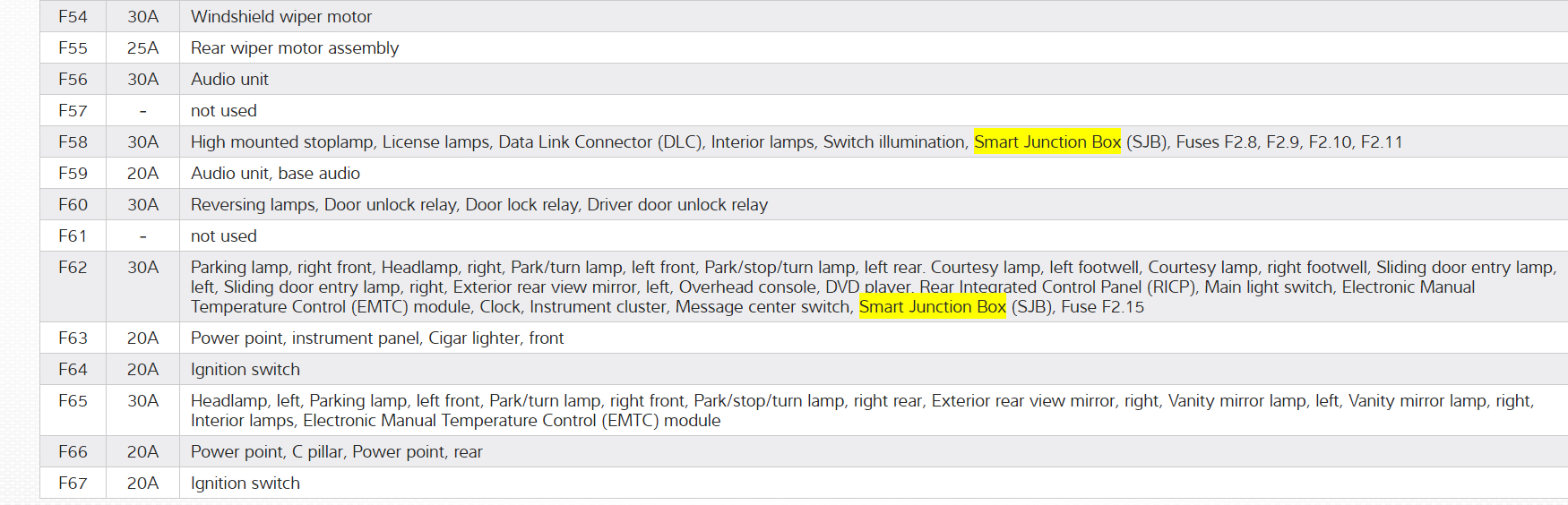

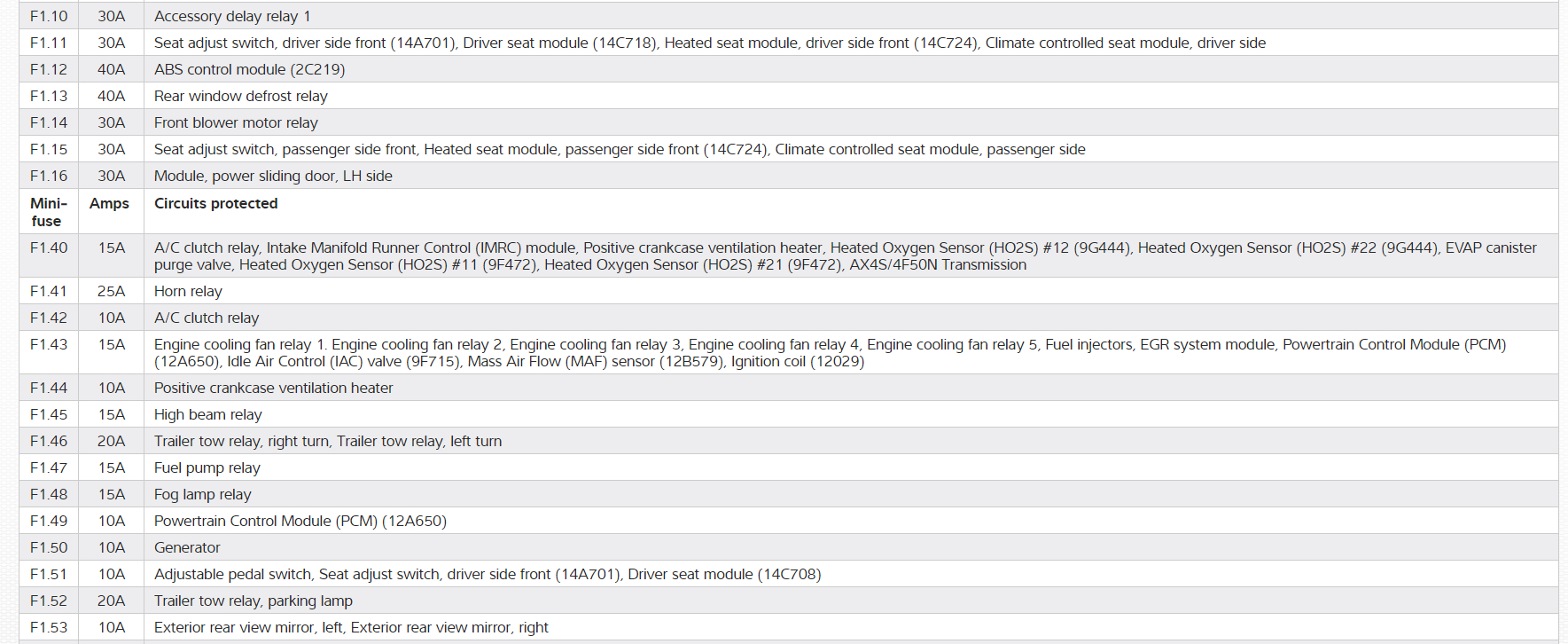

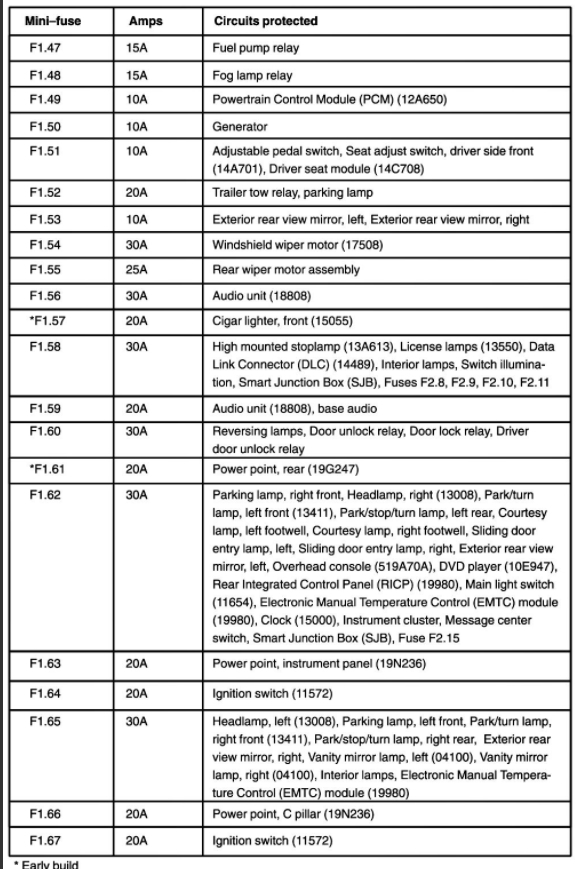

I have found a full fuse, fuse box and relay diagrams (BELOW)

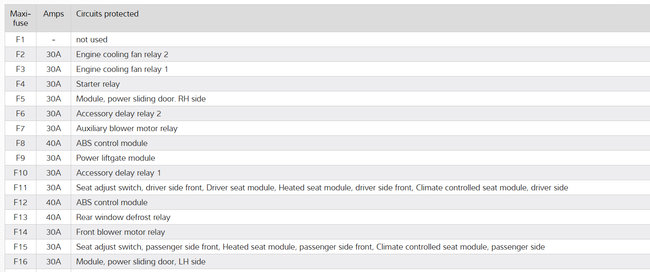

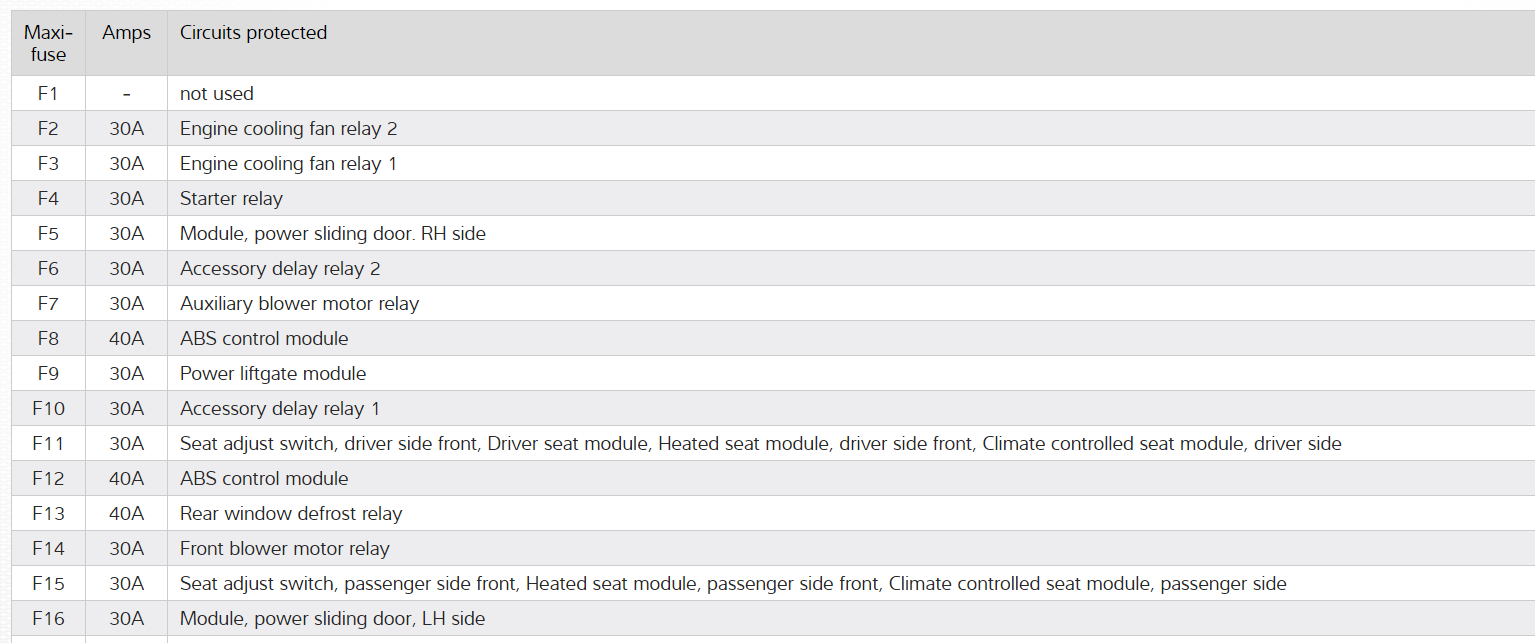

F1.1 - not used
F1.2 30A Engine cooling fan relay 2
F1.3 30A Engine cooling fan relay 1
F1.4 30A Starter relay (11450)
F1.5 30A Module, power sliding door, RH side
F1.6 30A Accessory delay relay 2
F1.7 30A Auxiliary blower motor relay
F1.8 40A ABS control module (2C219)
F1.9 30A Power liftgate module
F1.10 30A Accessory delay relay 1
F1.11 30A Seat adjust switch, driver side front (14A701), Driver seat module (14C718), Heated seat module, driver side front (14C724), Climate controlled seat module, driver side
F1.12 40A ABS control module (2C219)
F1.13 40A Rear window defrost relay
F1.14 30A Front blower motor relay
F1.15 30A Seat adjust switch, passenger side front, Heated seat module, passenger side front (14C724), Climate controlled seat module, passenger side
F1.16 30A Module, power sliding door, LH side
Mini-fuse Amps Circuits protected

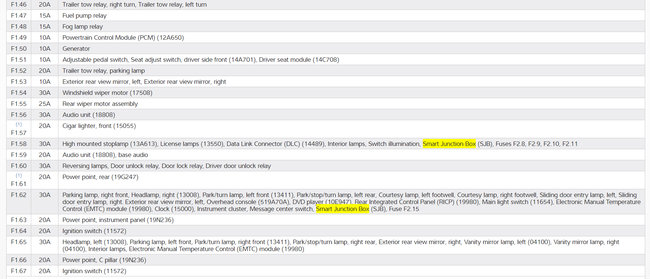

F1.40 15A A/C clutch relay, Intake Manifold Runner Control (IMRC) module, Positive crankcase ventilation heater, Heated Oxygen Sensor (HO2S) #12 (9G444), Heated Oxygen Sensor (HO2S) #22 (9G444), EVAP canister purge valve, Heated Oxygen Sensor (HO2S) #11 (9F472), Heated Oxygen Sensor (HO2S) #21 (9F472), AX4S/4F50N Transmission
F1.41 25A Horn relay
F1.42 10A A/C clutch relay
F1.43 15A Engine cooling fan relay 1. Engine cooling fan relay 2, Engine cooling fan relay 3, Engine cooling fan relay 4, Engine cooling fan relay 5, Fuel injectors, EGR system module, Powertrain Control Module (PCM) (12A650), Idle Air Control (IAC) valve (9F715), Mass Air Flow (MAF) sensor (12B579), Ignition coil (12029)
F1.44 10A Positive crankcase ventilation heater
F1.45 15A High beam relay
F1.46 20A Trailer tow relay, right turn, Trailer tow relay, left turn
F1.47 15A Fuel pump relay
F1.48 15A Fog lamp relay
F1.49 10A Powertrain Control Module (PCM) (12A650)
F1.50 10A Generator
F1.51 10A Adjustable pedal switch, Seat adjust switch, driver side front (14A701), Driver seat module (14C708)
F1.52 20A Trailer tow relay, parking lamp
F1.53 10A Exterior rear view mirror, left, Exterior rear view mirror, right
F1.54 30A Windshield wiper motor (17508)
F1.55 25A Rear wiper motor assembly
F1.56 30A Audio unit (18808)
(1) F1.57 20A Cigar lighter, front (15055)
F1.58 30A High mounted stoplamp (13A613), License lamps (13550), Data Link Connector (DLC) (14489), Interior lamps, Switch illumination, Smart Junction Box (SJB), Fuses F2.8, F2.9, F2.10, F2.11
F1.59 20A Audio unit (18808), base audio
F1.60 30A Reversing lamps, Door unlock relay, Door lock relay, Driver door unlock relay
(1) F1.61 20A Power point, rear (19G247)
F1.62 30A Parking lamp, right front, Headlamp, right (13008), Park/turn lamp, left front (13411), Park/stop/turn lamp, left rear, Courtesy lamp, left footwell, Courtesy lamp, right footwell, Sliding door entry lamp, left, Sliding door entry lamp, right. Exterior rear view mirror, left, Overhead console (519A70A), DVD player (10E947), Rear Integrated Control Panel (RICP) (19980), Main light switch (11654), Electronic Manual Temperature Control (EMTC) module (19980), Clock (15000), Instrument cluster, Message center switch, Smart Junction Box (SJB), Fuse F2.15
F1.63 20A Power point, instrument panel (19N236)
F1.64 20A Ignition switch (11572)
F1.65 30A Headlamp, left (13008), Parking lamp, left front, Park/turn lamp, right front (13411), Park/stop/turn lamp, right rear, Exterior rear view mirror, right, Vanity mirror lamp, left (04100), Vanity mirror lamp, right (04100), Interior lamps, Electronic Manual Temperature Control (EMTC) module (19980)
F1.66 20A Power point, C pillar (19N236)
F1.67 20A Ignition switch (11572)

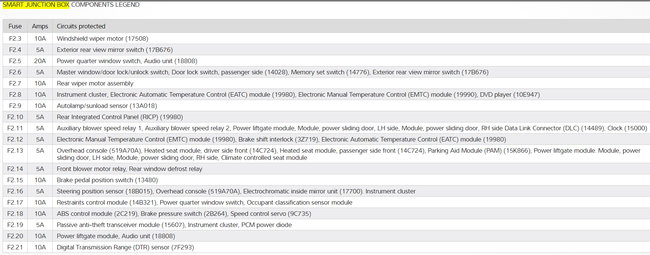

F2.3 10A Windshield wiper motor (17508)
F2.4 5A Exterior rear view mirror switch (17B676)
F2.5 20A Power quarter window switch, Audio unit (18808)
F2.6 5A Master window/door lock/unlock switch, Door lock switch, passenger side (14028), Memory set switch (14776), Exterior rear view mirror switch (17B676)
F2.7 10A Rear wiper motor assembly
F2.8 10A Instrument cluster, Electronic Automatic Temperature Control (EATC) module (19980), Electronic Manual Temperature Control (EMTC) module (19990), DVD player (10E947)
F2.9 10A Autolamp/sunload sensor (13A018)
F2.10 5A Rear Integrated Control Panel (RICP) (19980)
F2.11 5A Auxiliary blower speed relay 1, Auxiliary blower speed relay 2, Power liftgate module, Module, power sliding door, LH side, Module, power sliding door, RH side Data Link Connector (DLC) (14489), Clock (15000)
F2.12 5A Electronic Manual Temperature Control (EMTC) module (19980), Brake shift interlock (3Z719), Electronic Automatic Temperature Control (EATC) module (19980)
F2.13 5A Overhead console (519A70A), Heated seat module, driver side front (14C724), Heated seat module, passenger side front (14C724), Parking Aid Module (PAM) (15K866), Power liftgate module. Module, power sliding door, LH side, Module, power sliding door, RH side, Climate controlled seat module
F2.14 5A Front blower motor relay, Rear window defrost relay
F2.15 10A Brake pedal position switch (13480)
F2.16 5A Steering position sensor (18B015), Overhead console (519A70A), Electrochromatic inside mirror unit (17700). Instrument cluster
F2.17 10A Restraints control module (14B321), Power quarter window switch, Occupant classification sensor module
F2.18 10A ABS control module (2C219), Brake pressure switch (2B264), Speed control servo (9C735)
F2.19 5A Passive anti-theft transceiver module (15607), Instrument cluster, PCM power diode
F2.20 10A Power liftgate module, Audio unit (18808)
F2.21 10A Digital Transmission Range (DTR) sensor (7F293)

Please let us know if you need anything else to get the problem fixed.
