2001 Chrysler Sebring timing and CAM shaft marks

Tiny
J2420629
  • MEMBER
  • 2001 CHRYSLER SEBRING
  • 6 CYL
  • FWD
  • AUTOMATIC
  • 98,000 MILES
Hello I am working on my car and I was wondering if you could tell me or if you have a diagram of the timing chain diagram and the cam chain diagram im
Image (Click to make bigger)
Thumb
Sunday, October 17th, 2010 AT 7:32 PM

2 Replies

Tiny
BMRFIXIT
  • MECHANIC
  • 19,053 POSTS
V6 3.0SOHC

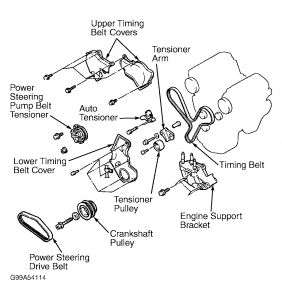

https://www.2carpros.com/forum/automotive_pictures/99387_1_35.jpg

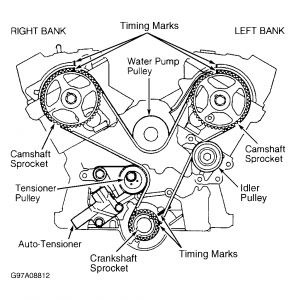

https://www.2carpros.com/forum/automotive_pictures/99387_2_15.jpg

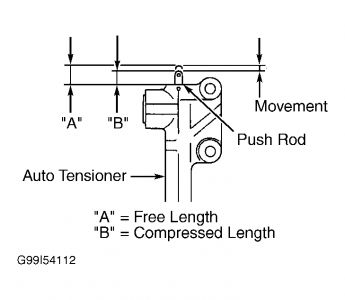

https://www.2carpros.com/forum/automotive_pictures/99387_3_11.jpg

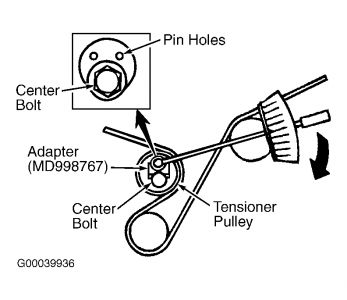

https://www.2carpros.com/forum/automotive_pictures/99387_4_7.jpg

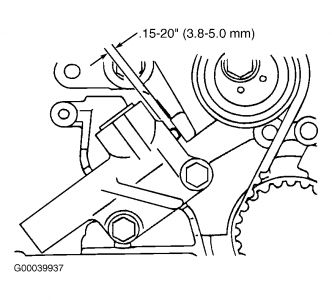

https://www.2carpros.com/forum/automotive_pictures/99387_5_2.jpg

SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Tuesday, July 30th, 2019 AT 4:07 PM
Tiny
BMRFIXIT
  • MECHANIC
  • 19,053 POSTS
V6 2.7L

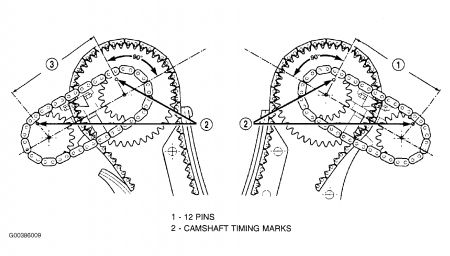

https://www.2carpros.com/forum/automotive_pictures/99387_1_36.jpg

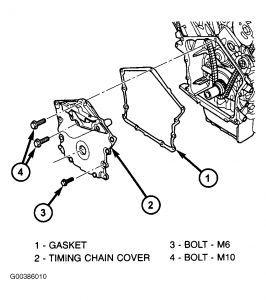

https://www.2carpros.com/forum/automotive_pictures/99387_2_16.jpg

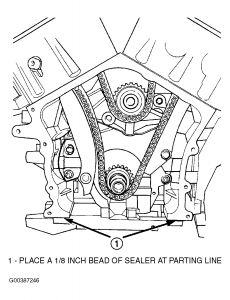

https://www.2carpros.com/forum/automotive_pictures/99387_3_12.jpg

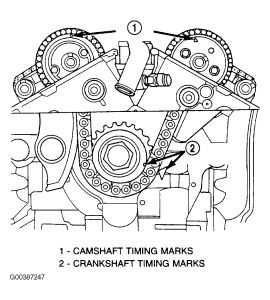

https://www.2carpros.com/forum/automotive_pictures/99387_4_8.jpg

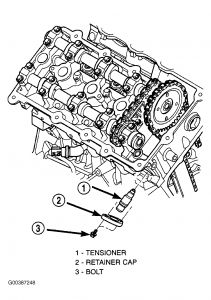

https://www.2carpros.com/forum/automotive_pictures/99387_5_3.jpg

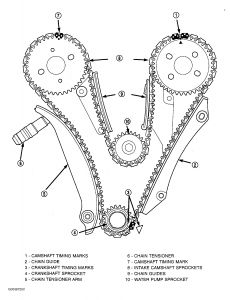

https://www.2carpros.com/forum/automotive_pictures/99387_6_2.jpg

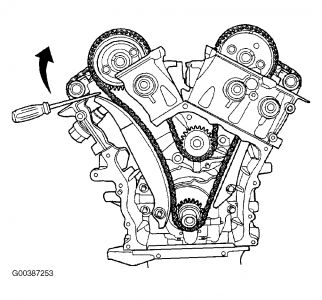

https://www.2carpros.com/forum/automotive_pictures/99387_7_2.jpg

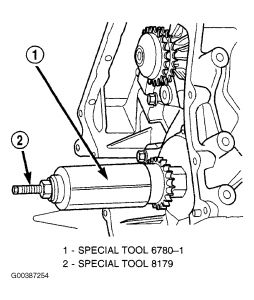

https://www.2carpros.com/forum/automotive_pictures/99387_8_2.jpg

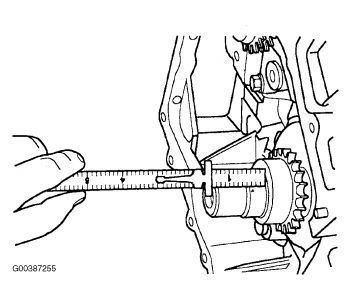

https://www.2carpros.com/forum/automotive_pictures/99387_9_2.jpg

Was this
answer
helpful?
Yes
No
+2
Tuesday, July 30th, 2019 AT 4:07 PM
