Backup camera wiring diagram needed

G

MEMBER
2006 LEXUS GS 300
6 CYL
2WD
AUTOMATIC
168,000 MILES

Hi,

I had my backup cam working but I can't remember how I did it. I had to remove a faulty fuse box.
Now I am trying to rewire it to a phoenix px6 tablet screen.
need help finding the correct wires.

Thanks

Wednesday, March 2nd, 2022 AT 8:47 AM

1 Reply

KASEKENNY

MECHANIC
18,907 POSTS

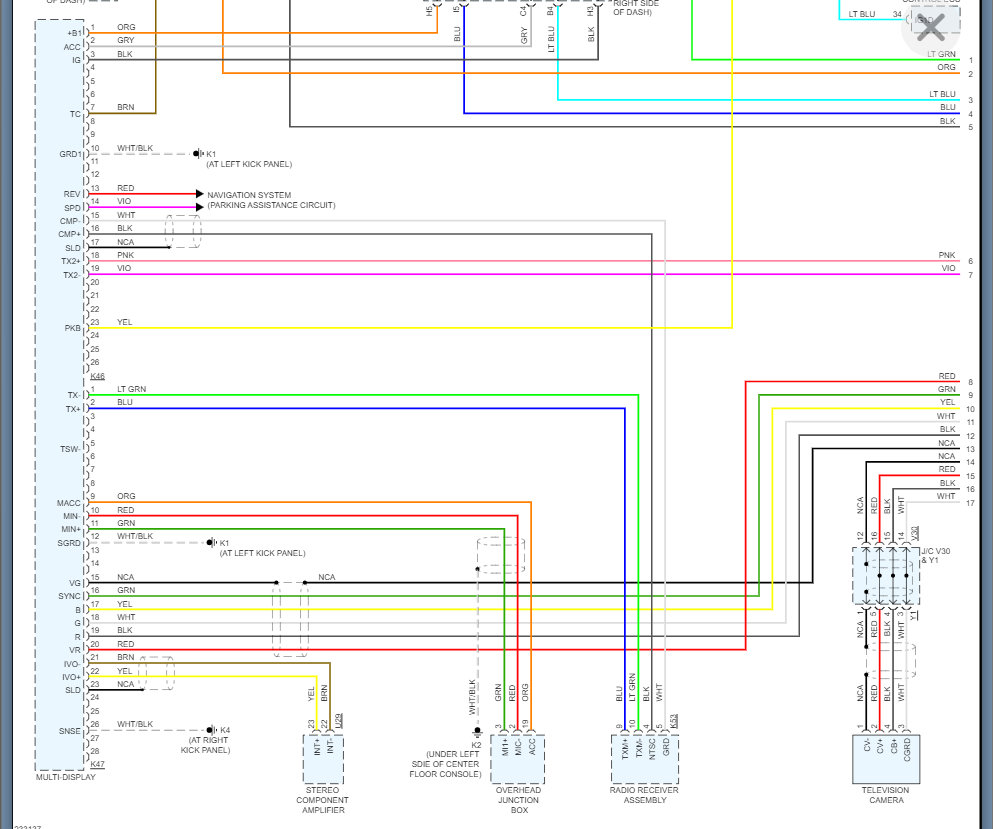

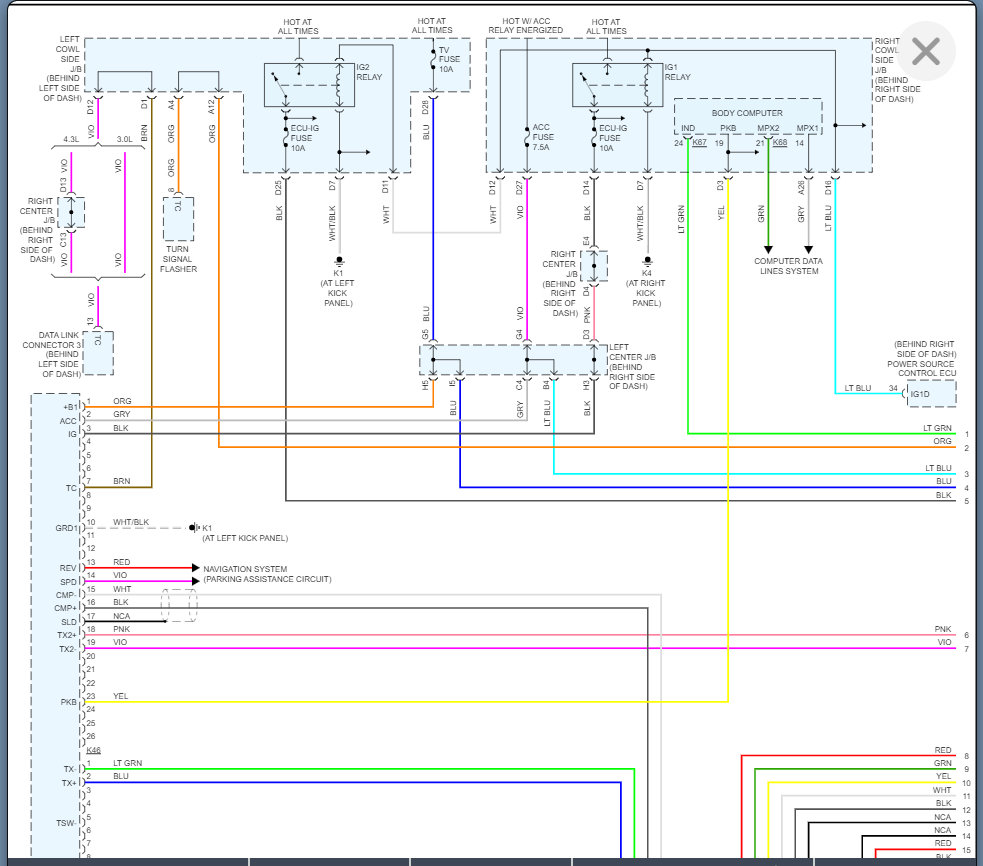

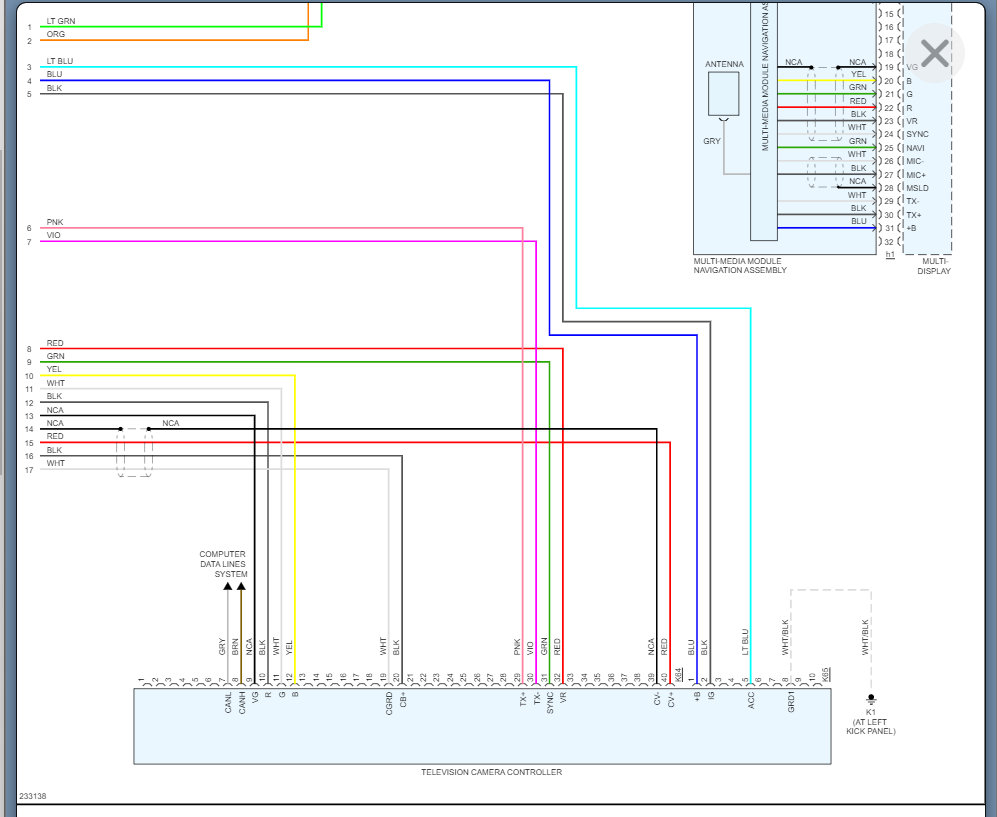

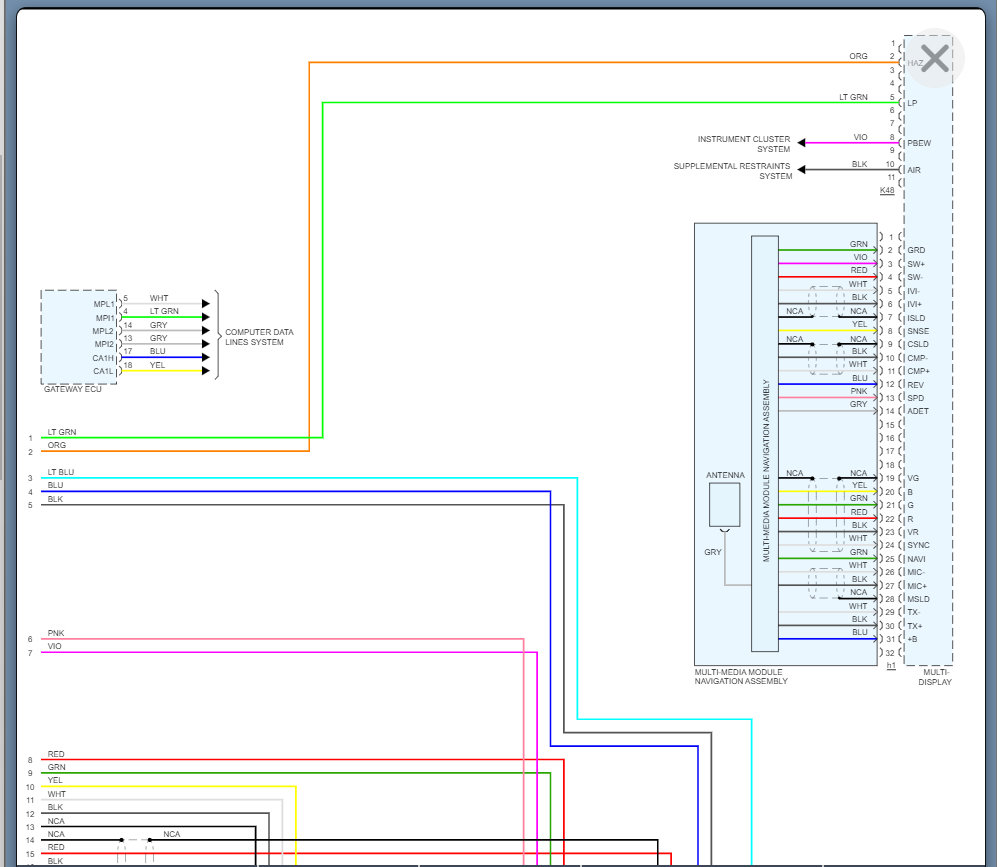

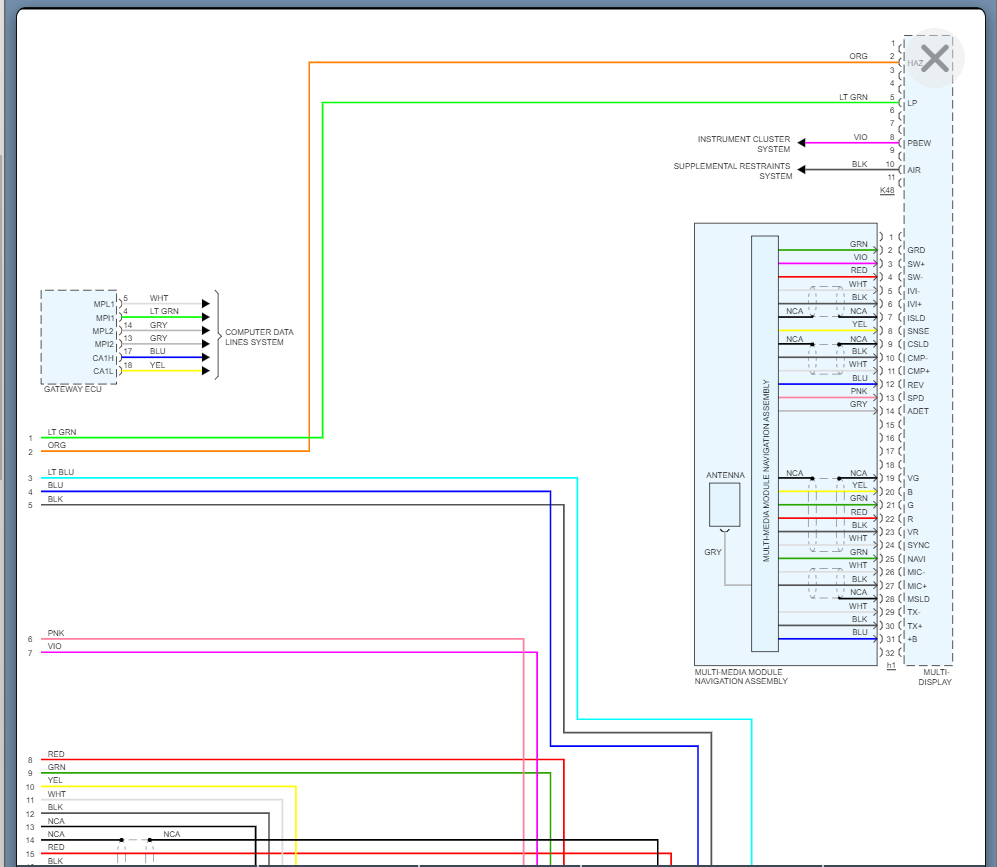

Sure. I provided the wiring diagram below for the entire navigation system as this is part of this system.

Here are a couple of guides that will help with this in case you need it:

https://www.2carpros.com/articles/how-to-check-wiring

https://www.2carpros.com/articles/how-to-use-a-voltmeter

Please see the attached info below and let us know if you need more info.

Thanks

Images (Click to make bigger)
