Can I get an engine wiring diagram for a C24SE, KB240 2005 petrol engine?

EMMANUELNGANDU

MEMBER
2005 ISUZU KB280
2.7L
4 CYL
2WD
MANUAL
152,342 MILES

Anyone with a wiring diagram for Isuzu, engine C24SE, KB240 2005 petrol engine?

Thursday, August 18th, 2022 AT 3:36 AM

3 Replies

KEN L

MASTER CERTIFIED MECHANIC
42,959 POSTS

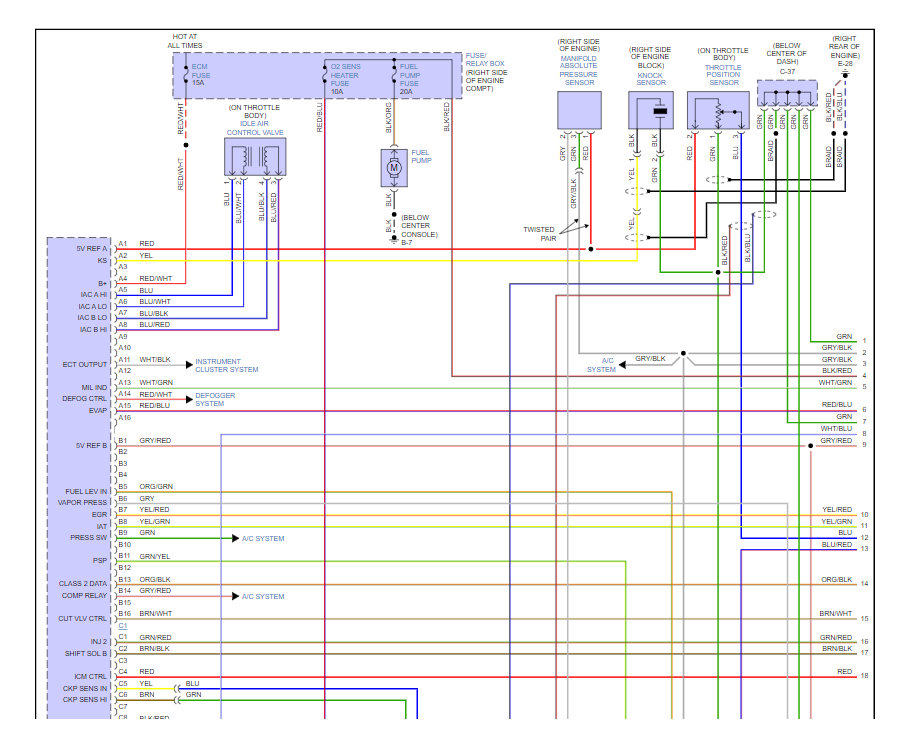

Here are the wiring diagrams they list for a 4 cylinder engine and a guide to help you test the connections:

https://www.2carpros.com/articles/how-to-check-wiring

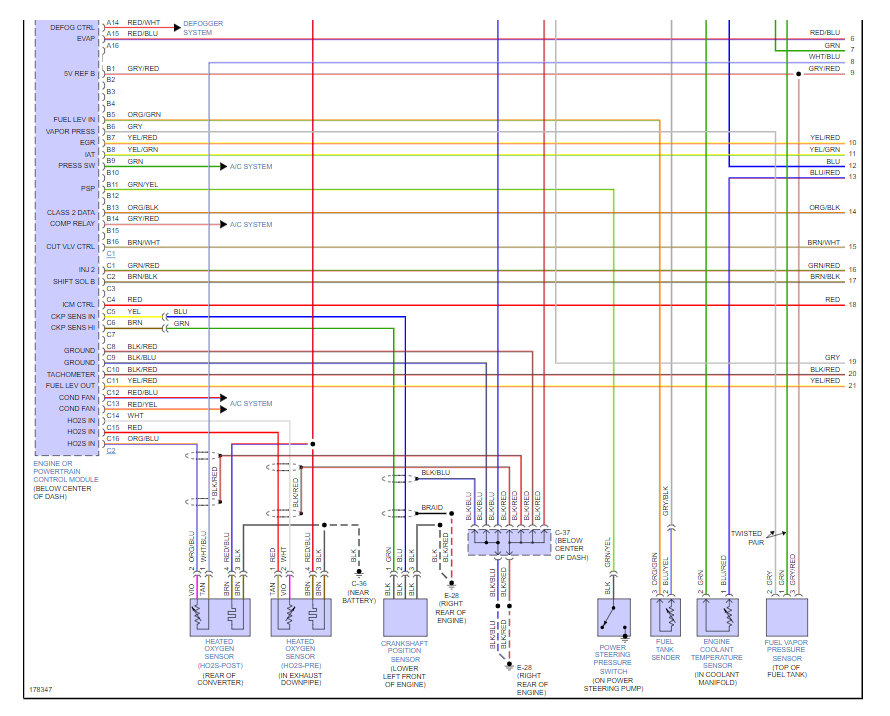

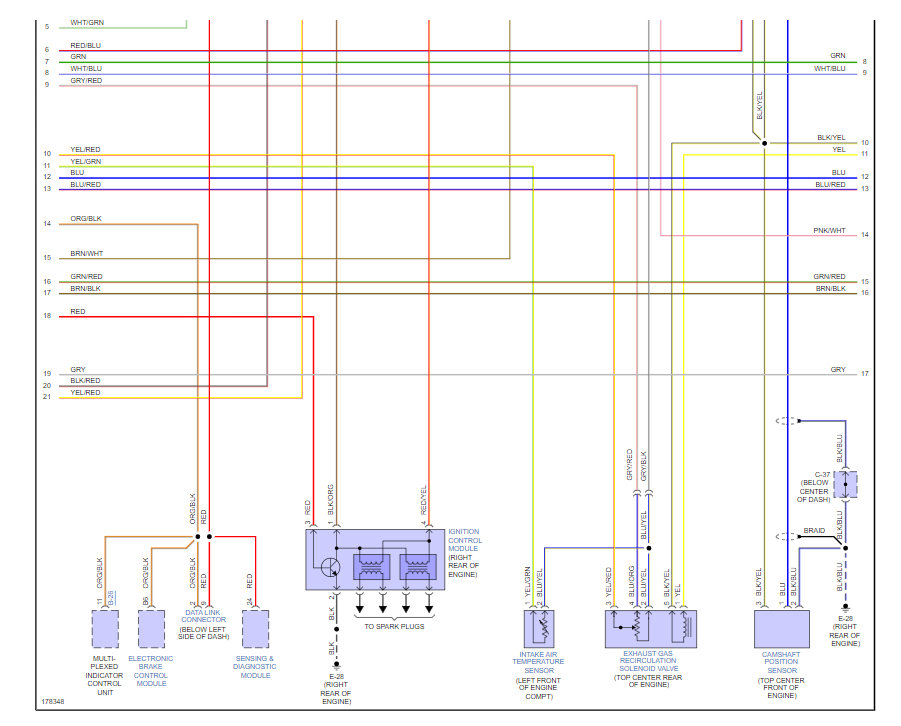

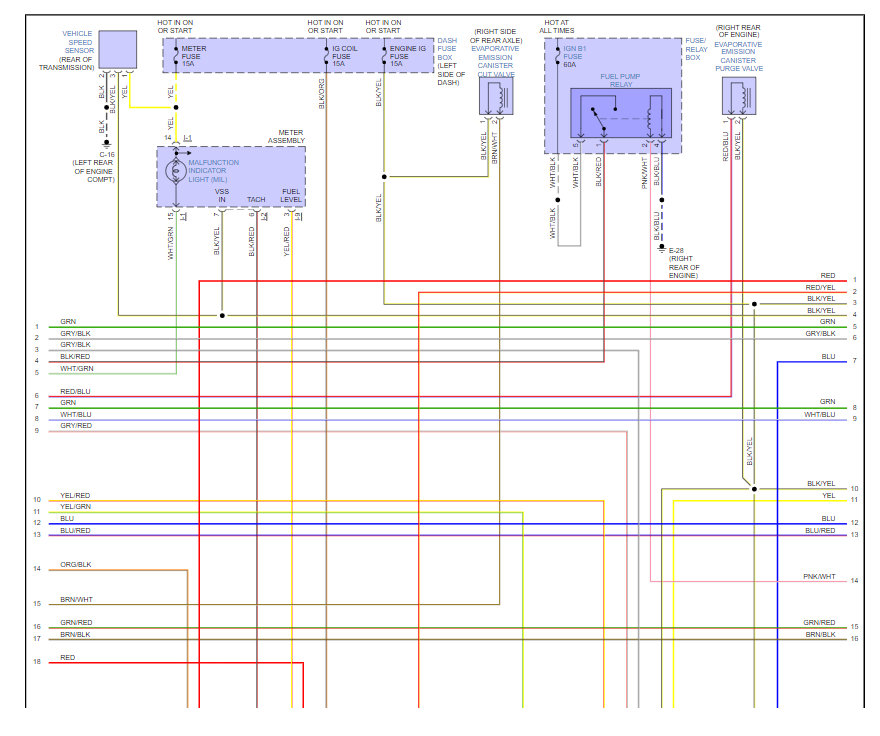

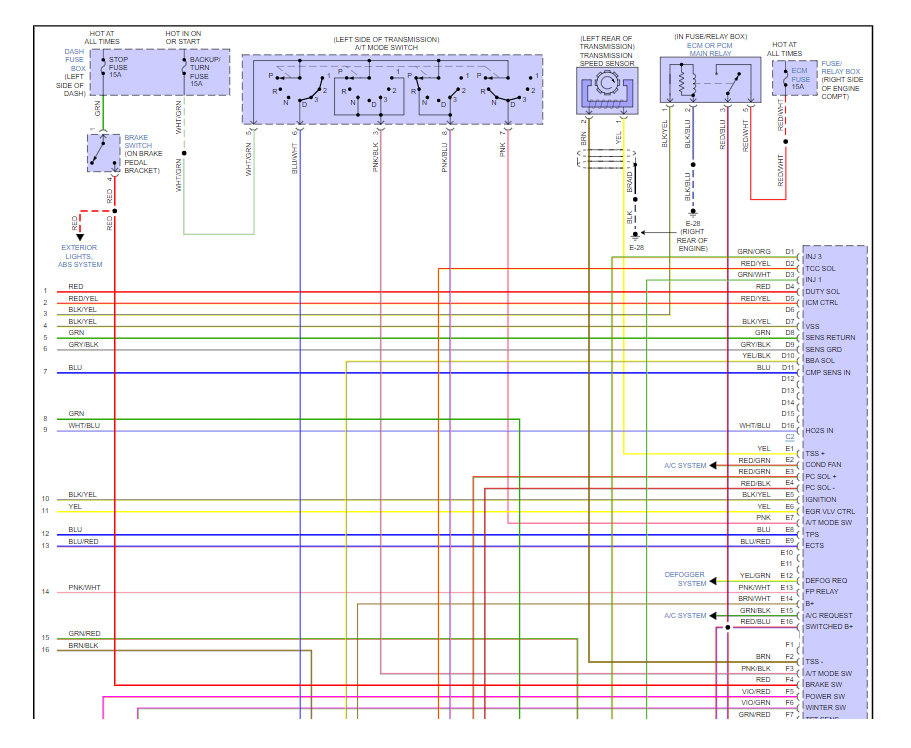

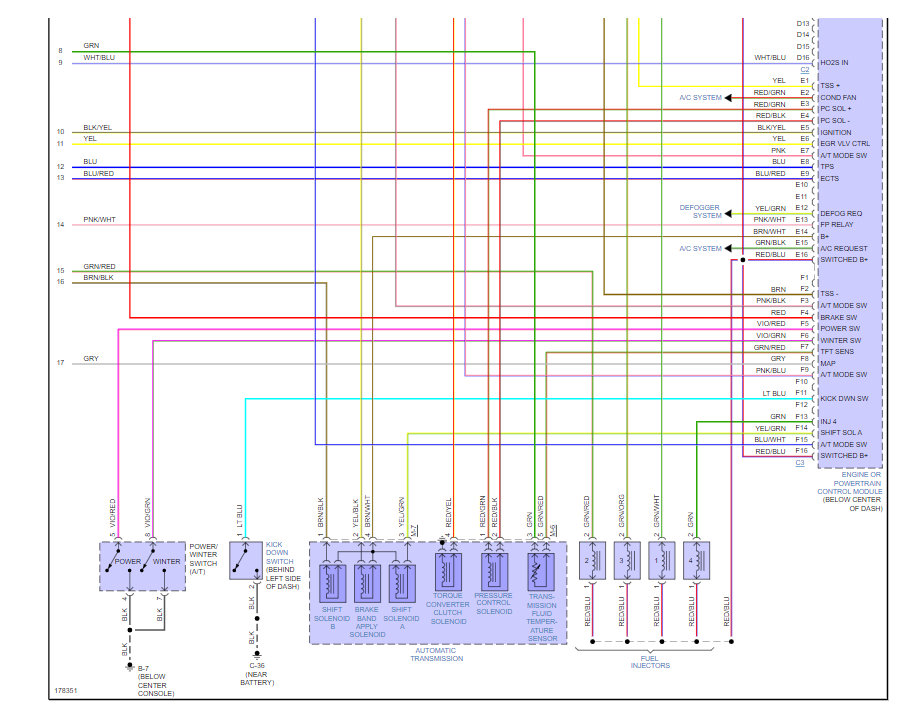

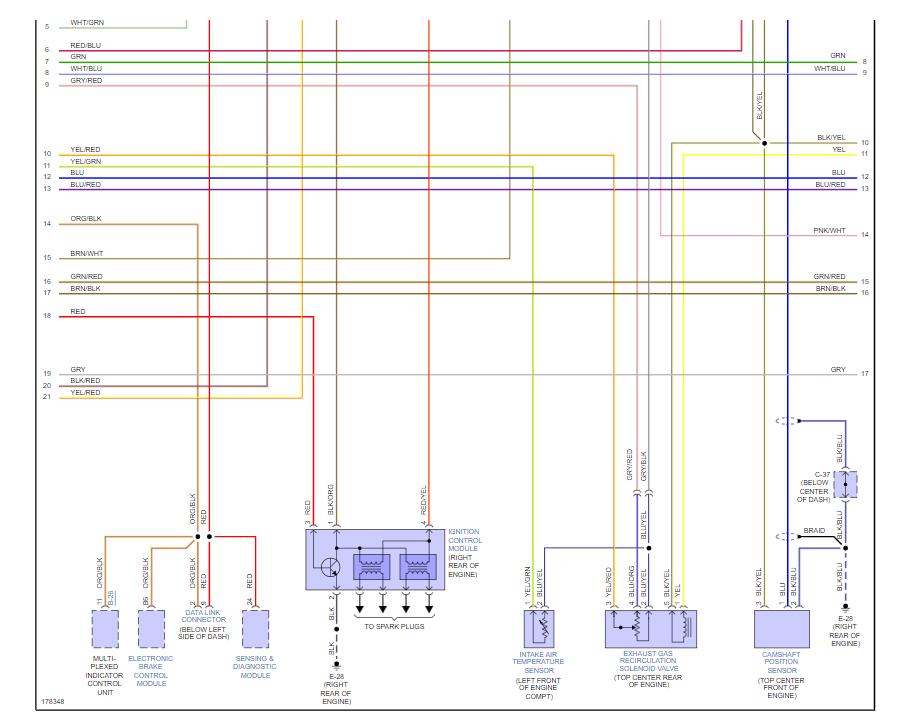

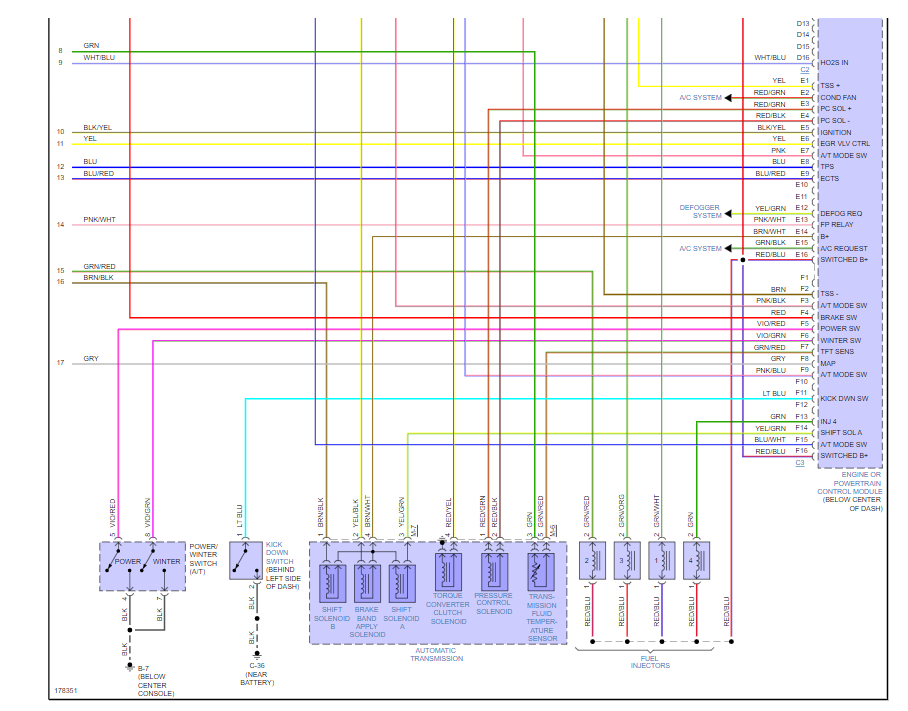

Check out the diagrams (below). Please let us know what you find.

Images (Click to make bigger)

SPONSORED LINKS

Was this

answer

helpful?

Yes

Thursday, August 18th, 2022 AT 11:32 AM

EMMANUELNGANDU

MEMBER
25 POSTS

Thanks, how do I disarm the immobilizer with a remote-less key, and the engine light flashes continues when you turn the ignition on, same car you sent me the diagrams.

Was this

answer

helpful?

Yes

Friday, August 19th, 2022 AT 8:03 AM

KEN L

MASTER CERTIFIED MECHANIC
42,959 POSTS

I would do a hard system reboot, remove the negative battery cable and hold it to the positive terminal for 1 minute and then reconnect. This guide can help as well:

https://www.2carpros.com/articles/how-to-reset-a-security-system

Please run down this guide and report back.
