Vacuum diagram

Looks like we have all the diagrams but we need some information about your vehicle because it looks like there are about 15 options of diagram for your engine. First to narrow it down, do you know if your engine is a California or Federal emissions engine or do you just know what the calibration code is for the engine. This should be labeled on a tag on the radiator support.

I attached pictures of the options. Hopefully this tag is still there. If not, we are probably going to have contact a dealer and ask them to look it up by the VIN.

Once we know the code I can send the correct diagram. Let me know if you have questions. Thanks

Hello again.

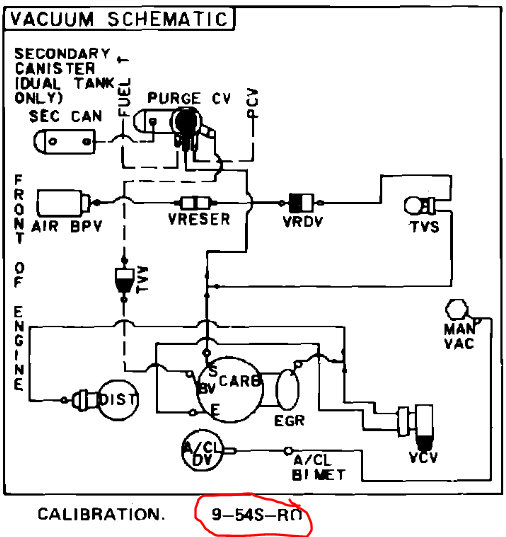

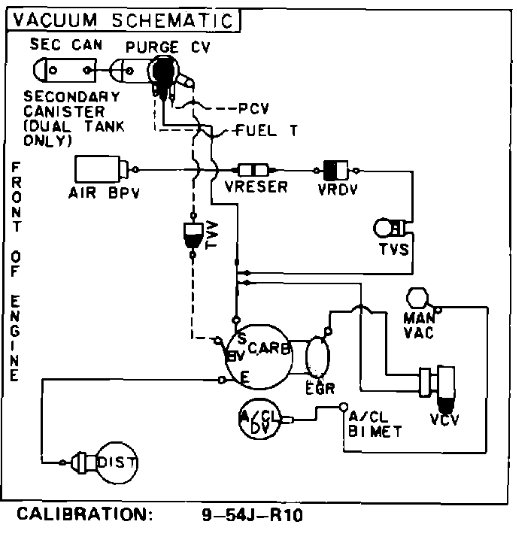

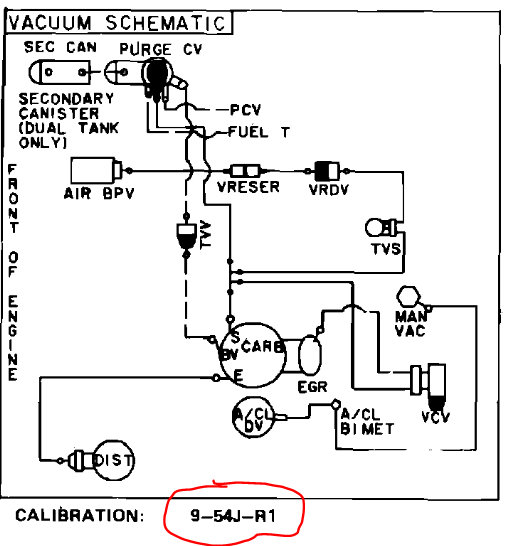

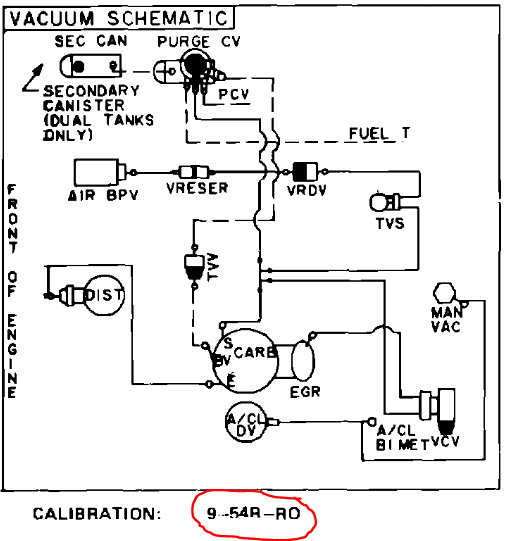

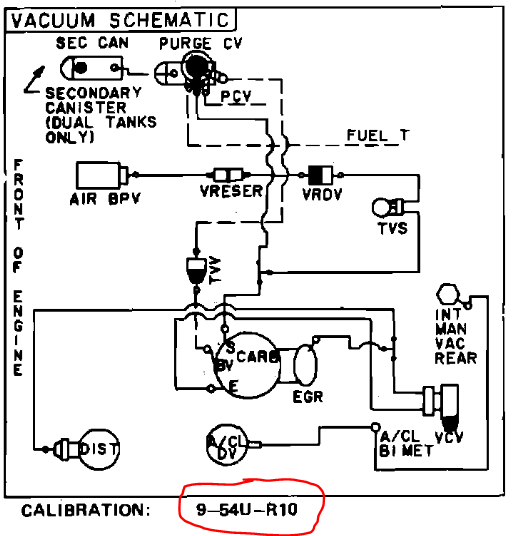

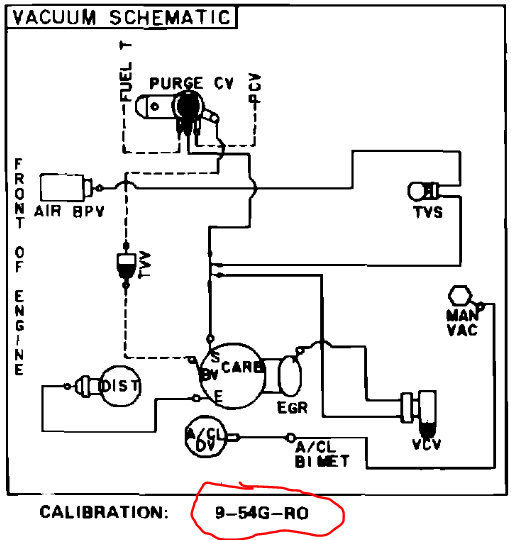

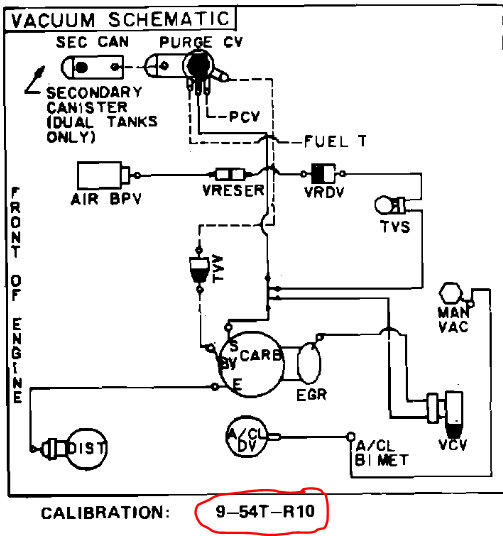

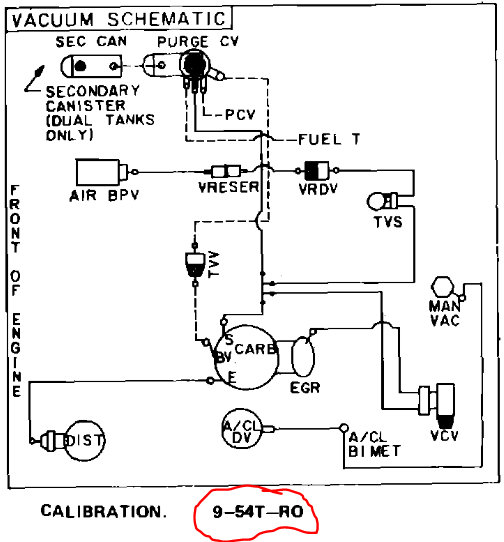

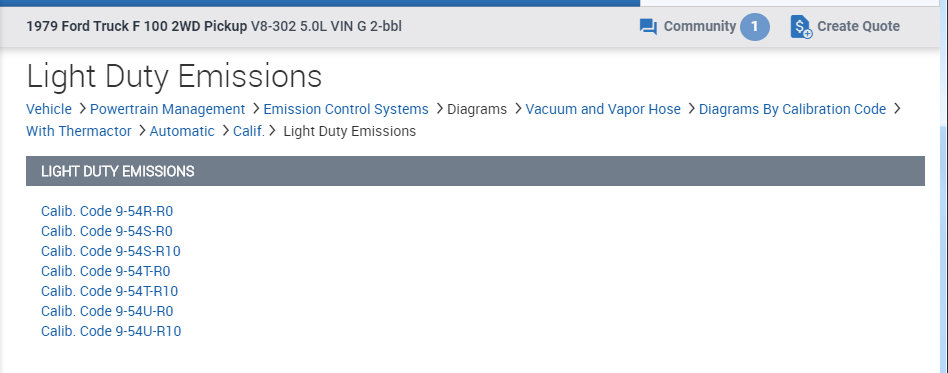

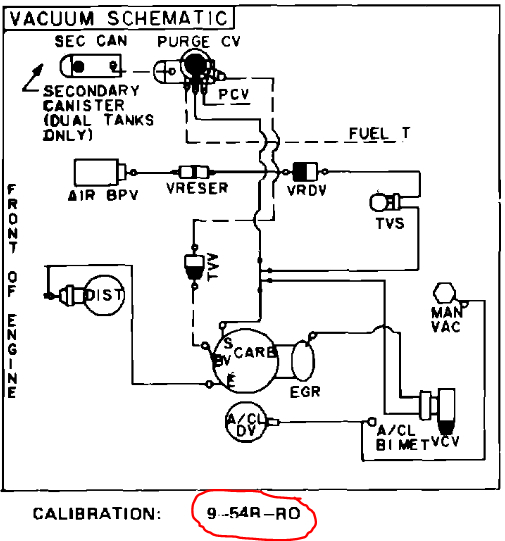

Here are the 7 California vacuum diagrams. They go by the calibration numbers which I've circled in red at the bottom. I've attached the pictures below.

Danny-

Hello again.

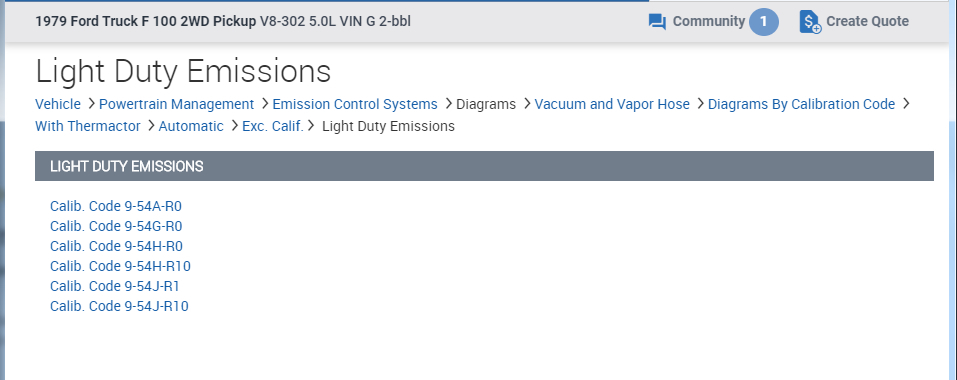

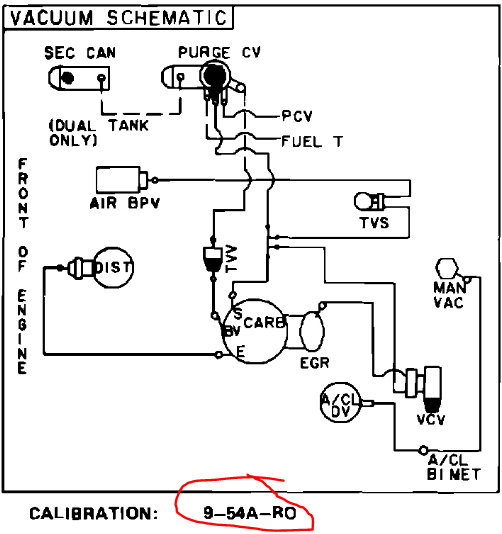

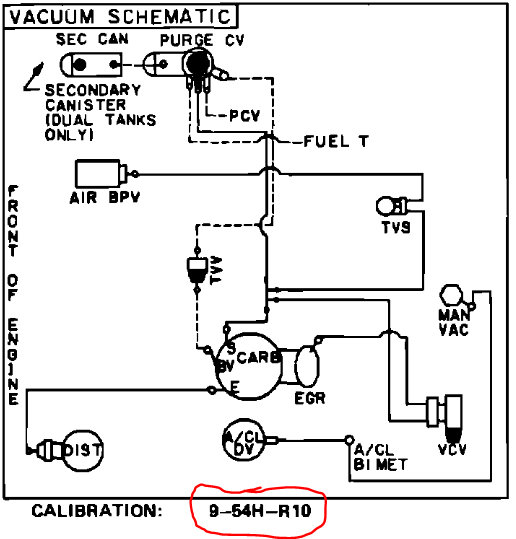

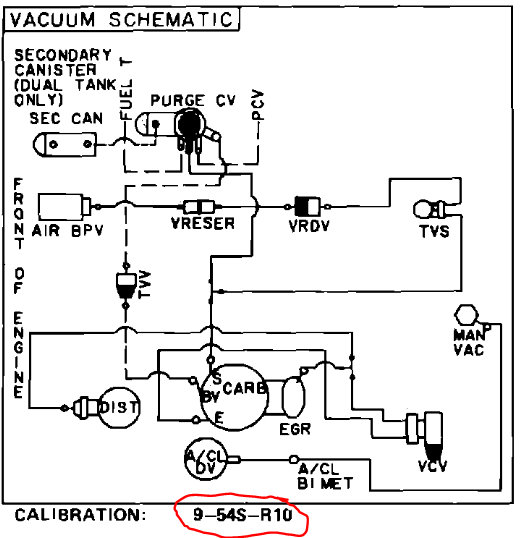

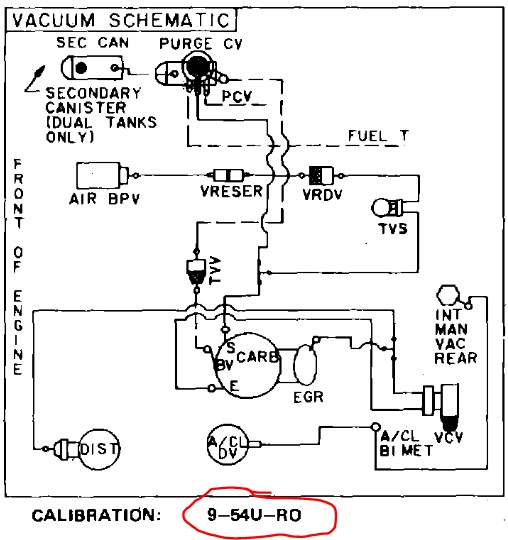

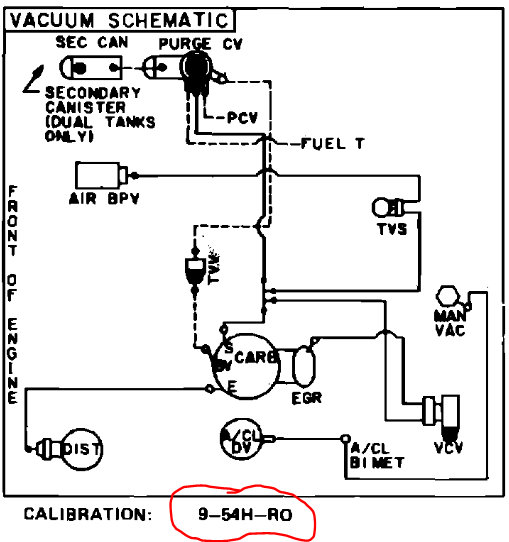

Here are the 6 Federal vacuum hose diagrams. As before they go by the calibration number circled in red at the bottom and I've attached them below. Just something to give you to start with.I'll get back with you tomorrow after getting more info from your VIN number. Hope this helps and thanks again for using 2CarPros.

Hello again.

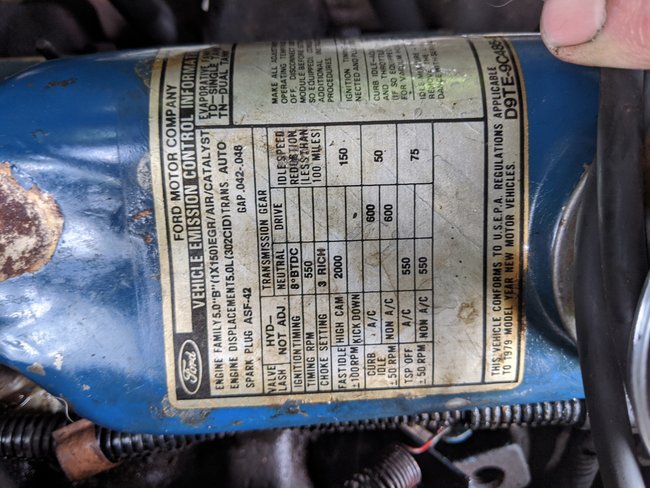

Were you able to decipher any numbers off of the blue emissions decal on the valve cover? Hopefully it will have the calibration number. If not I will run your VIN number in the morning. Hope this helps and thanks again for using 2CarPros.

Danny-

Hello again.

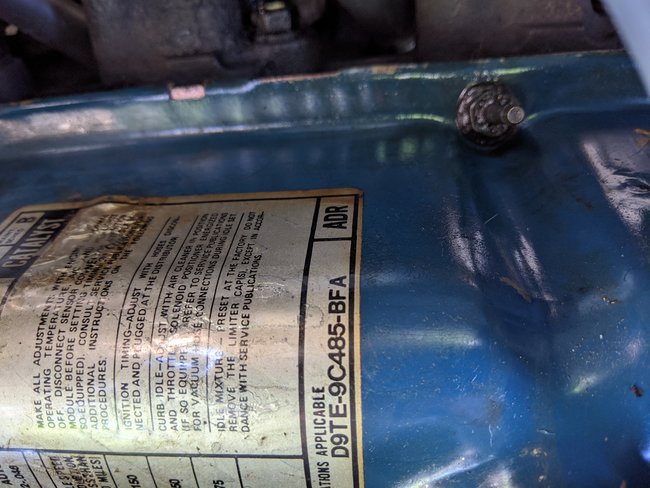

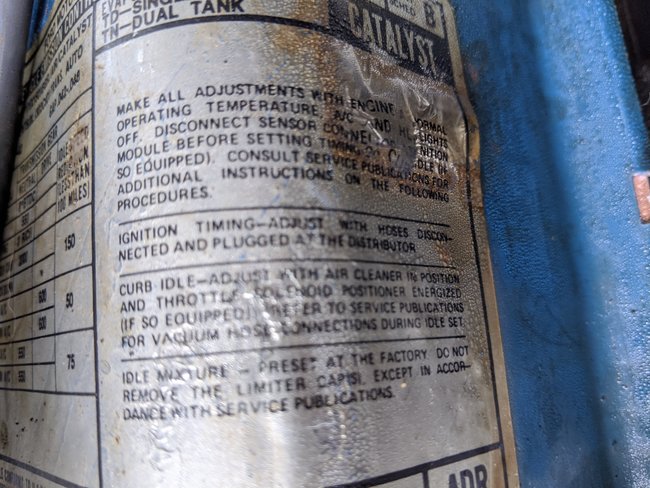

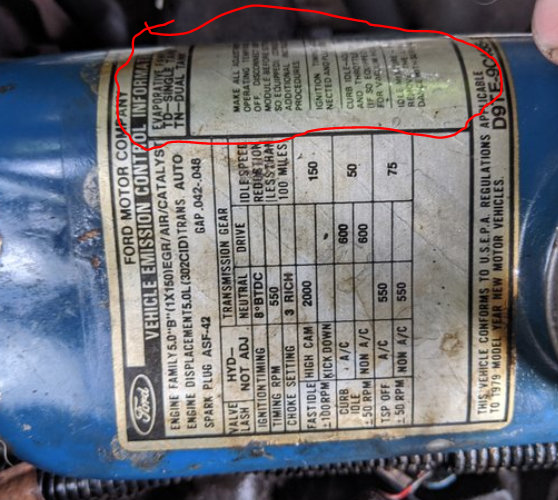

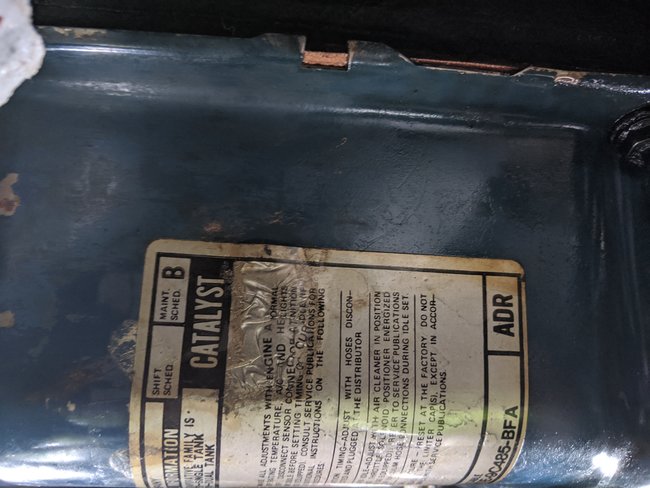

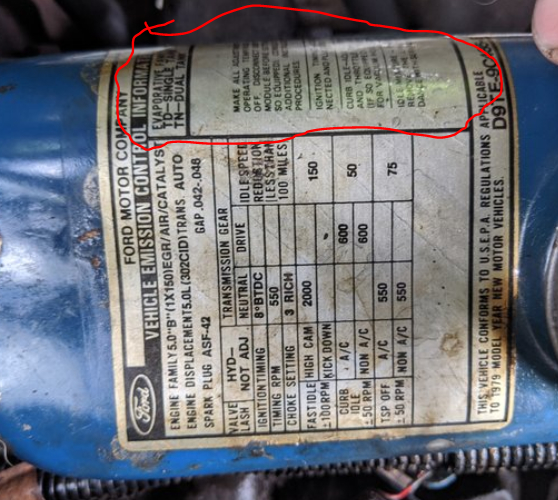

I tried getting the Ford dealer to look up info but they can't go back that far. I've attached your picture and circled the area in red. Can you use your phone to get a better picture of the area on the curve? Hope this helps and thanks again for using 2CarPros.

Danny-

Hello again.

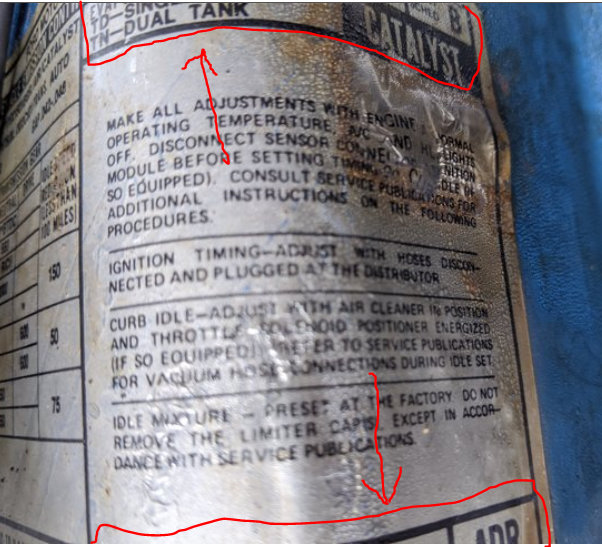

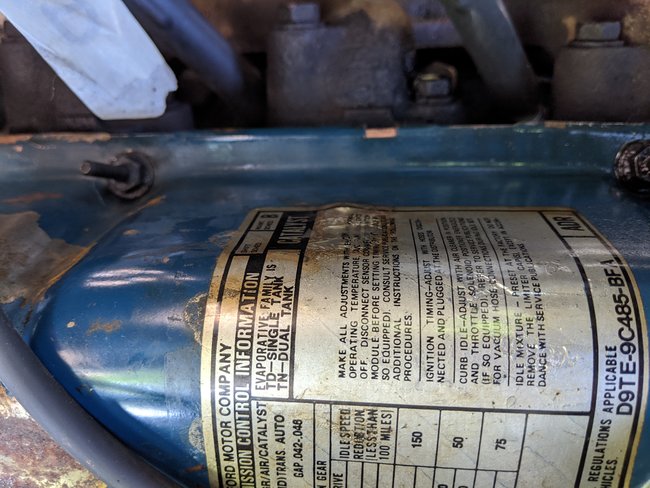

The middle section came out well. I need the top and bottom to go by. We're getting there! I've attached the picture below and circled in red. Thanks again

Danny-

Hello again.

Yes, that's a great photo. One last question. Does your truck have a single gas tank or dual tanks?

Danny-

Hello again.

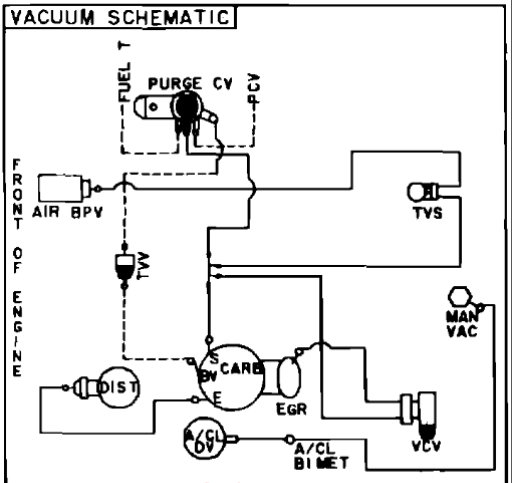

Okay, this will be your diagram for your single fuel tank- federal emissions truck. I've re attached a picture below. Hope this helps and thanks again for being patient and using 2CarPros.

Danny
