Engine Vacuum Diagrams

MSMITH7060

MEMBER
1985 CHEVROLET S-10
2.8L
V6
4WD
MANUAL
350,000 MILES

Engine Vacuum Diagrams Please?

Friday, December 7th, 2018 AT 7:07 PM

1 Reply

DANNY L

MECHANIC
5,648 POSTS

Hello, I am Danny.

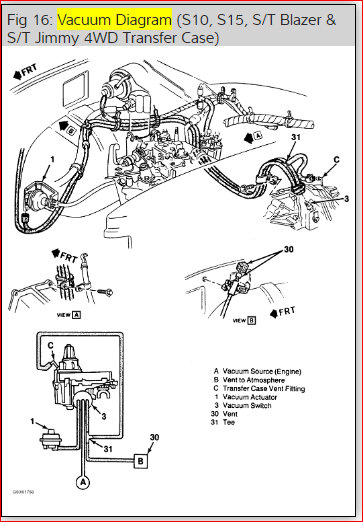

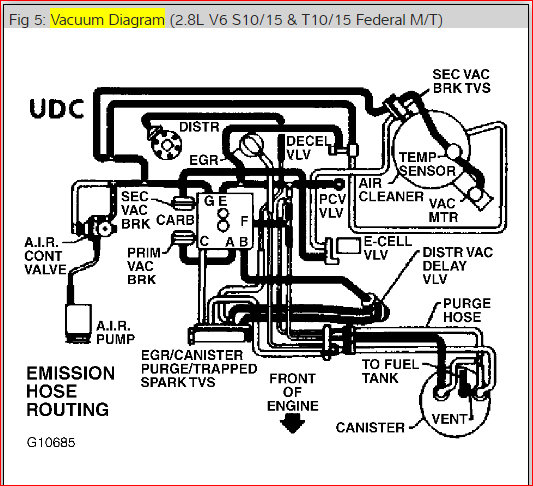

Here are the vacuum diagrams you requested. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Hope this helps and thanks for using 2CarPros.

Danny-

Images (Click to make bigger)

Was this

answer

helpful?

Yes

No

Friday, December 7th, 2018 AT 7:46 PM
