Serpentine routing diagram
2014 CHEVROLET IMPALA
I need a routing diagram for the serpentine belt for my car listed above. It is not by the radiator so I do not know where else to look. Thank you.
have the same problem?
Friday, April 27th, 2018 AT 9:46 AM

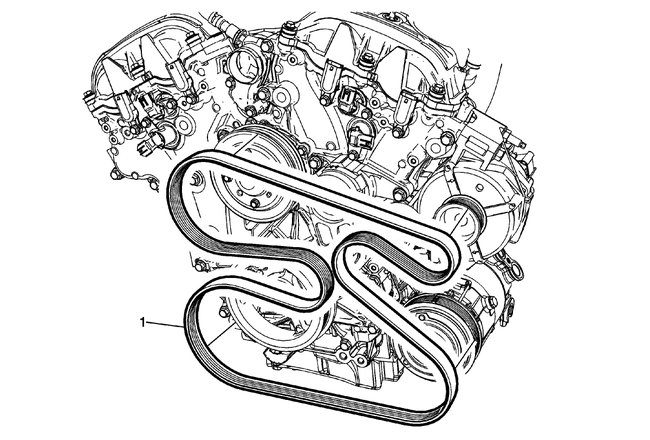

This should help. Check the tension-er as well.
Image (Click to enlarge)
Friday, April 27th, 2018 AT 11:48 AM
Thank you so much Steve w. I would have never figured it out. I am going to recommend you to all of my friends.
Friday, April 27th, 2018 AT 8:02 PM
Some of them really make you realize why they call them serpentine belts.
Friday, April 27th, 2018 AT 9:31 PM
Friday, April 27th, 2018 AT 9:38 PM
