Serpentine belt diagram needed

2008 ACURA RDX
130,000 MILES • 2.3L • 4 CYL • 4WD • AUTOMATIC
Avatar
DAISYGIRL8688
  • MEMBER
  • 57 POSTS
Could you send me a serpentine path diagram on the vehicle listed above with a turbo engine? We will be replacing the A/C clutch next. Thanks.
Mar 30, 2022 at 1:42 PM
Advertisement
Avatar
KASEKENNY
  • CAR REPAIR CONTRIBUTOR
  • 18,907 POSTS

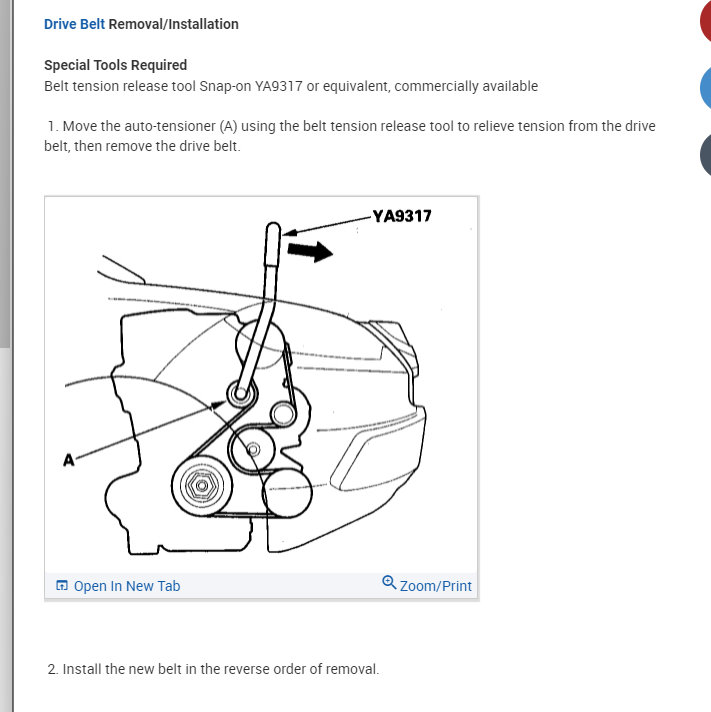

No problem. I will attach the info below from the manual for this engine.

However, here is a guide that will help with this:

https://www.2carpros.com/articles/replace-serpentine-belt

Please see the info attached and let us know what other questions you have.

Thanks
