Serpentine belt diagram needed

Tiny
LACHLAN_JACK
  • MEMBER
  • 2000 HOLDEN FRONTERA
  • V6
  • 4WD
  • MANUAL
  • 300,000 MILES
Looking for a serpentine belt routing diagram for my vehicle listed above, just can't seem to find the right layout.
Saturday, July 2nd, 2022 AT 12:25 AM

3 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 42,882 POSTS

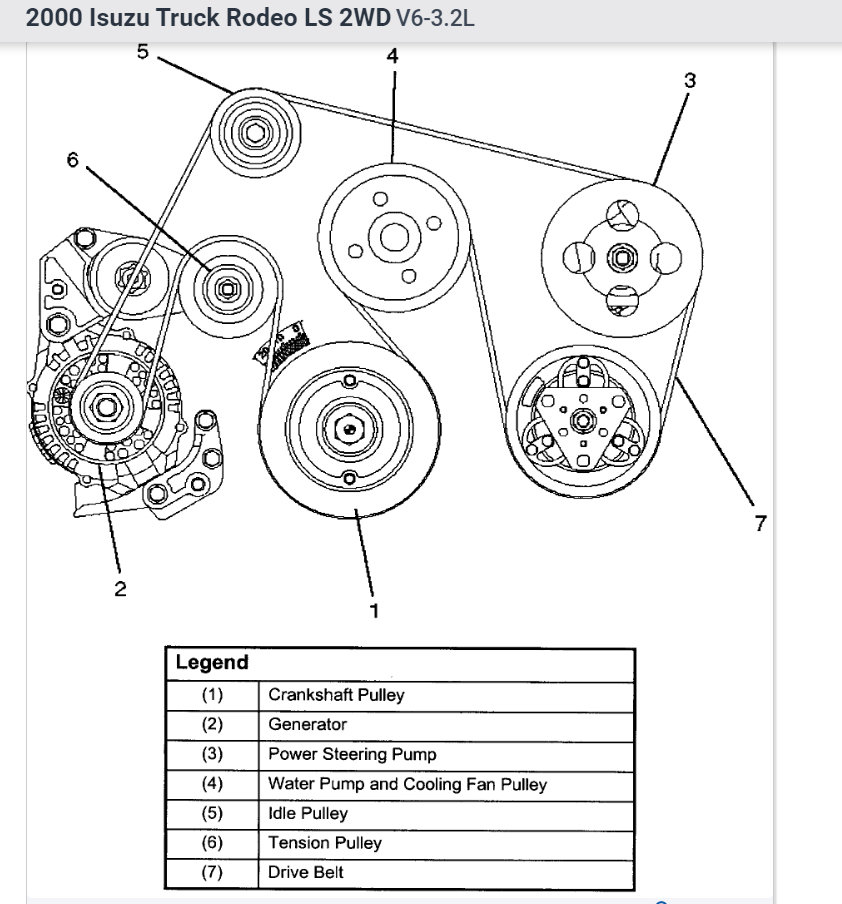

Here is a generic guide to help you change the serpentine belt out with the belt diagrams and routing in the images below:

https://www.2carpros.com/articles/replace-serpentine-belt

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Image (Click to make bigger)
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Saturday, July 2nd, 2022 AT 5:17 PM
Tiny
LACHLAN_JACK
  • MEMBER
  • 2 POSTS
Thank you so much, that's perfect. :)
