Serpentine belt

Tiny
SUSANBAINSHEDDAN
  • MEMBER
  • 1991 CHEVROLET
  • 7.4L
  • RWD
  • AUTOMATIC
  • 766,492 MILES
Need a diagram specific to that exact make and model got a 1992 belt because the body is a 1992 and it did not work because, as I learned through this, the engine is a 1991.

It is actually a Chevrolet Tioga Arrow by Fleetwood.
SPONSORED LINKS
Do you
have the same problem?
Yes
No
Friday, May 26th, 2017 AT 6:57 PM

3 Replies

Tiny
SATURNTECH9
  • CERTIFIED MECHANIC
So you have a 1991 Chevrolet 7.4L engine?
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Saturday, May 27th, 2017 AT 8:12 AM
Tiny
SUSANBAINSHEDDAN
  • MEMBER
It's a 454
Was this
answer
helpful?
Yes
No
Wednesday, June 7th, 2017 AT 2:24 PM
Tiny
HMAC300
  • CERTIFIED MECHANIC

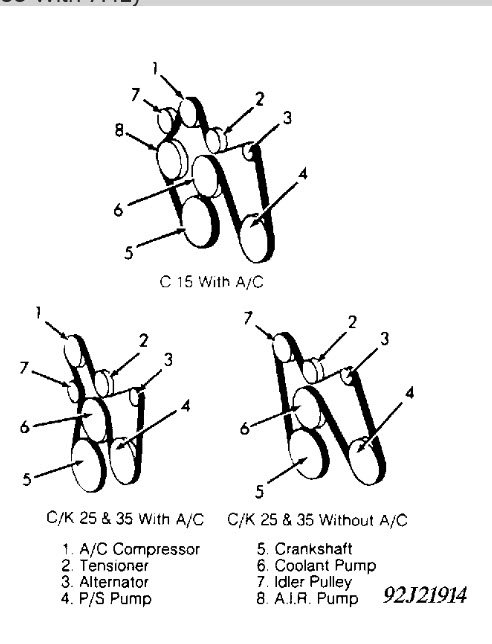

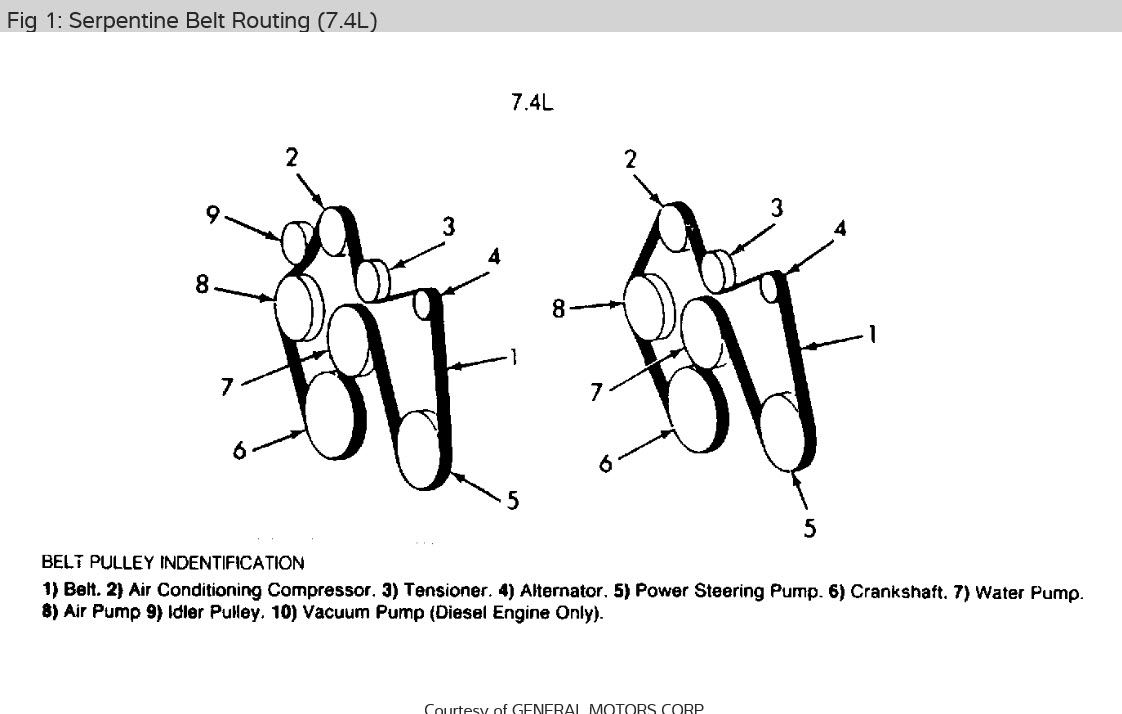

Try these one should work first pic from 91
Images (Click to make bigger)
Thumb
Thumb
Was this
answer
helpful?
Yes
No
-1
Thursday, June 8th, 2017 AT 6:23 AM

Please login or register to post a reply.
