Serpentine belt replacement diagram needed

Tiny
STEPHYANN1498
  • MEMBER
  • 2005 FORD ESCAPE
  • 3.0L
  • V6
  • 4WD
  • AUTOMATIC
  • 20,000 MILES
I need a diagram.
Sunday, October 10th, 2021 AT 7:36 AM

1 Reply

Tiny
KASEKENNY
  • MECHANIC
  • 18,907 POSTS
Here is a guide that will help replacing the drive belts. It does not include your diagram but may be useful for you or others in the future.

https://www.2carpros.com/articles/replace-serpentine-belt

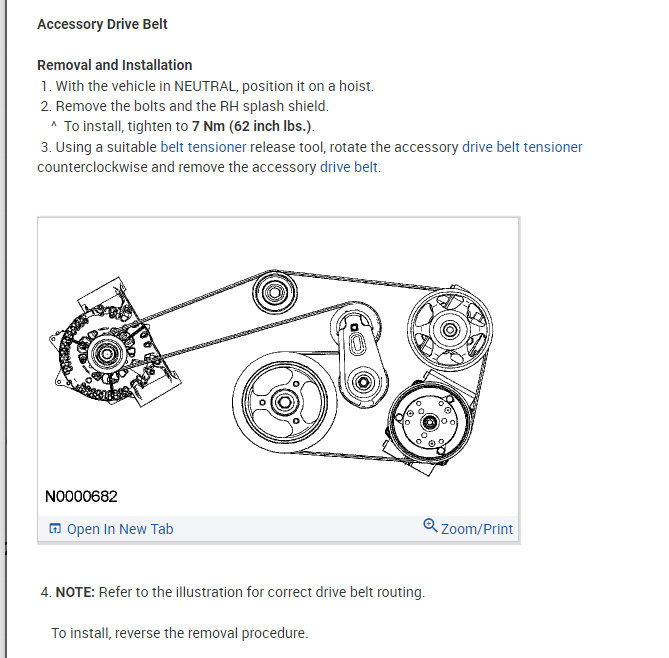

I am attaching the diagram below and process from the manual that will help with this.

Please let us know if you need other info. Thanks
Image (Click to make bigger)
Thumb
