Fuse panel? I am trying to find out

Tiny
BIONICMAN
  • MEMBER
  • 2007 JAGUAR S-TYPE
  • 2.7L
  • 6 CYL
  • TURBO
  • 2WD
  • AUTOMATIC
  • 80,000 MILES
I am trying to find out and buy relay one which is found in the primary junction box in the driver's foot well. It is for the power supply in the front arm rest.

Regards
Sunday, April 2nd, 2017 AT 7:10 AM

6 Replies

Tiny
HMAC300
  • MECHANIC
  • 48,601 POSTS

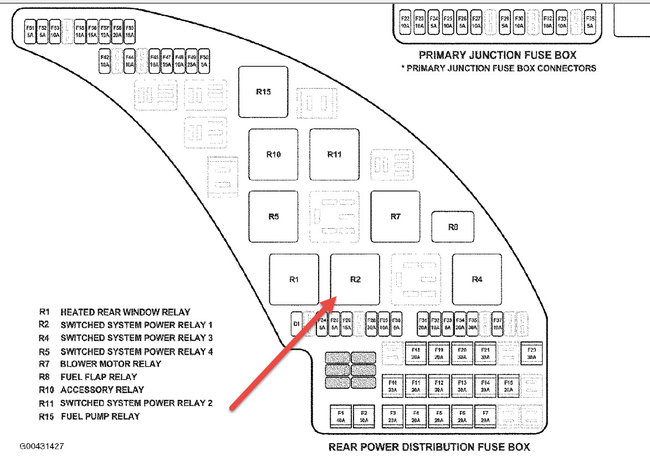

We list power relay one in rear junction box, not sure if this is what you want or not see picture this is on US models so may be different where you are. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to make bigger)
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Sunday, April 2nd, 2017 AT 11:45 AM
Tiny
TOOLMAN74523
  • MEMBER
  • 3 POSTS
  • 2000 JAGUAR S-TYPE
Air Conditioning problem
2000 Jaguar S-Type

My friend has a problem with her jaguar, so we took it to a mechanic and he said it might be the relays problem is I have the handbook but it does not say anything about the relays. Anybody know all the relays in the fuse boxes? I know there are 3 fuse boxes and I looked everywhere on the internet but could not find one diagram of the relays. Any help would be appreciated.
Was this
answer
helpful?
Yes
No
Monday, January 18th, 2021 AT 11:12 AM (Merged)
Tiny
RASMATAZ
  • MECHANIC
  • 75,992 POSTS

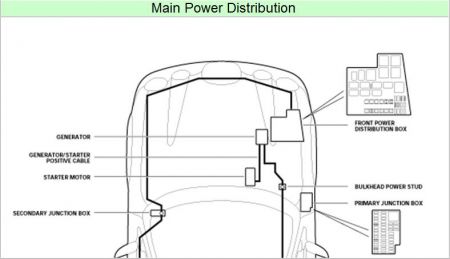

Main Power Distribution


https://www.2carpros.com/forum/automotive_pictures/12900_r3_3.jpg



Relay Identification And Location Part 1


https://www.2carpros.com/forum/automotive_pictures/12900_r1_12.jpg

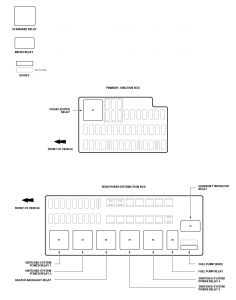

Relay Identification And Location Part 2


https://www.2carpros.com/forum/automotive_pictures/12900_r2_12.jpg



https://www.2carpros.com/kpages/auto_repair_manuals_alldata.htm
Was this
answer
helpful?
Yes
No
Monday, January 18th, 2021 AT 11:12 AM (Merged)
Tiny
TOOLMAN74523
  • MEMBER
  • 3 POSTS
This is great, and im sorry for even asking this since you helped me this much already. Is there anyway you can make the writing bigger so I can see it more clearly? Its just alittle bit blurry for me to pick up. If you cant dont worry about it and thank you again for this
Was this
answer
helpful?
Yes
No
Monday, January 18th, 2021 AT 11:12 AM (Merged)
Tiny
RASMATAZ
  • MECHANIC
  • 75,992 POSTS

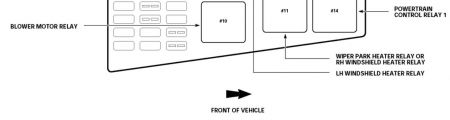

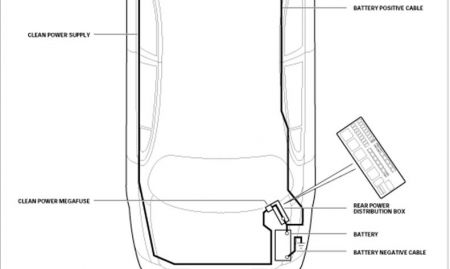

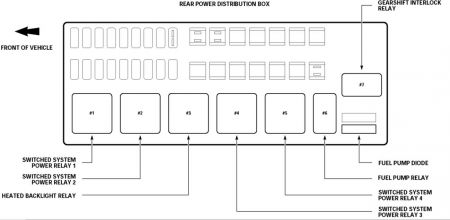

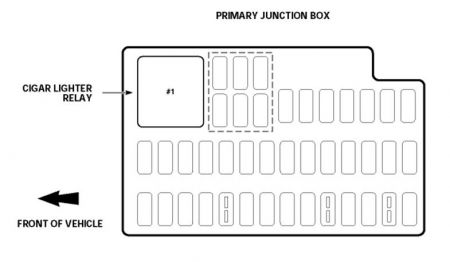

I hope this helps!!!


https://www.2carpros.com/forum/automotive_pictures/12900_r_8.jpg



https://www.2carpros.com/forum/automotive_pictures/12900_rA_1.jpg

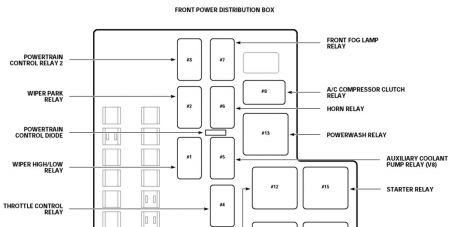

Relay Identification And Location Part 1


https://www.2carpros.com/forum/automotive_pictures/12900_r1_13.jpg



https://www.2carpros.com/forum/automotive_pictures/12900_r2_13.jpg



Relay Identification And Location Part 2


https://www.2carpros.com/forum/automotive_pictures/12900_r3_4.jpg



https://www.2carpros.com/forum/automotive_pictures/12900_r4_3.jpg

SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Monday, January 18th, 2021 AT 11:12 AM (Merged)
Tiny
TOOLMAN74523
  • MEMBER
  • 3 POSTS
Its great, thank you for everything. You have saved me tons of time.
Was this
answer
helpful?
Yes
No
-1
Monday, January 18th, 2021 AT 11:12 AM (Merged)

Please login or register to post a reply.
