Vacuum line diagram

Tiny
MIKE CLARK2
  • MEMBER
  • 1996 CHEVROLET LUMINA
  • 250,000 MILES
Need vacuum line diagram. Need 360 image.
Monday, June 26th, 2017 AT 7:18 PM

3 Replies

Tiny
SATURNTECH9
  • MECHANIC
  • 30,869 POSTS
Which engine size do you have the 3.1L or the 3.4L engine?
Was this
answer
helpful?
Yes
No
+1
Tuesday, June 27th, 2017 AT 9:49 PM
Tiny
MIKE CLARK2
  • MEMBER
  • 2 POSTS
3.1 V6
Was this
answer
helpful?
Yes
No
+1
Tuesday, June 27th, 2017 AT 10:02 PM
Tiny
SATURNTECH9
  • MECHANIC
  • 30,869 POSTS

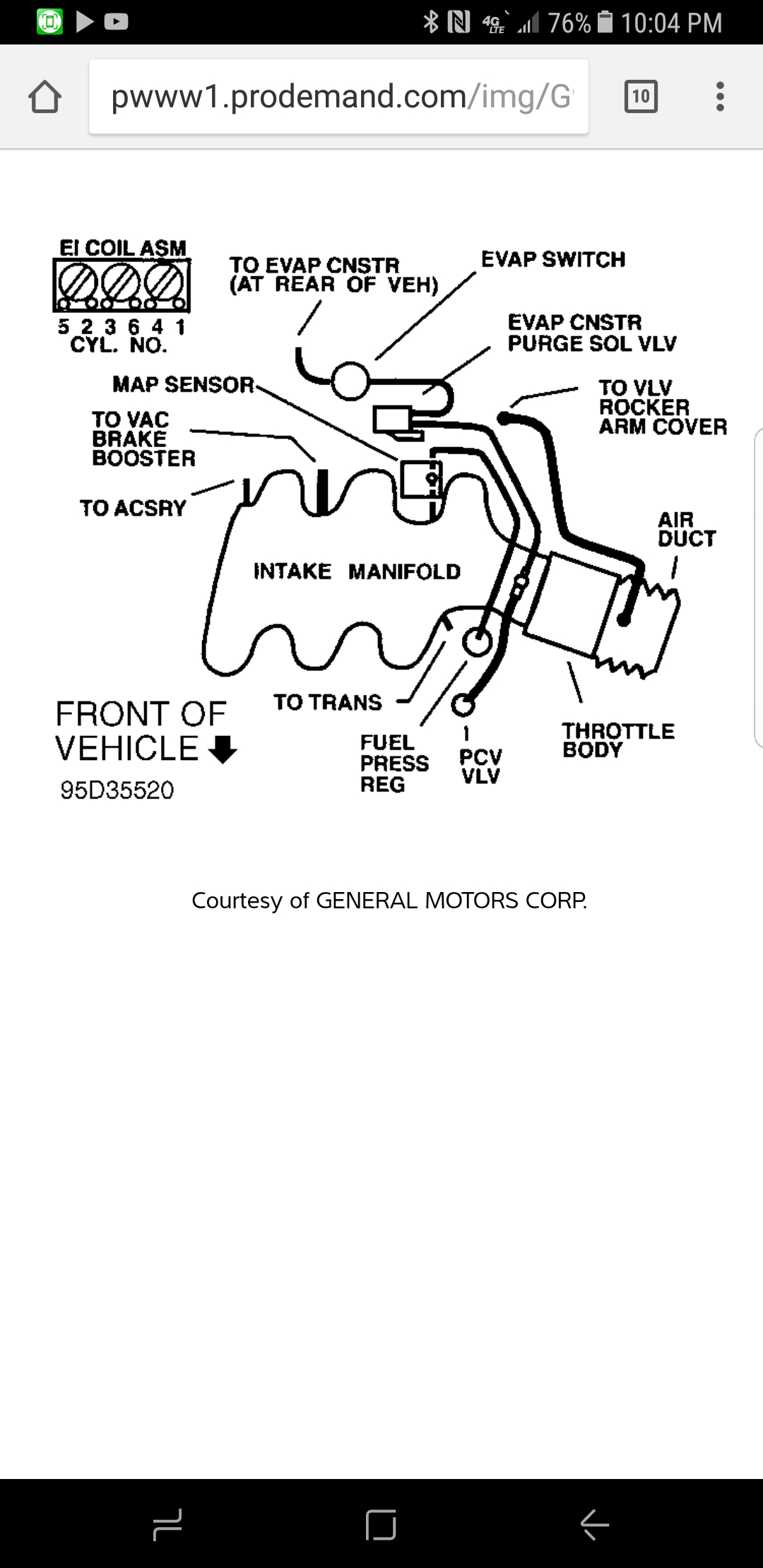

There is your vacuum diagram.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
+1
Tuesday, June 27th, 2017 AT 10:06 PM
