Fuse panel location and identifications please?

Tiny
CNLOOPER
  • MEMBER
  • 2014 FORD F-150
  • 3.5L
  • 6 CYL
  • TURBO
  • 4WD
  • AUTOMATIC
  • 35,000 MILES
What needs to be done with the large plug attached to the top of fuse box it's not getting a good connection and have to push it in and hold it and nothing is broke I need to know the fuse locations and what they run?
Do you
have the same problem?
Yes
No
Tuesday, March 22nd, 2016 AT 6:29 PM

28 Replies

Tiny
HMAC300
  • EXPERT

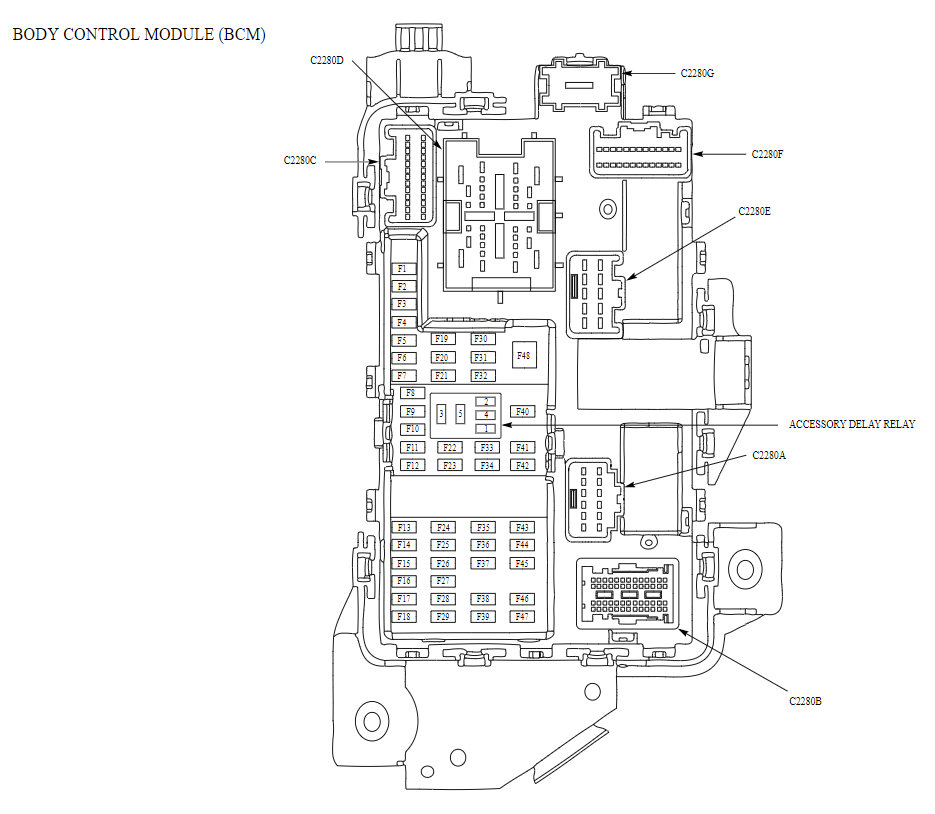

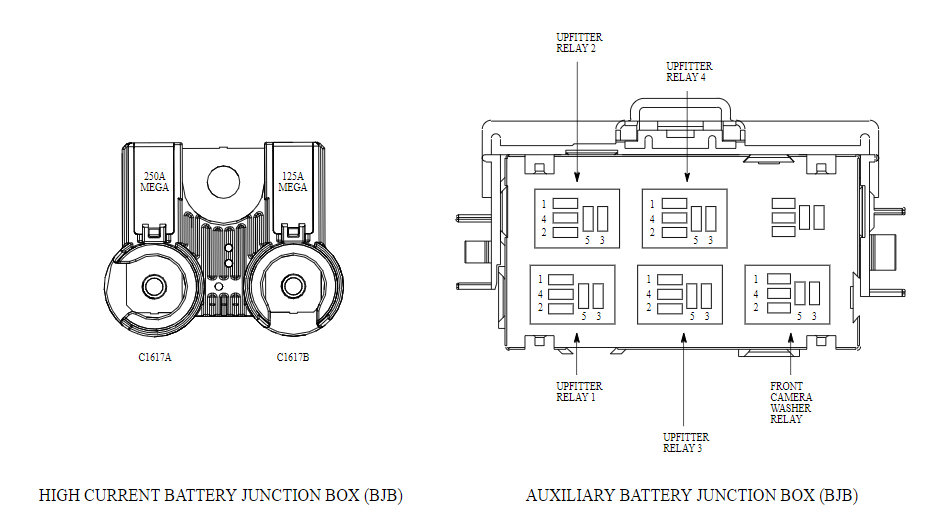

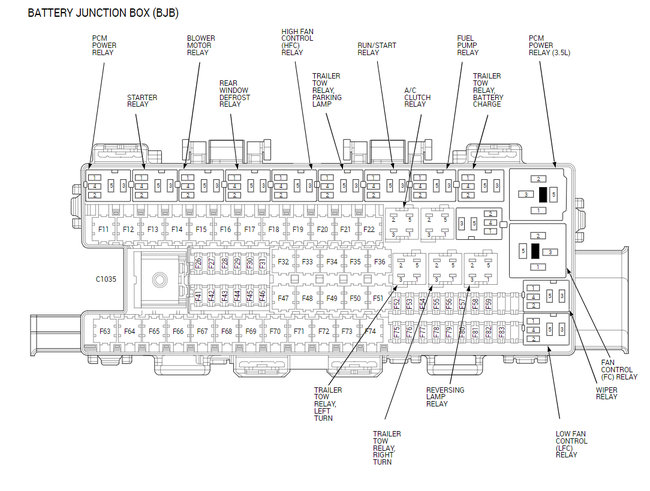

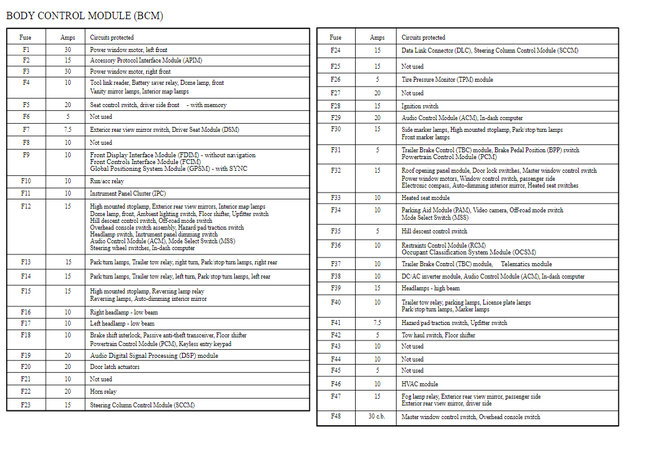

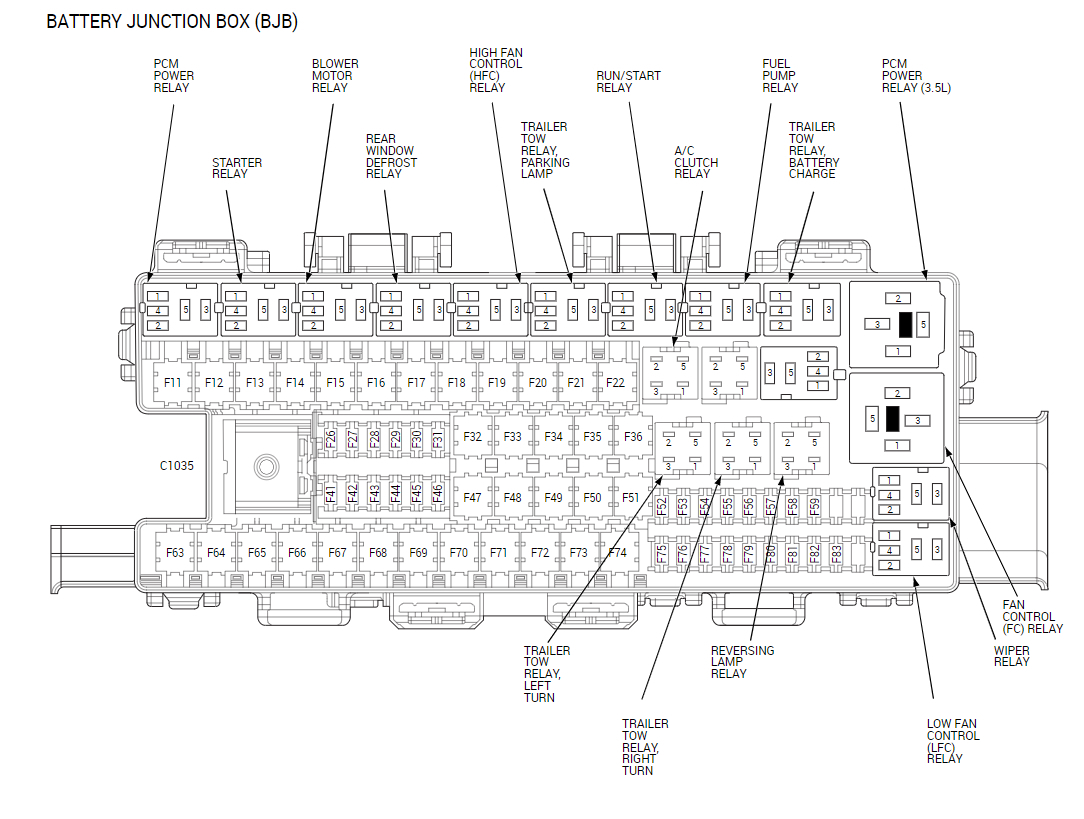

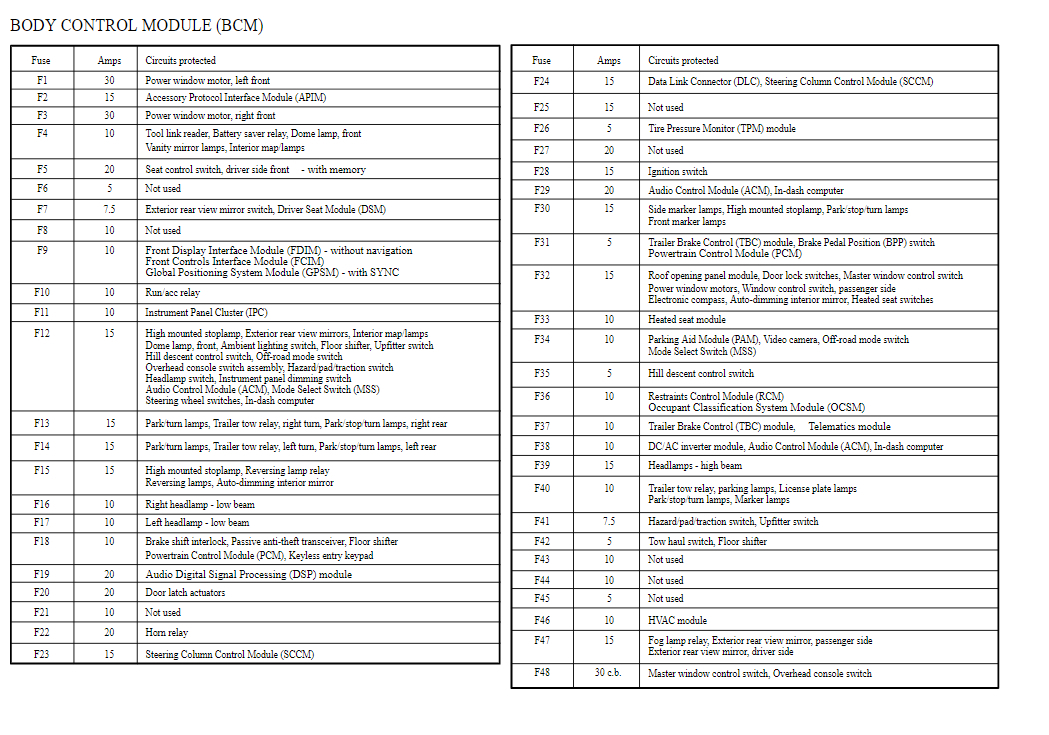

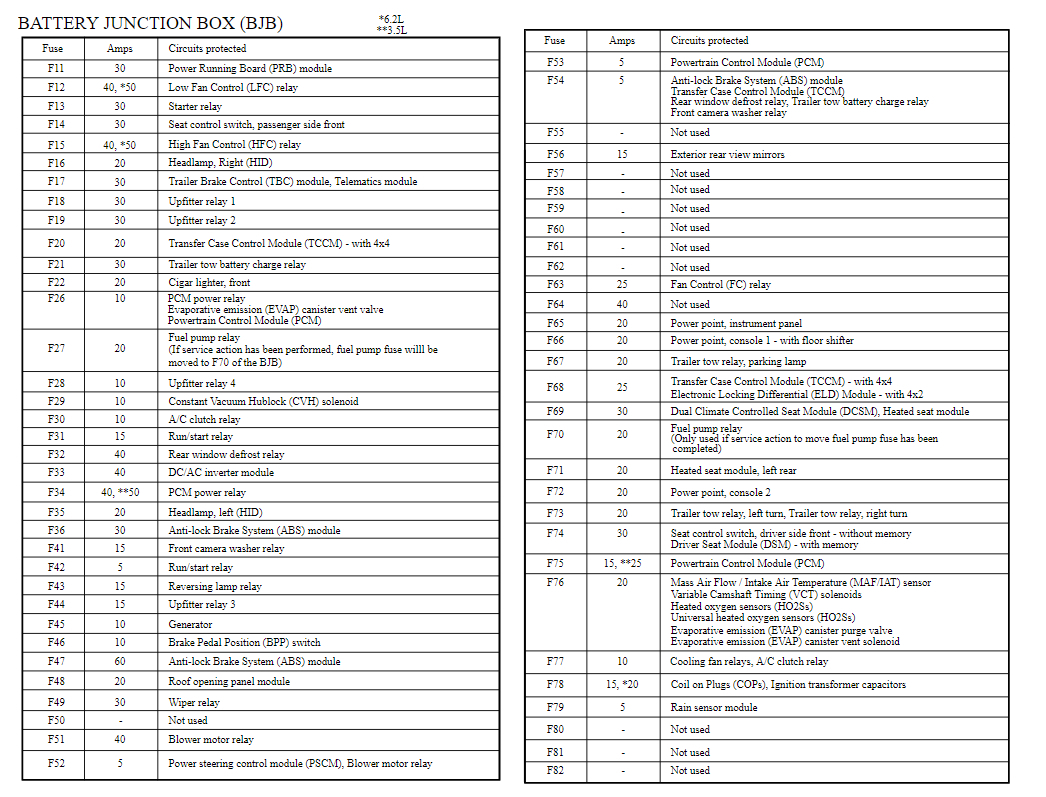

Here is a guide to help you check the fuse with the fuse panel location and identification in the diagrams below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Was this
answer
helpful?
Yes
No
+1
Wednesday, March 23rd, 2016 AT 7:16 AM
Tiny
CNLOOPER
  • MEMBER
If a fuse has to be replaced how would you do it disconnect battery?
Was this
answer
helpful?
Yes
No
Wednesday, March 23rd, 2016 AT 8:05 AM
Tiny
HMAC300
  • EXPERT
You should be okay with the battery connected.
Was this
answer
helpful?
Yes
No
Wednesday, March 23rd, 2016 AT 9:34 AM
Tiny
LORIDOWDY
  • MEMBER
  • 2009 FORD F-150
  • AUTOMATIC
  • 185,000 MILES
They replaced the relay switch but I think a fuse is out can you help me find and test the fuses?
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:40 PM (Merged)
Tiny
JOHNNYT73
  • EXPERT
Here is a guide to help with the testing with the fuse panels in the diagrams below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check out the diagrams (Below). Please let us know what happens.
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:40 PM (Merged)
Tiny
LORIDOWDY
  • MEMBER
How often have you seen a fuse box having to be replaced. And I know that for this truck you have to replace fuse box and all wiring.
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:40 PM (Merged)
Tiny
JOHNNYT73
  • EXPERT
I have recently had an issue with a 2002 crown vic that lost all power and would be intermittent. I eventually traced it to a bad contact in a fuse in the fuse box that ran to the ignition switch. You can usually just flip them over and check connections.
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:40 PM (Merged)
Tiny
WRENCHER1
  • MEMBER
This isn't just a fuse box on this car. It's a smart junction box with internal relays and modules. Most of it is inaccessible.
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:40 PM (Merged)
Tiny
LEWISW
  • MEMBER
  • 2005 FORD F-150
  • V8
  • 2WD
  • AUTOMATIC
  • 79,800 MILES
Can you tell me where the fuses are and what they go too?
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:41 PM (Merged)
Tiny
KASEKENNY1
  • EXPERT
I am attaching the info below for the fuse and relay locations. Please run through this and let us know if there is more information.

Plus here is a guide that will help with testing and replacing the fuses:

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Thanks
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:41 PM (Merged)
Tiny
BIGPULSATOR420
  • MEMBER
  • 2004 FORD F-150
  • 4.6L
  • V8
  • 2WD
  • AUTOMATIC
  • 128,000 MILES
I need to know what fuses go to air conditioning and heating components, blower motor, buttons.
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:41 PM (Merged)
Tiny
SCGRANTURISMO
  • EXPERT
Hello,

I have included in the diagrams down below the information that you requested. There are junction box diagrams with fuse and relay descriptions. If you should have any other vehicle related questions, please, feel free to ask. That is what we are here for.

Thanks,
Alex
2CarPros
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:41 PM (Merged)
Tiny
RANDYR40
  • MEMBER
  • 2004 FORD F-150
  • 5.4L
  • V8
  • 2WD
  • AUTOMATIC
  • 125,000 MILES
I need the diagram to interior fuse box passenger side.
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:43 PM (Merged)
Tiny
ASEMASTER6371
  • EXPERT
Good afternoon,

I will attach the fuse box legend. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Roy
Was this
answer
helpful?
Yes
No
-1
Wednesday, May 5th, 2021 AT 12:43 PM (Merged)
Tiny
BCSLSU
  • MEMBER
  • 2004 FORD F-150
  • V8
  • 4WD
  • AUTOMATIC
  • 57,000 MILES
My entire A/C unit including the heat seaters is not getting power. None of the lights or fan nothing will turn on when I try I dont have an owners manuel so I dont know which fuse it could be or what. Could you please help thank you
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:43 PM (Merged)
Tiny
MERLIN2021
  • EXPERT
Heat seater? Do you mean the heated seats dont heat? And the heater doesnt work? No power to the panel? Is it auto temp or manual heat/a/c?
Look at this diagram of your fuse box, EATC(heat/A/C)
is fuse #F2.05 7.5 amp F2.13 10 amp, Heated seat module is F2.18 10 amp.


https://www.2carpros.com/forum/automotive_pictures/62217_CJB_2.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_CJBa_1.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_CJBB_1.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_CJBc_1.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_CJBd_1.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_CJBe_1.jpg

Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:43 PM (Merged)
Tiny
SCOOPI321
  • MEMBER
  • 2002 FORD F-150
  • 4.6L
  • V8
  • 2WD
  • AUTOMATIC
  • 268,000 MILES
My truck wont start and with the key off there is a clicking from under the dash, but in the fuse box, when number 14 fuse is pulled, the clicking stops, what does this mean, what is this fuse for? We have changed the battery and had the altenator checked to find it is bad. All we want to do at this point is get the truck started to get my son home. Its going to be cold outside. Before he pulled the fuse, he could step on the brake pedal and the clicking would stop. Does anyone have any answers for us
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:43 PM (Merged)
Tiny
CJ MEDEVAC
  • EXPERT
This guide can help you check the fuses with the diagrams below for the fuse panel.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check out the diagrams (Below). Please run this test and get back to us.
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:43 PM (Merged)
Tiny
STEVIESGIRL
  • MEMBER
  • 1997 FORD F-150
  • V8
  • 2WD
  • AUTOMATIC
  • 130,000 MILES
Hi I was driving my truck and it just stalled in the middle of my street a couple houses down from my home. It appeared to be running fine, although I had heard some knocking when I would first turn on my truck. I contributed to the colder weather though. Anywho a friend of mine cannot decipher the lines on the truck as they are not labeled anywhere. Could you please post a diagram for the relay panel, id the relay lines etc. Also the master fuse panel box under the hood. Thanks a billion.
Was this
answer
helpful?
Yes
No
Wednesday, May 5th, 2021 AT 12:44 PM (Merged)
Tiny
MERLIN2021
  • EXPERT
Called Power distribution box...here they are, but know this, there are 2 v8's 4.6 and 5.4...also 2 production dates, b4 and after 6/24/96 these are 4.6 after 6-24-96 OK?

This guide can help test the fuses with the fuse diagrams below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Was this
answer
helpful?
Yes
No
+2
Wednesday, May 5th, 2021 AT 12:44 PM (Merged)
