Fuse box diagram needed

1998 CHEVROLET SILVERADO
160,900 MILES • 5.7L • V8 • 4WD • AUTOMATIC
Avatar
KYSHA BLAND
  • MEMBER
  • 2 POSTS
I'm trying to figure out the diagram for the fuse box above my driver's feet i can't find the cove.
Apr 21, 2022 at 4:06 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
SQM
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 6,383 POSTS
Hello,

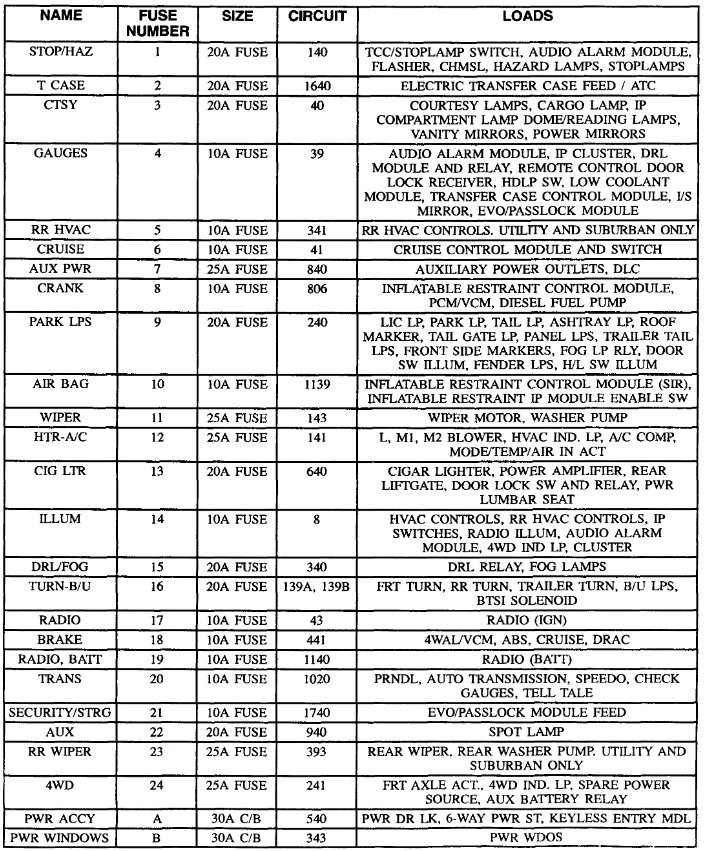

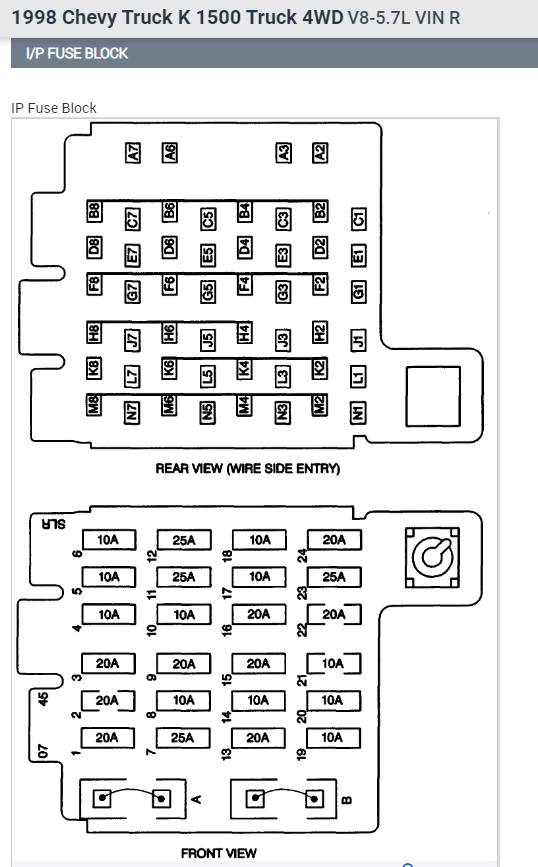

See attached for the fuse diagram with the fuse list.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Let me know of any questions.
Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Apr 21, 2022 at 7:45 AM
Advertisement
Avatar
KYSHA BLAND
  • MEMBER
  • 2 POSTS

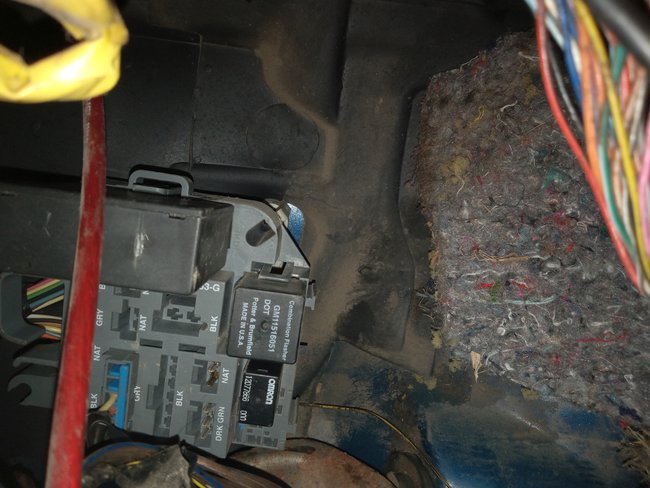

I have 3 fuse boxes one underneath the hood one in the door and one above the driver's feet I'm trying to figure out the one that is above the driver's feet and how important it is.
Image (Click to enlarge)
Attached Media
Apr 21, 2022 at 8:51 AM
Avatar
SQM
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 6,383 POSTS
Every fuse or relay panel is critical and controls different functions.
Can you tell me what you are trying to diagnose?
Apr 22, 2022 at 1:36 PM
