Fuse box color wiring diagram needed

Tiny
REGINA LYNN PARTON
  • MEMBER
  • 1992 CHEVROLET CAVALIER
  • 2.2L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 82,000 MILES
Working on my car listed above. I'm having a wiring problem and cannot find a schematic for the wires going into the fuse box especially showing the color of the wires and a rear view of the fuse. Can you help?
Thursday, October 10th, 2019 AT 10:52 AM

1 Reply

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,328 POSTS
Welcome to 2CarPros.

I have schematics, but nothing in color because of the year. The schematics I have are very basic. Is there a specific component you are having trouble with? I may be able to help you better if I can break it down.

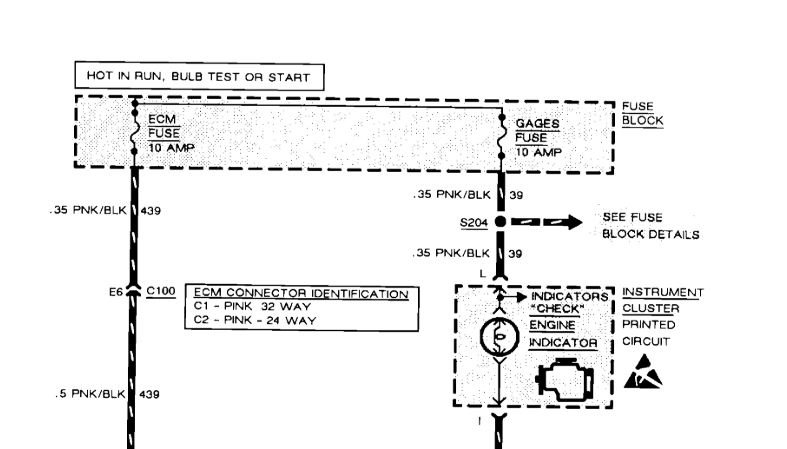

I attached a pic of how I have to look things up. If you have a specific circuit, I may be able to help.

Let me know.

Joe
Image (Click to make bigger)
Thumb
