RELAY AND FUSE DIAGRAMS

Tiny
STEVIESGIRL
  • MEMBER
  • 1997 FORD F-150
  • V8
  • 2WD
  • AUTOMATIC
  • 130,000 MILES
Hi I was driving my truck and it just stalled in the middle of my street a couple houses down from my home. It appeared to be running fine, although I had heard some knocking when I would first turn on my truck. I contributed to the colder weather though. Anywho a friend of mine cannot decipher the lines on the truck as they are not labeled anywhere. Could you please post a diagram for the relay panel, id the relay lines etc. Also the master fuse panel box under the hood. Thanks a billion.
Friday, December 7th, 2007 AT 7:22 PM

1 Reply

Tiny
MERLIN2021
  • MECHANIC
  • 17,250 POSTS

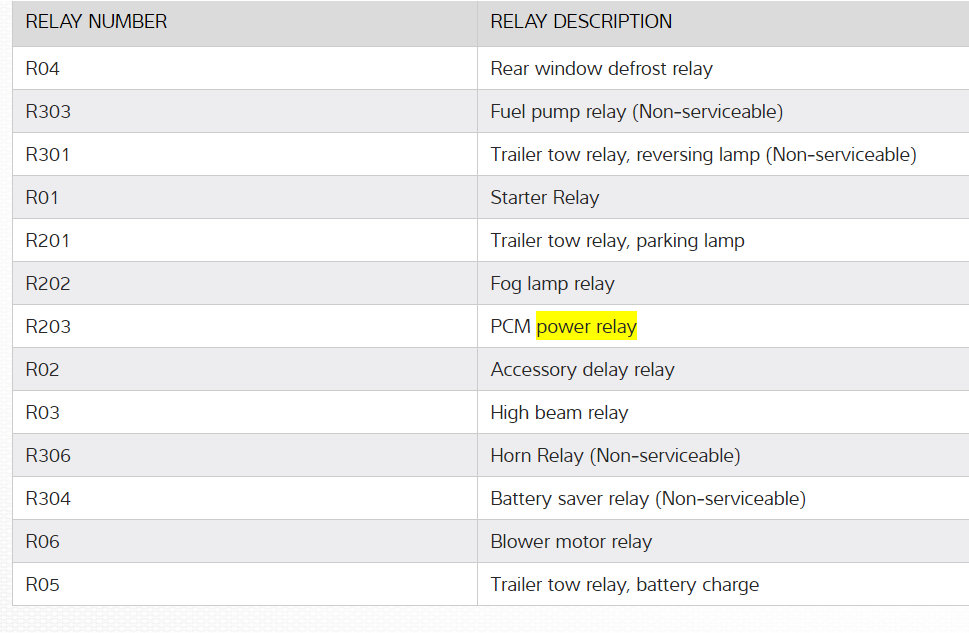

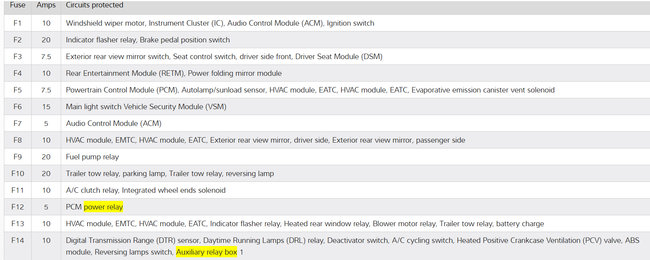

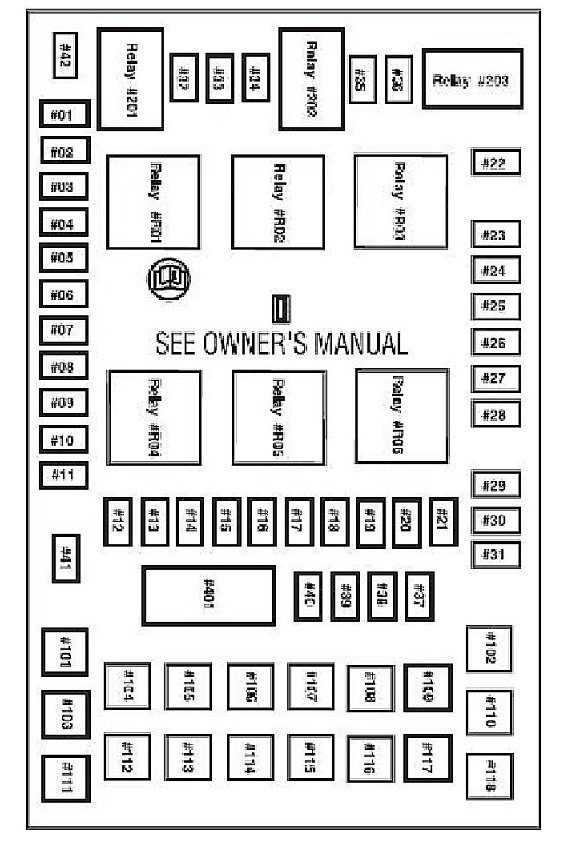

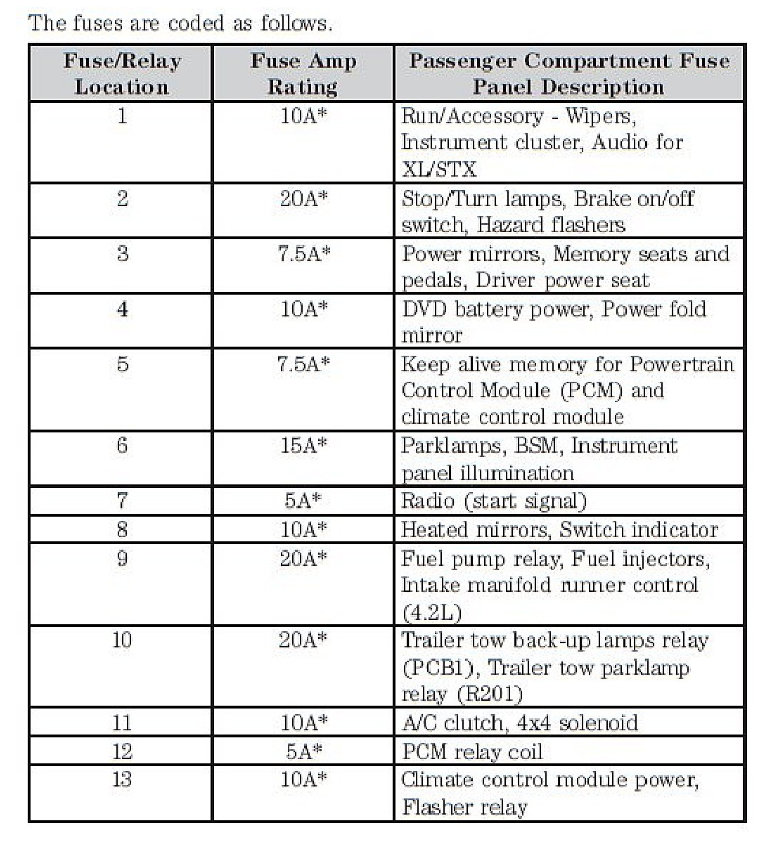

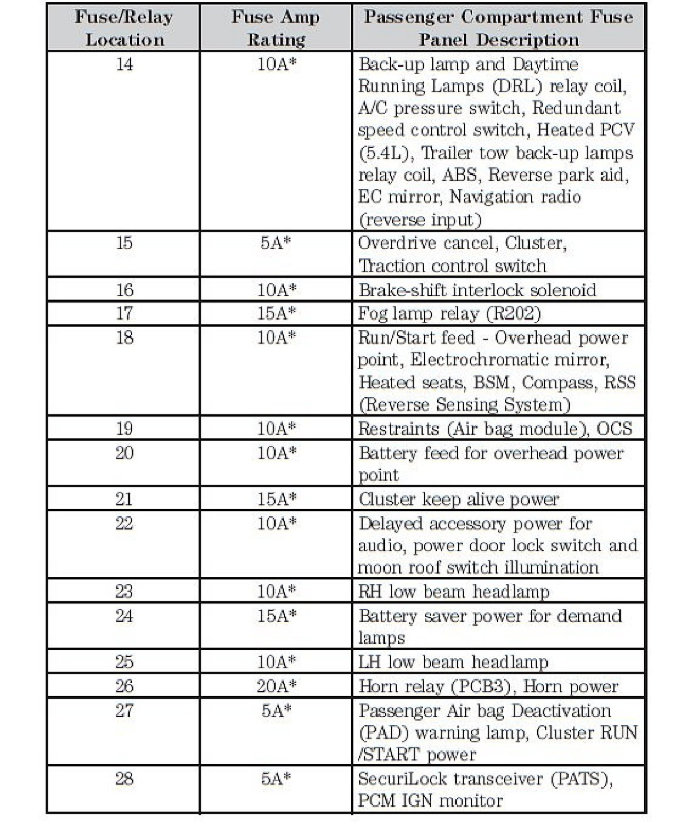

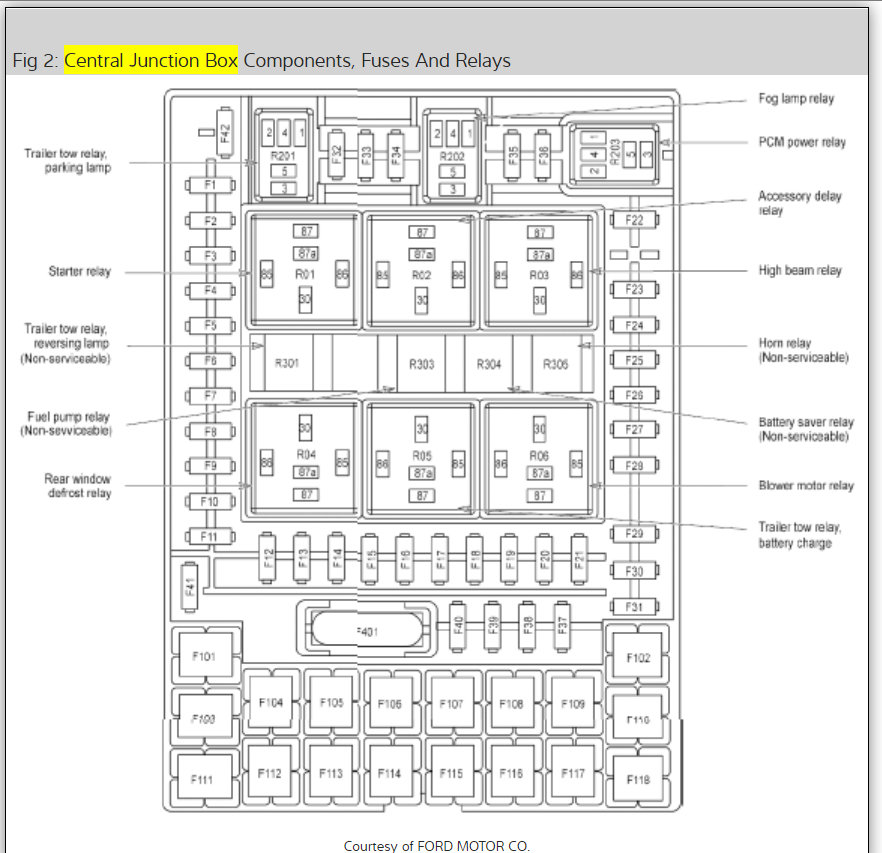

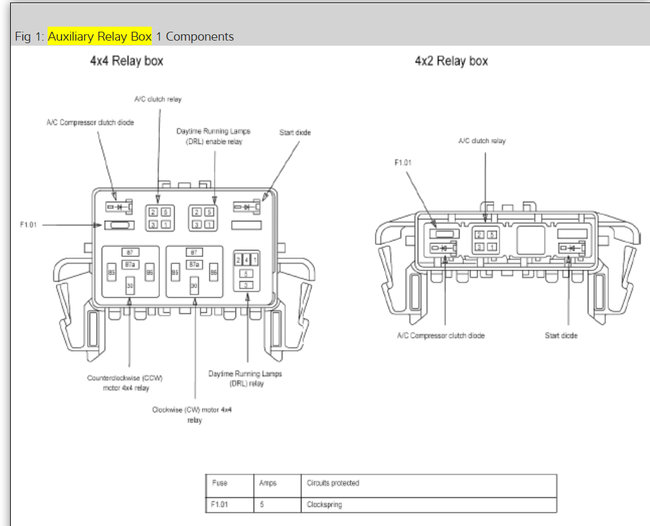

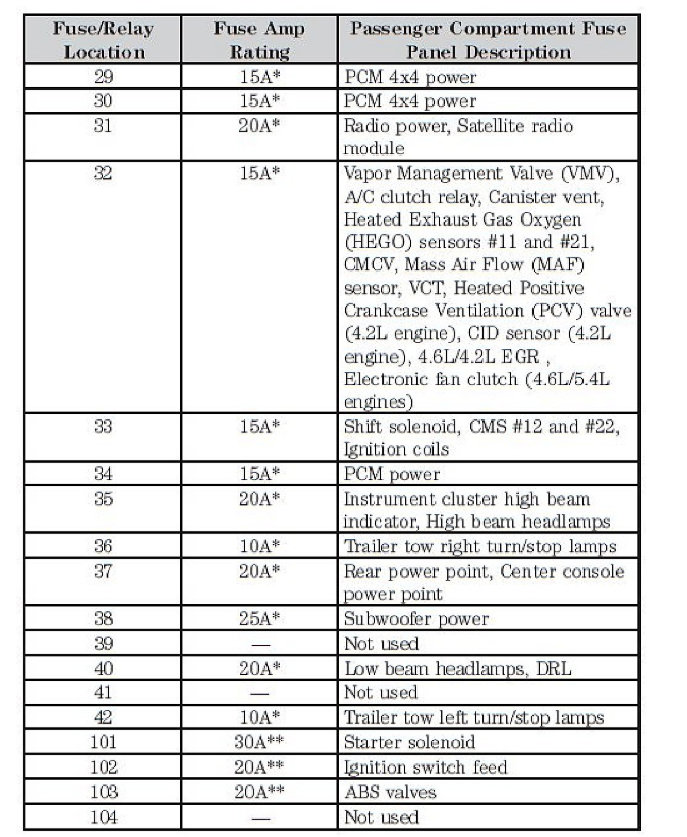

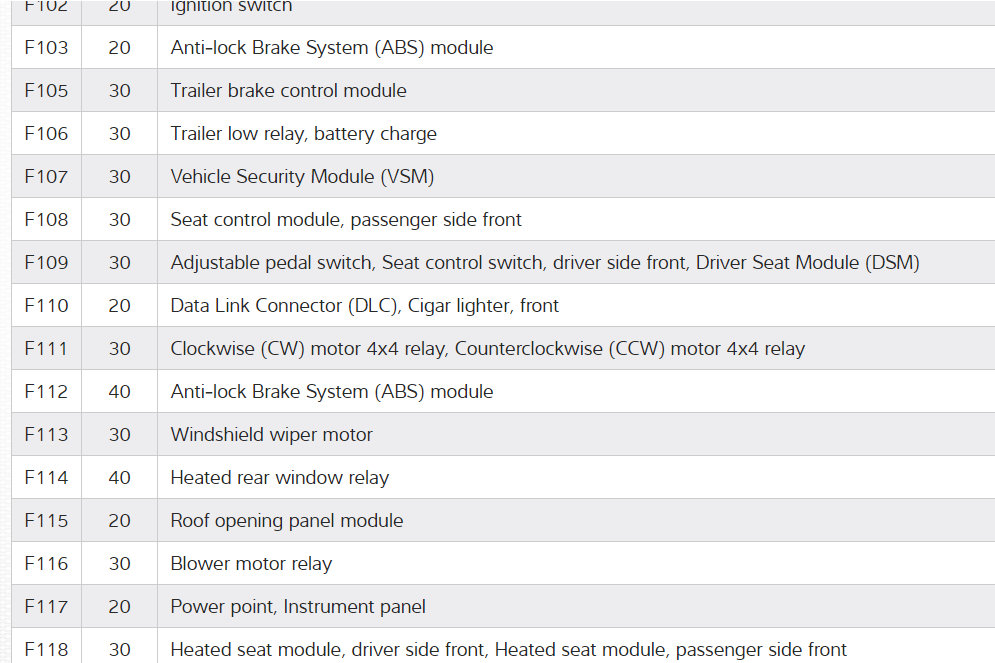

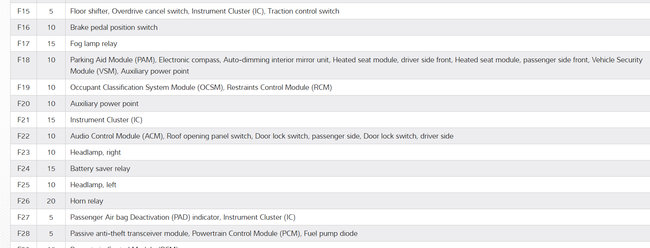

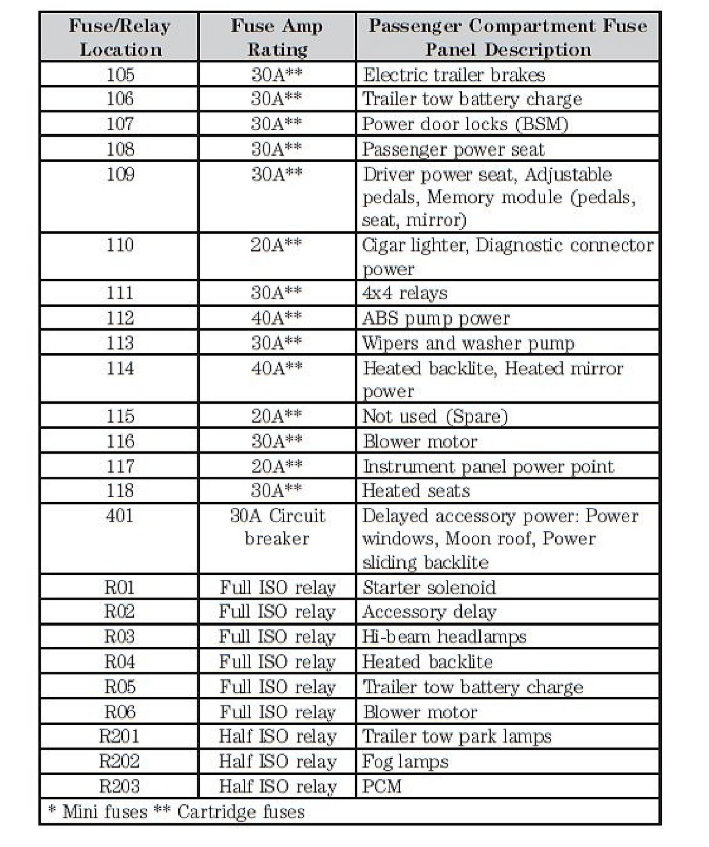

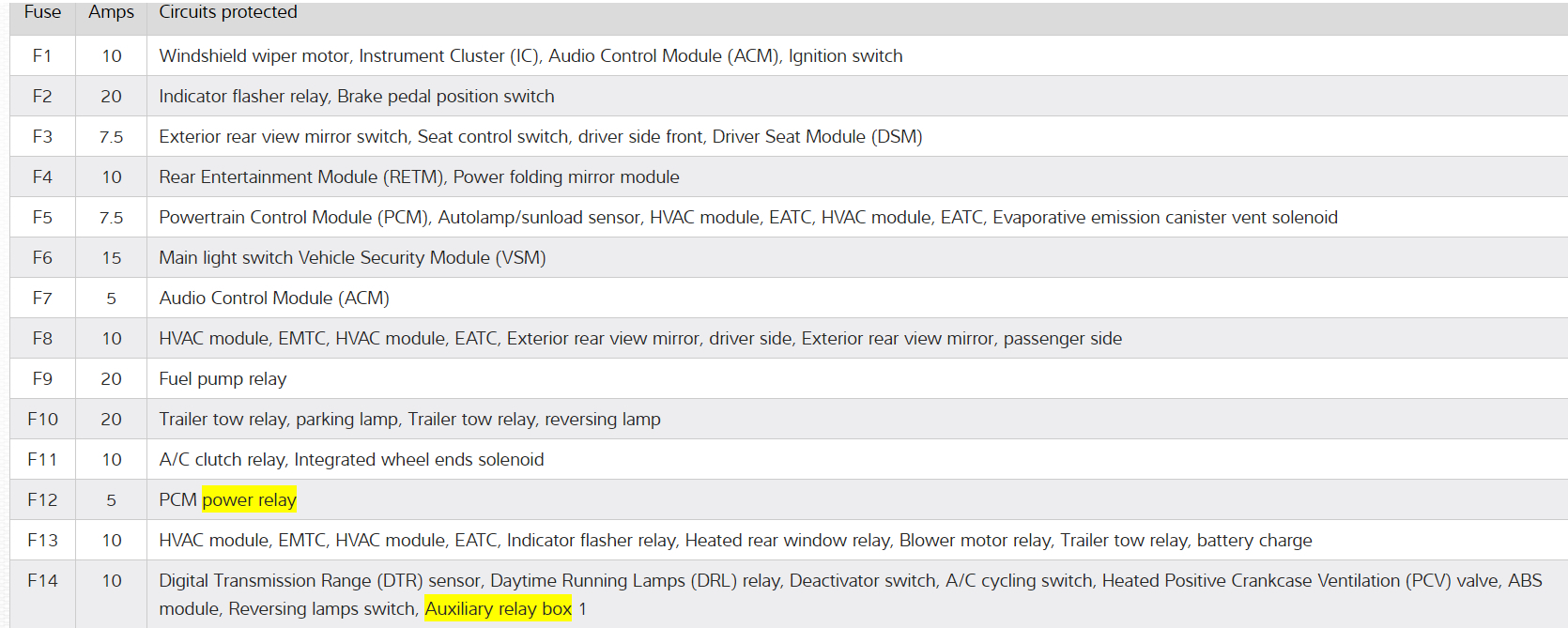

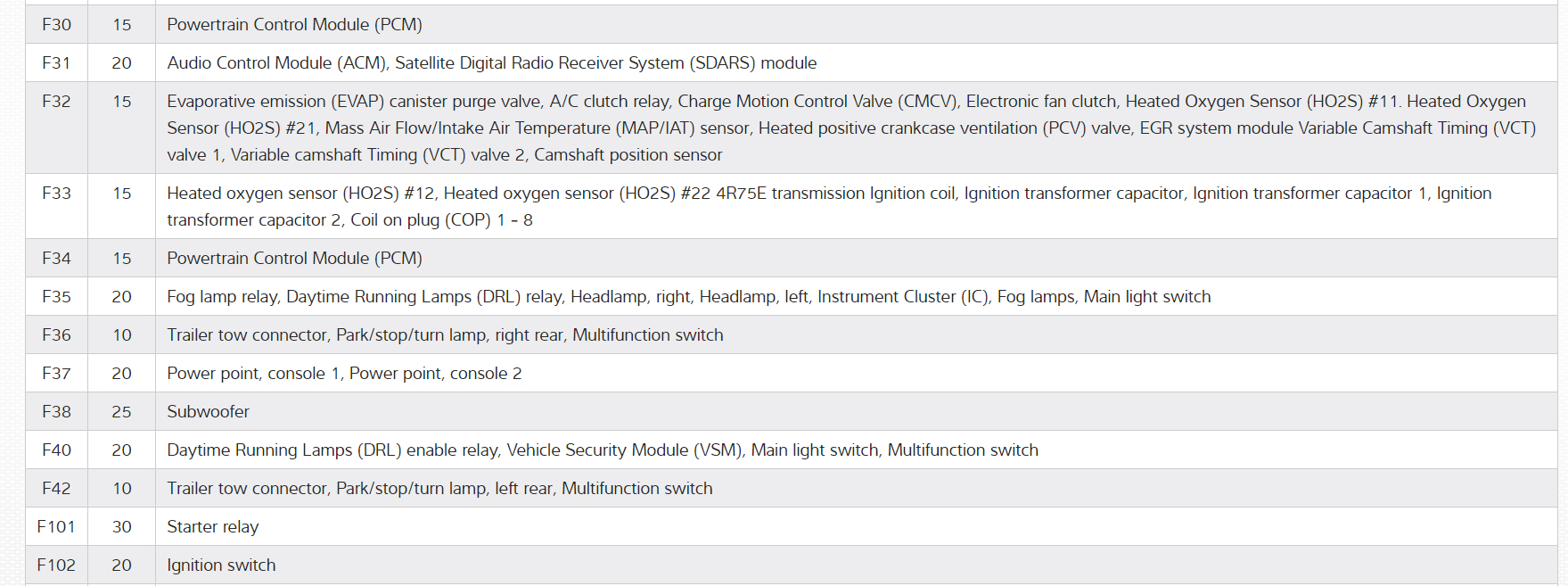

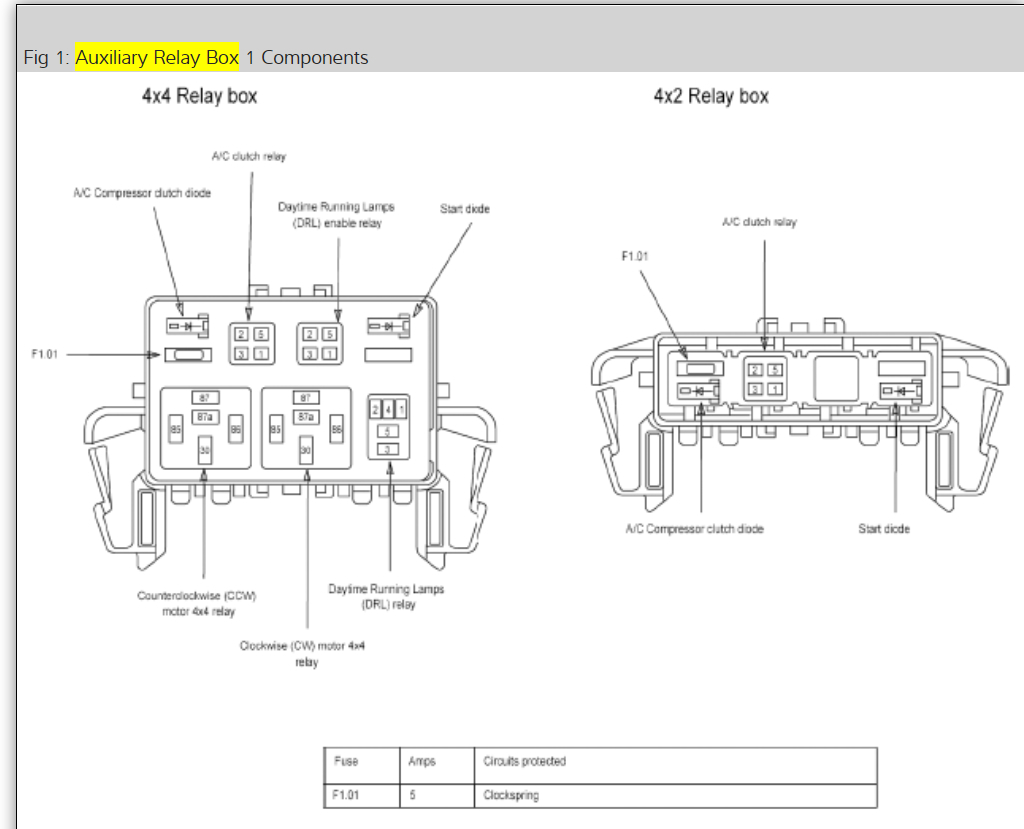

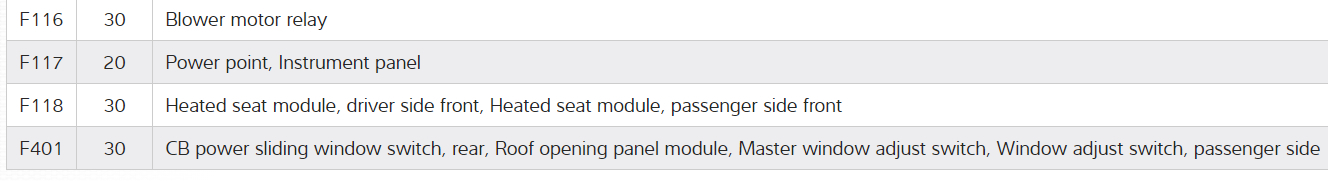

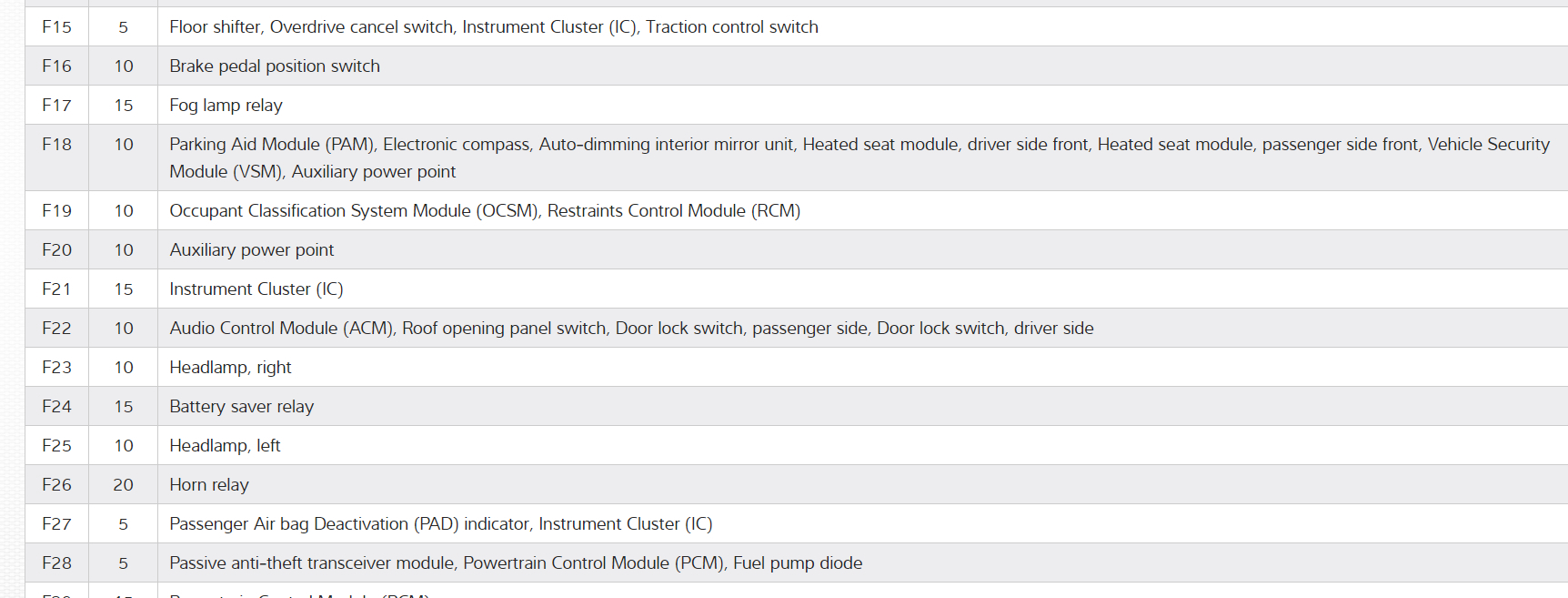

Called Power distribution box...here they are, but know this, there are 2 v8's 4.6 and 5.4...also 2 production dates, b4 and after 6/24/96 these are 4.6 after 6-24-96 OK?

This guide can help test the fuses with the fuse diagrams below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
+1
Wednesday, May 5th, 2021 AT 12:44 PM
