Could I get the wiring diagram for the engine?

2002 HONDA ACCORD
231,532 MILES • 2.3L • 4 CYL • 2WD • AUTOMATIC
Avatar
BLESSING EWOBOR
The wire harness insulator is bad, the insulator is falling off gradually. The harness has been replaced but there is mixed up on the wiring with some components. Could I get the wiring diagram for the engine performance?
Feb 18, 2025 at 4:28 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,494 POSTS
  • ASE Certified Mechanic

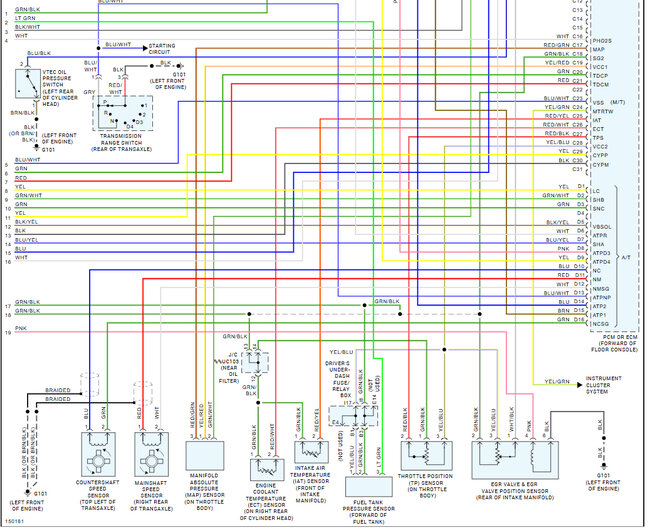

Sure, here is a guide to help with the testing and the engine wiring diagrams for the 2.3 liter engine and computer.

https://www.2carpros.com/articles/how-to-check-wiring

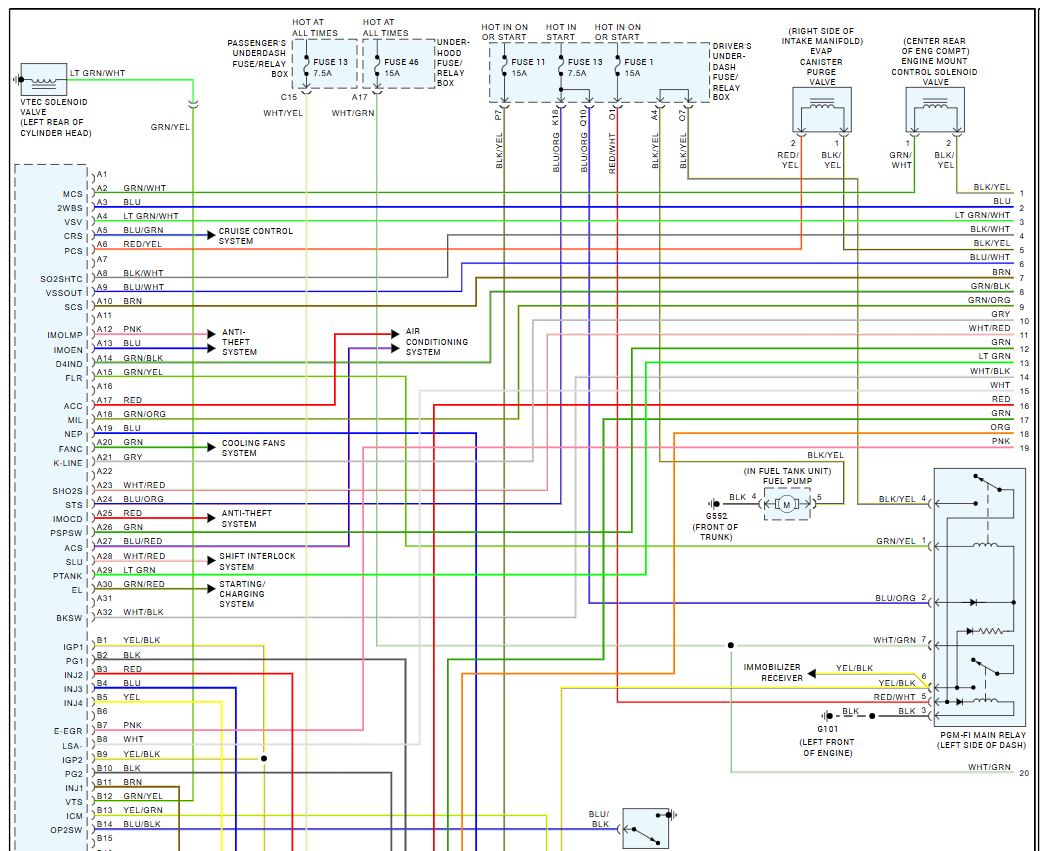

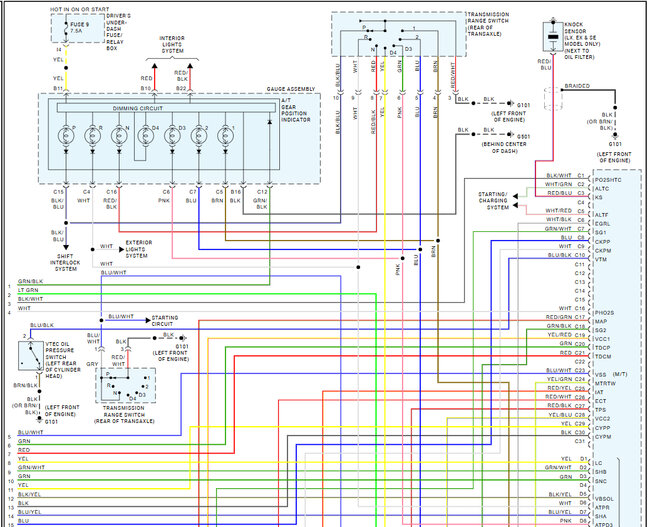

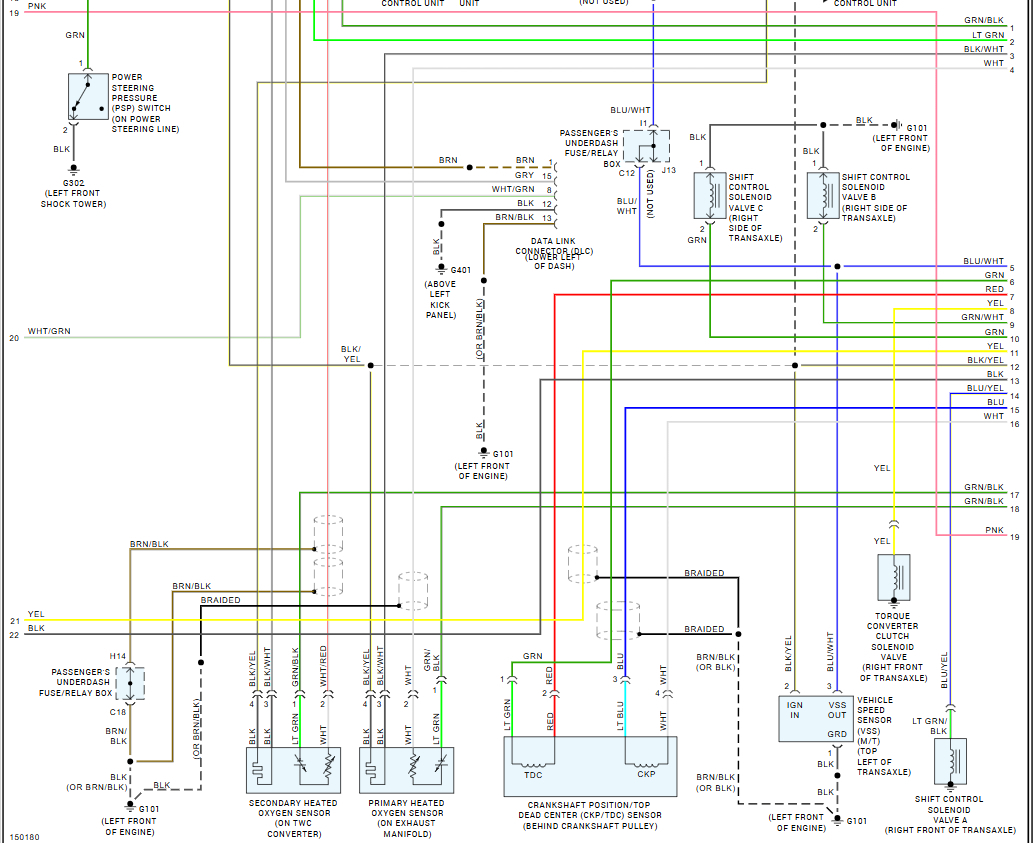

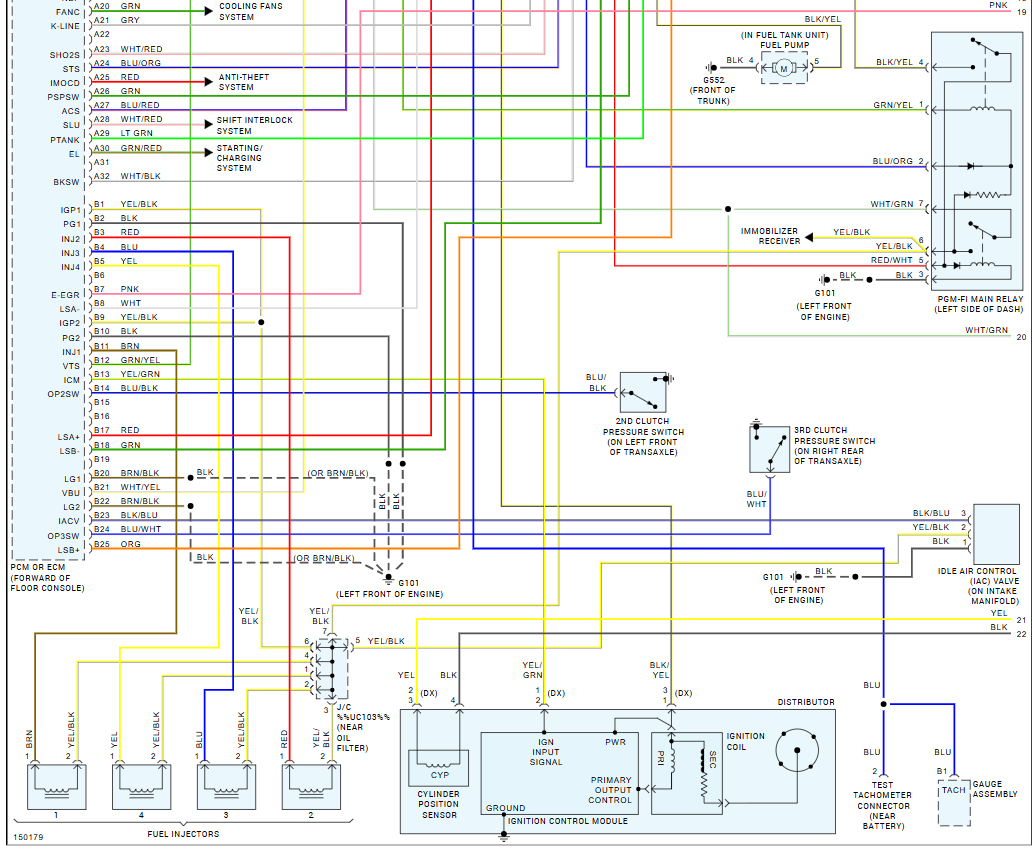

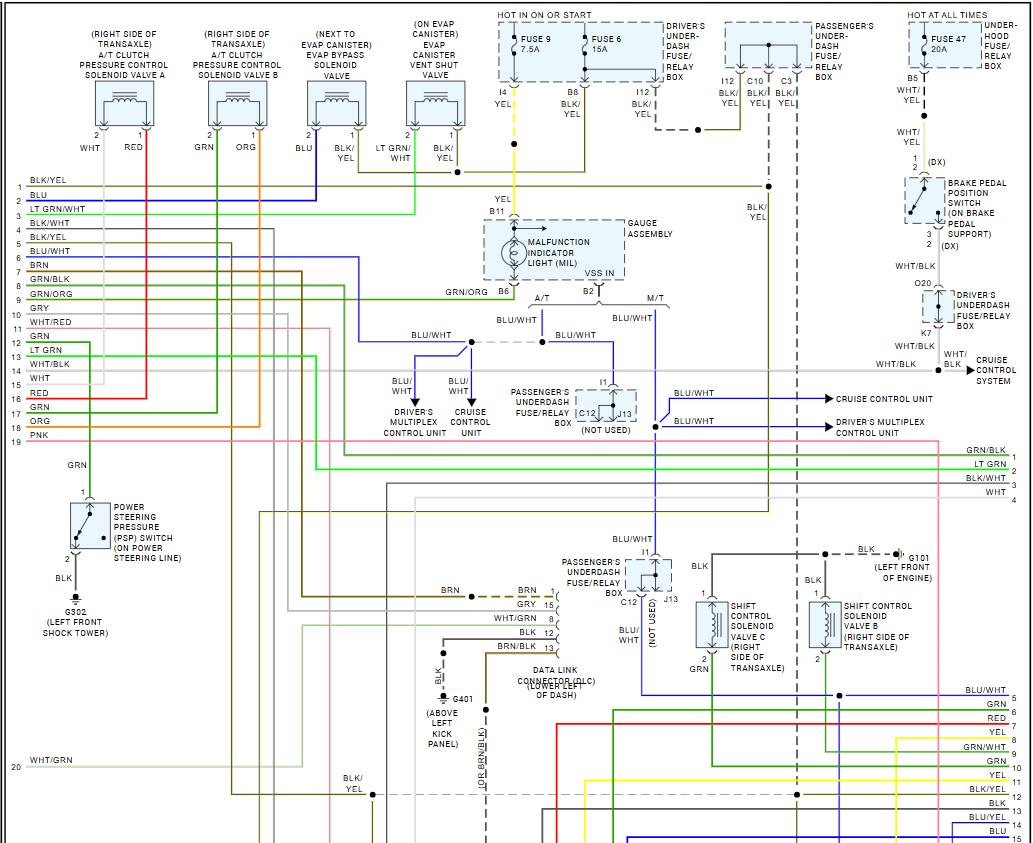

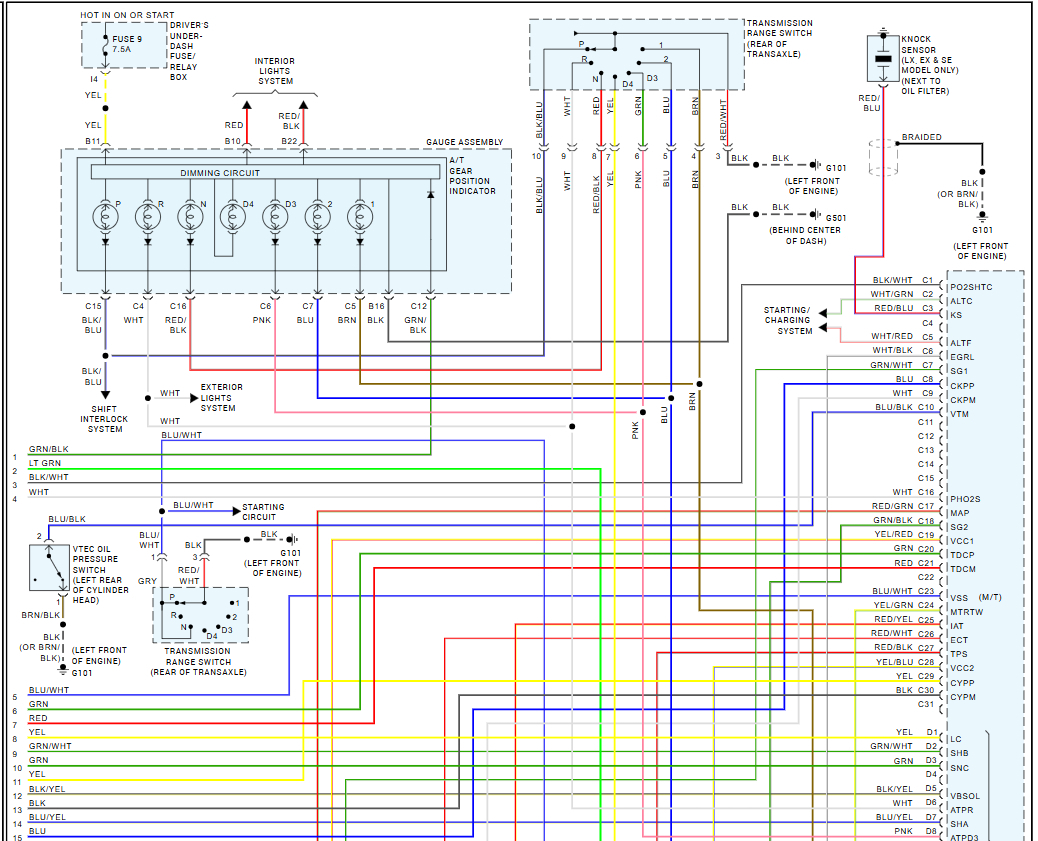

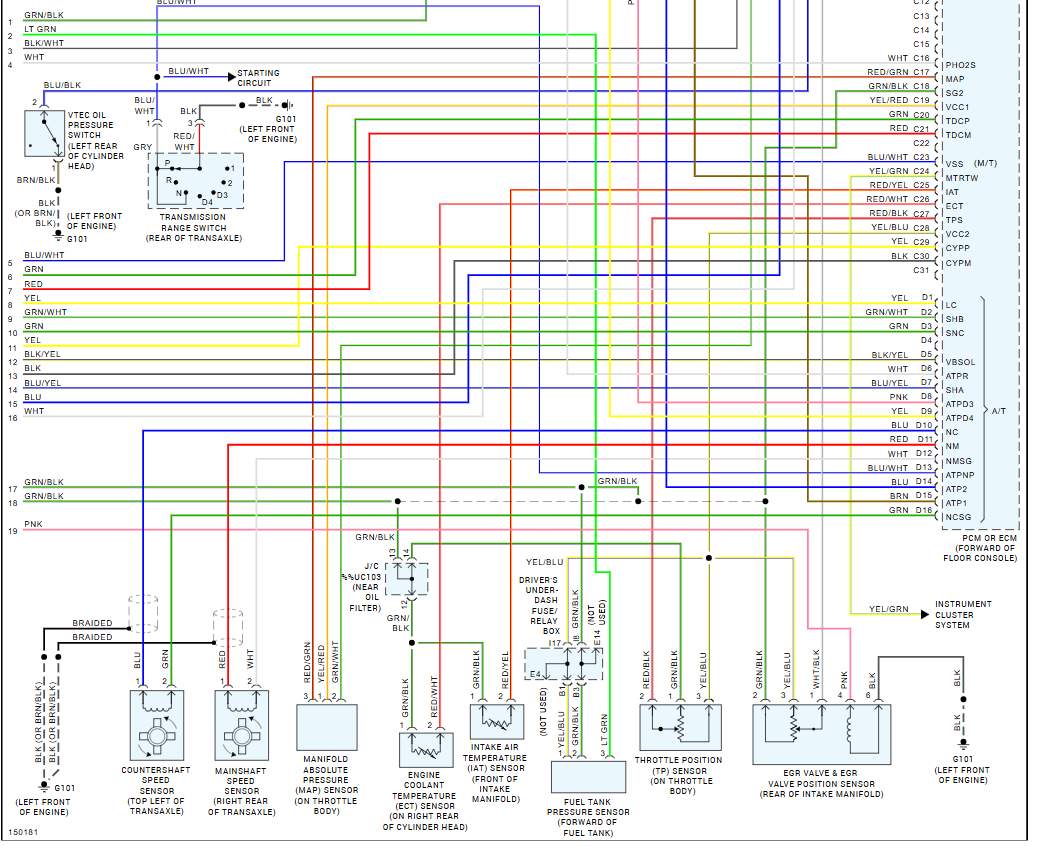

Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Feb 19, 2025 at 11:14 AM
Avatar
BLESSING EWOBOR
  • MEMBER
  • 753 POSTS
Thank you very much.
Feb 20, 2025 at 8:42 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,494 POSTS
  • ASE Certified Mechanic
You are welcome, please use 2CarPros anytime we are here to help.
