Engine wiring for power ground / can Bus diagram needed?

Tiny
ANDRIN ATEM
  • MEMBER
  • 2017 HYUNDAI SANTA FE
  • 2.7L
  • 4WD
  • AUTOMATIC
  • 1,467 MILES
Car caught fire, so I bought a complete wiring from a junk yard, and it was badly cut, so if I can have this diagrams it will guide me to restore.

I appreciate all efforts by 2Carpros

SANTA FE SPORT / 2017/HYUN



5XYZTDLB4HG391081
Tuesday, June 24th, 2025 AT 10:11 AM

11 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 52,298 POSTS

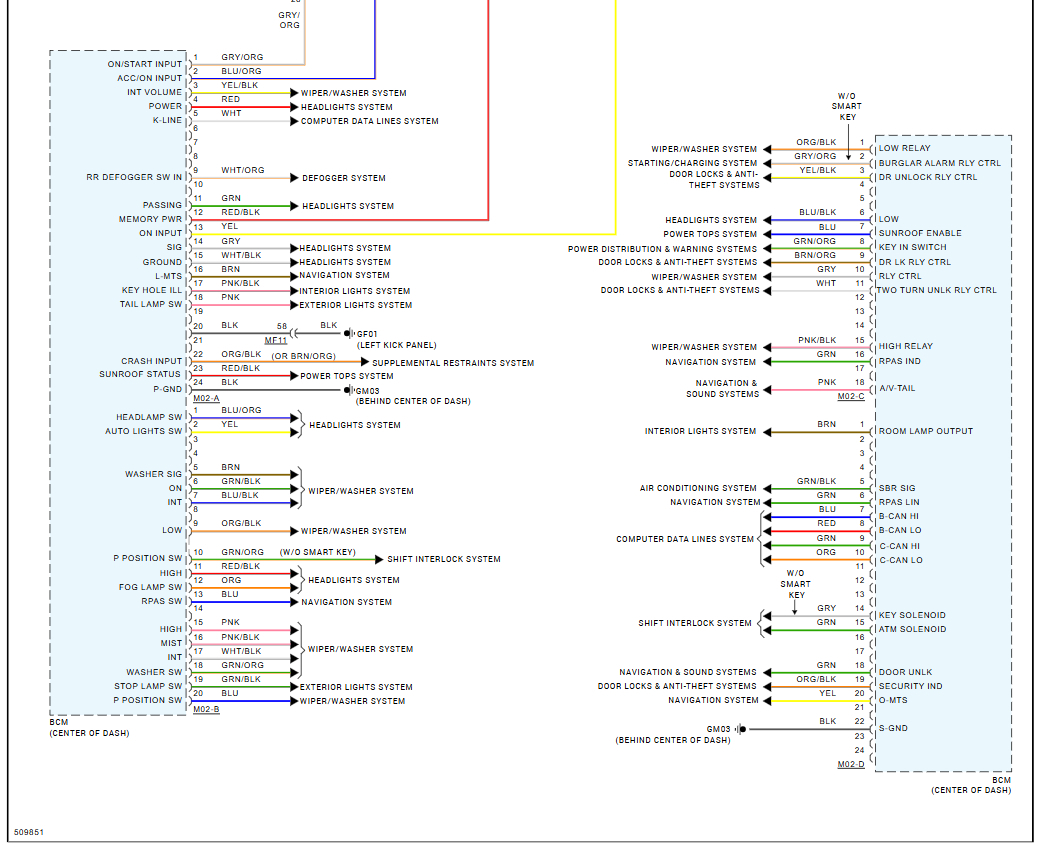

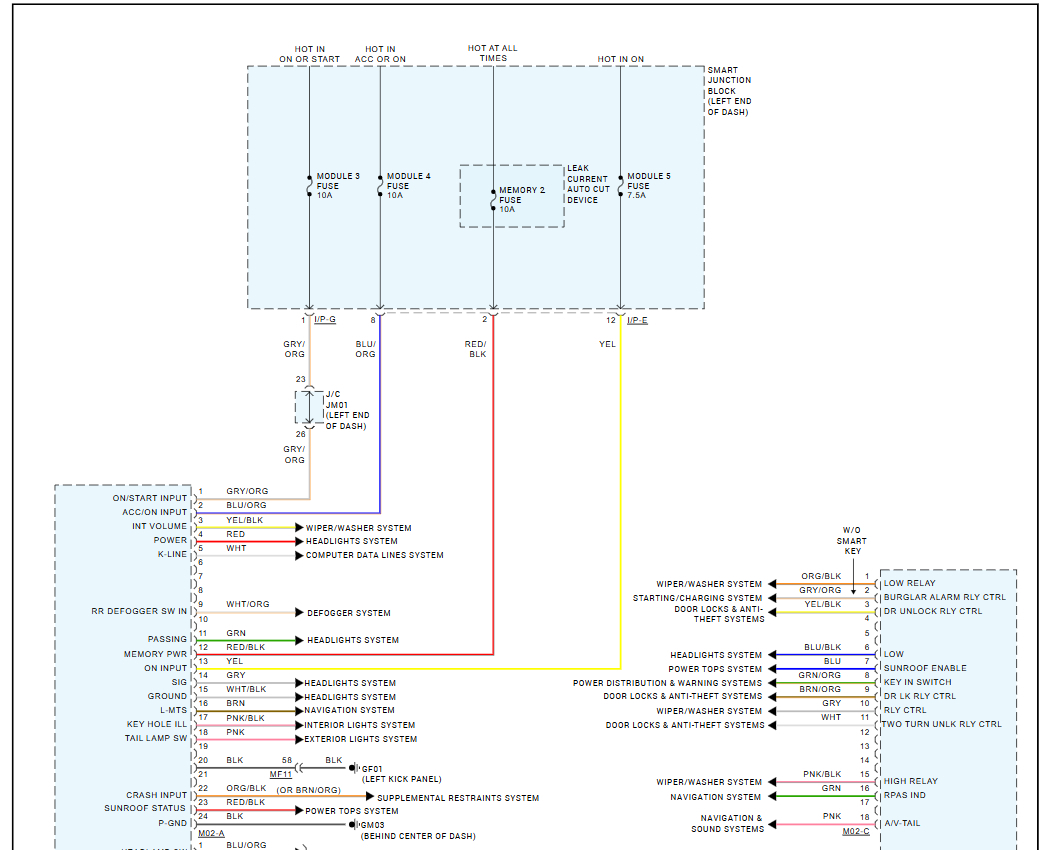

Sure, here is a guide to help with the testing and the CAN bus wiring system which shows the grounds.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Let us know if you need anything else.
Was this
answer
helpful?
Yes
No
+1
Wednesday, June 25th, 2025 AT 11:08 AM
Tiny
ANDRIN ATEM
  • MEMBER
  • 345 POSTS
May I also have the fuse box diagram and the ECU pin out diagrams.
Was this
answer
helpful?
Yes
No
Thursday, June 26th, 2025 AT 3:34 AM
Tiny
ANDRIN ATEM
  • MEMBER
  • 345 POSTS
Hi Ken, what I got from a junk yard is a 2017, sorry to I did not mention, but the car Santa Fe that had fire, is a 2013.

So, I need the ecu pin out for this 2017.
Engine fuse box diagram pinout
Thanks!
Was this
answer
helpful?
Yes
No
Saturday, June 28th, 2025 AT 12:43 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 52,298 POSTS

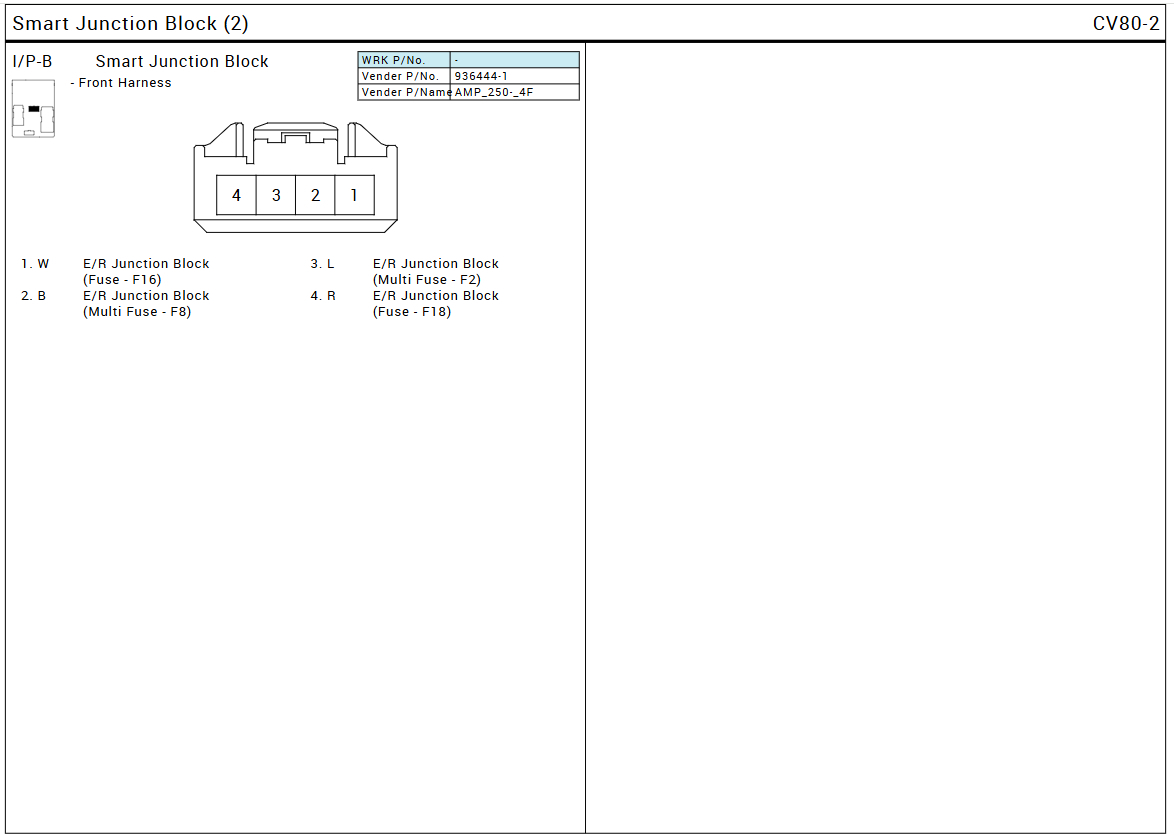

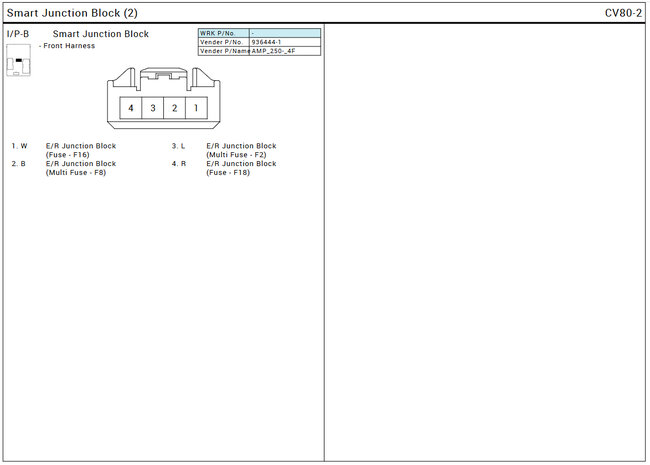

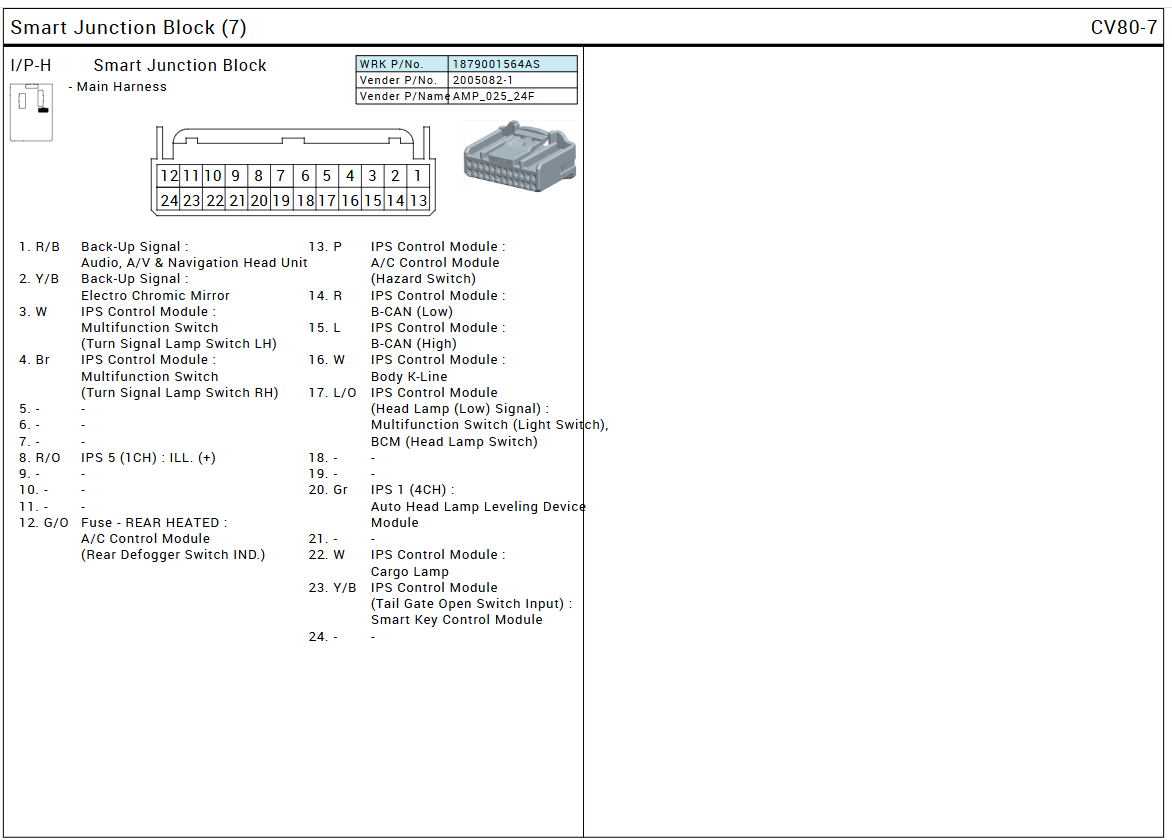

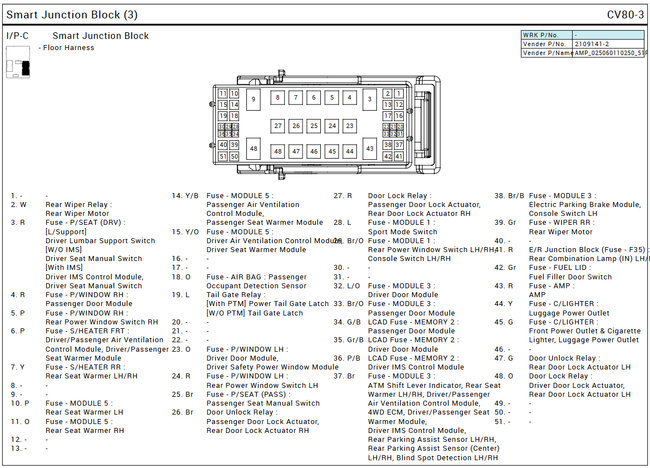

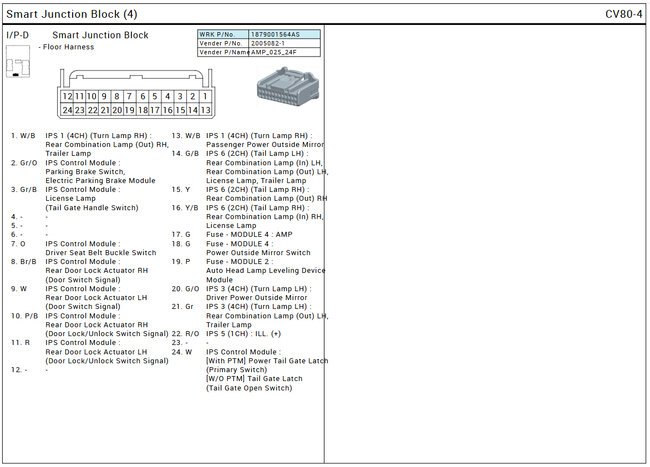

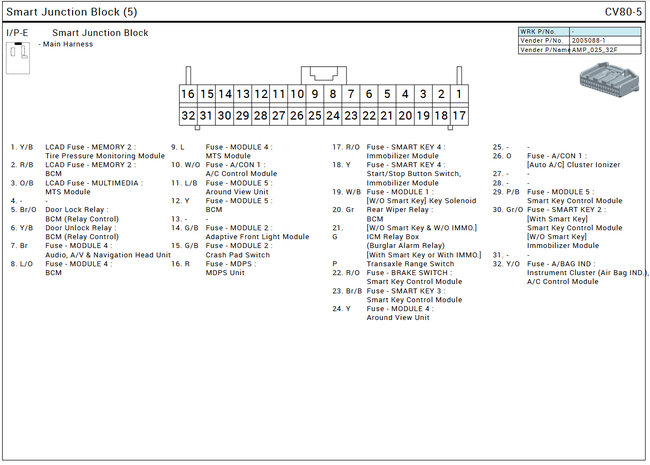

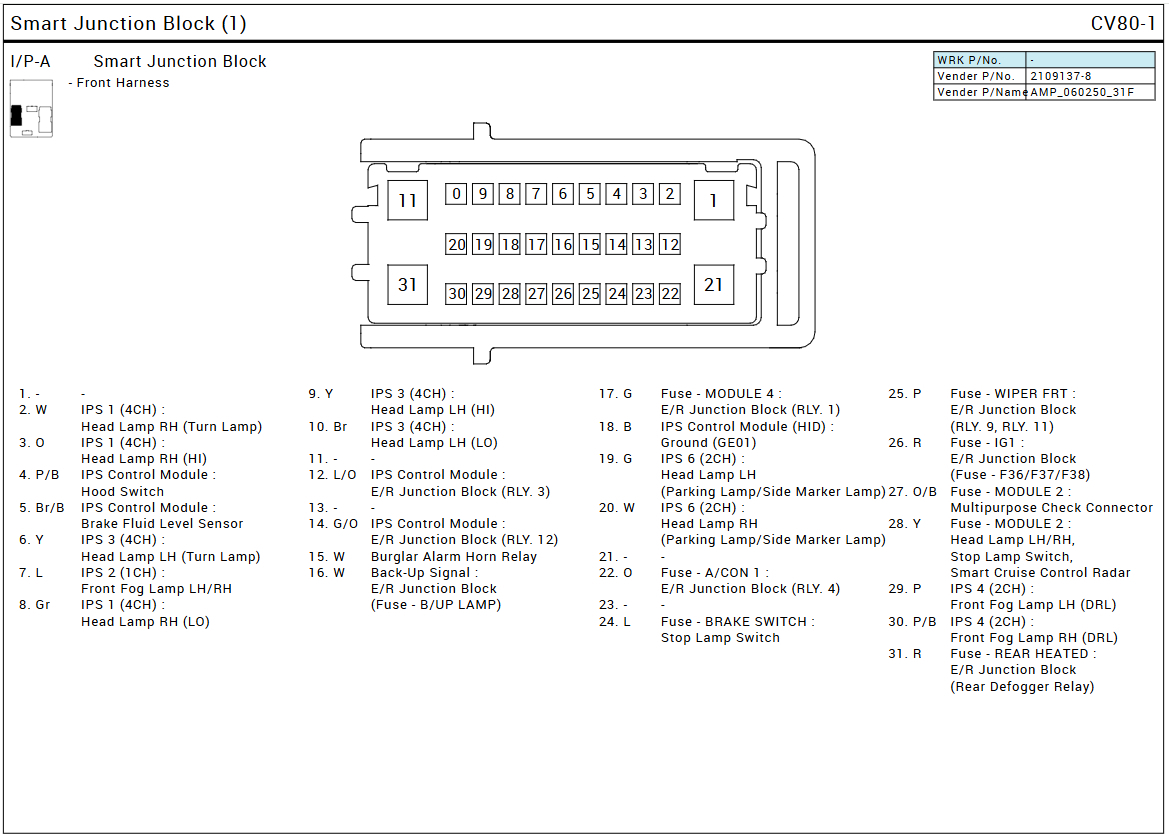

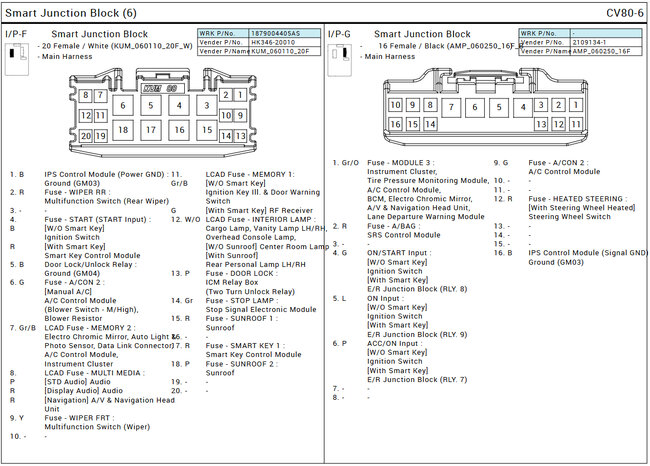

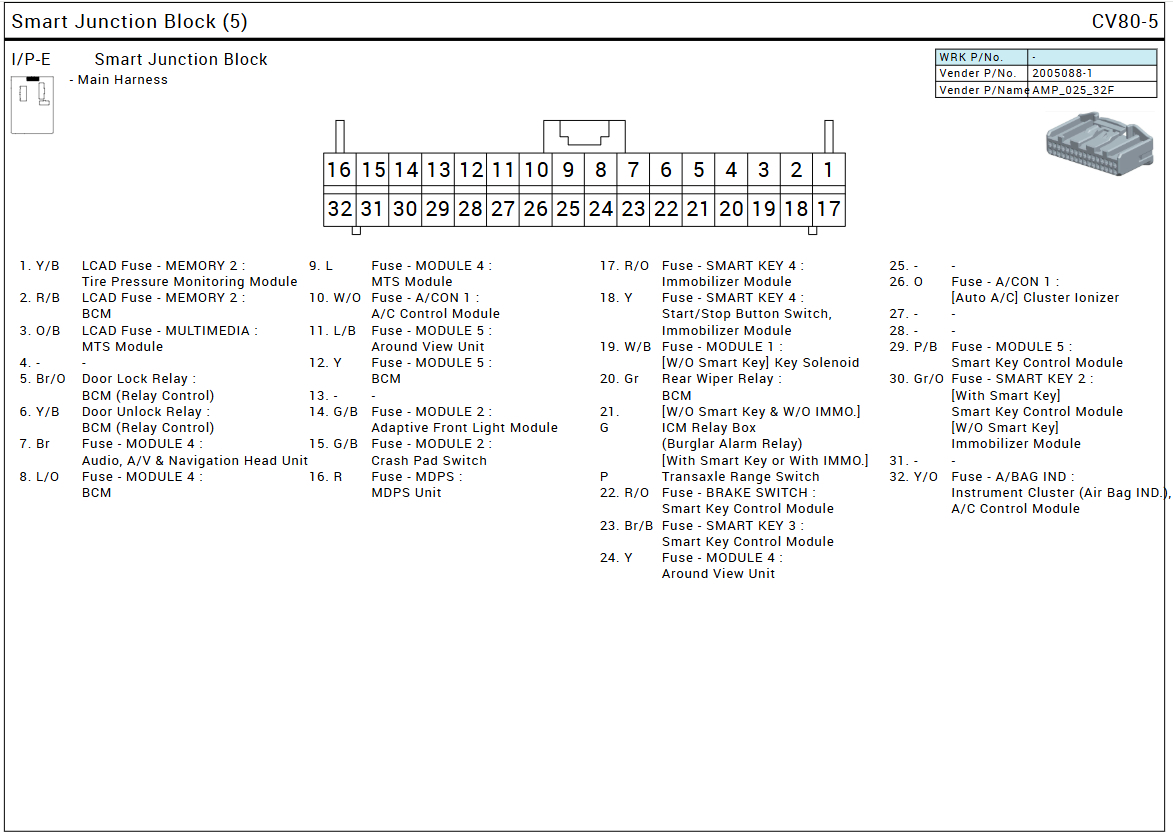

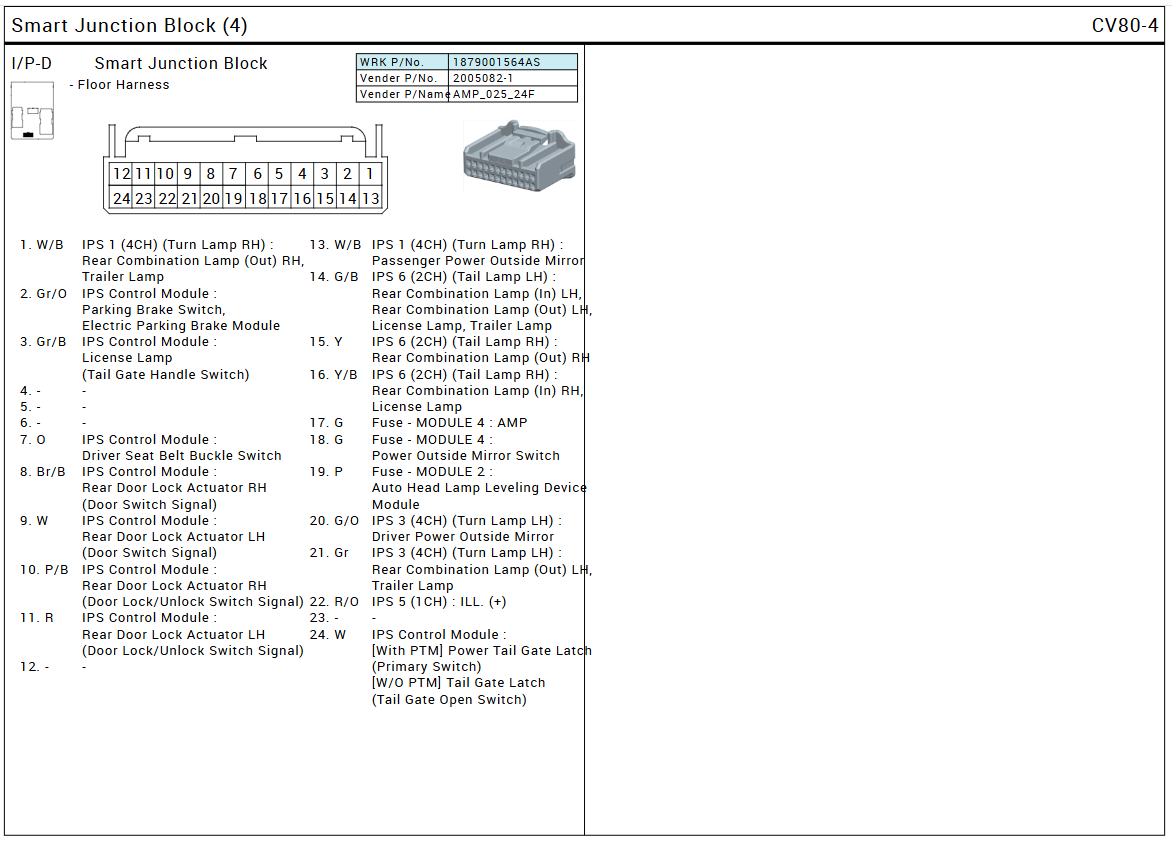

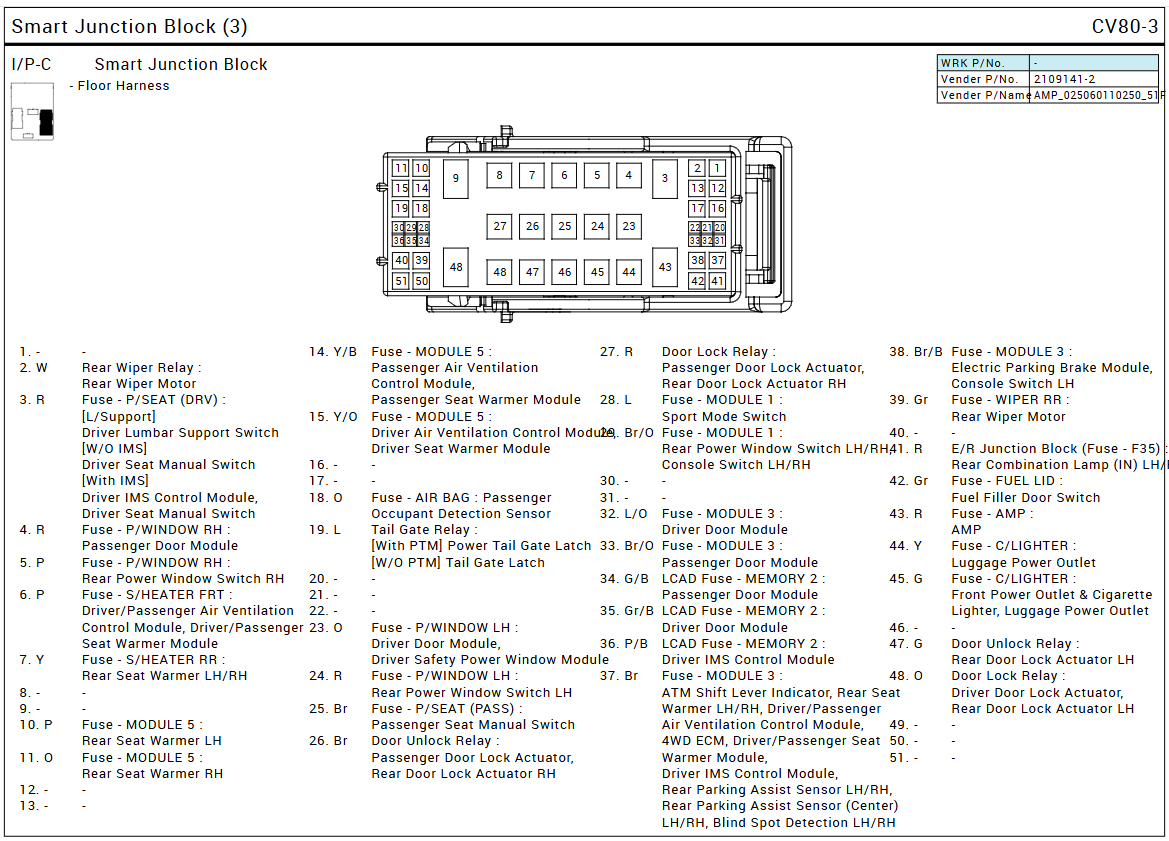

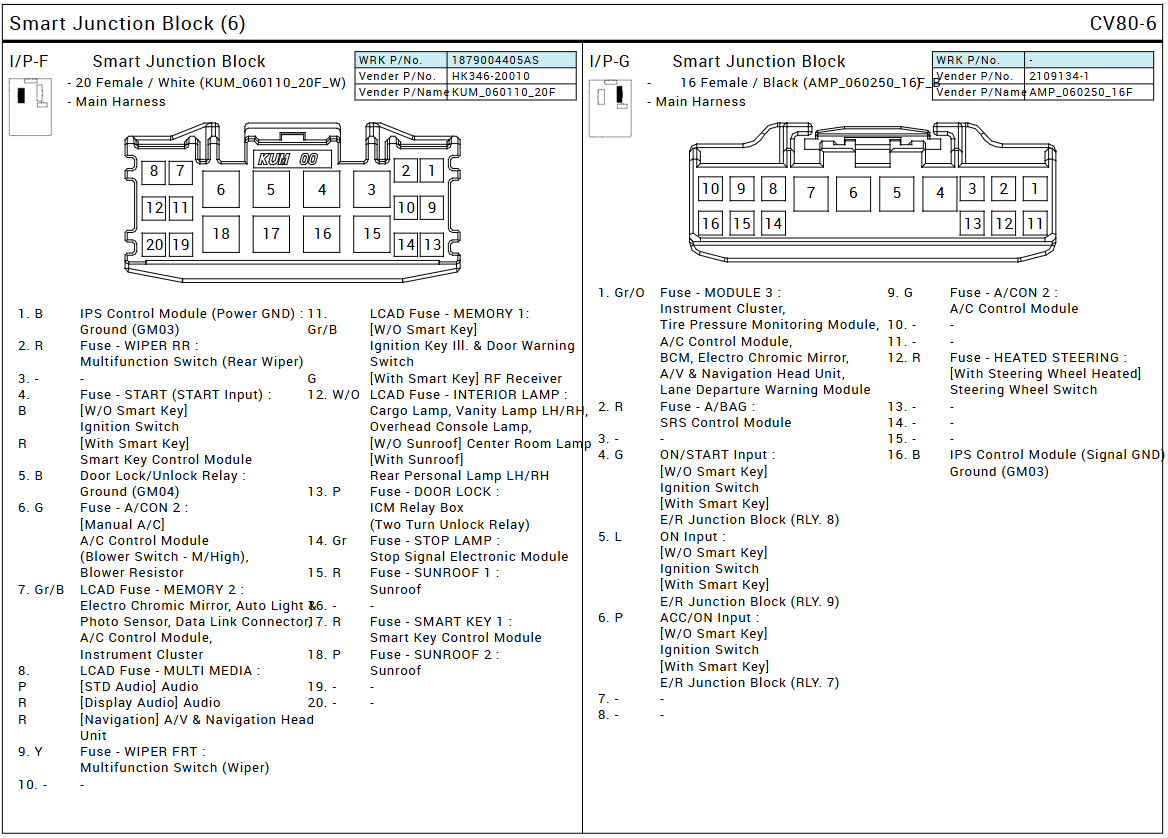

I am sorry to hear that, fires are hard to repair. Here are the pin outs for the smart junction box, (fuse panel). Check out the images (below). Let us know how it goes.
Was this
answer
helpful?
Yes
No
+1
Saturday, June 28th, 2025 AT 10:36 AM
Tiny
ANDRIN ATEM
  • MEMBER
  • 345 POSTS
Thank you Ken.
Was this
answer
helpful?
Yes
No
Saturday, June 28th, 2025 AT 11:27 AM
Tiny
ANDRIN ATEM
  • MEMBER
  • 345 POSTS
This has made all the difference, thank you so much.
Was this
answer
helpful?
Yes
No
Saturday, June 28th, 2025 AT 11:58 AM
Tiny
ANDRIN ATEM
  • MEMBER
  • 345 POSTS
Hi Ken, please may I also get the pinout diagram for the transmission connector, and gear switch range sensor.

For the engine, I think that will do. Will let you know how it goes.

Thank you so much.
Was this
answer
helpful?
Yes
No
Saturday, June 28th, 2025 AT 12:00 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 52,298 POSTS
No problem, can you start a new thread? We only handle one problem per.
Was this
answer
helpful?
Yes
No
Saturday, June 28th, 2025 AT 1:01 PM
Tiny
ANDRIN ATEM
  • MEMBER
  • 345 POSTS
Sure! Thank you
Was this
answer
helpful?
Yes
No
