Wire diagram of the engine management system needed?

Tiny
BLESSING EWOBOR
  • MEMBER
  • 2013 HYUNDAI SONATA
  • 2.0L
  • 4 CYL
  • TURBO
  • 2WD
  • AUTOMATIC
  • 111,114 MILES
The engine is Cranking but it is not starting. The vehicle has been parked for a long time with driving. Rodents had eaten up the wires connected to the fuel injectors and some other wires on the engine.
Could I get the wire diagram of the engine management system in order to reconnect the damaged wires
Thank you very much.
Tuesday, February 4th, 2025 AT 10:07 AM

5 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS

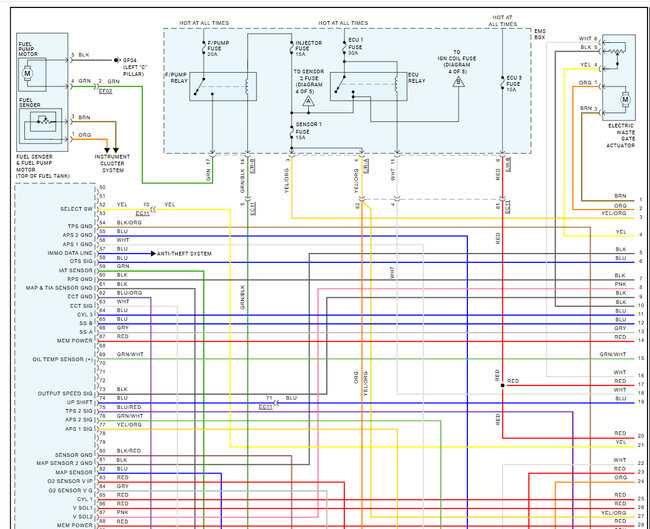

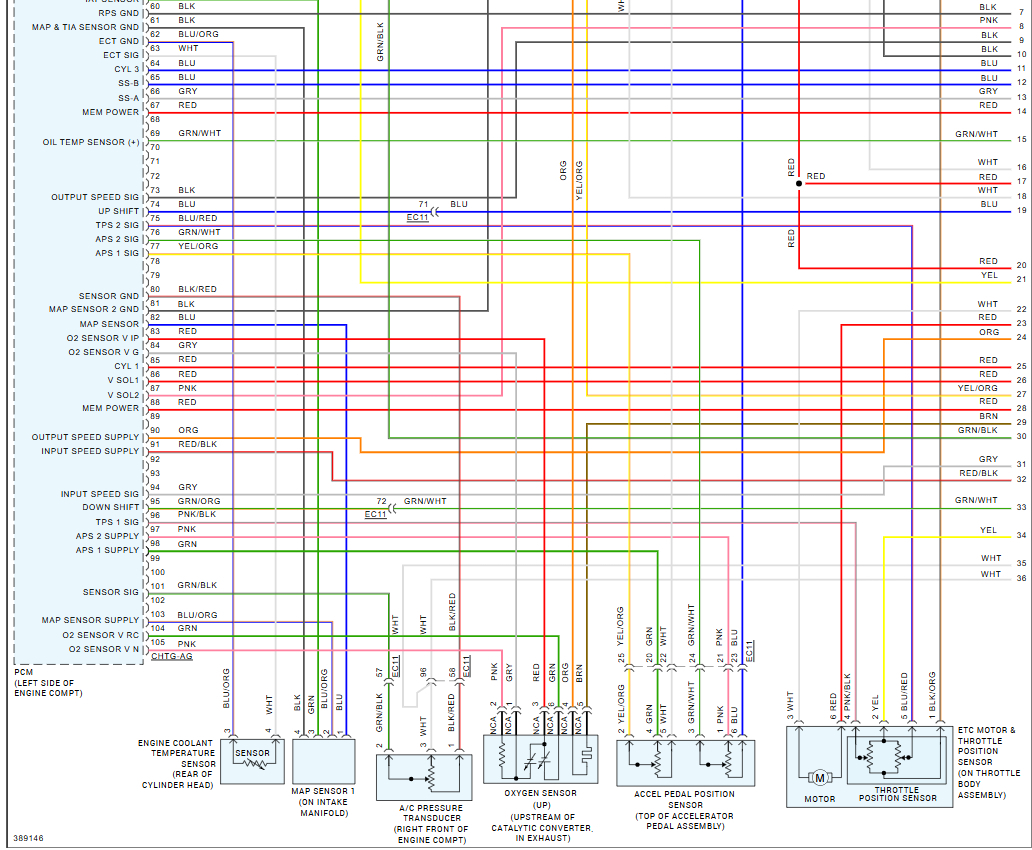

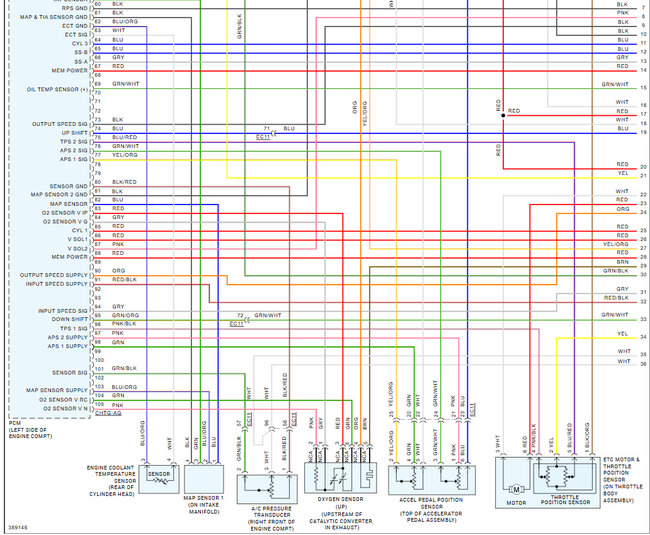

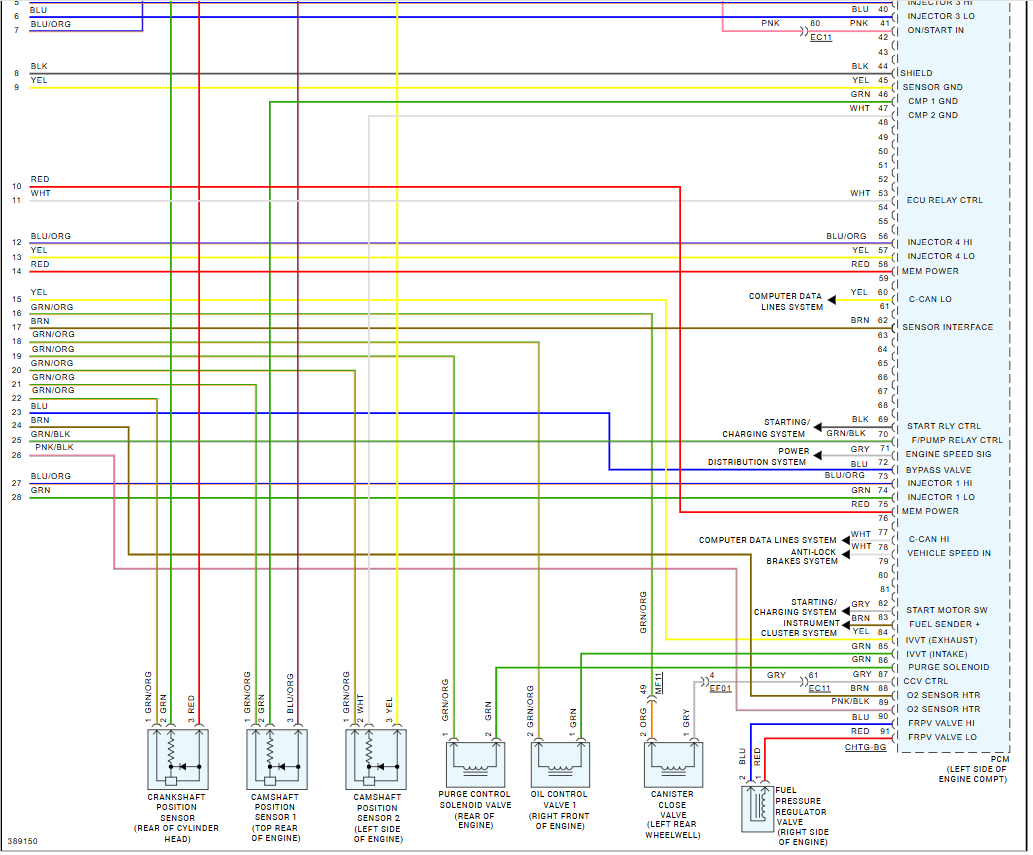

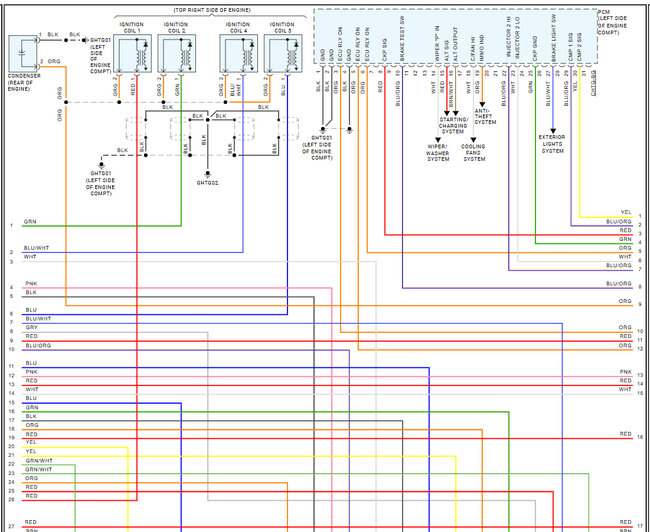

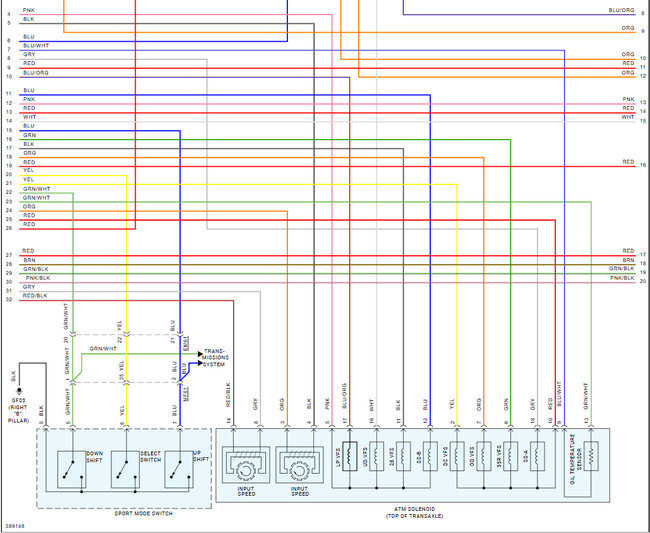

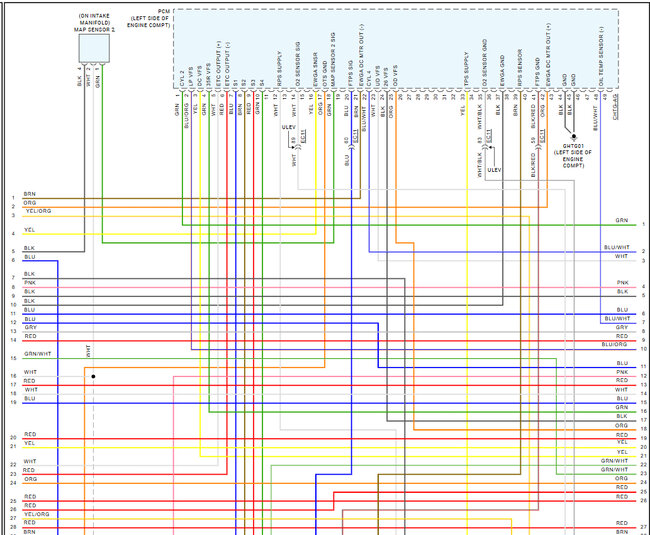

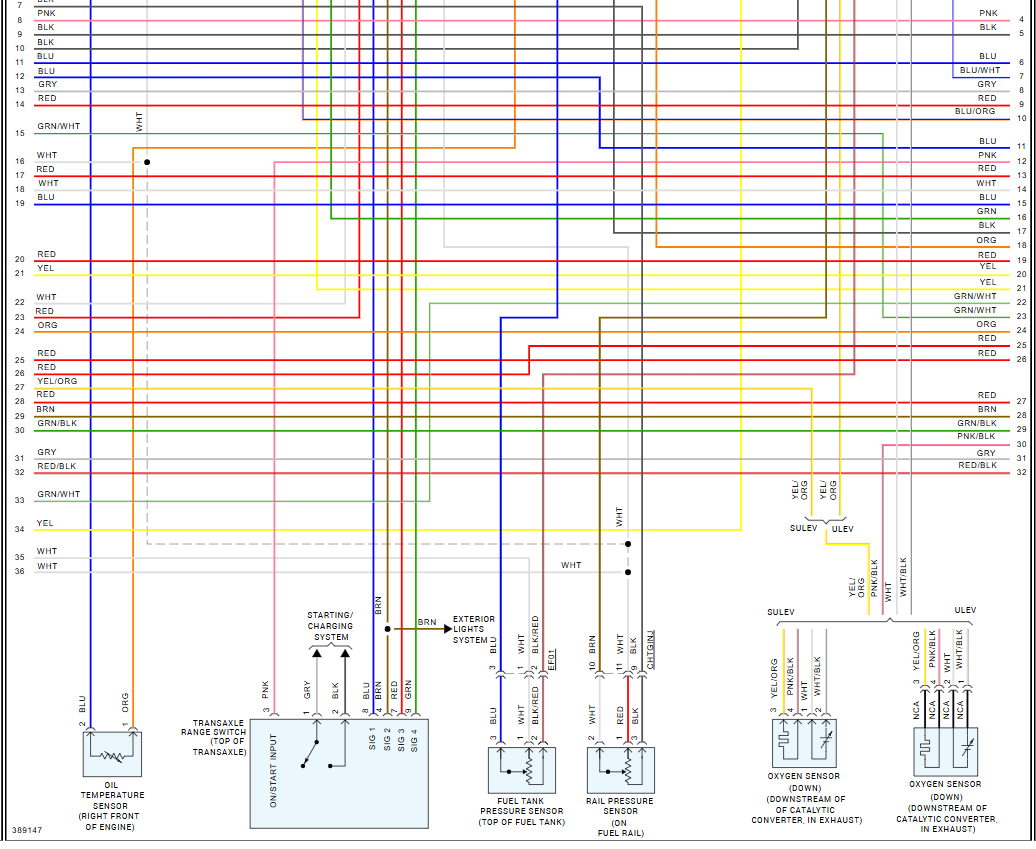

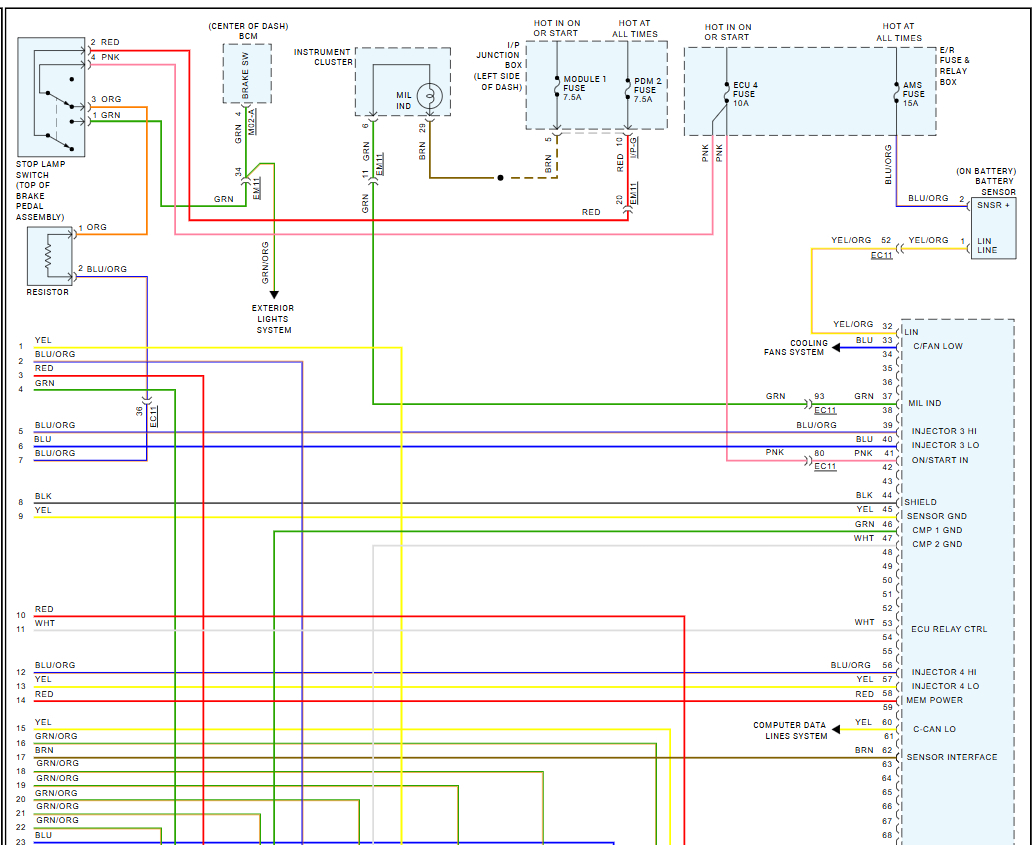

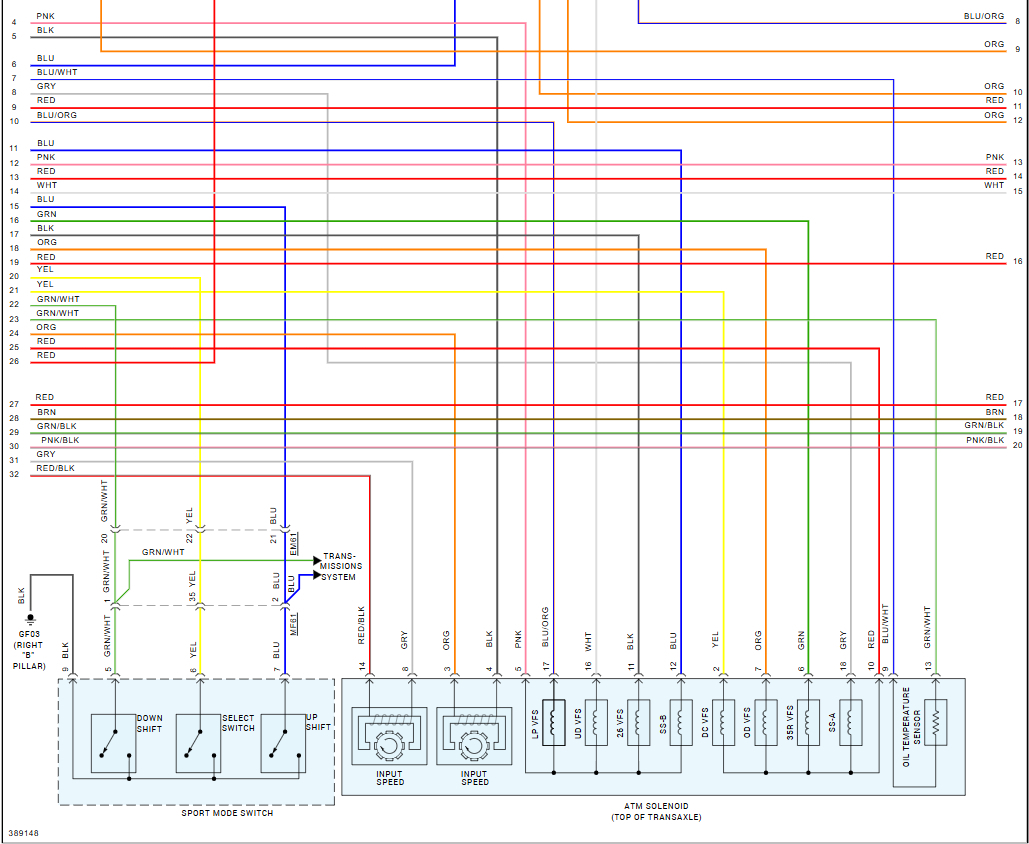

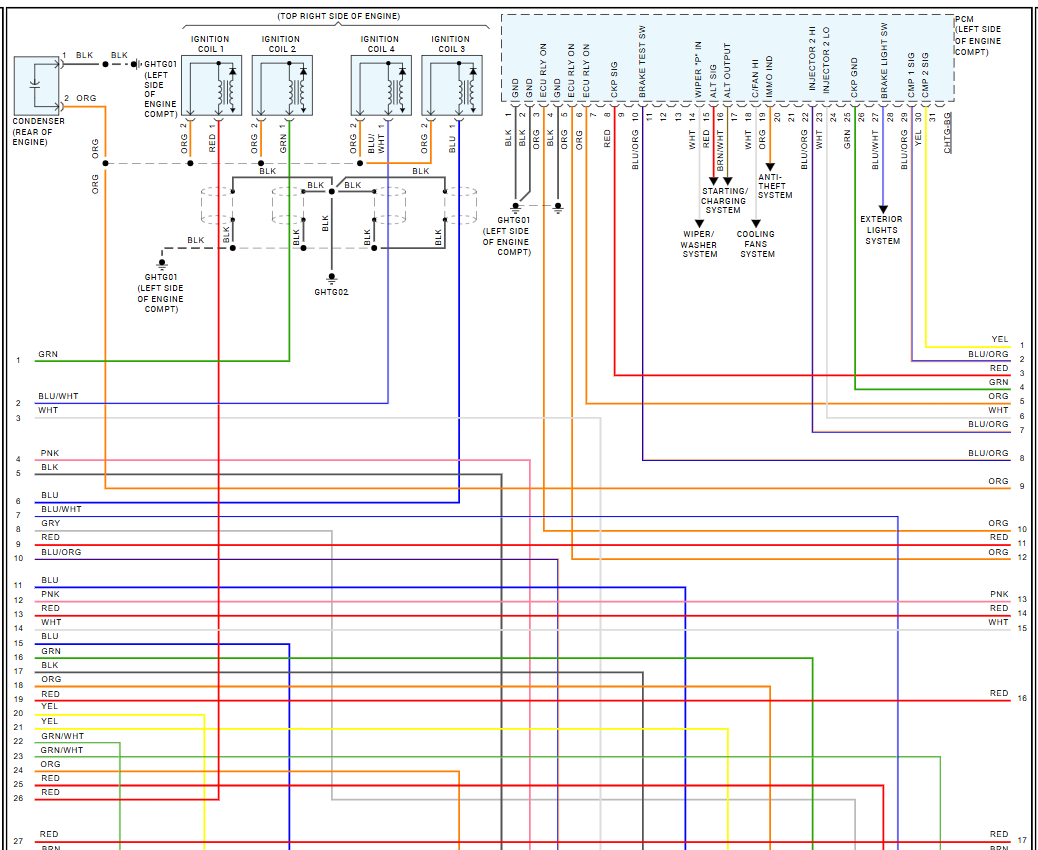

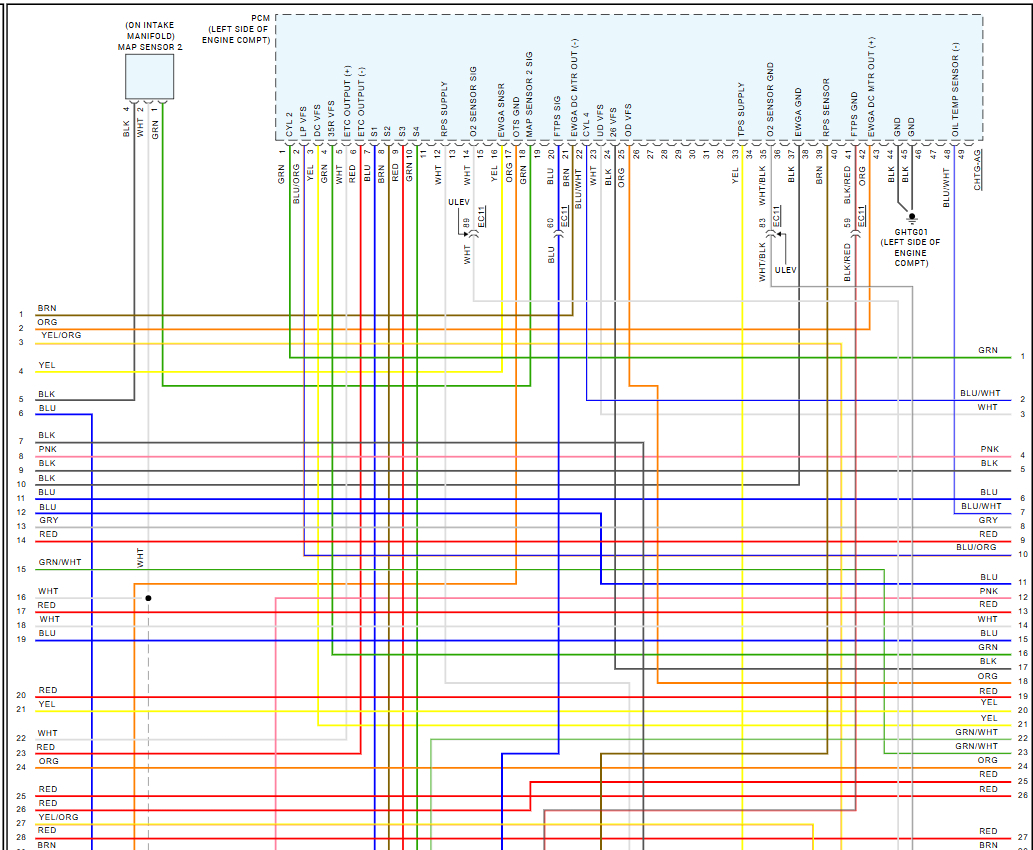

Yep, they like to eat wiring. here is a guide to help you with the testing and the engine wiring diagrams as requested:

https://www.2carpros.com/articles/how-to-check-wiring

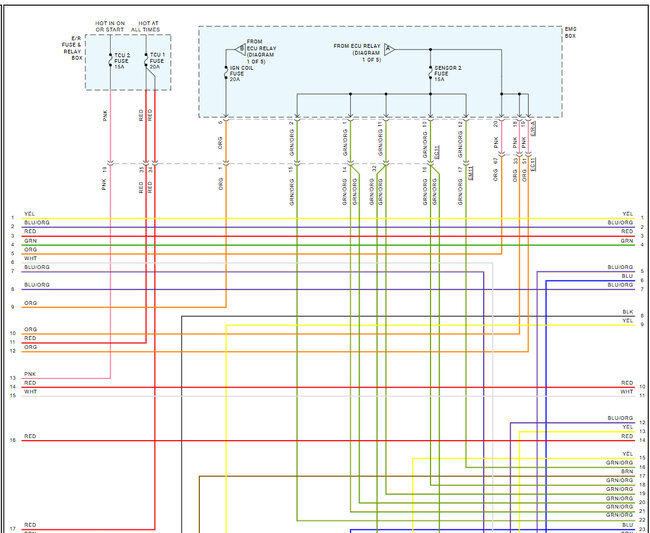

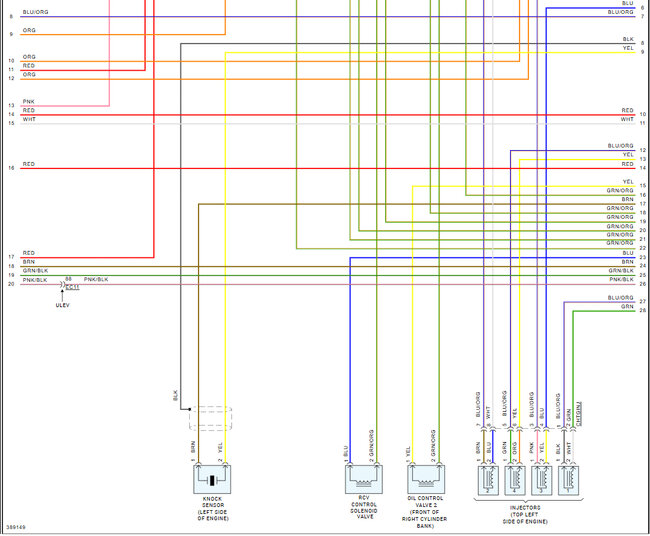

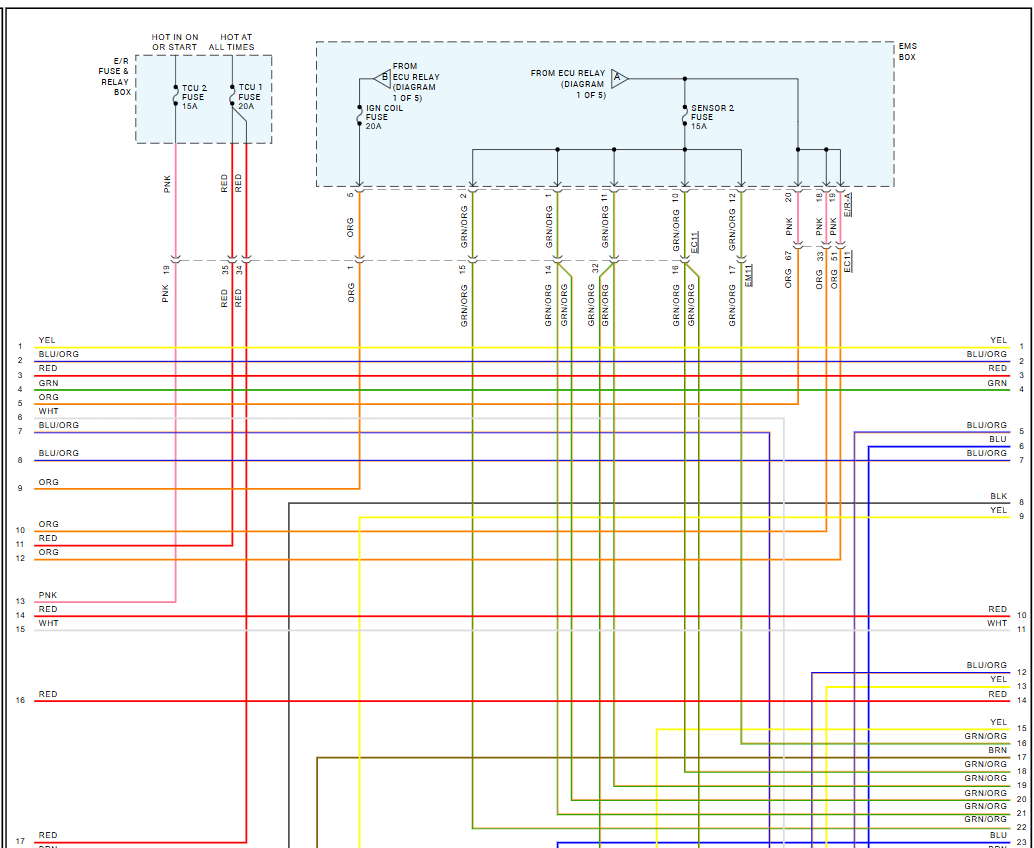

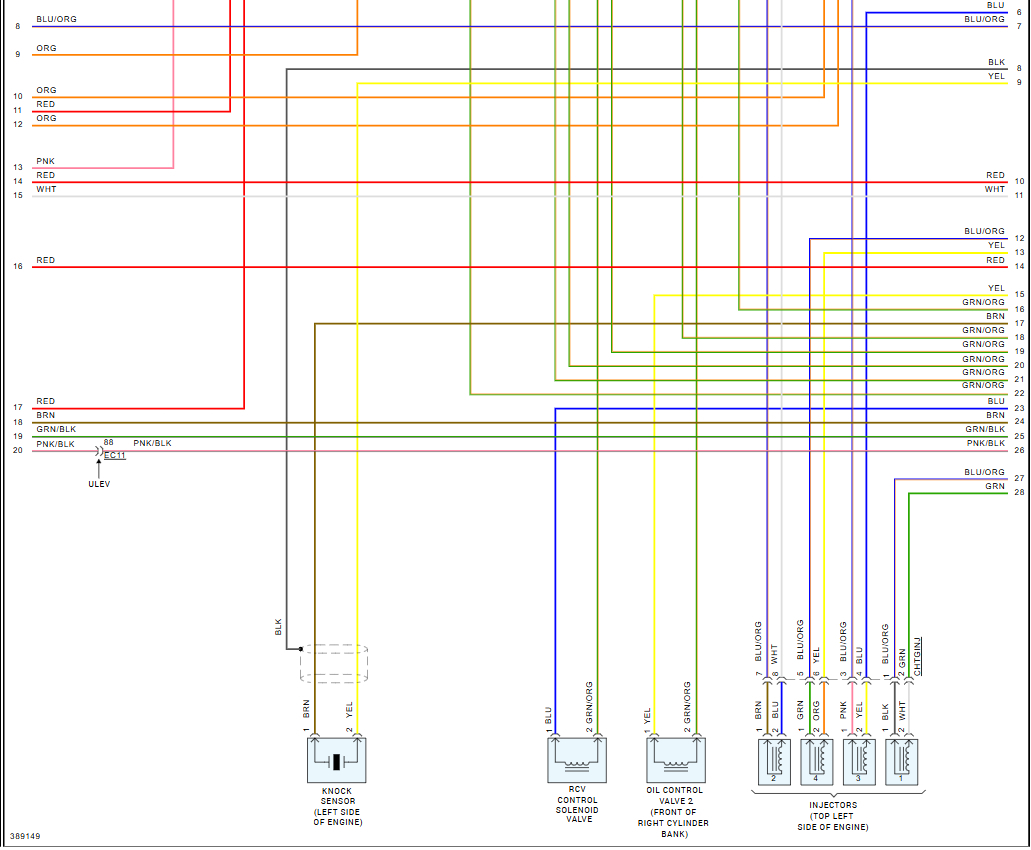

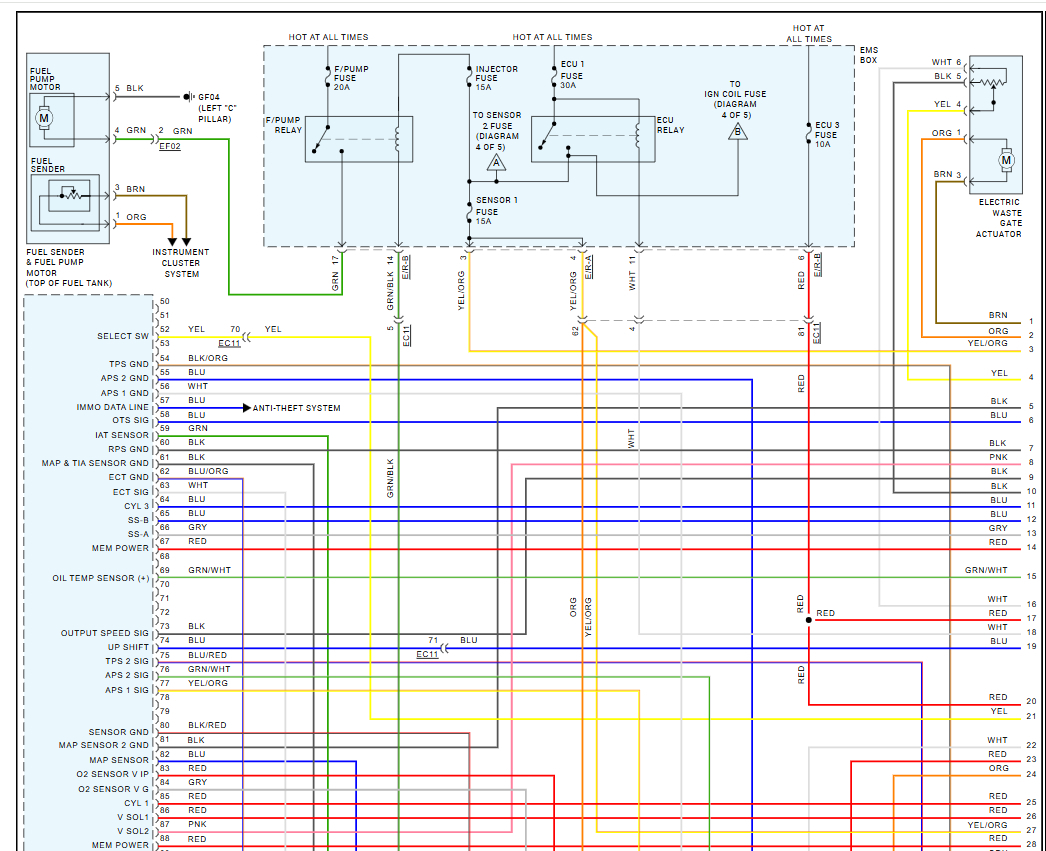

Check out the images (below). Please let us know what happens.

Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
+1
Tuesday, February 4th, 2025 AT 5:18 PM
Tiny
BLESSING EWOBOR
  • MEMBER
  • 754 POSTS
Thank you very much.
Was this
answer
helpful?
Yes
No
Tuesday, February 4th, 2025 AT 6:38 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS
You are welcome, let us know what you find.
Was this
answer
helpful?
Yes
No
Wednesday, February 5th, 2025 AT 8:30 AM
Tiny
BLESSING EWOBOR
  • MEMBER
  • 754 POSTS
Hello,
It has been fixed and the vehicle is functioning properly.
Was this
answer
helpful?
Yes
No
Sunday, February 9th, 2025 AT 3:35 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS
Nice work, can we ask what the problem was?
Was this
answer
helpful?
Yes
No
Sunday, February 9th, 2025 AT 9:41 AM
