Wiring diagram for this car radio needed?

Tiny
BOB 13
  • MEMBER
  • 2008 KIA RONDO
  • 30,000 MILES
Can you help with the wiring diagram for this car radio.
Wednesday, December 7th, 2022 AT 7:34 AM

9 Replies

Tiny
STEVE W.
  • MECHANIC
  • 13,321 POSTS

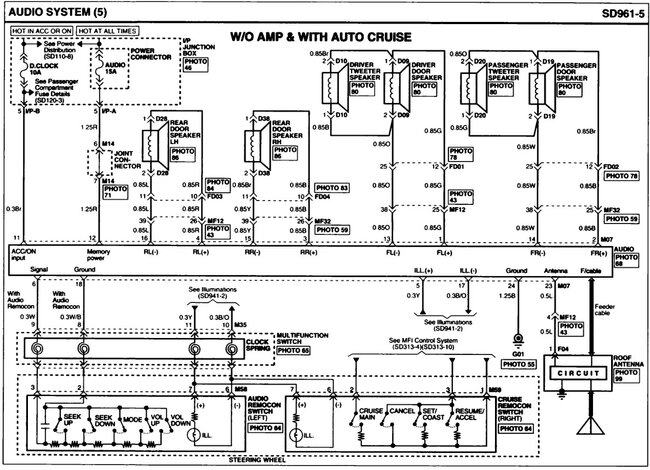

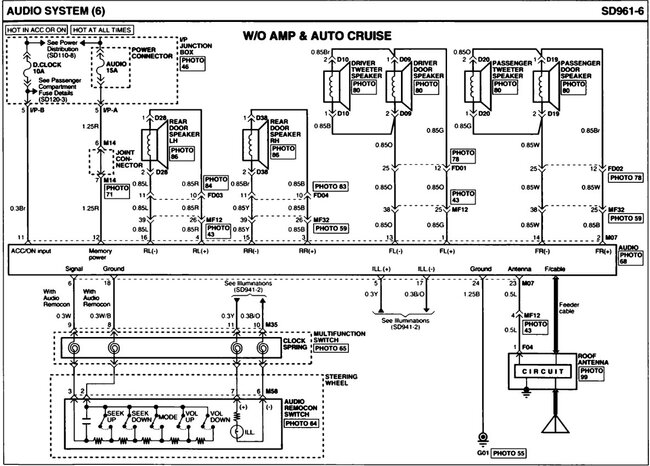

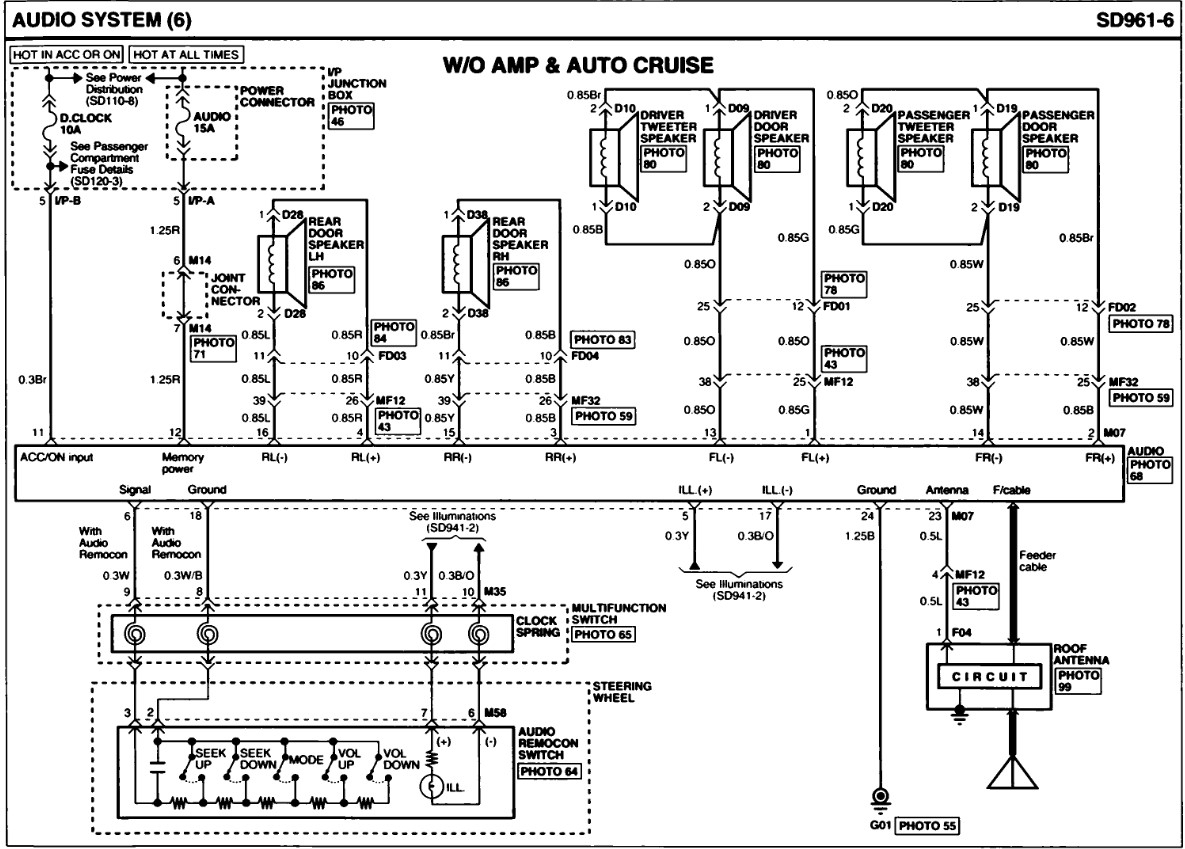

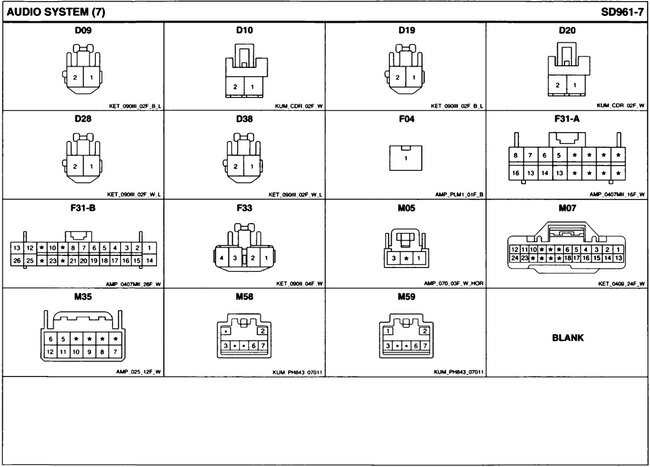

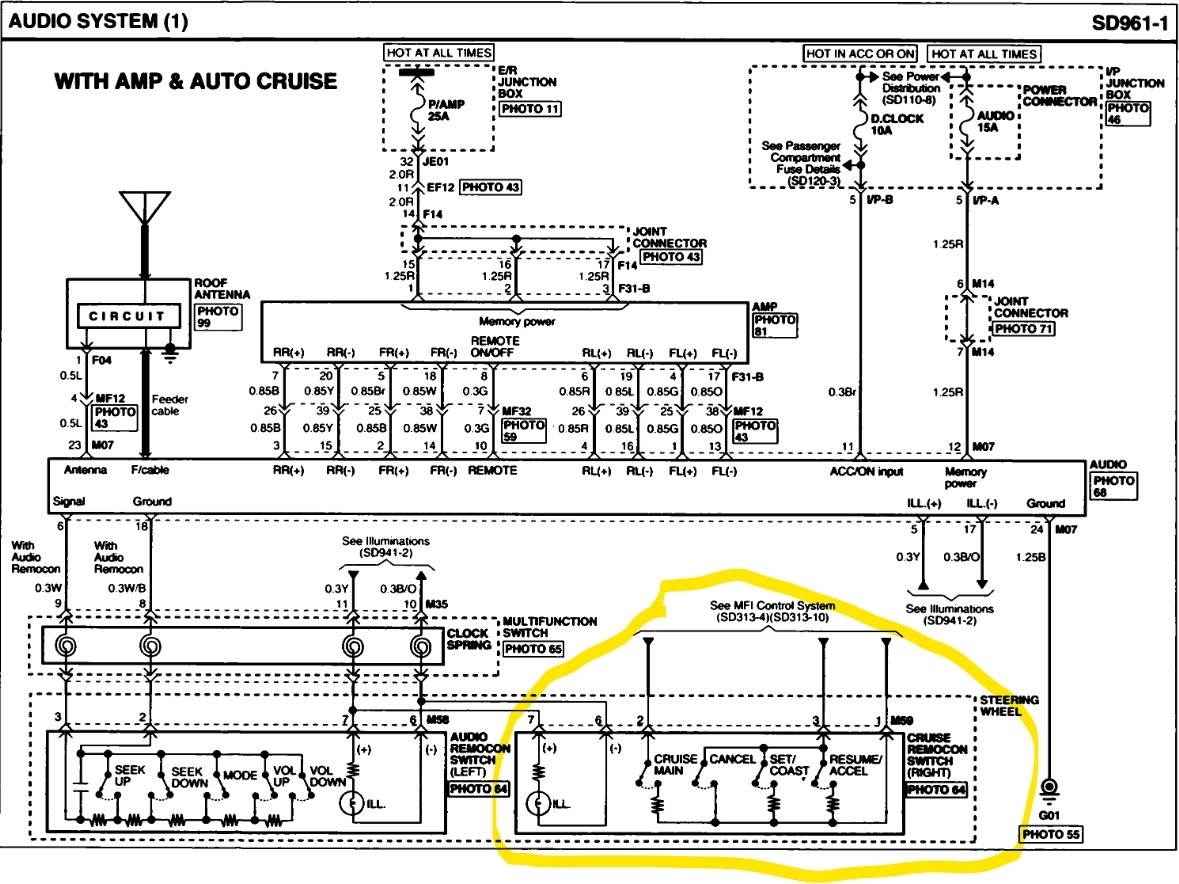

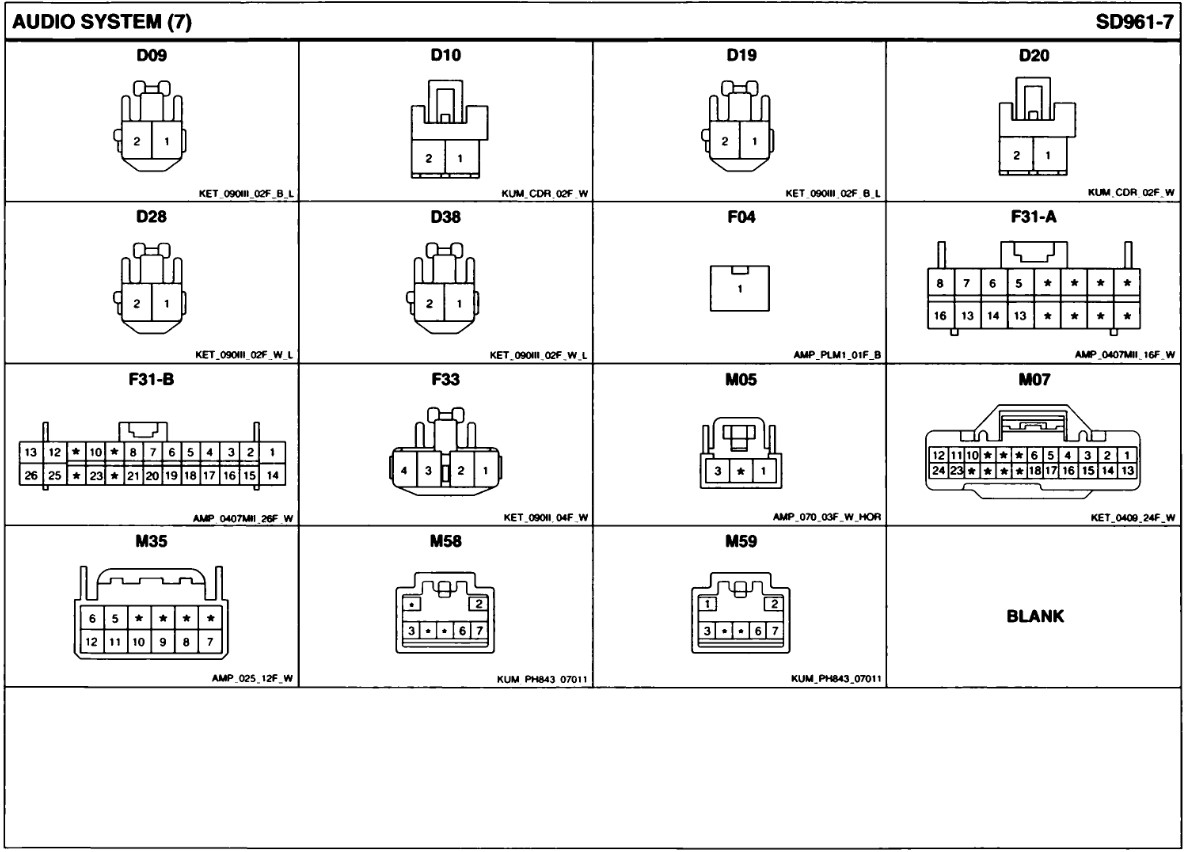

Looks like there are a few versions for that car, both with and without the amp and with and without the auto-cruise. These diagrams cover all 4 systems. The first ones are the connectors and then the units with an amp. The only difference if it doesn't have cruise is the steering controls because it uses the lamp circuit in the steering wheel. The last 2 are the ones without the amp which eliminates the controls for the amp or cruise depending on the options. Hope these answer the question. I'm guessing you want to replace the OE unit. If so, be careful as the factory amp doesn't turn on or off with the radio, it turns on and off with the key.
Was this
answer
helpful?
Yes
No
Wednesday, December 7th, 2022 AT 9:38 AM
Tiny
BOB 13
  • MEMBER
  • 17 POSTS
Hi, sorry, I should have stated that it's a 2008 Kia rondo Ex, 7-seaters fully loaded with 8 speakers and with an infinity amp under the driver's seat. Thanks, and sorry again.

Bob 13
Was this
answer
helpful?
Yes
No
Wednesday, December 7th, 2022 AT 9:46 AM
Tiny
STEVE W.
  • MECHANIC
  • 13,321 POSTS

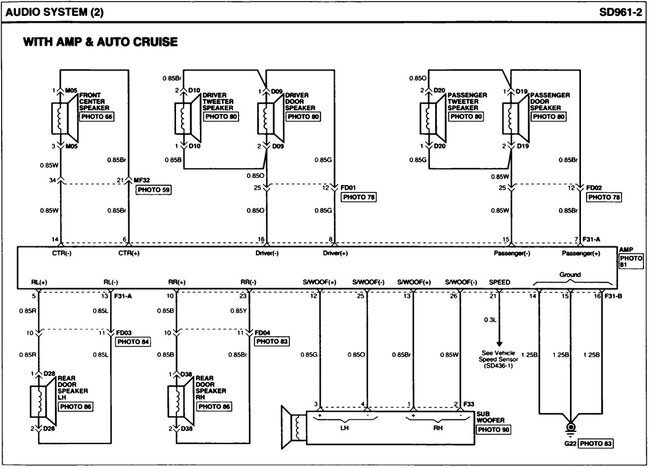

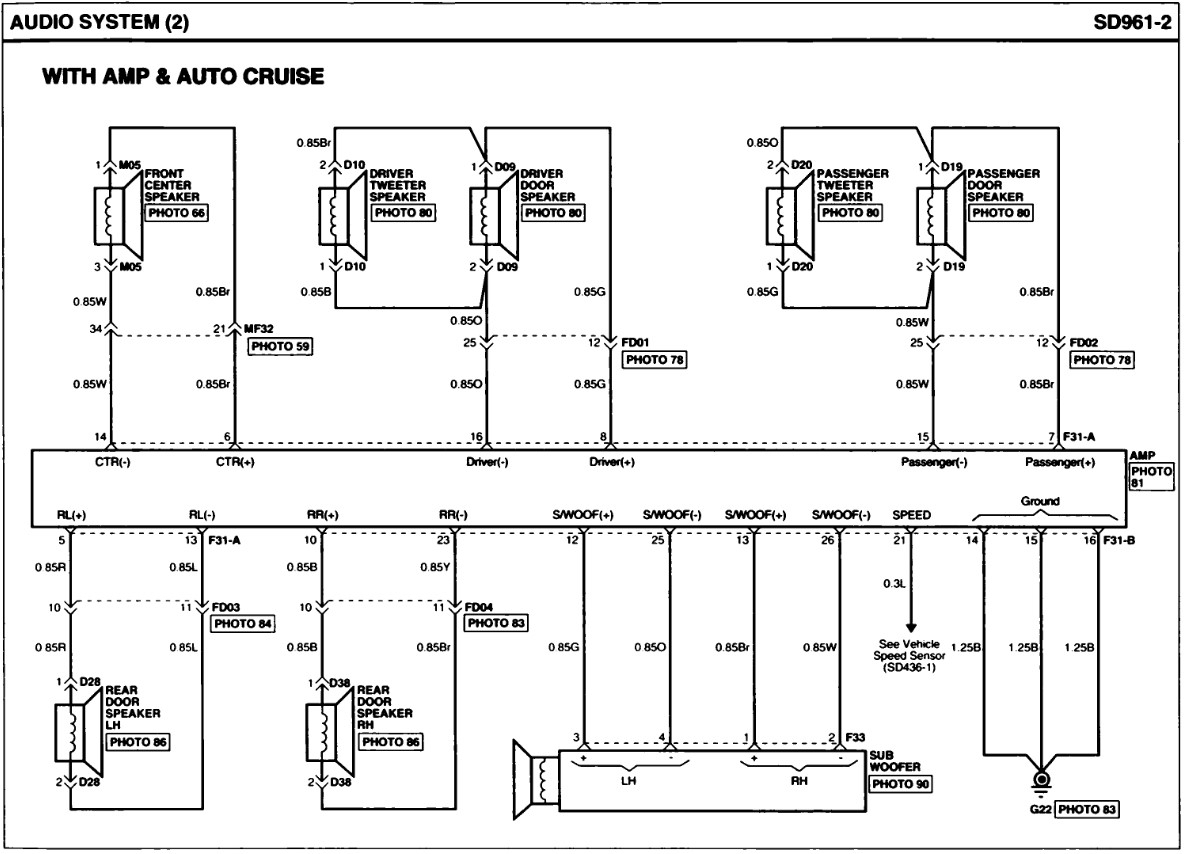

No problem. That would be the first three images then.
Was this
answer
helpful?
Yes
No
Wednesday, December 7th, 2022 AT 10:30 AM
Tiny
BOB 13
  • MEMBER
  • 17 POSTS
Hi Steve, my 1998 Ford Escort SE wagon, a 2006 or 2007 Ford Focus ZXW SES, and a 2010 Ford Focus SES sedan that I am looking into buying, do you have a radio diagram for these radios too, this is not strange I buy most all Ford cars, for the family.
Was this
answer
helpful?
Yes
No
Wednesday, December 7th, 2022 AT 2:09 PM
Tiny
STEVE W.
  • MECHANIC
  • 13,321 POSTS
Probably but we try to keep questions to one topic to make it easier to search. Just ask for those as new questions. Used to be Crutchfield had diagrams for connections as free, but they stopped that.
Was this
answer
helpful?
Yes
No
Wednesday, December 7th, 2022 AT 6:28 PM
Tiny
BOB 13
  • MEMBER
  • 17 POSTS
Hi, is there a cost for the diagrams?
Was this
answer
helpful?
Yes
No
Wednesday, December 7th, 2022 AT 8:58 PM
Tiny
STEVE W.
  • MECHANIC
  • 13,321 POSTS
Not to our users. However, like every shop, we pay for access to the repair information. The reason for the extra questions is so that if someone else decides to look for say a Ford Focus wiring diagram, they probably won't be searching under Kia. So, we keep questions to one topic to make that possible.
Was this
answer
helpful?
Yes
No
Wednesday, December 7th, 2022 AT 9:54 PM
Tiny
BOB 13
  • MEMBER
  • 17 POSTS
I will then ask the question in the Ford section. Will that be okay?
Was this
answer
helpful?
Yes
No
Thursday, December 8th, 2022 AT 1:15 AM
Tiny
STEVE W.
  • MECHANIC
  • 13,321 POSTS
Yep. If you are looking for something specific in them, put it as the questions.
Was this
answer
helpful?
Yes
No
Thursday, December 8th, 2022 AT 4:09 AM
