Location of the crankshaft and camshaft

JESS LEAVITT

MEMBER
2009 CHEVROLET MALIBU
2.4L
4 CYL
FWD
AUTOMATIC
90,000 MILES

Where is the crankshaft and camshaft position sensor located?

Wednesday, January 11th, 2017 AT 9:00 AM

1 Reply

STEVE W.

MECHANIC
12,950 POSTS

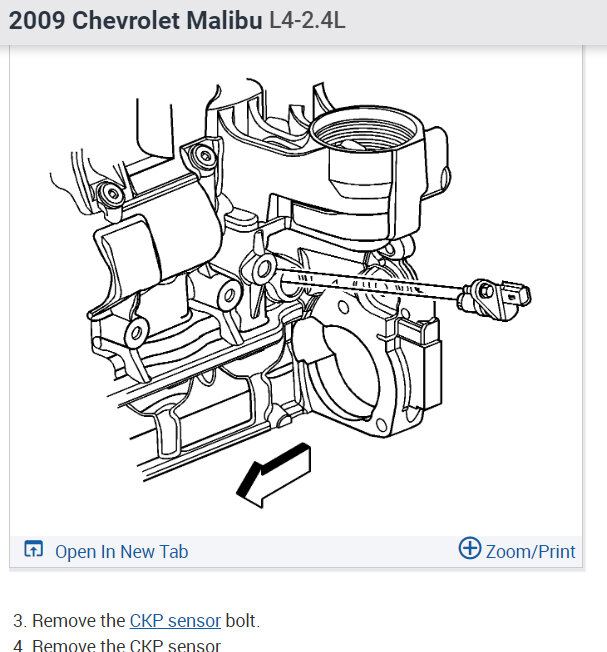

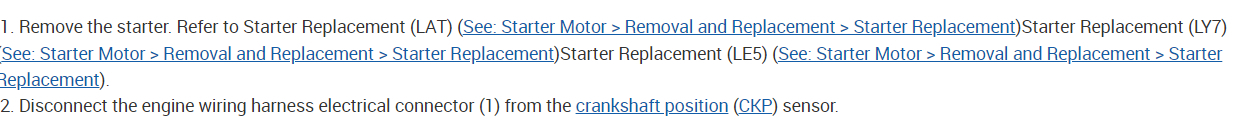

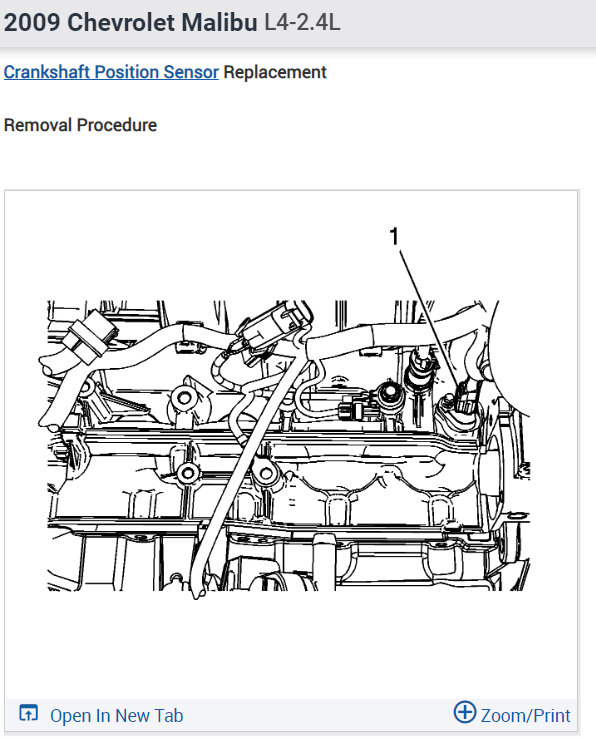

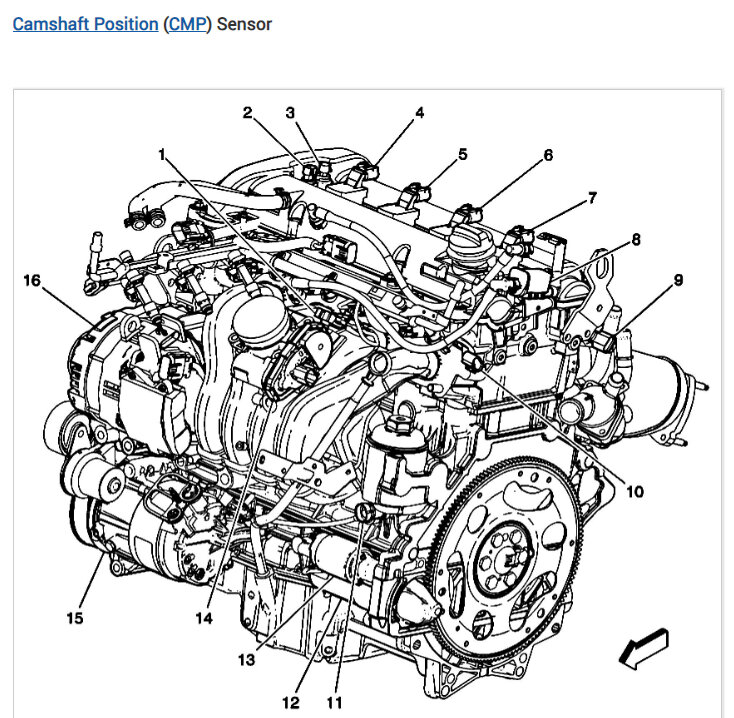

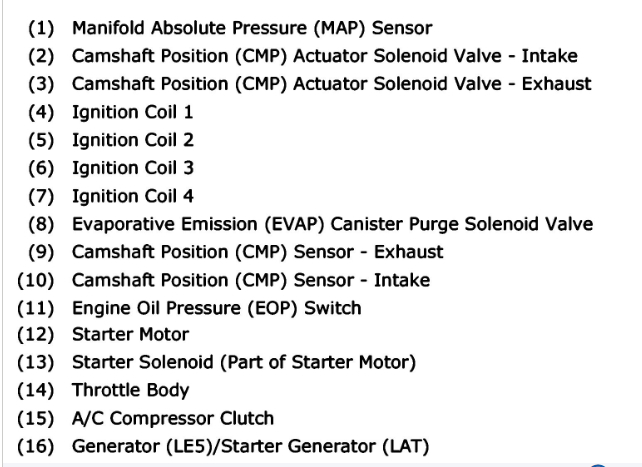

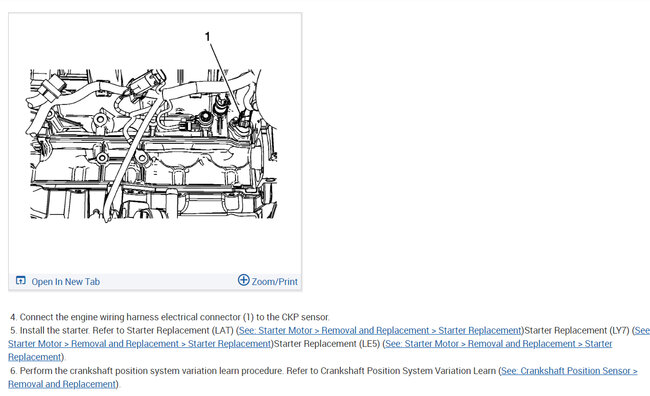

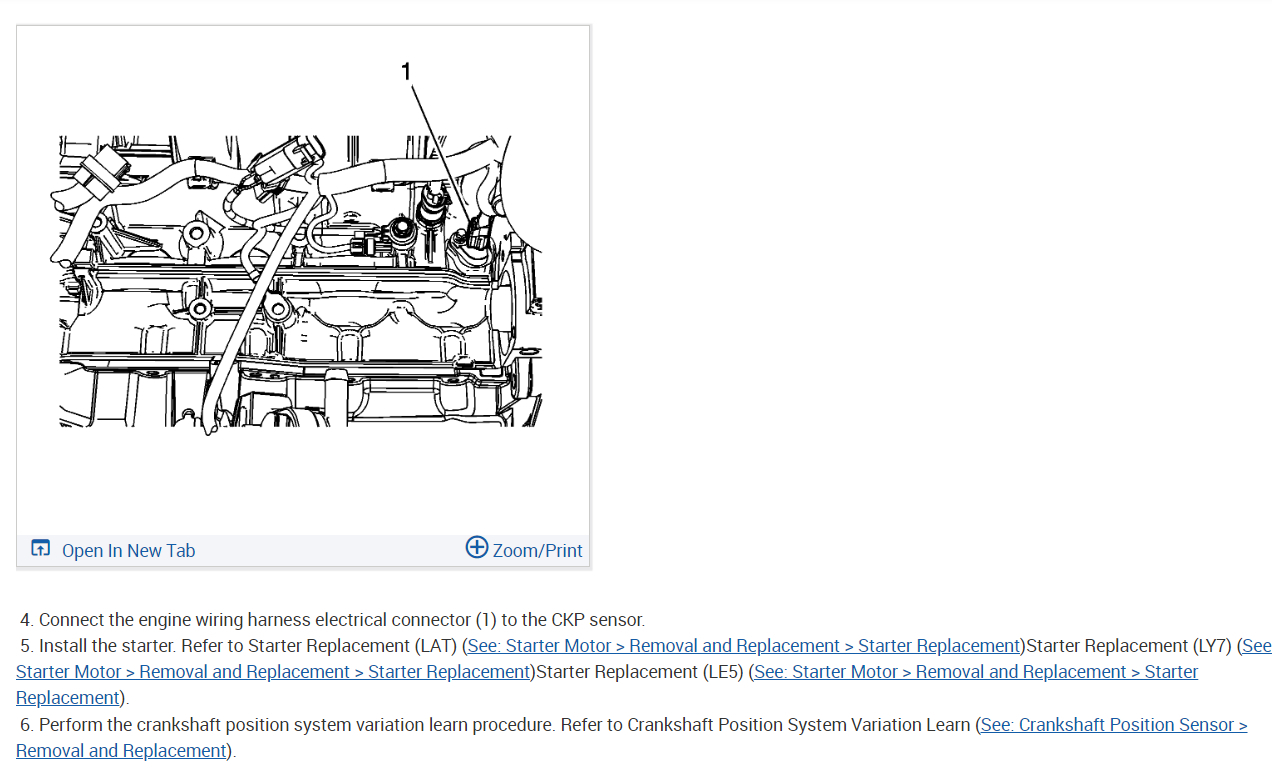

Crankshaft sensor is on the left side of the engine toward the bottom rear right above the starter motor. Camshaft sensors are on the top front of the engine. One on each side. Please check the images below.
