Color coded Transfer case wiring diagram needed?

1999 CHEVROLET SILVERADO
200,009 MILES • 5.3L • V8 • 4WD • AUTOMATIC
Avatar
CMANN477
  • MEMBER
  • 1 POST
I swapped the 1999 transmission and Transfer case into a 2004 Chevrolet, and I’m trying to get my transfer case to work.
Jan 12, 2023 at 7:48 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,162 POSTS

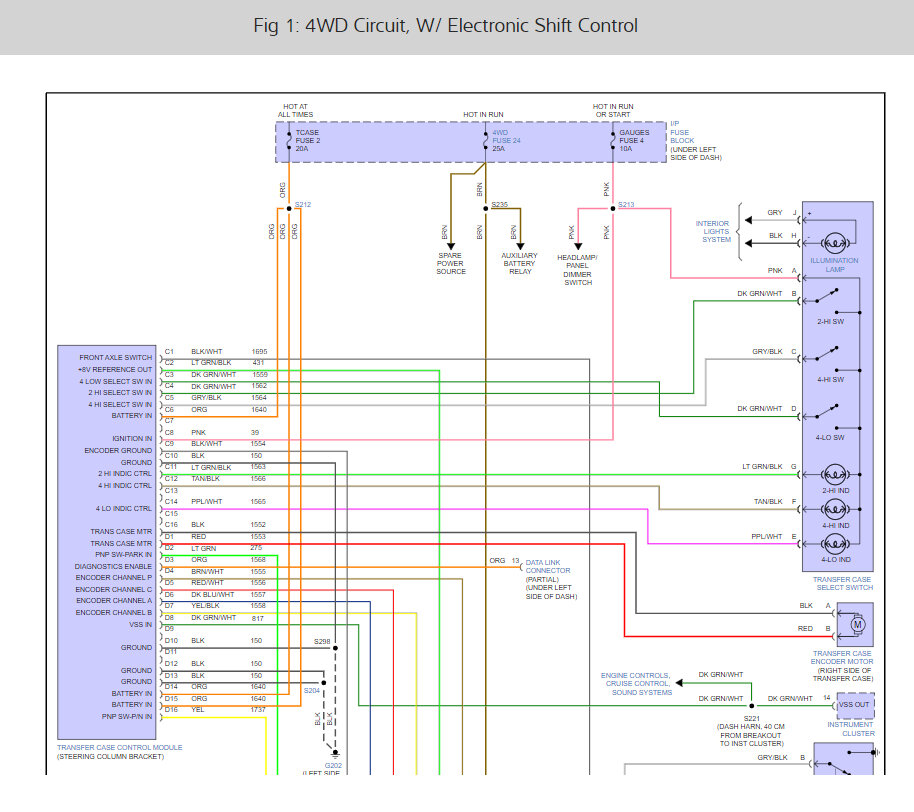

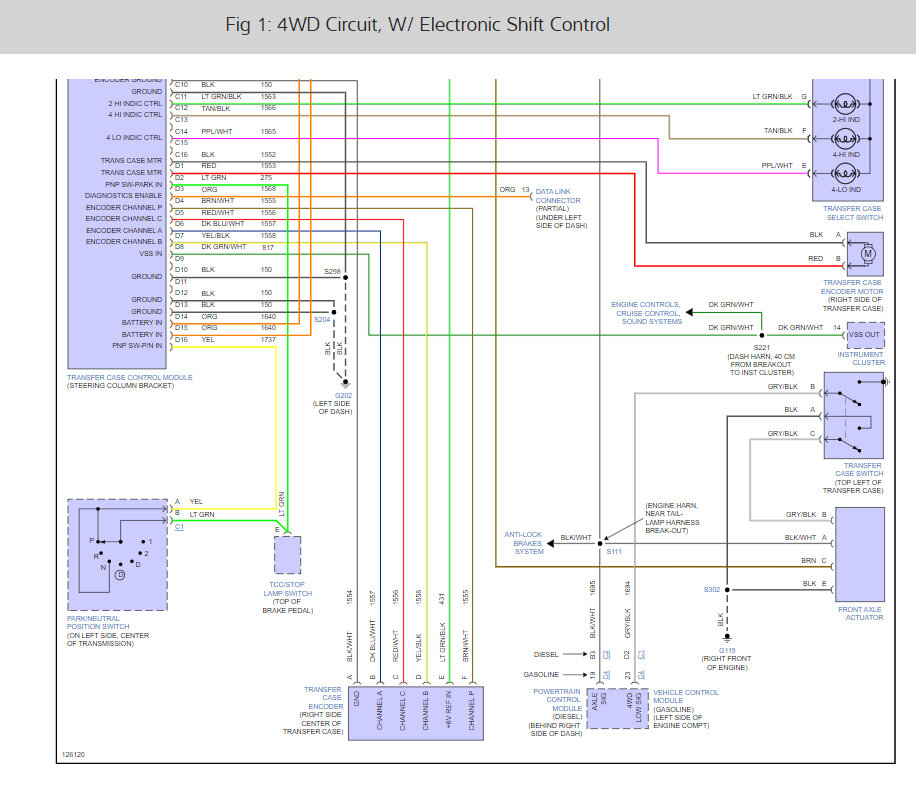

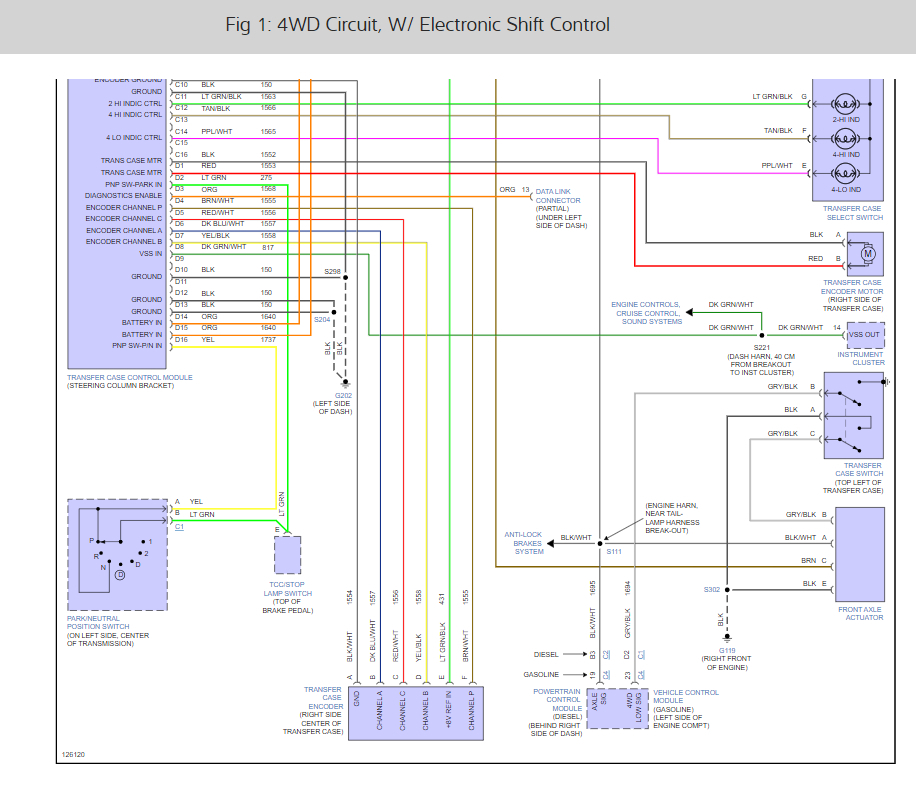

Sure, here are the transfer case wiring diagrams which can help you see what's going on and I have included a guide to help you test the connections.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
