Air Conditioning problem
2002 Chrysler Town and Country 6 cyl Front Wheel Drive Automatic 116700 miles

Where can I view the a/c system schematic (diagram)?
I'm trying to determine what function is served by the cabin a/c filter. Is it a system-critical device or merely a "feel-good addition". For this I need the a/c system schematic. I'm considering NOT replacing it.

My thanks for your advice.

- h52

Do you
have the same problem?
Yes
No
Friday, November 5th, 2010 AT 4:34 PM

5 Replies

Tiny
DOCFIXIT
  • EXPERT
  • 19,043 POSTS

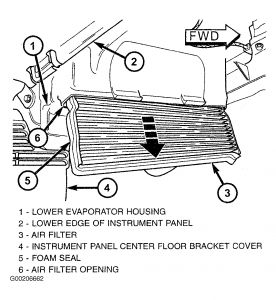

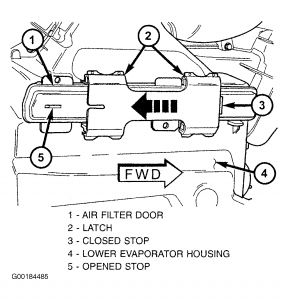

Filters out particulates from outside air if you don't mind breathing smog then don't change see diagrams for location and removal


http://www.2carpros.com/forum/automotive_pictures/198357_Graphic_699.jpg


http://www.2carpros.com/forum/automotive_pictures/198357_Grafic_3_167.jpg


Any chance of a remake of M*A*S*H

Please consider a donation to help us answer more questions.
Was this
answer
helpful?
Yes
No
Friday, November 5th, 2010 AT 4:52 PM
Tiny
HAWKEYE52
  • MEMBER

I interpret your comment to mean that the cabin filter does not impact the A/C system, but simply supplies "cleaner air" to the occupants. I read on another forum that a Japanese car manufacturer included cabin filters to keep dust particles from clinging to the wet surfaces of the evaporator and subsequently corroding it.

Has that ever been a problem with Chrysler vehicles?

- h52

Was this
answer
helpful?
Yes
No
Friday, November 5th, 2010 AT 6:20 PM
Tiny
DOCFIXIT
  • EXPERT
  • 19,043 POSTS

No known problem BUT EVAP leaks are caused by an acid that forms if improper repair is made and moisture gets in that dryer cannot absorbe.

Please consider a donation to help us answer more questions.
Was this
answer
helpful?
Yes
No
Monday, November 8th, 2010 AT 11:22 AM
Tiny
HAWKEYE52
  • MEMBER

Docfixit, thanks for your reply. I have determined that condensate from the evaporator is not draining properly and is instead overflowing onto the cabin air filter and dripping from the bottom air filter door.

The A/C drain is a short (about 2-1/2 inch x 1" dia.) Plastic(?) Tube which protrudes from the lower firewall into the engine compartment. It seems to have an internal screen or grille, because I was not able to push a 1/4" diam. Rod into it.

Q. Can this tube be pulled out? (I.E, is it a simple press-fit?)

- h52

Was this
answer
helpful?
Yes
No
Monday, November 8th, 2010 AT 11:39 AM
Tiny
DOCFIXIT
  • EXPERT
  • 19,043 POSTS

Try a piece of 14 or 12 gague wire. Will be able to bend through the 45 of drain tube

Please consider a donation to help us answer more questions.
Was this
answer
helpful?
Yes
No
Monday, November 8th, 2010 AT 2:30 PM
