Drive belt routing diagram

Tiny
MOPS N POPS
  • MEMBER
  • 2008 CHRYSLER SEBRING
I need a drive belt routing diagram for a 2008 chrysler sebring 2.4 L engine
Thursday, June 24th, 2010 AT 4:19 AM

1 Reply

Tiny
RASMATAZ
  • MECHANIC
  • 75,992 POSTS

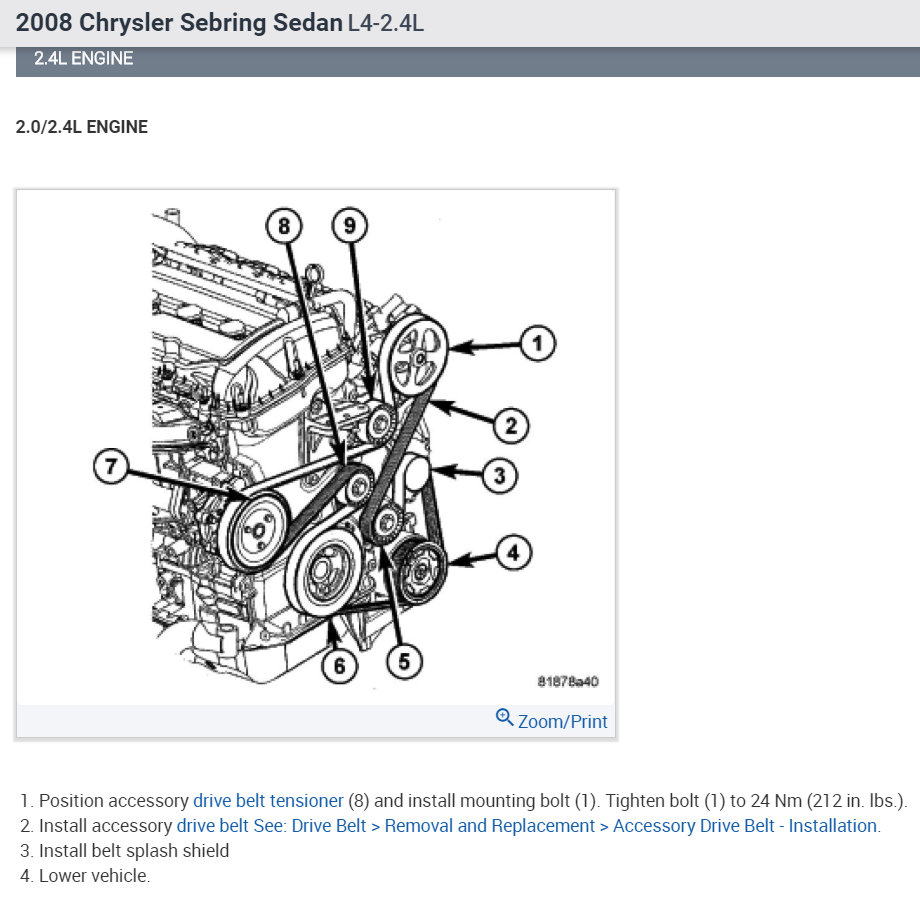

Here is a guide to help you change the belt out with a diagrams to show you how the belt routing goes.

https://www.2carpros.com/articles/replace-serpentine-belt

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers
Image (Click to make bigger)
Thumb
