Engine vacuum routing diagram

Tiny
BUDDY.HAYES
  • MEMBER
  • 1989 GMC S15
  • 4.3L
  • V6
  • 4WD
  • AUTOMATIC
  • 89,000 MILES
Vacuum routing diagram.
Thursday, September 27th, 2018 AT 10:01 PM

3 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 42,913 POSTS
Hello,

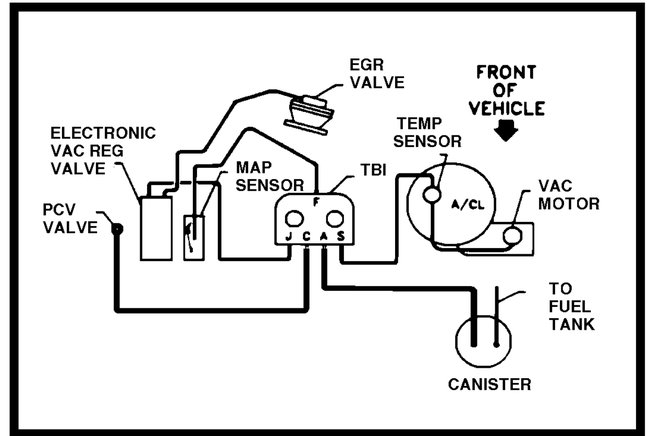

Here is the engine vacuum diagram you requested.

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
Image (Click to make bigger)
Thumb
