Vacuum hose diagrams

Tiny
KHLOW2008
  • MECHANIC
  • 41,815 POSTS

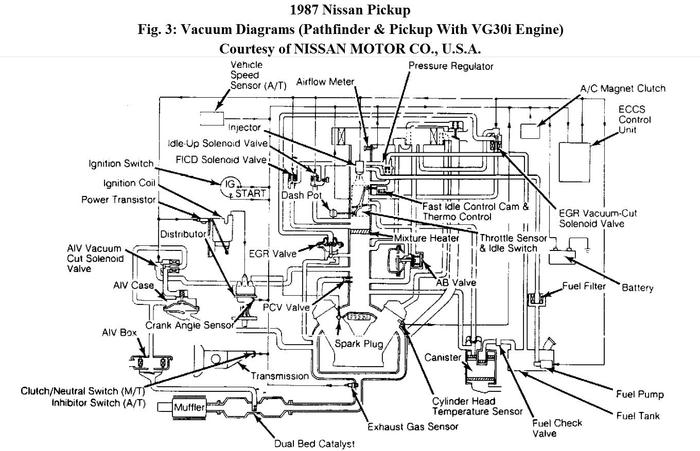

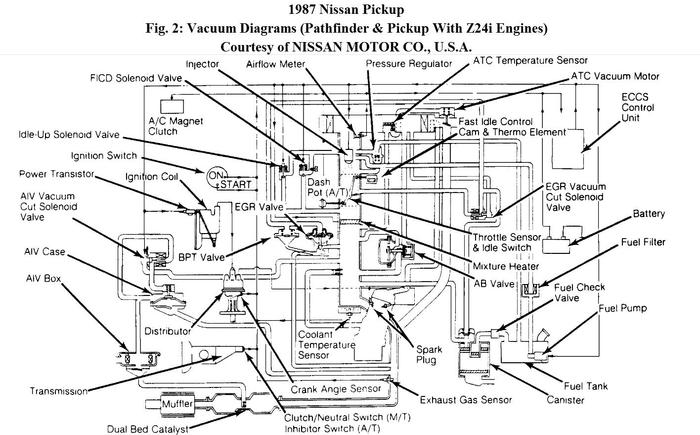

Don't know which engine you have so here are both.
Images (Click to make bigger)
Thumb
Thumb
Was this
answer
helpful?
Yes
No
+2
Thursday, February 18th, 2021 AT 12:19 PM (Merged)
Tiny
DYERPUNK
  • MEMBER
  • 3 POSTS
  • 1987 NISSAN TRUCK
  • 4 CYL
  • 2WD
  • MANUAL
  • 163,000 MILES
I recently purchased a 1987 nissan d21 pickup 2.4L, the engine was shot so I rebuilt it. The problem im having is that when I received the vehicle all the vacuum lines were a mess and most of them missing or disconnected. I have looked everywhere for a detailed vacuum diagram for this vehicle and have not yet been able to find it. I was hoping you guys could help. Thanks, Dyerpunk
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Thursday, February 18th, 2021 AT 12:19 PM (Merged)
Tiny
BLACKOP555
  • MECHANIC
  • 10,371 POSTS


https://www.2carpros.com/forum/automotive_pictures/66751_vaccum_3.jpg



here ya go! thanks for the donation
Was this
answer
helpful?
Yes
No
+2
Thursday, February 18th, 2021 AT 12:19 PM (Merged)
Tiny
DYERPUNK
  • MEMBER
  • 3 POSTS
Thanks a lot guys, the diagram is exactly what I needed, everyone that I did find wasn't complete. Thanks Again.
Was this
answer
helpful?
Yes
No
-2
Thursday, February 18th, 2021 AT 12:19 PM (Merged)
Tiny
BLACKOP555
  • MECHANIC
  • 10,371 POSTS
Your welcome.

Thanks again for the donation.
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
-1
Thursday, February 18th, 2021 AT 12:19 PM (Merged)
Tiny
TRACY475
  • MEMBER
  • 1 POST
  • NISSAN TRUCK
I have a 89 nissan d 21 pick up I need a Vacuum diagram to check the routing of the existing lines any help thanks engine Z24 2.4
Was this
answer
helpful?
Yes
No
Thursday, February 18th, 2021 AT 12:19 PM (Merged)
Tiny
MERLIN2021
  • MECHANIC
  • 17,250 POSTS
Here's both V6 and 4 cyl..


https://www.2carpros.com/forum/automotive_pictures/62217_VacDiaV6_1.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_VacDia_1.jpg

Was this
answer
helpful?
Yes
No
Thursday, February 18th, 2021 AT 12:19 PM (Merged)
