Wiring diagram for PCM to coil pack

2007 JEEP WRANGLER
75,000 MILES • 3.8L • V6 • 4WD • AUTOMATIC
Avatar
MARKGRAY
  • MEMBER
  • 1 POST
No signal from the PCM to the coil pack for cylinders 2/5. I am looking for a wiring diagram for the PCM to coil pack.
Aug 17, 2019 at 8:53 AM
Advertisement
Avatar
SCGRANTURISMO
  • CAR REPAIR CONTRIBUTOR
  • 4,897 POSTS
Hello,

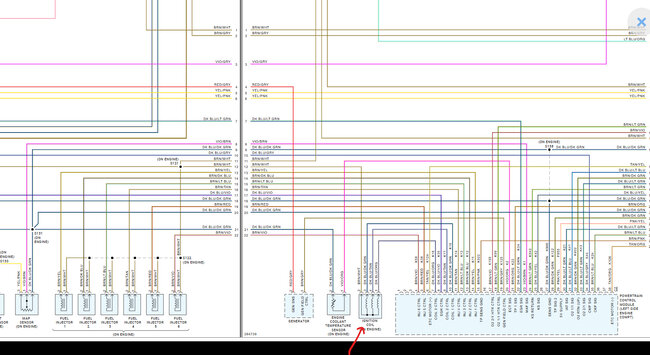

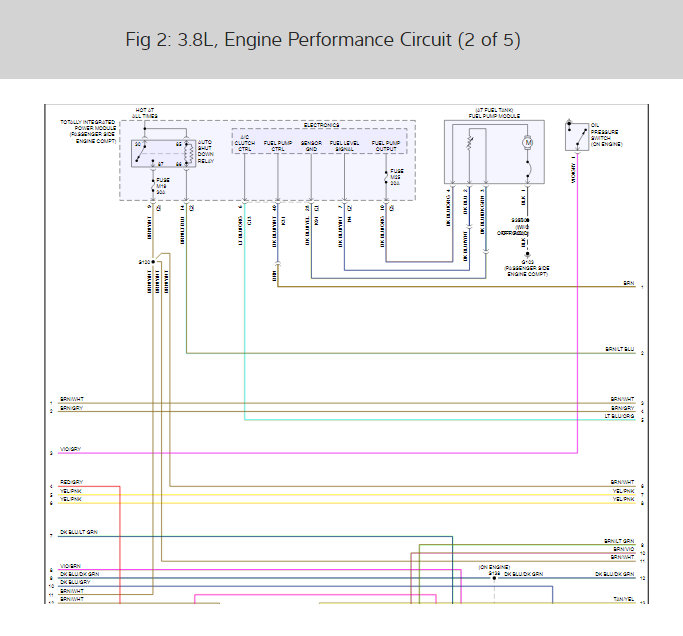

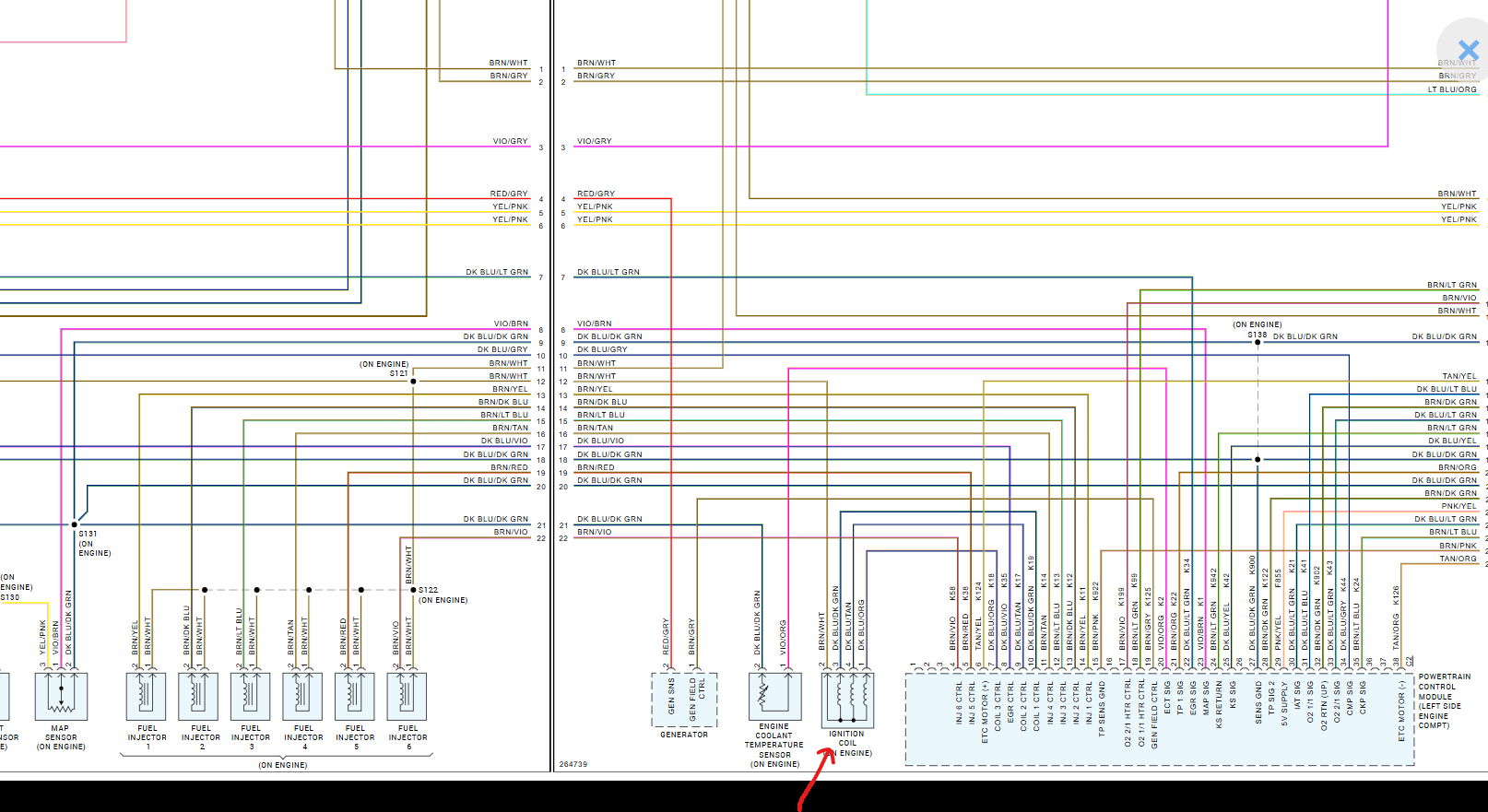

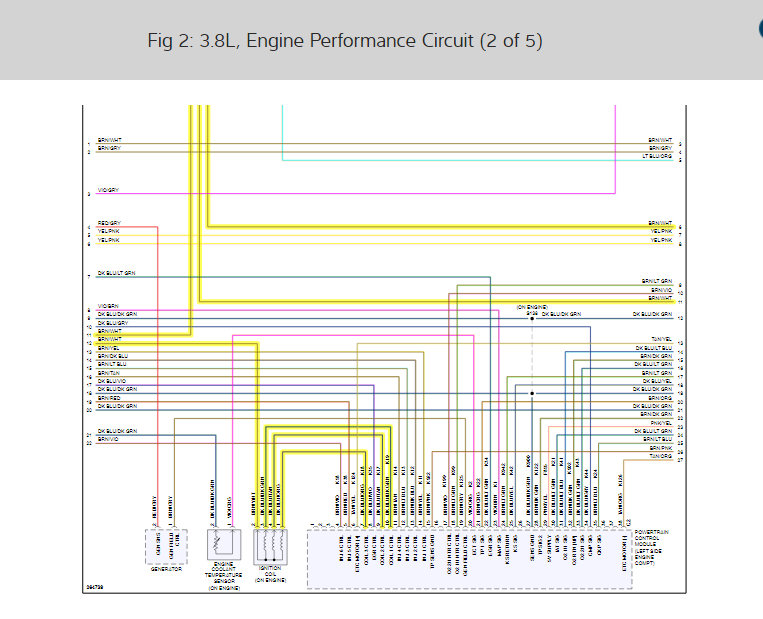

I have included the information that you requested in the diagrams down below. Please go through this guide and get back to us with what you are able to find out.

Thanks,
Alex
2carPros
