Wiring diagram

Tiny
BRIDGES77
  • MEMBER
  • 1998 FORD MUSTANG
  • 4.6L
  • V8
  • 2WD
  • MANUAL
  • 125,477 MILES
Hello, looking for the wiring diagram for my car listed above gt model. Thanks
Saturday, December 28th, 2019 AT 12:02 PM

1 Reply

Tiny
SCGRANTURISMO
  • MECHANIC
  • 4,897 POSTS
Hello,

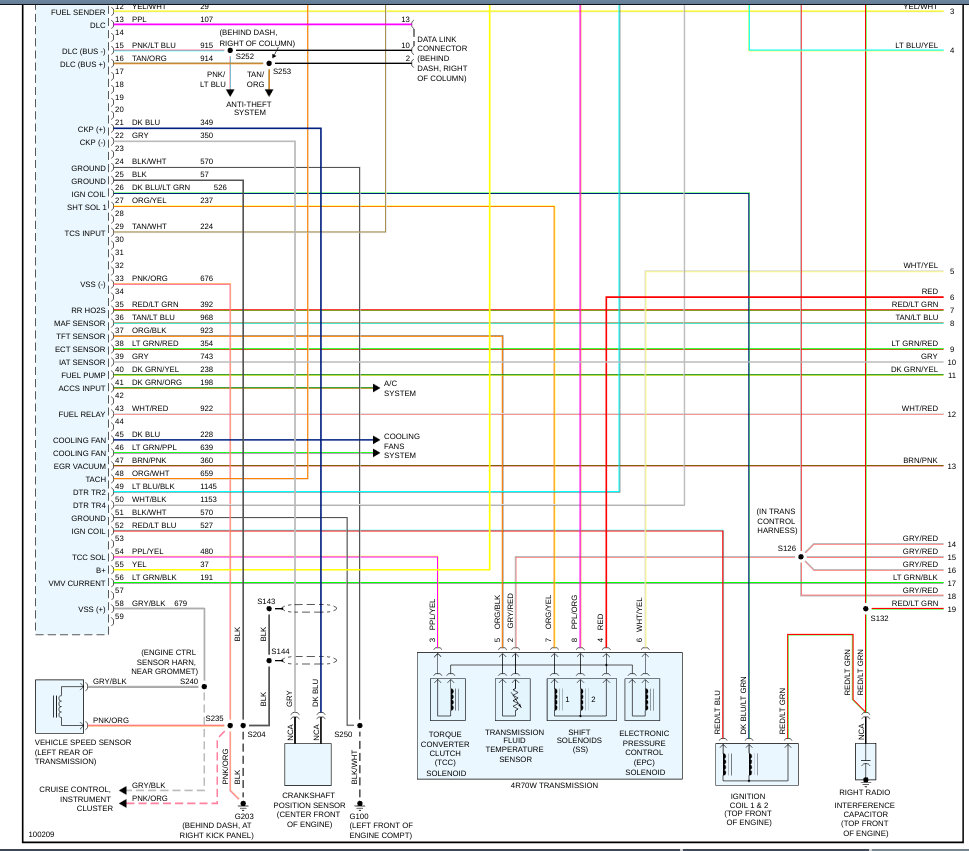

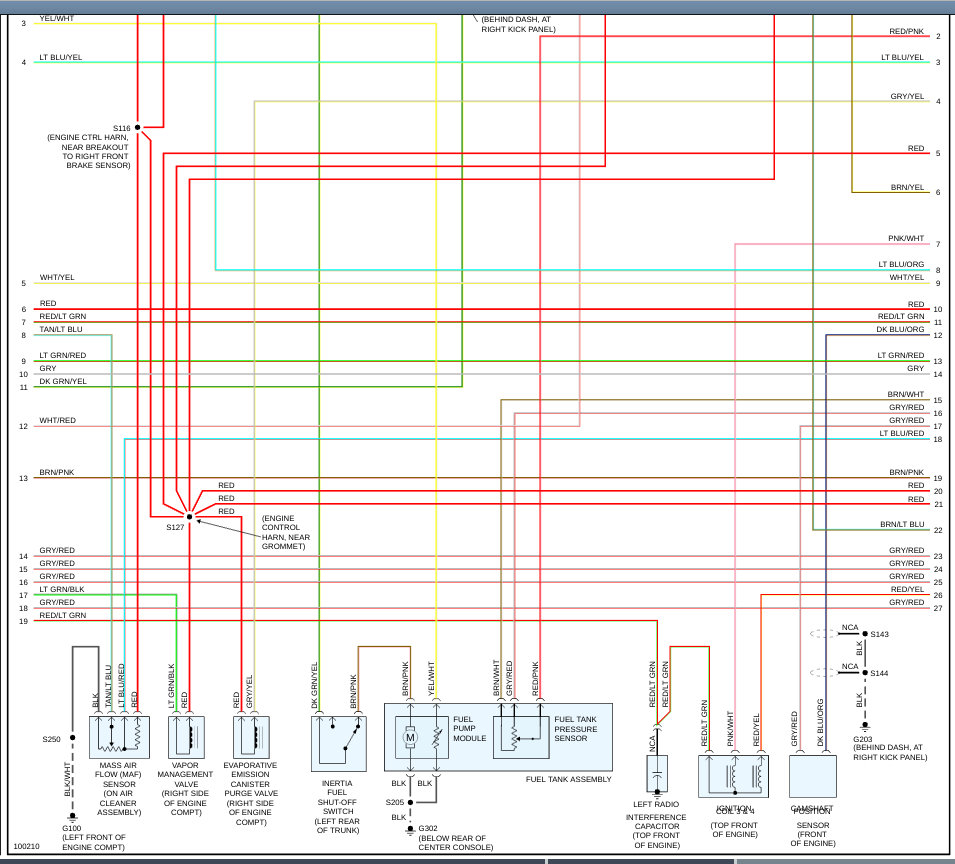

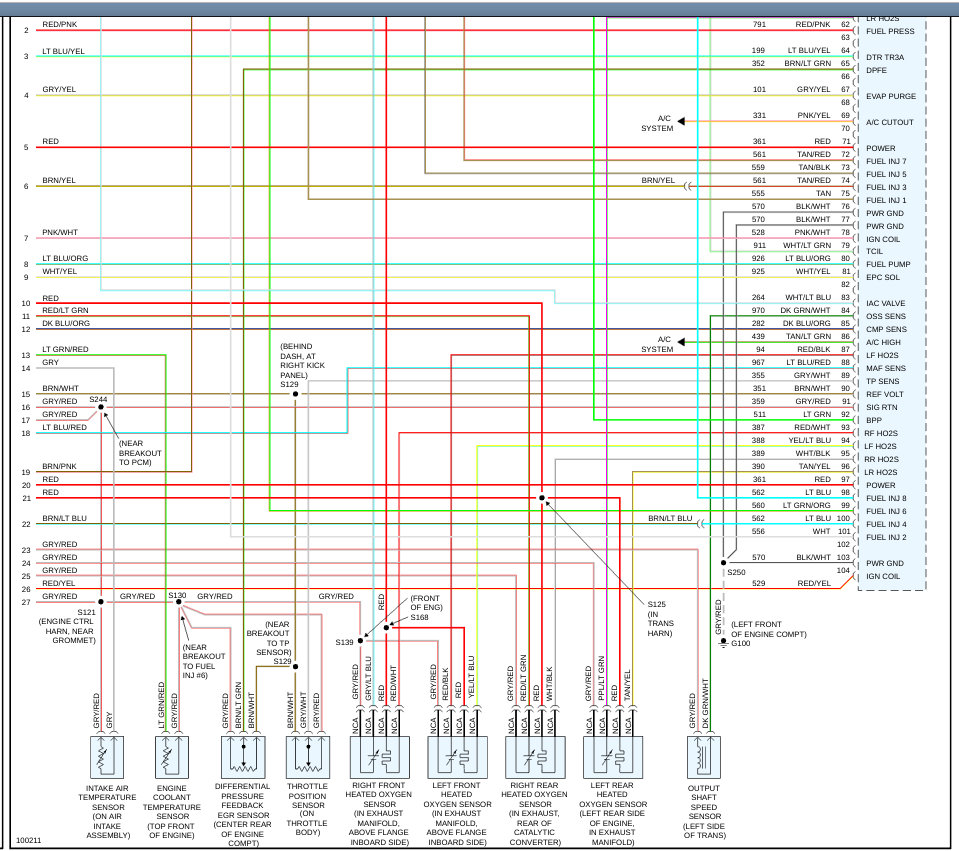

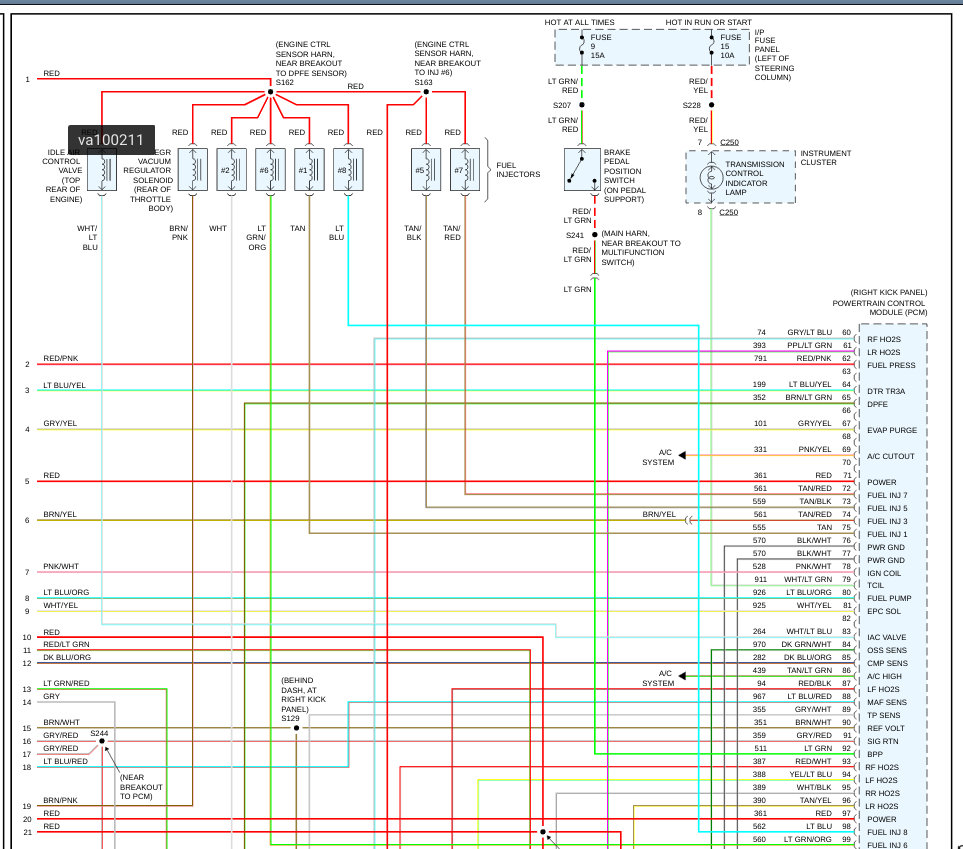

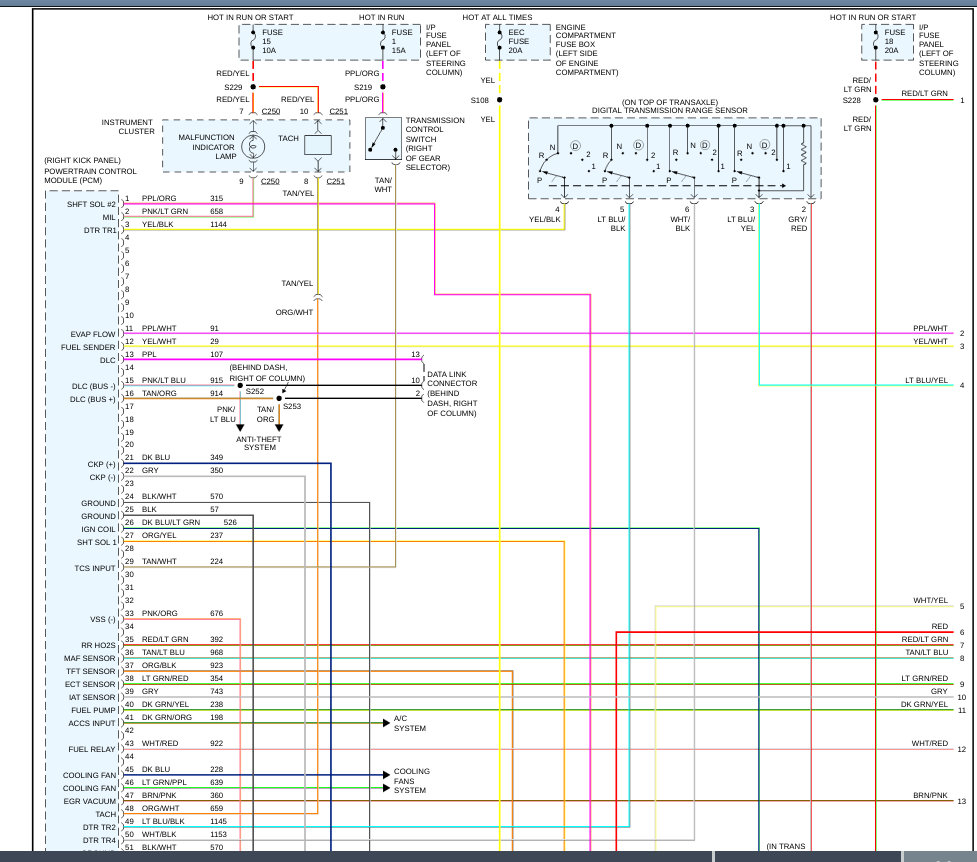

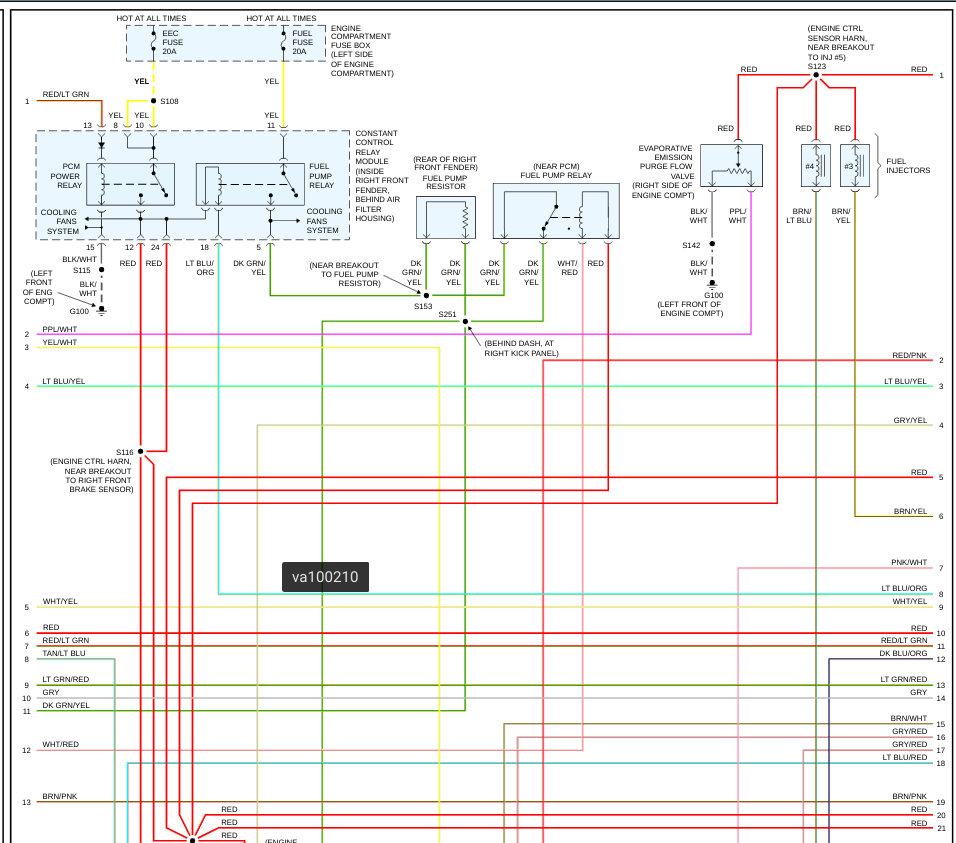

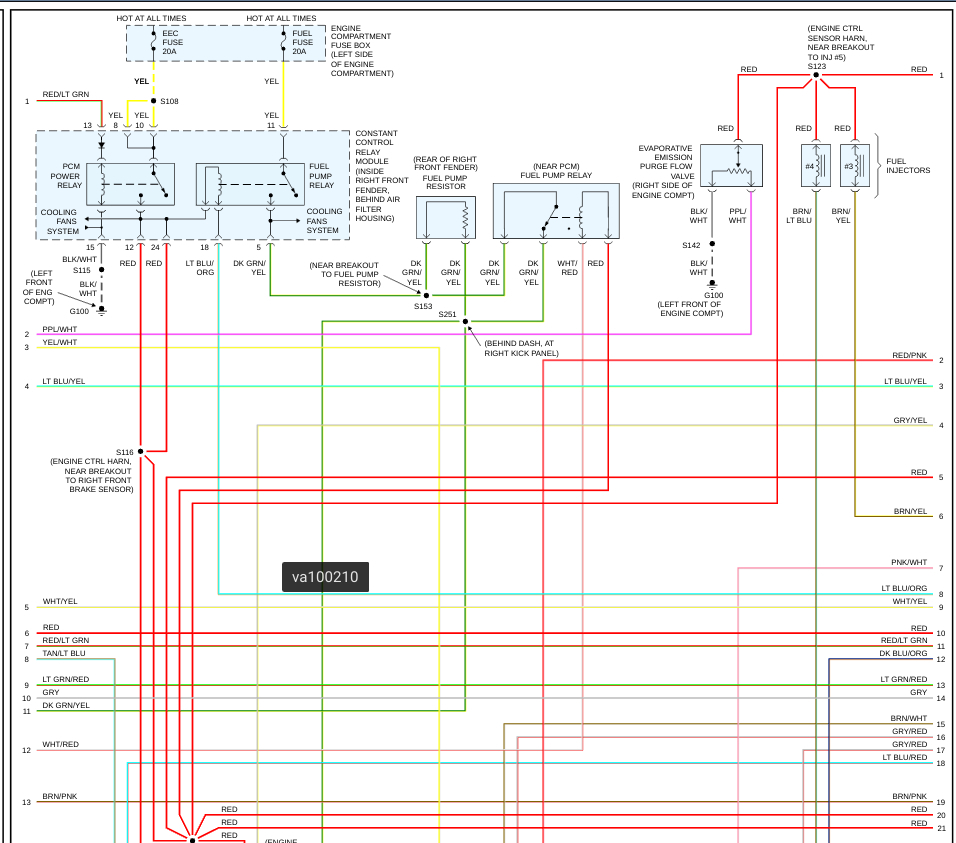

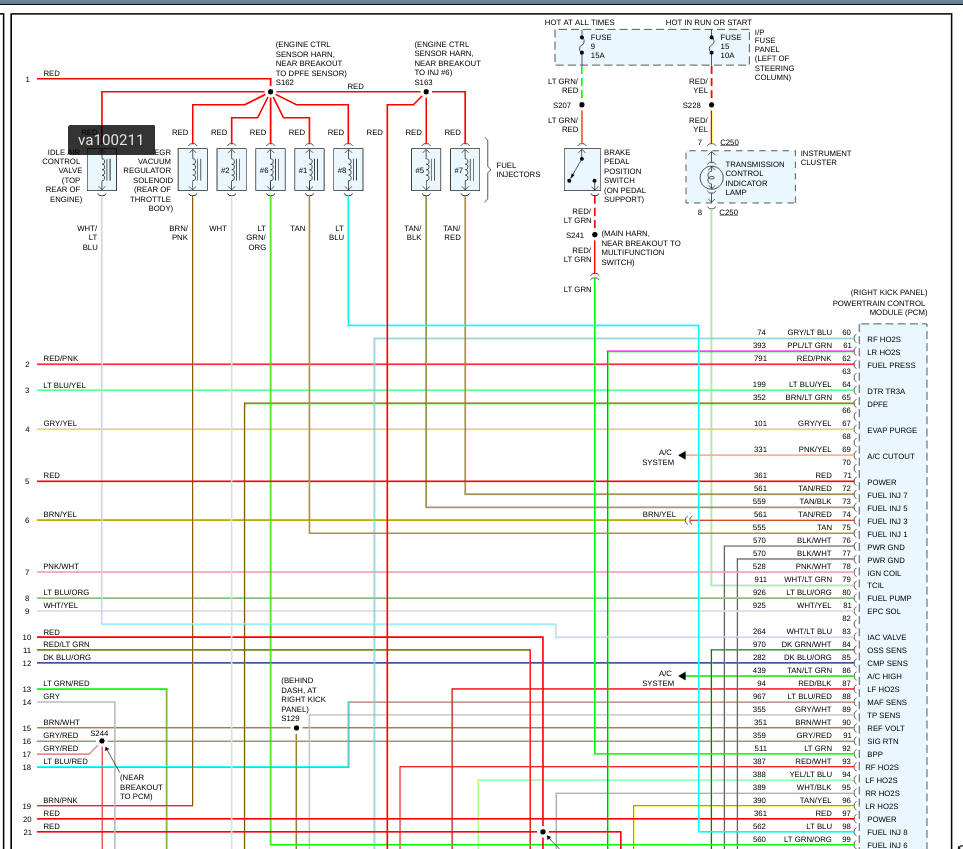

I'm not sure what system wiring diagrams you are looking for for your vehicle, very nice by the way, I own a 1997 Mustang GT myself, so I have included the Power-train Management wiring diagrams for you in the diagrams down below. I f you would like any others, please, don't hesitate to ask and we will get those sent right over to you.

Thanks,
Alex
2CarPros
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+1
Saturday, December 28th, 2019 AT 5:56 PM
