Wiring diagram needed?

Tiny
TOMMY CHANDLER
  • MEMBER
  • 2005 HONDA CLARITY HYBRID
  • 1.7L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 110,000 MILES
Putting back together, I have a 3-wire coming through hole on upper timing belt cover. It's gray female connector. Where is the male it plugs into? Or where it's coming from so I can track it down.
Sunday, May 18th, 2025 AT 12:42 PM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS

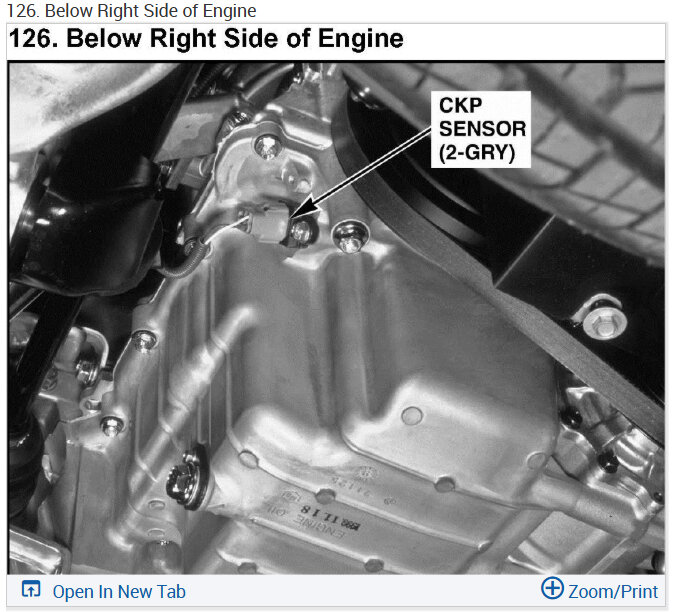

Do you have an image of it? Sorry we don't have a listing for this car. The crankshaft position sensor is the only sensor I see on a similar Honda engine. Check out the images (below). Please upload pictures or videos in your response.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
-1
Monday, May 19th, 2025 AT 12:24 PM
