2002 Volvo S80 Serpentine belt routing diagrahm

Tiny
DAVEKAMAL
  • MEMBER
  • 2002 VOLVO S80
  • 6 CYL
  • FWD
  • AUTOMATIC
  • 80,000 MILES
Would you have the serpentine routing diagrahm for a 2002 Volvo S80 T6
Monday, March 17th, 2008 AT 5:42 PM

2 Replies

Tiny
BMRFIXIT
  • MECHANIC
  • 19,053 POSTS

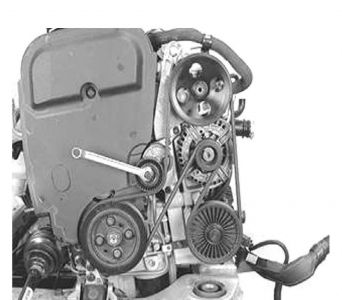

This is what i have
hope that will help
let me know


https://www.2carpros.com/forum/automotive_pictures/99387_volvo_2.jpg

SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+7
Monday, March 17th, 2008 AT 5:58 PM
Tiny
RASMATAZ
  • MECHANIC
  • 75,992 POSTS

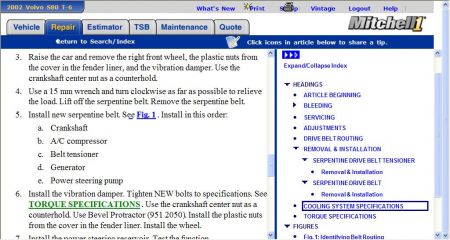

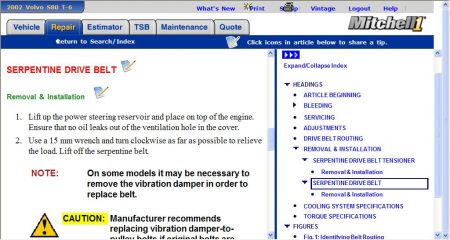

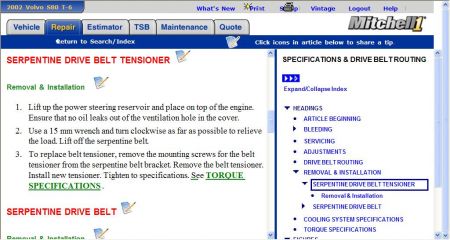

Unable to upload the belt routing BMR took care of that but see below


https://www.2carpros.com/forum/automotive_pictures/12900_serp1_1.jpg




https://www.2carpros.com/forum/automotive_pictures/12900_serp2_1.jpg




https://www.2carpros.com/forum/automotive_pictures/12900_serp3_1.jpg

Was this
answer
helpful?
Yes
No
+3
Monday, March 17th, 2008 AT 6:14 PM
