Headlights (Jetta), Assembly
Before beginning repairs on the electrical system:
Obtain the anti-theft radio security code.
Switch off all electrical consumers.
Switch the ignition off and remove ignition key.
Disconnect negative (-) battery terminal.
When disconnecting and reconnecting battery terminals, observe all applicable notes and torque specifications, as well as instructions on performing OBD program and electrical system function checks.
After performing any repairs or service that could affect headlight aim, check/adjust aim.

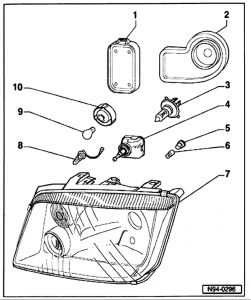

1 - Sealing cap
2 - Sealing cap
3 - Double filament bulb for low and high beams
Bulb H4, 12 V, 60 W/55 W
4 - Headlight beam adjusting motor*
5 - Not applicable to USA/CDN
6 - Not applicable to USA/CDN
7 - Headlight housing
8 - Fog light bulb
Bulb H3, 12 V, 55 W
9 - Double filament bulb for parking/turn signal light
Bulb 12 V, 21W/SW
10 - Parking/turn- signal light bulb holder
*) Where applicable
