Vacuum hose diagrams needed

COLIN986

MEMBER
1996 TOYOTA CAMRY
3.0L
6 CYL
4WD
AUTOMATIC
32,222 MILES

I can't find the vacuum hoses hook ups.

Tuesday, April 5th, 2022 AT 1:47 PM

5 Replies

JACOBANDNICKOLAS

MECHANIC
108,192 POSTS

Hi,

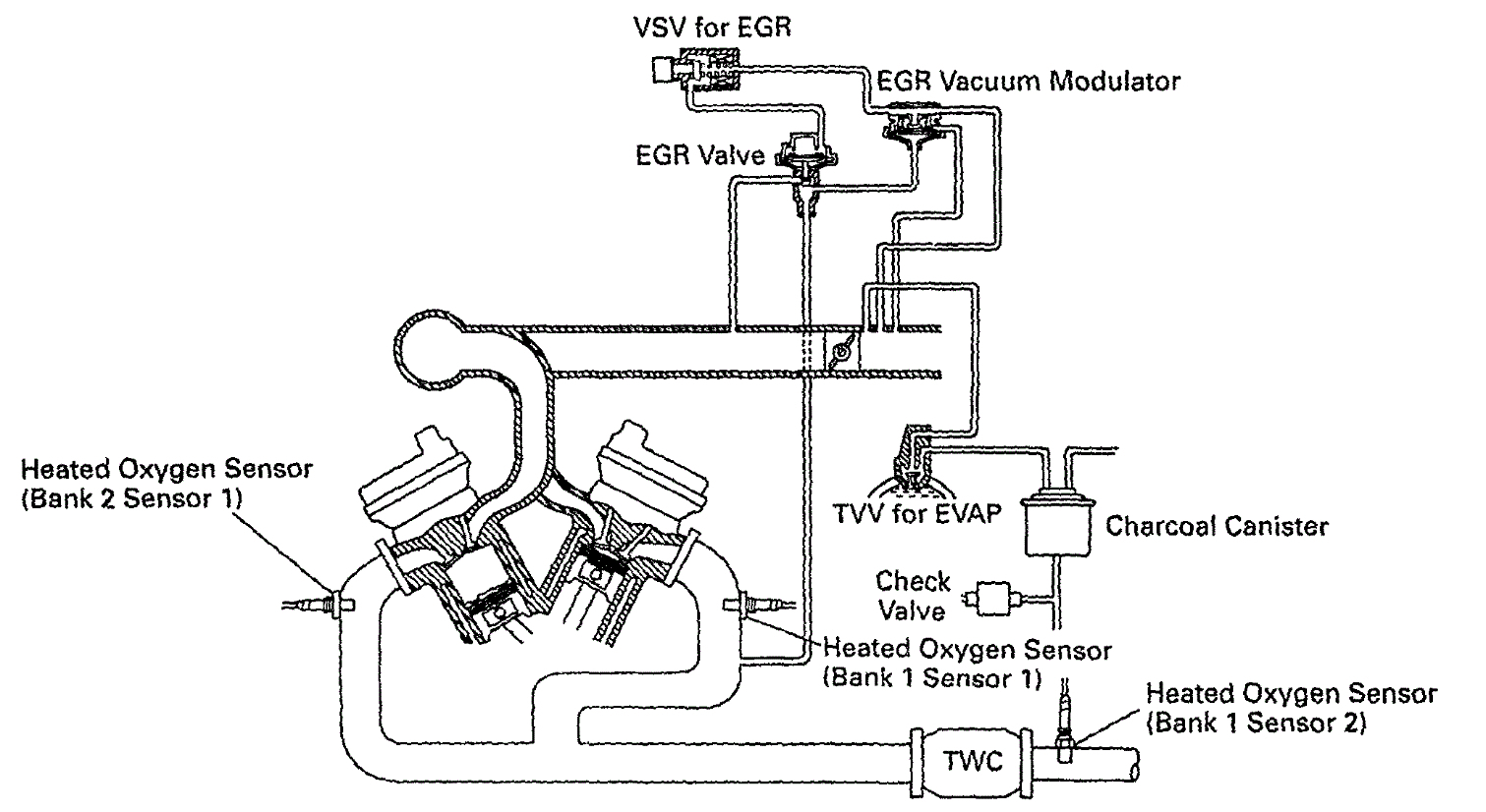

I'm not sure if you are looking for something specific, but I was able to find a vacuum schematic for the emissions system. Take a look below and see if that is what you need.

Let me know.

Joe

Image (Click to make bigger)

SPONSORED LINKS

Was this

answer

helpful?

Yes

No

-1

Tuesday, April 5th, 2022 AT 7:57 PM

COLIN986

MEMBER
3 POSTS

It has no vacuum tank or charcoal tank like in the picture under the hood it's the Japan Edition car.

Image (Click to make bigger)

Was this

answer

helpful?

Yes

No

Tuesday, April 5th, 2022 AT 8:56 PM

JACOBANDNICKOLAS

MECHANIC
108,192 POSTS

Hi,

I didn't realize that. And, as a result, I don't have the schematics specific to it.

However, I feel I can still help you figure this out. What hoses are not connected and where do they go? For example, do they go to the intake?

Also, what are the symptoms the vehicle experiences?

Let me know.

Joe

Was this

answer

helpful?

Yes

No

+1

Wednesday, April 6th, 2022 AT 4:15 PM

COLIN986

MEMBER
3 POSTS

Yes, they are attached to intake. The only can looking thing I see is under the brake booster.

Was this

answer

helpful?

Yes

No

Wednesday, April 6th, 2022 AT 4:50 PM

JACOBANDNICKOLAS

MECHANIC
108,192 POSTS

The brake booster will be a much larger vacuum hose. Is the vehicle running properly or are there any codes that you feel may be caused by the vacuum hoses?

If possible, take a few pics of the hoses and upload them for me to see what you are dealing with. Hopefully, I can help figure it out. Also, I need to know if there are drivability concerns and if there are diagnostic trouble codes.

Take care,

Joe
