Vacuum diagram?

EAGLEWOLF1

MEMBER
1997 CHEVROLET CAMARO
5.7L
V8
2WD
AUTOMATIC
84,000 MILES

Looking for a vacuum diagram for 1997 Camaro SS 5.7 liter.

Thursday, March 14th, 2024 AT 6:08 PM

1 Reply

KEN L

MASTER CERTIFIED MECHANIC
43,070 POSTS

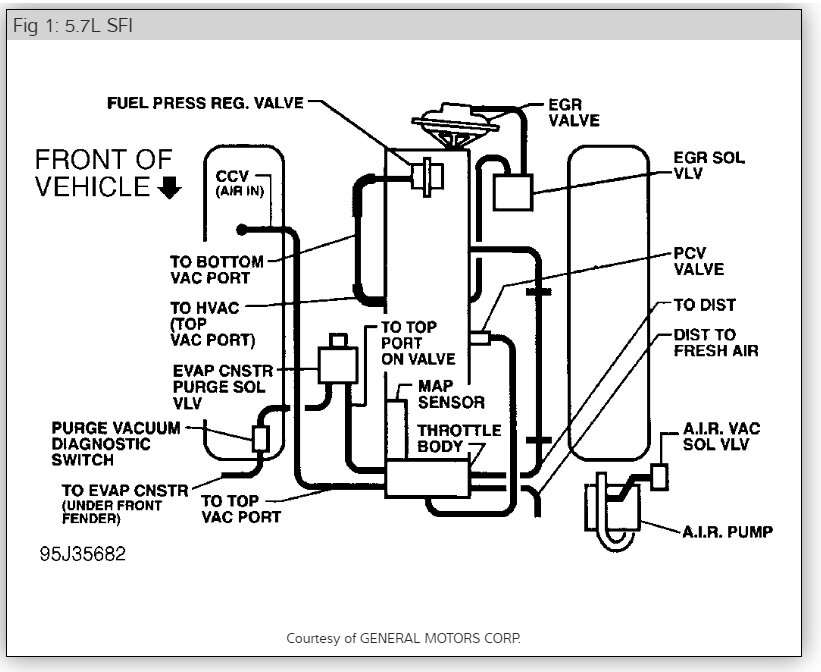

Sure, here are the engine vacuum line diagrams as you have requested. Check out the images (below). Let us know if you need anything else.

Image (Click to make bigger)

Please login or register to post a reply.
