vacuum system wiring diagram needed

2011 VOLKSWAGEN TIGUAN
86,543 MILES • TURBO
Avatar
PETERSONRDT
Can you send me a diagram of the vacuum system?
Dec 16, 2021 at 2:22 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓ASE Certified Mechanic
  • 110,193 POSTS
  • ASE Certified Mechanic
Hi,

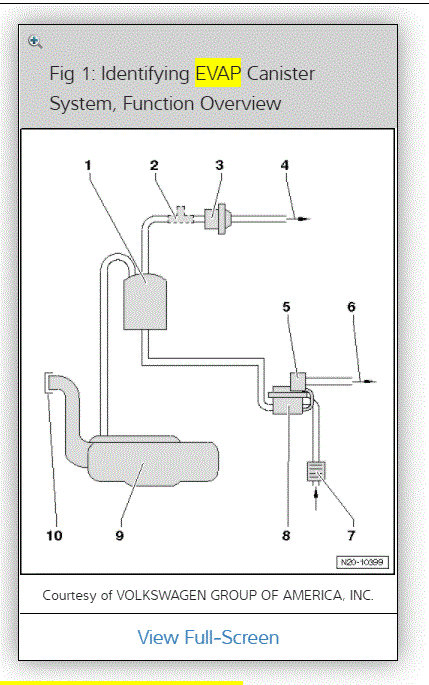

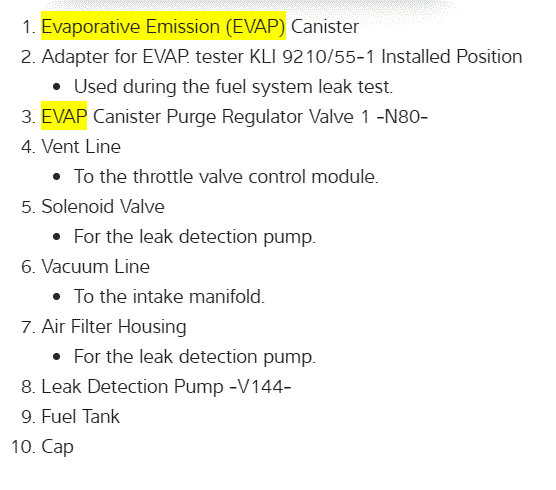

I just responded to the other post you had. The manual doesn't have a vacuum schematic provided. I was able to find one more for the canister that also shows where other hoses run. Take a look and let me know if it helps.

Also, let me know if this is a 4wd vehicle.

Take care,

Joe
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
