Vaccum and hose routing

1977 CHEVROLET SILVERADO
175,000 MILES • V8 • 2WD • AUTOMATIC
Avatar
MECHADAMS2011
I need diagrams for all the vacuum and hose routings in the engine bay
Aug 3, 2025 at 6:42 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,494 POSTS
  • ASE Certified Mechanic

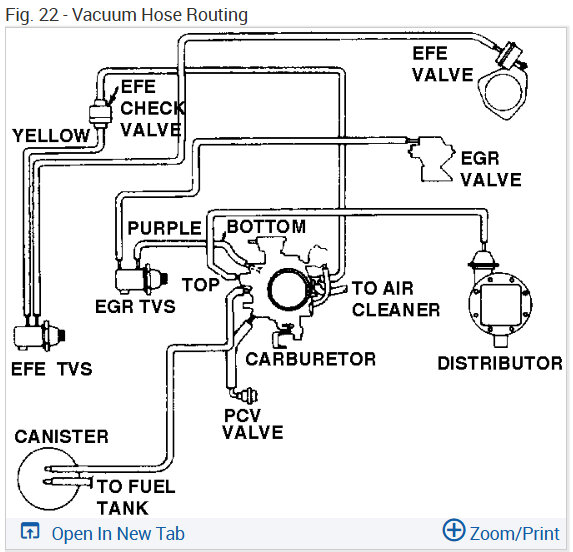

Yep, those can be difficult to come by, let me see what I can find. Okay, here you go. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
