Transmission diagram

ROBERT PHILLIPS2

MEMBER
2010 TOYOTA TACOMA
4.0L
V6
2WD
AUTOMATIC
108,000 MILES

I have a Prerunner SR5, transmission type is a750e. My wife and I are trying to rebuild transmission and I need to know how to put it back together and I need a layout part by part on how it goes back together and where the seals go? So if someone can help me with a diagram a greatly appreciate.

Friday, September 15th, 2017 AT 3:14 PM

5 Replies

STEVE W.

MECHANIC
15,233 POSTS

To make it a lot easier, I would suggest you get a one year single vehicle subscription to AlldataDIY www. Alldatadiy. Com for about thirty dollars and if it does not show the items you need they will refund the purchase within the first ten days.

Or check with your local Library, many have access to Alldata, Chiltons or Mitchell. Then you can print out all the pages and instructions to go with that transmission.

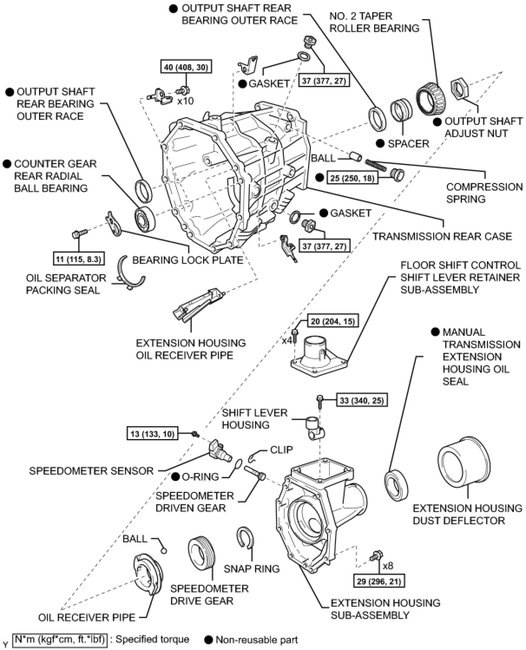

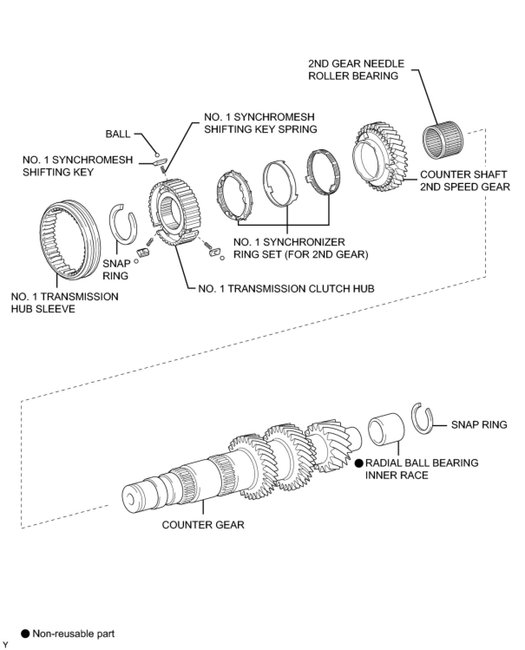

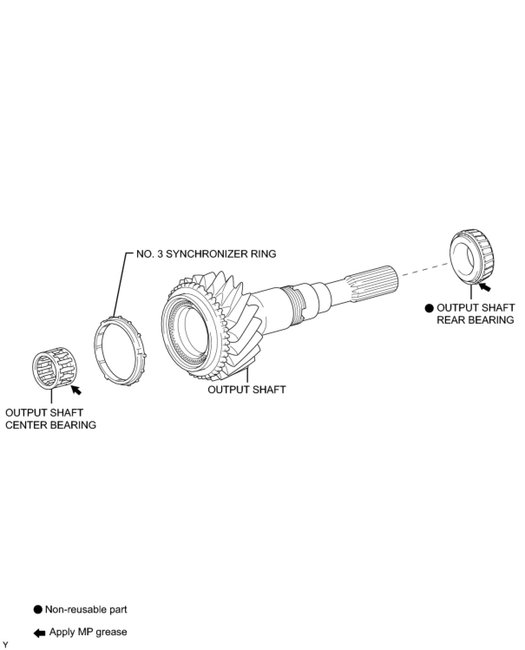

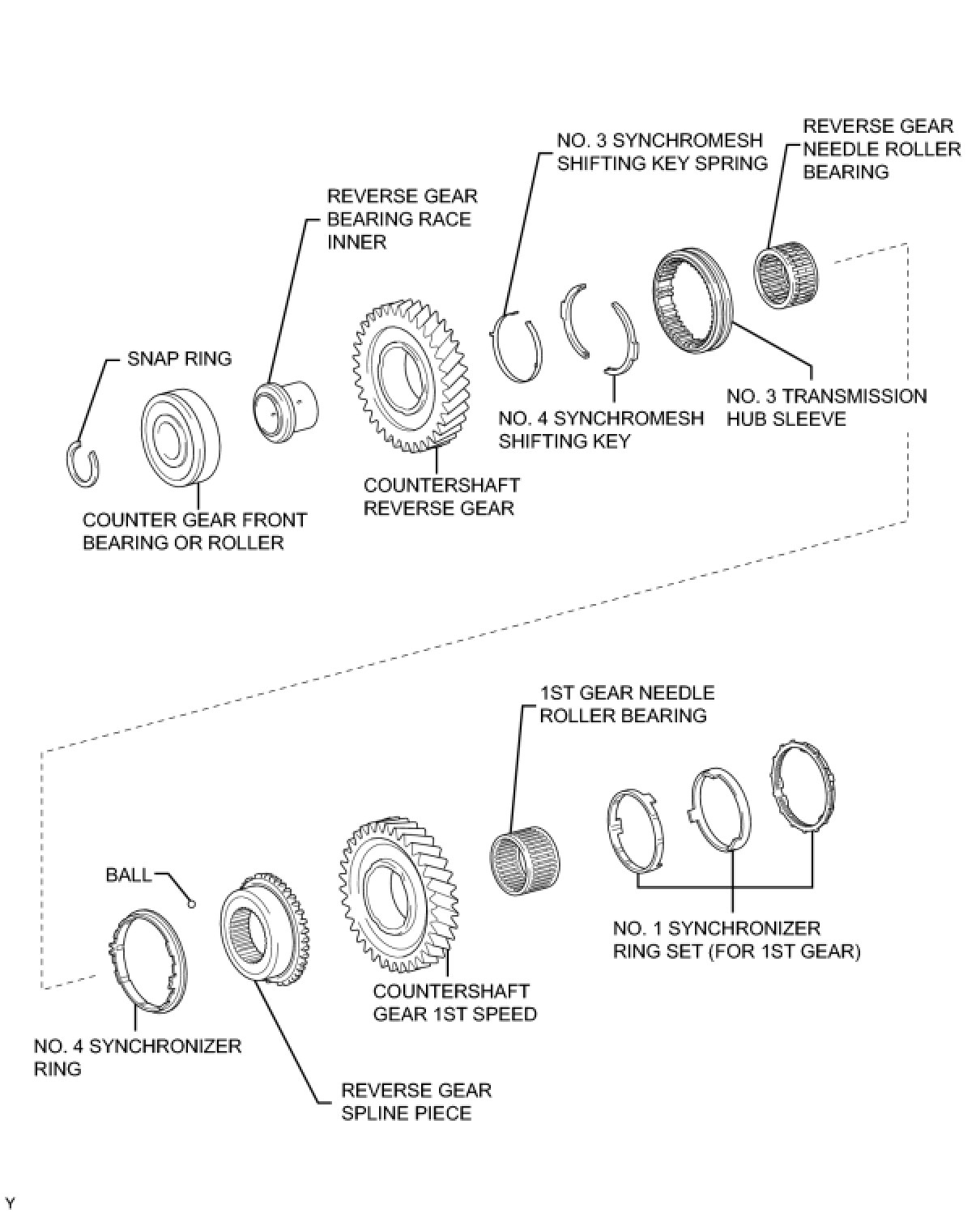

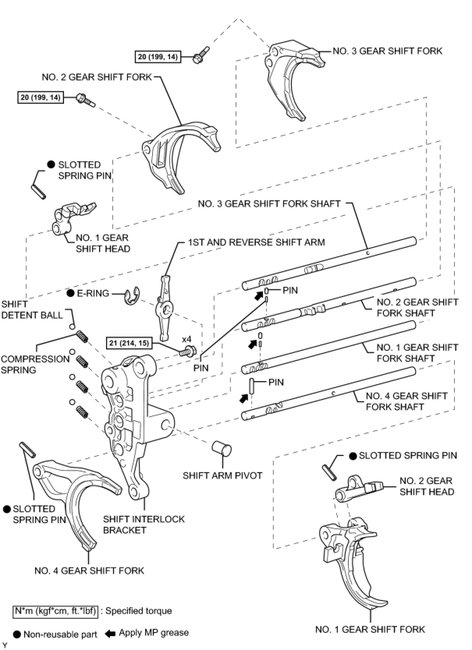

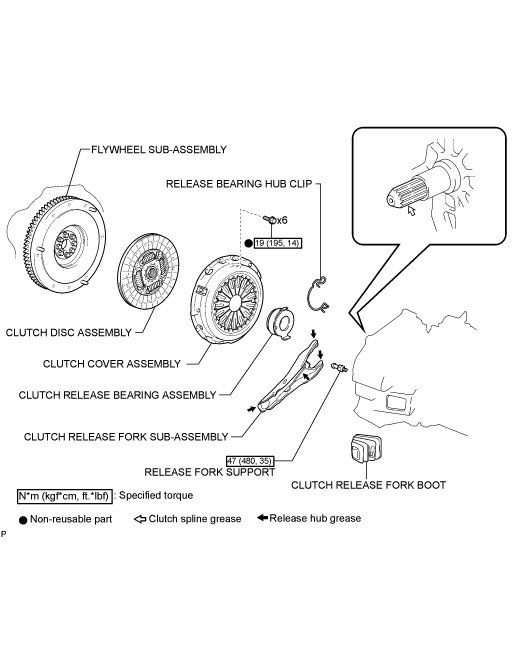

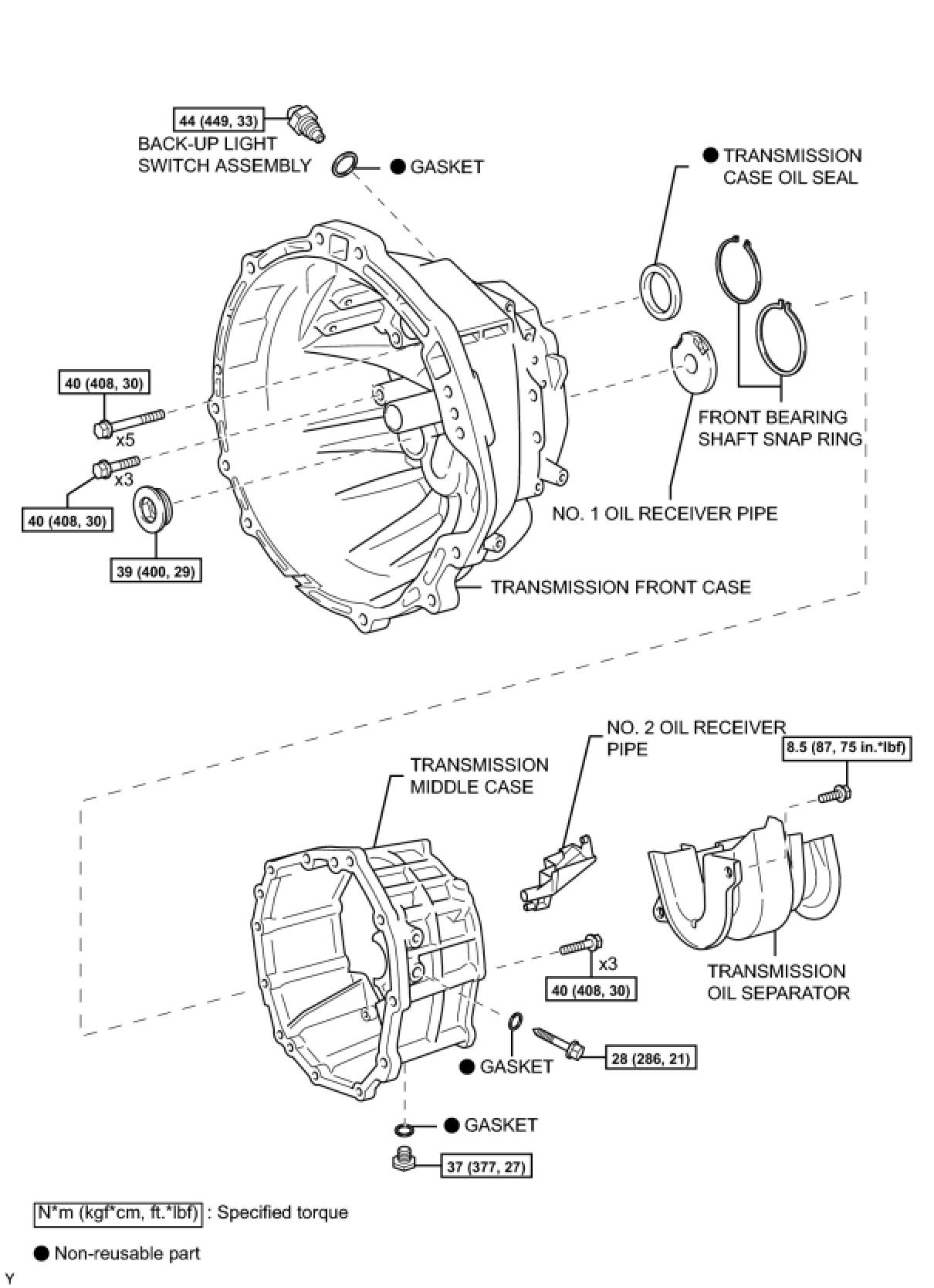

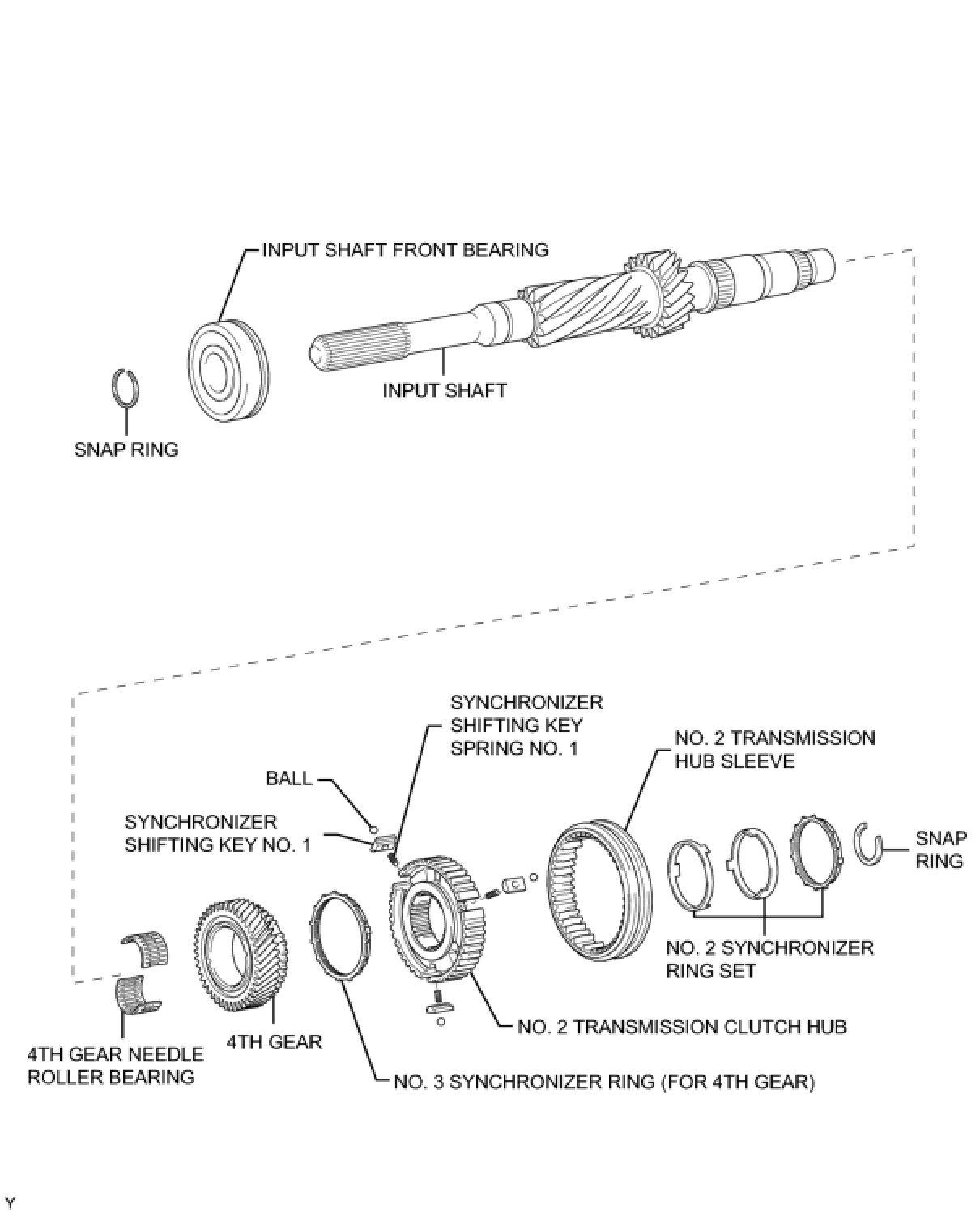

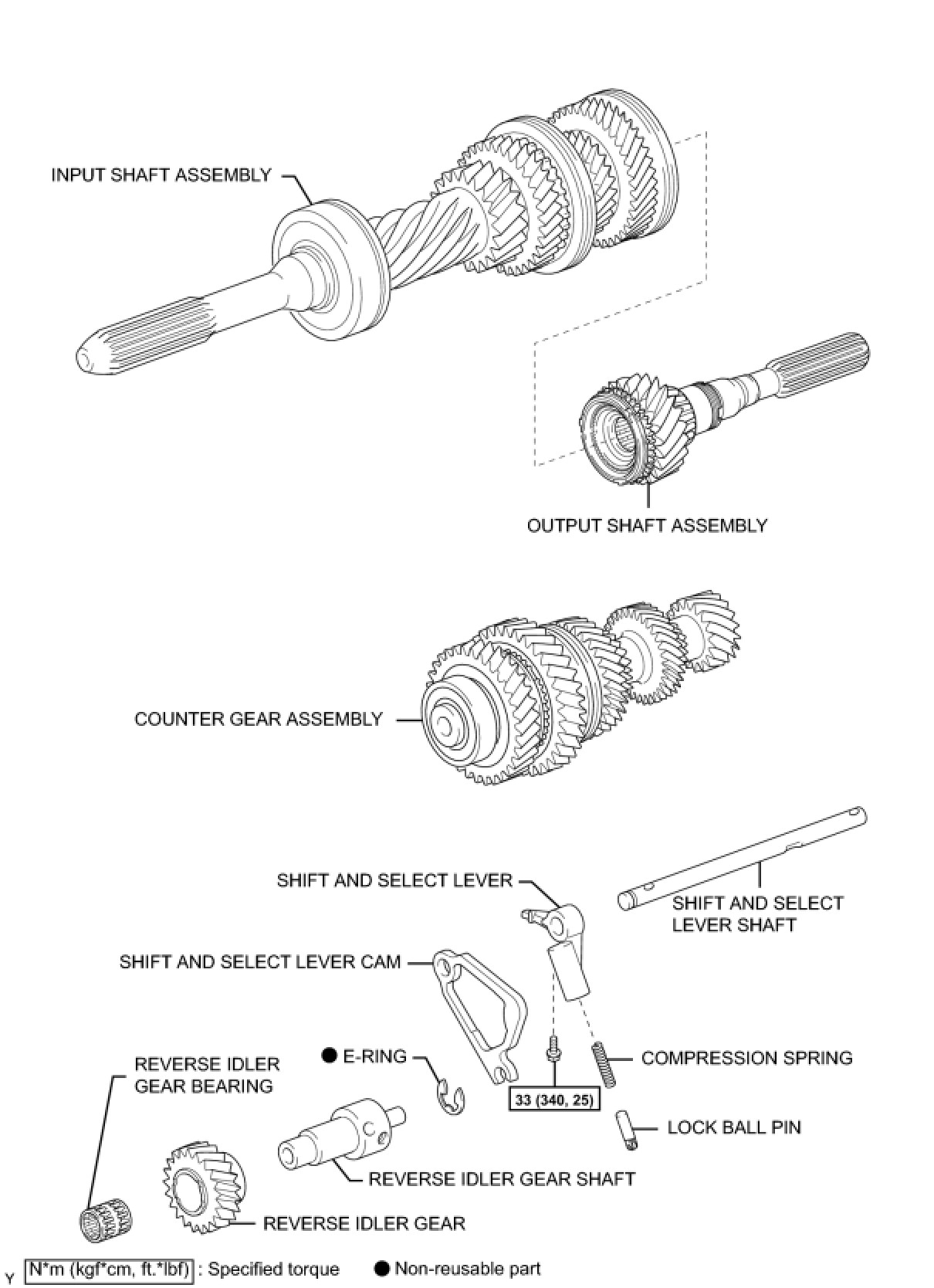

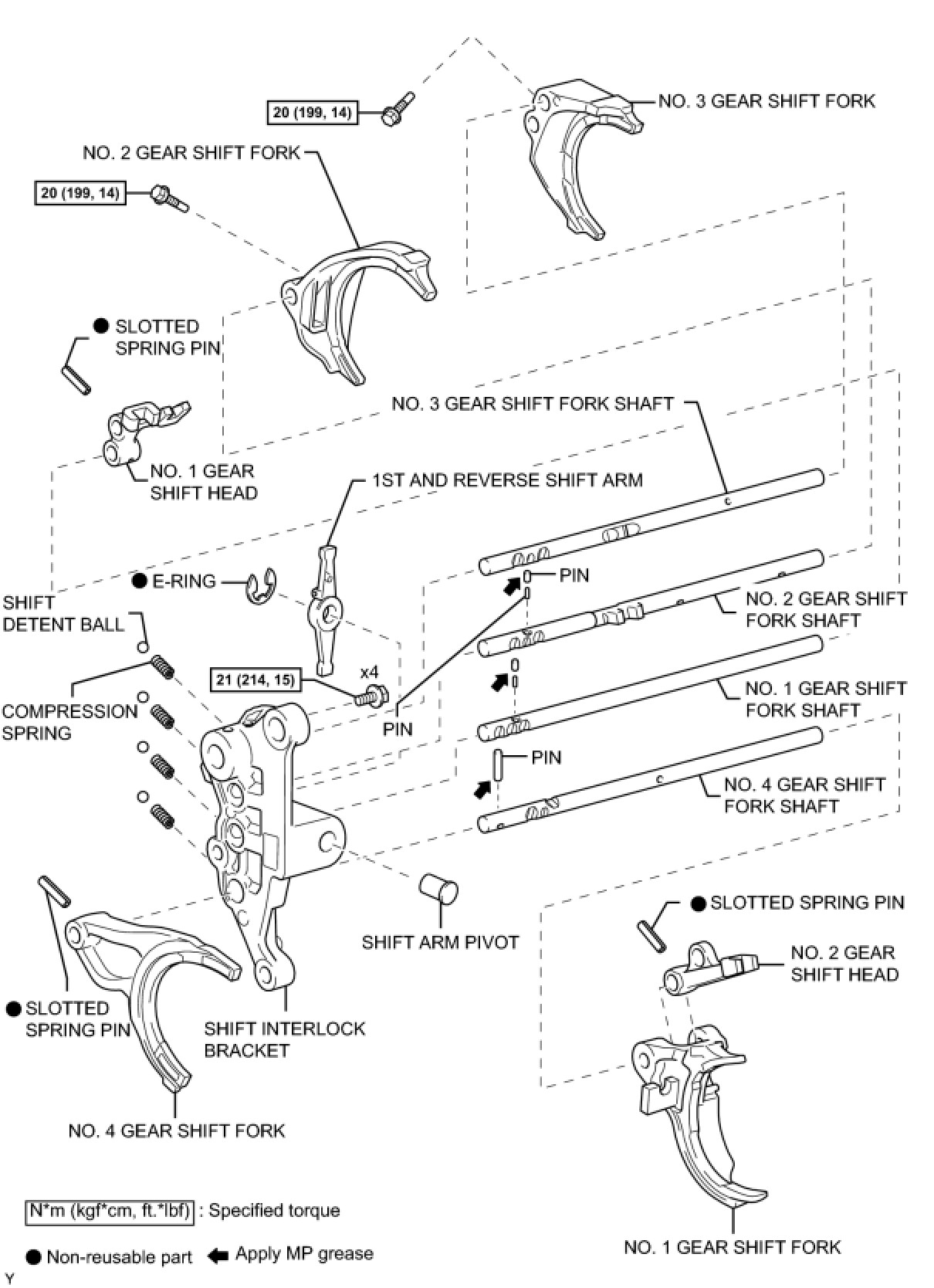

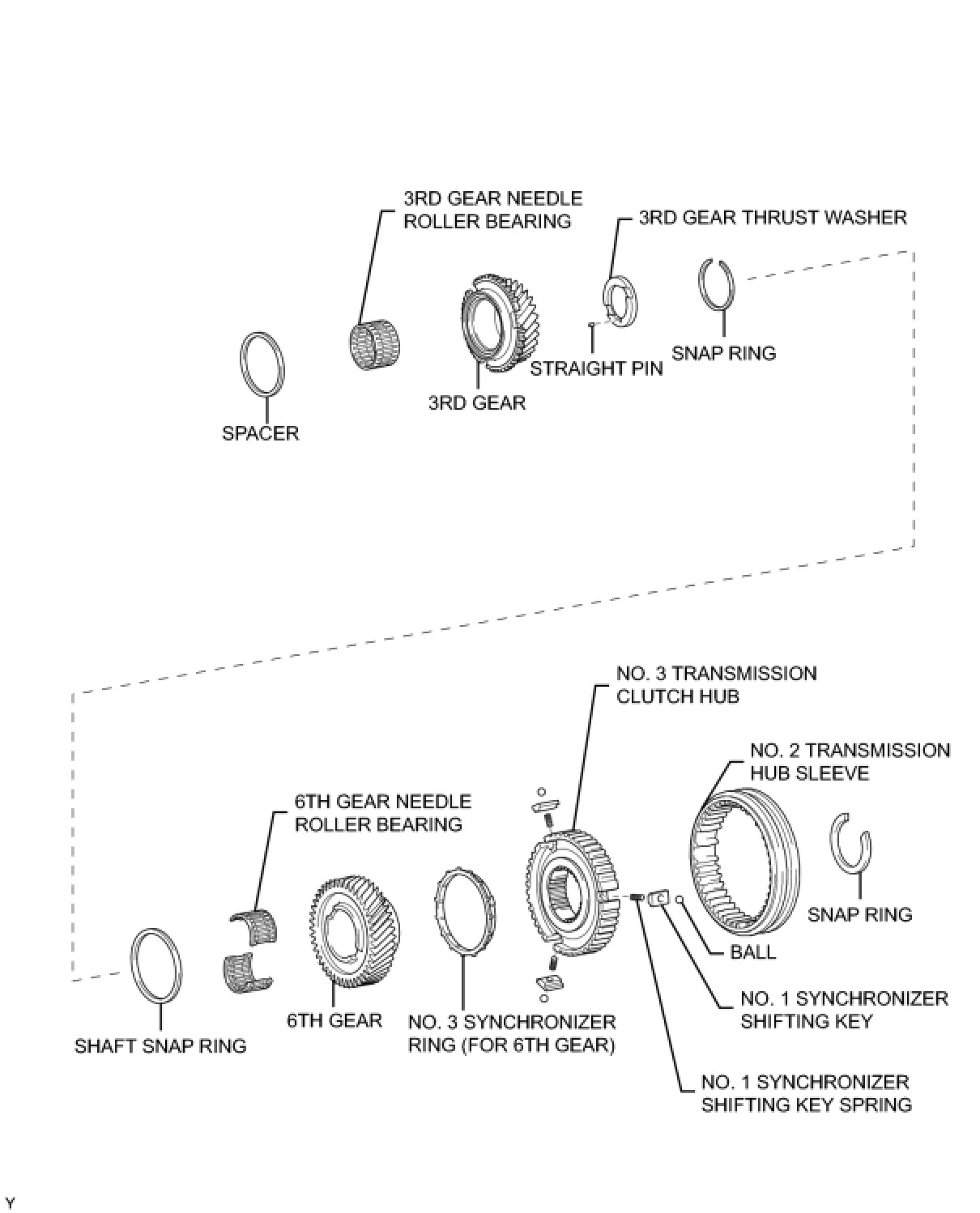

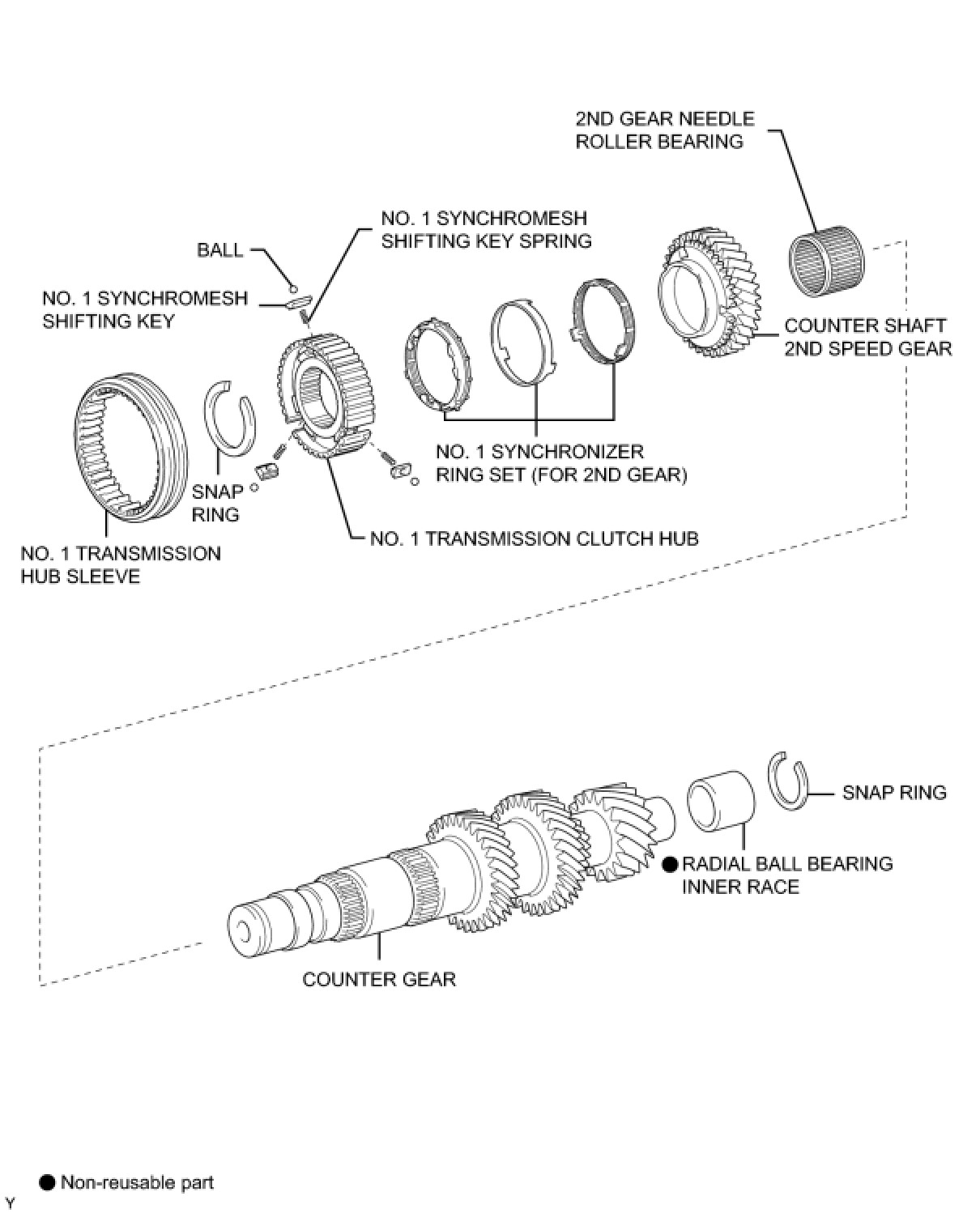

Below are some of the diagrams, but they do not show the individual clearances and how to install some parts.

Images (Click to make bigger)

Was this

answer

helpful?

Yes

Friday, September 15th, 2017 AT 10:18 PM

ROBERT PHILLIPS2

MEMBER
3 POSTS

Thank you sir. I will look into that.

Was this

answer

helpful?

Yes

Friday, September 15th, 2017 AT 10:33 PM

STEVE W.

MECHANIC
15,233 POSTS

You sre welcome. I would try the library first myself. Free is sometimes a good thing.

Was this

answer

helpful?

Yes

Friday, September 15th, 2017 AT 10:51 PM

ROBERT PHILLIPS2

MEMBER
3 POSTS

If I cannot find it at any of these two places where does can I go?

Was this

answer

helpful?

Yes

Friday, September 15th, 2017 AT 11:06 PM

STEVE W.

MECHANIC
15,233 POSTS

The subscription should show all of what you want. It is the same place I got the images from. I just have access to all the vehicles they cover while the one you would get only covers your one vehicle.
