TIPM pinout needed

Tiny
LASTMAN
  • MEMBER
  • 2006 CHRYSLER PT CRUISER
  • 2.4L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 114,000 MILES
Can I get the pinout for the TIPM?
Do you
have the same problem?
Yes
No
Tuesday, July 10th, 2018 AT 7:51 PM

5 Replies

Tiny
JACOBANDNICKOLAS
  • EXPERT
Hi and thanks for using 2CarPros. Com.

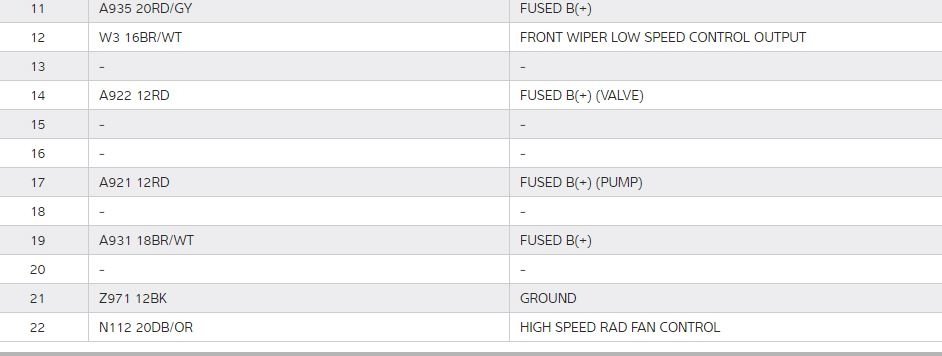

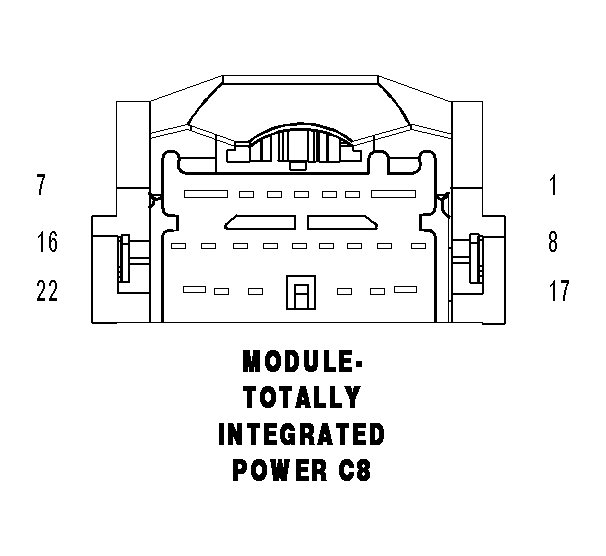

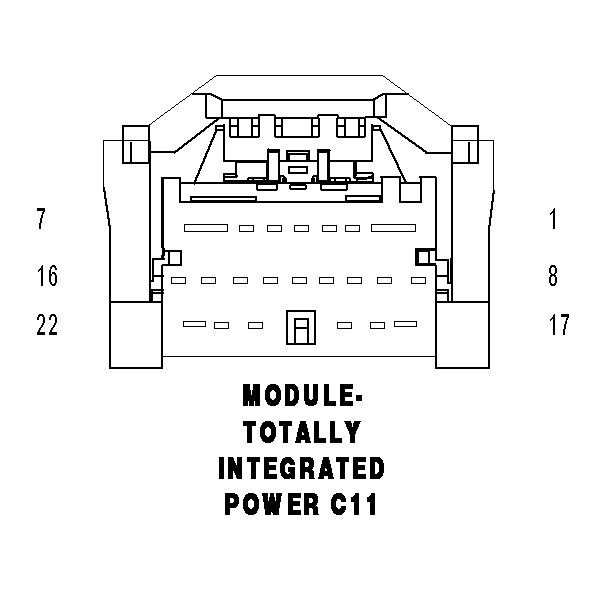

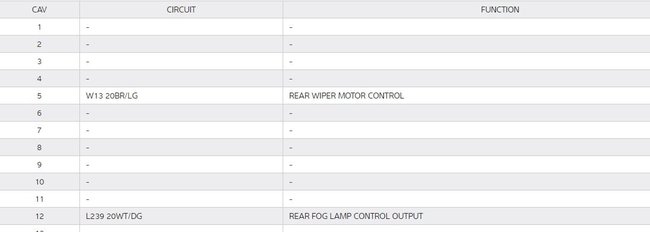

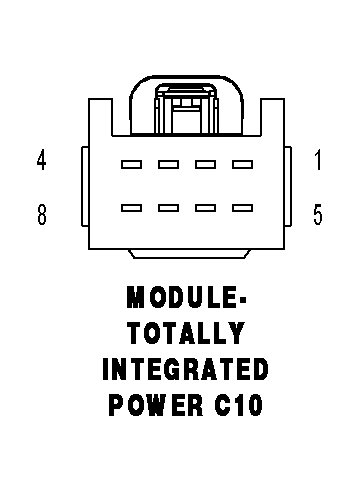

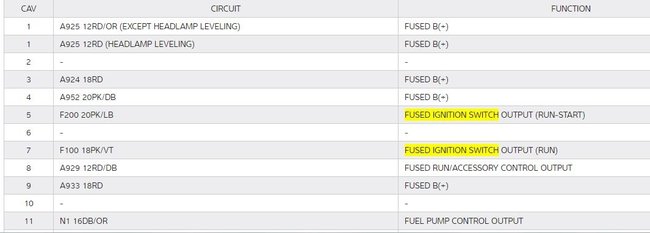

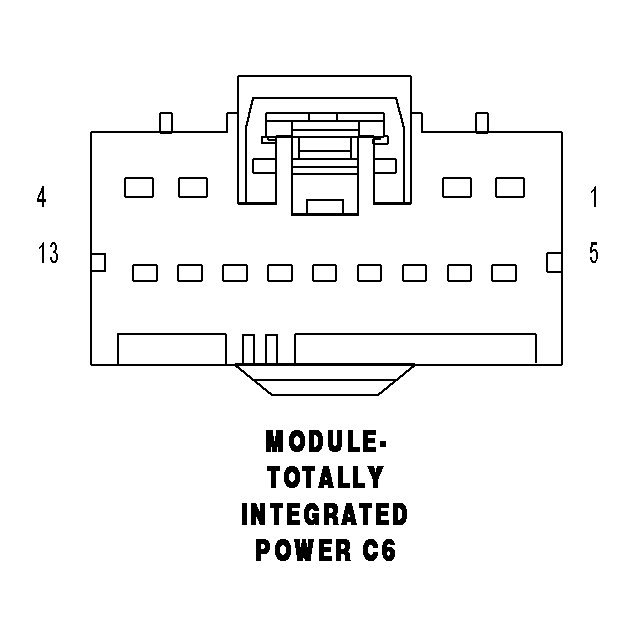

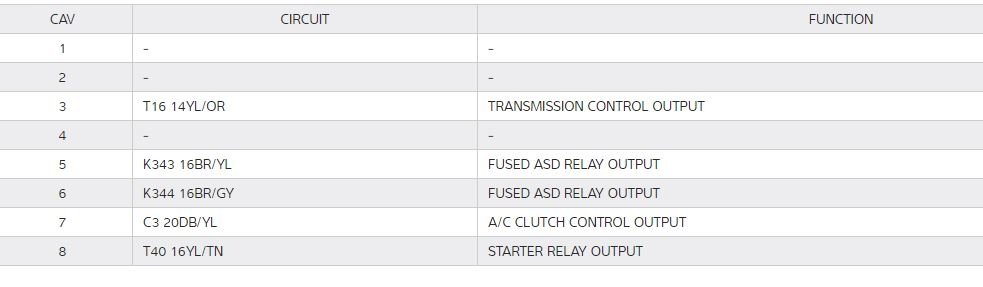

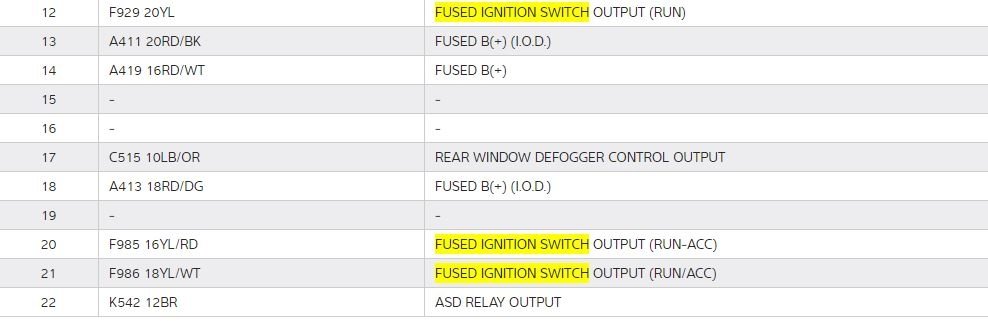

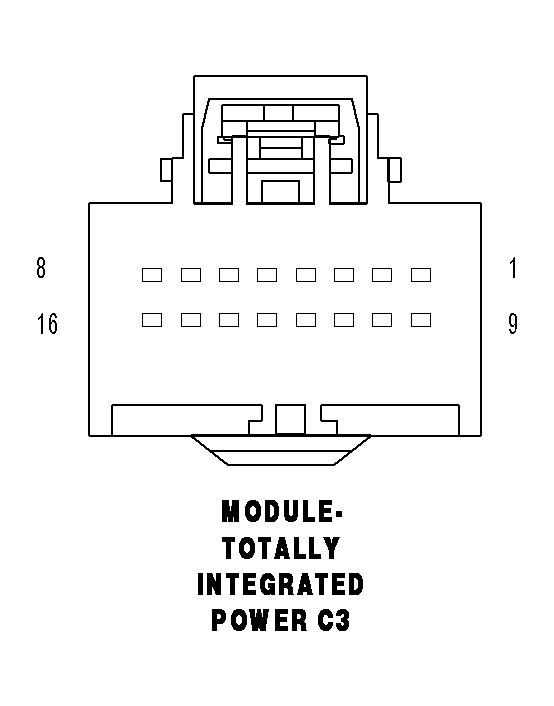

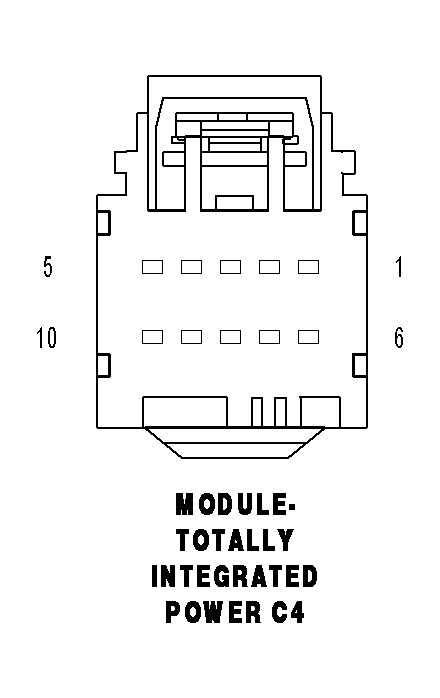

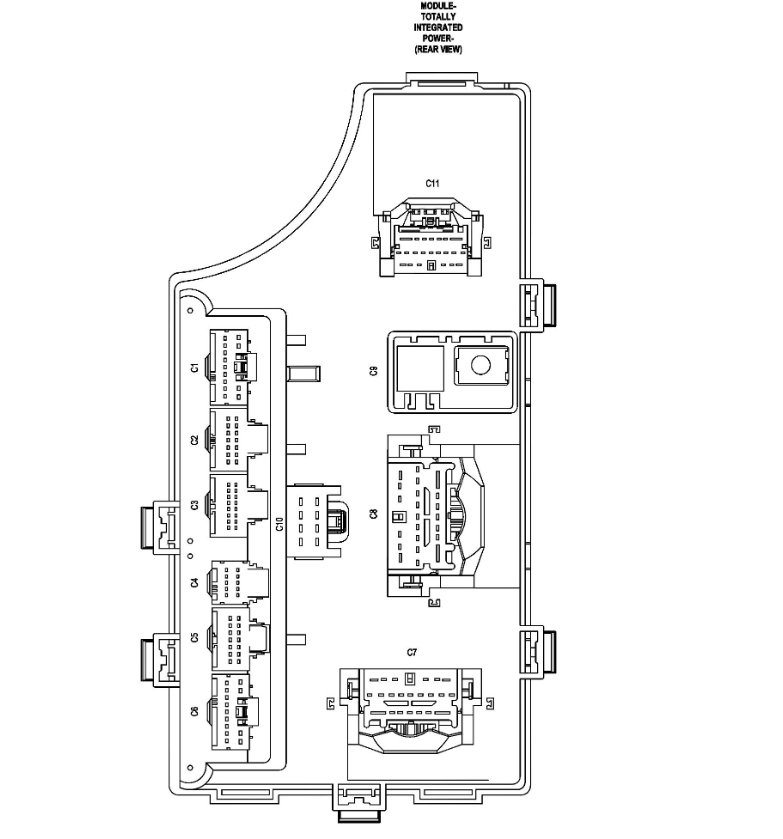

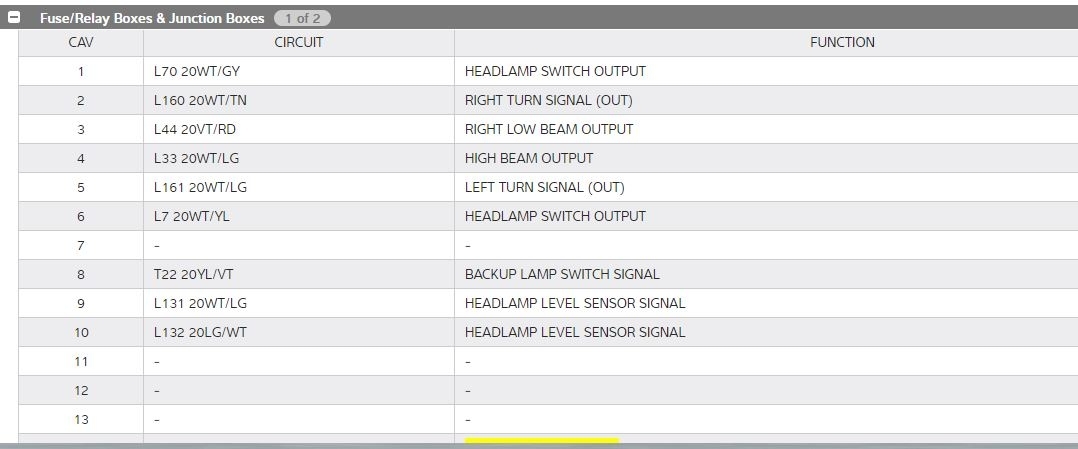

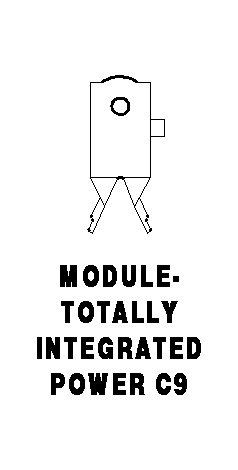

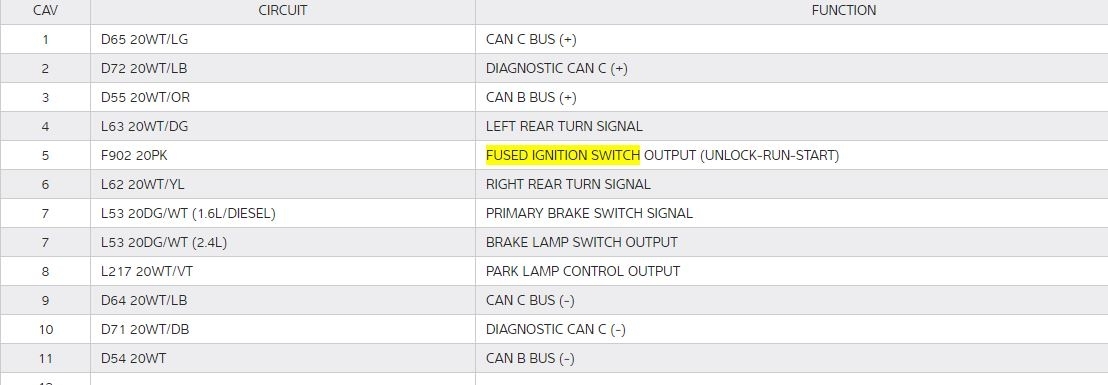

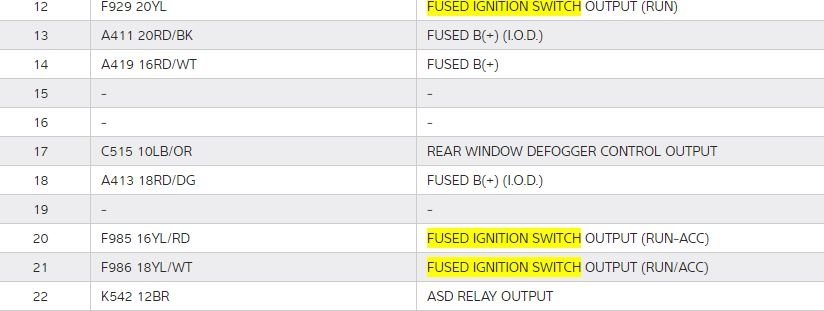

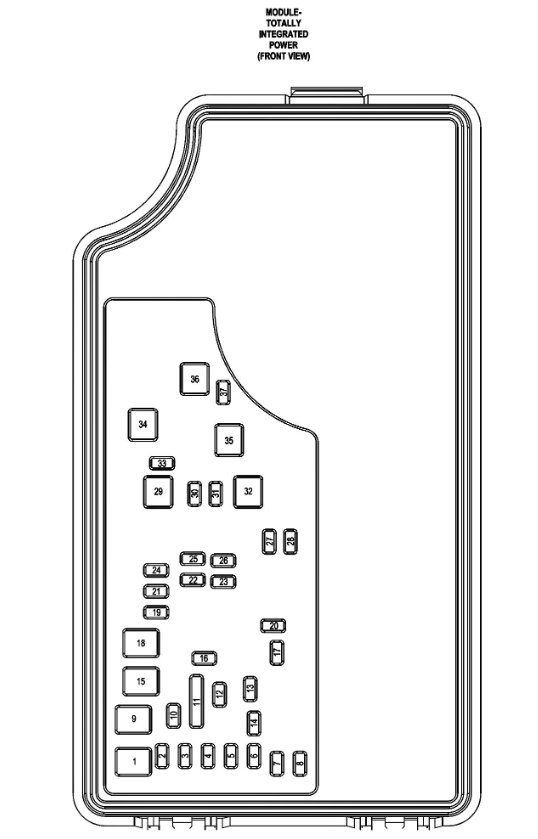

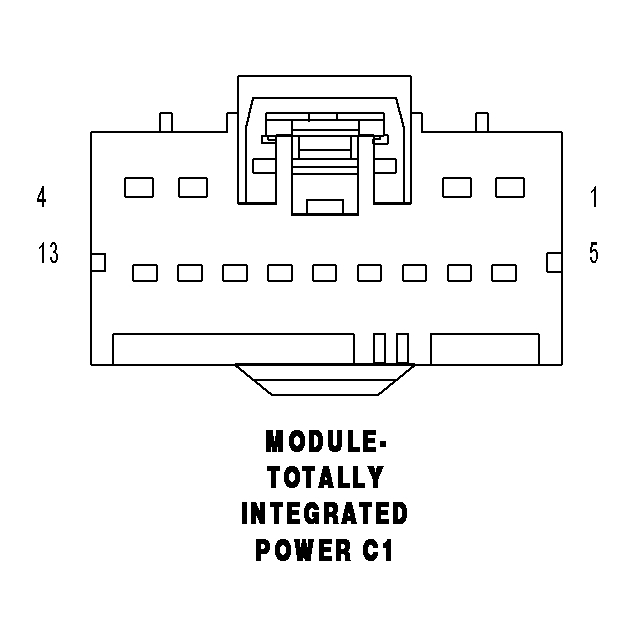

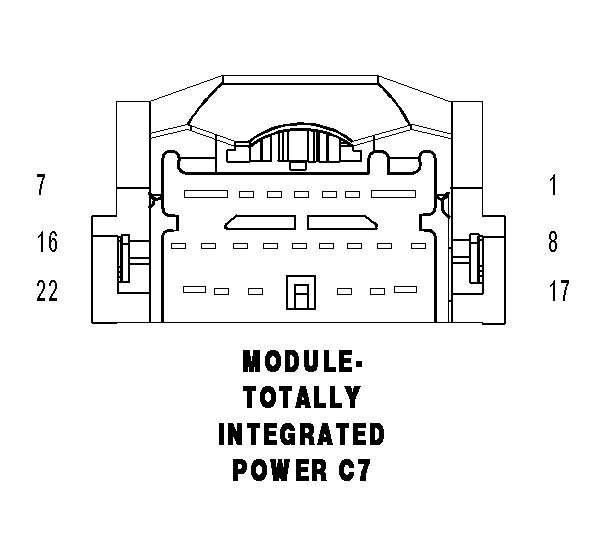

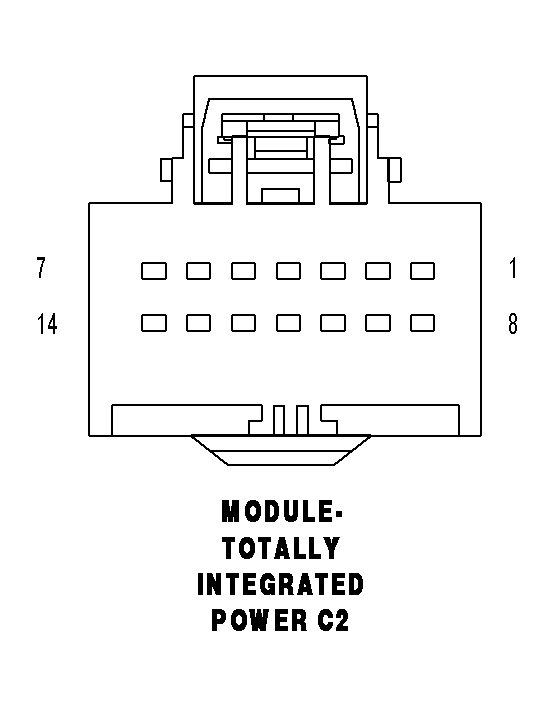

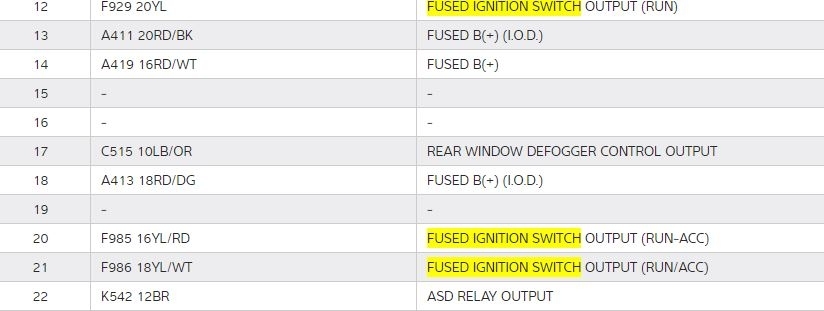

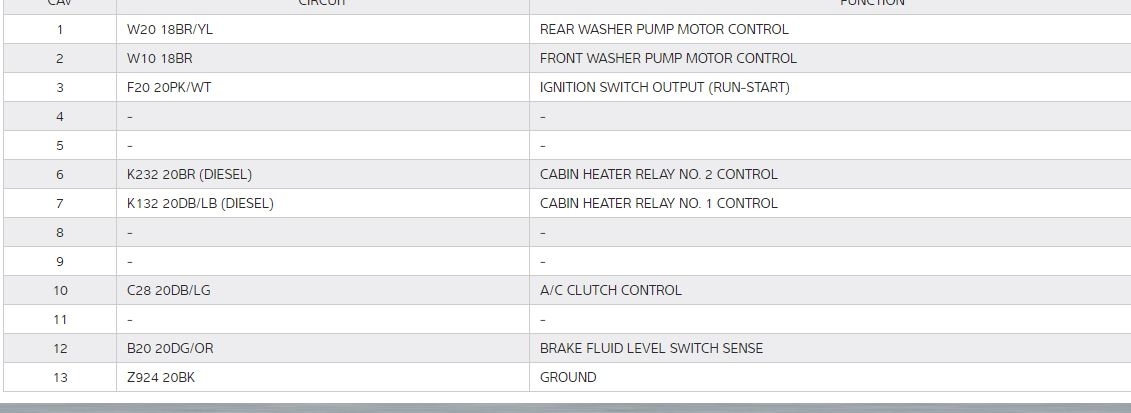

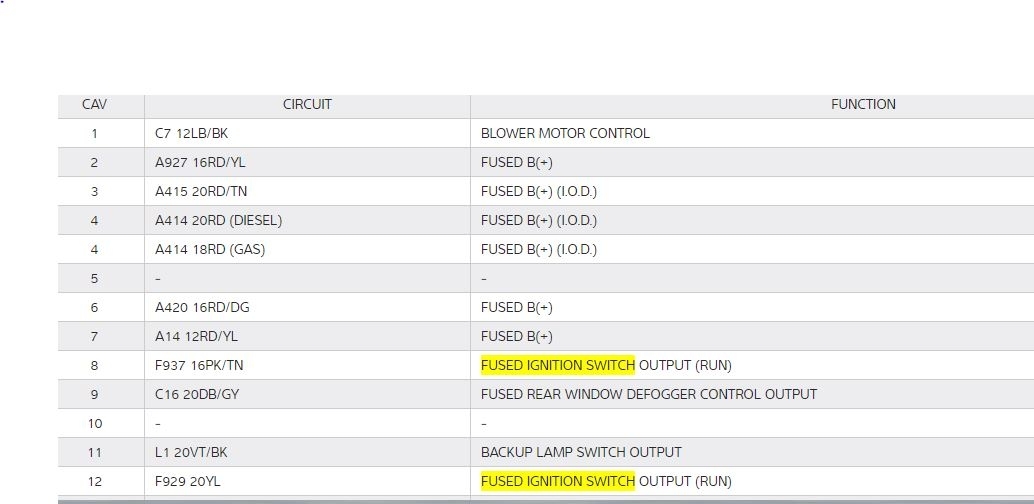

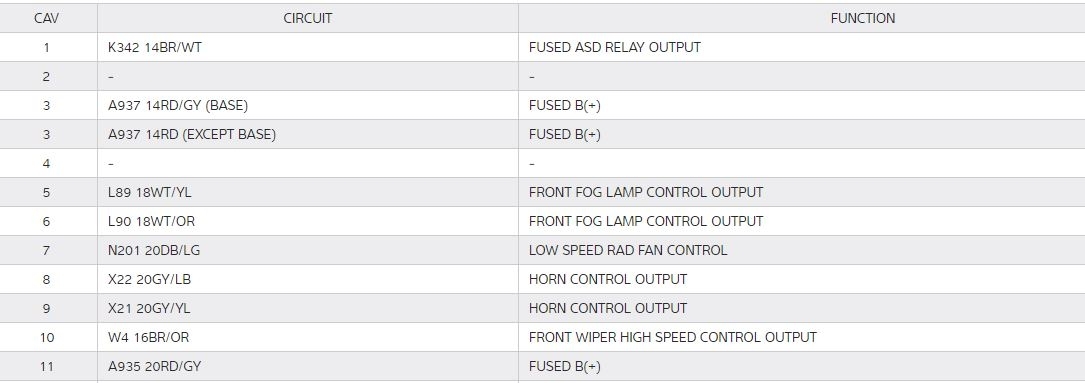

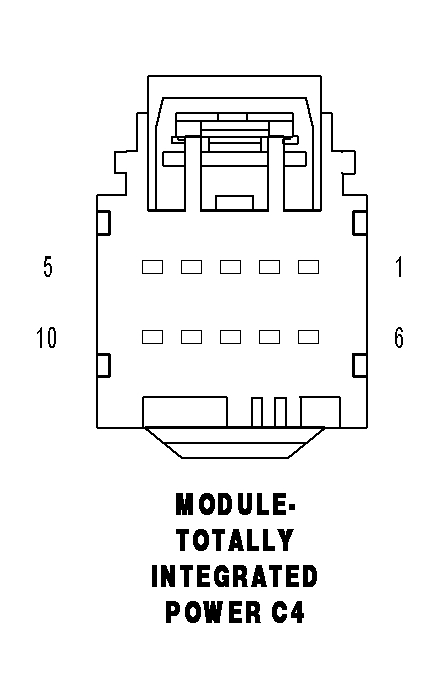

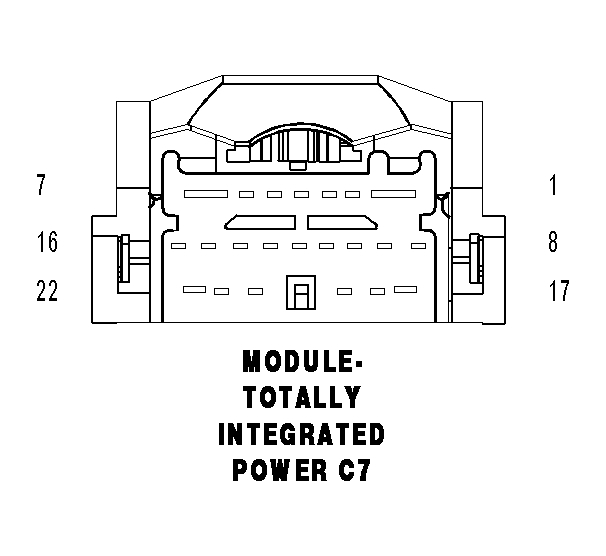

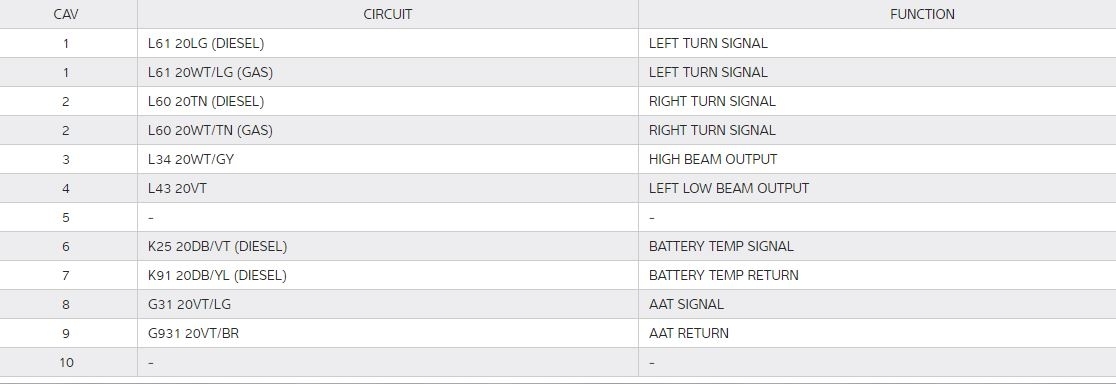

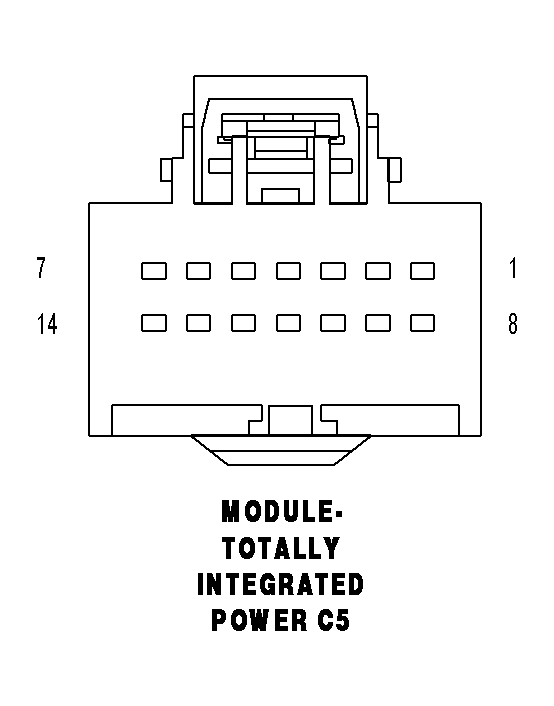

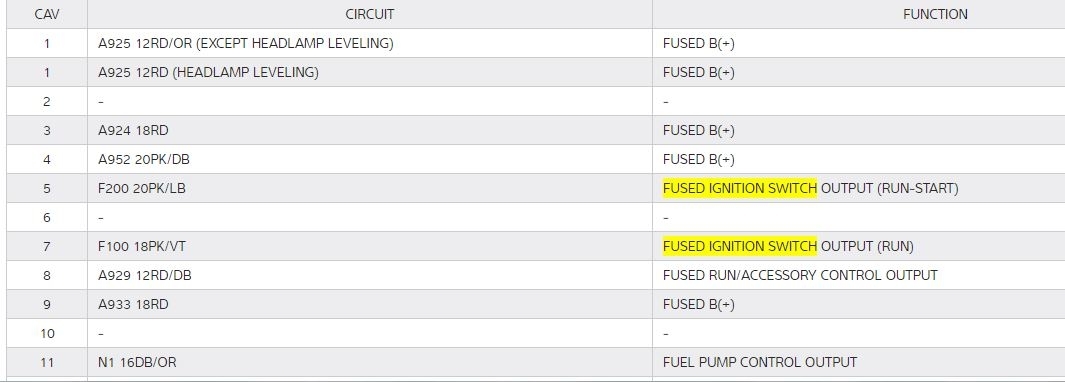

I have attached every pin for the unit. Not sure exactly which you needed. I have attached a picture of the plug, and then what each pin is for. In most cases, there is a picture followed by a list of what each does. There are a few which will have two pictures of what each thing does because the list was too long to fit onto one picture.

I hope this helps. There are a lot of pictures. Gotta love them TIPM's! LOL

Take care,
Joe
Was this
answer
helpful?
Yes
No
Tuesday, July 10th, 2018 AT 8:44 PM
Tiny
JACOBANDNICKOLAS
  • EXPERT

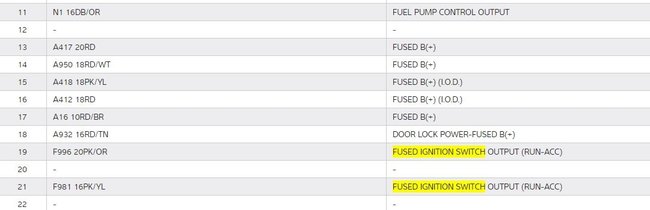

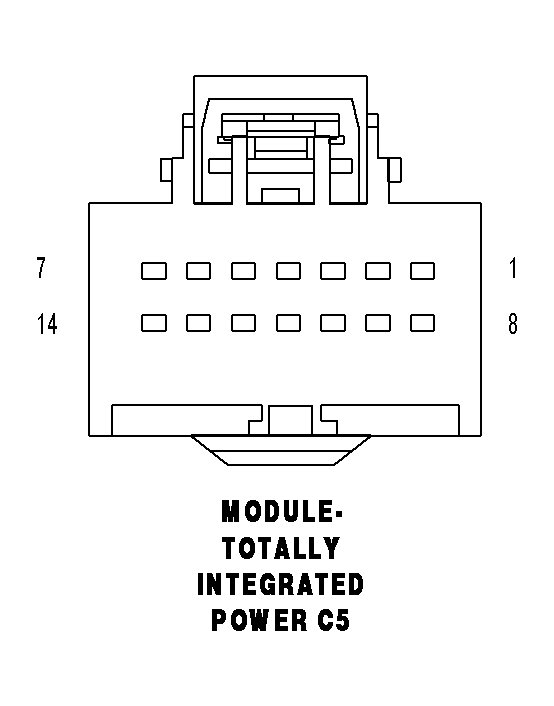

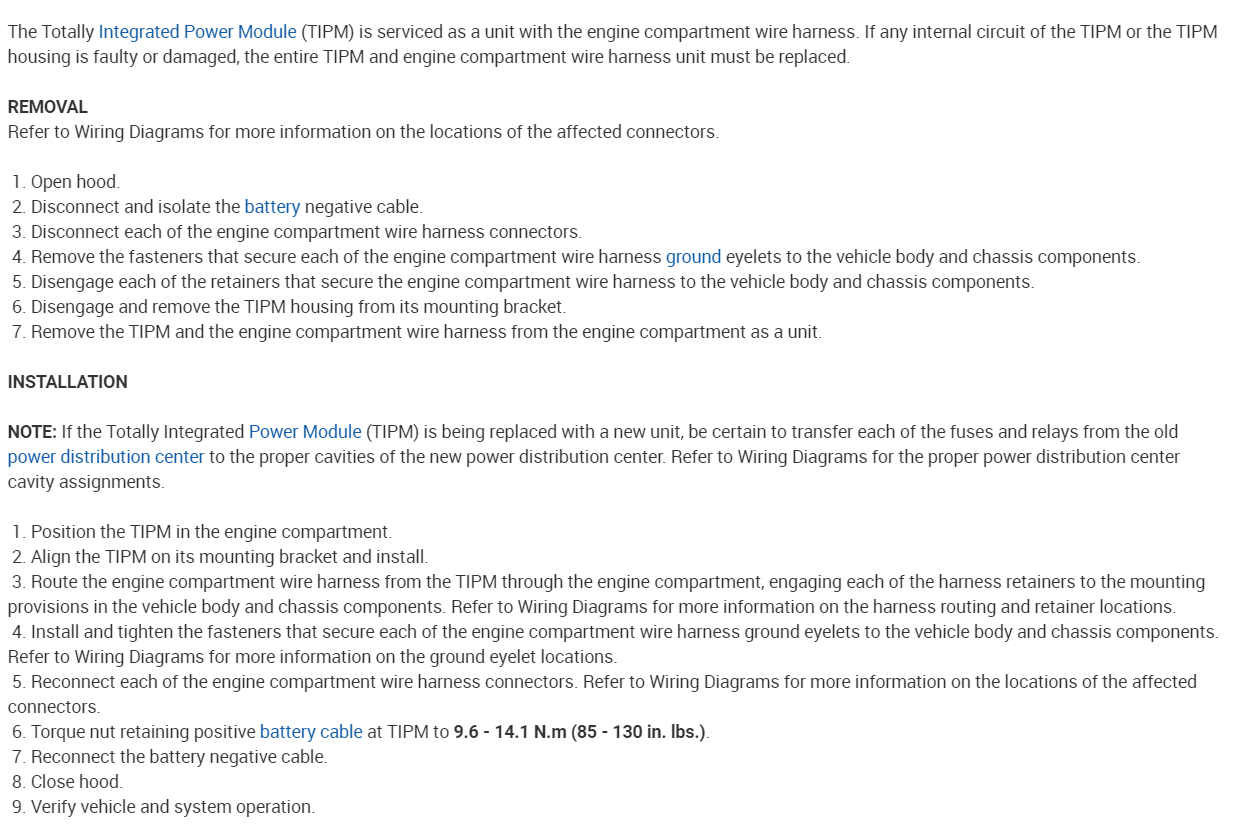

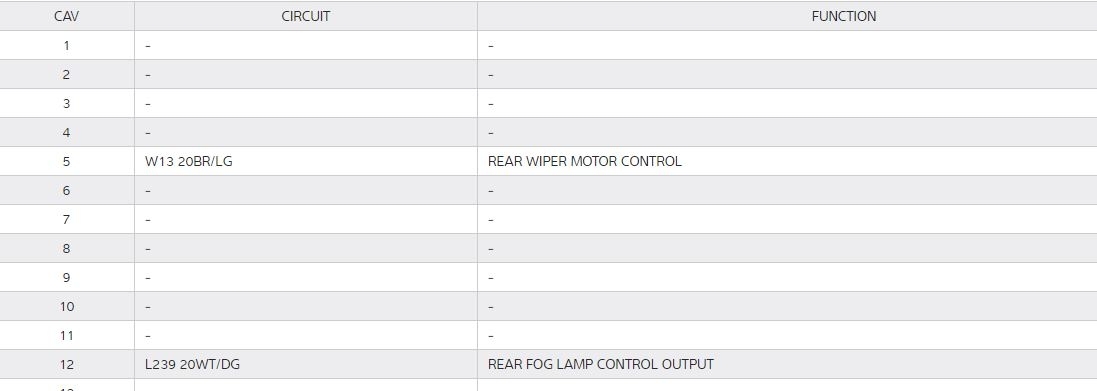

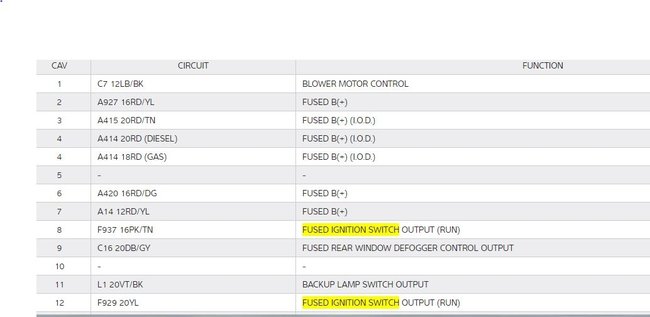

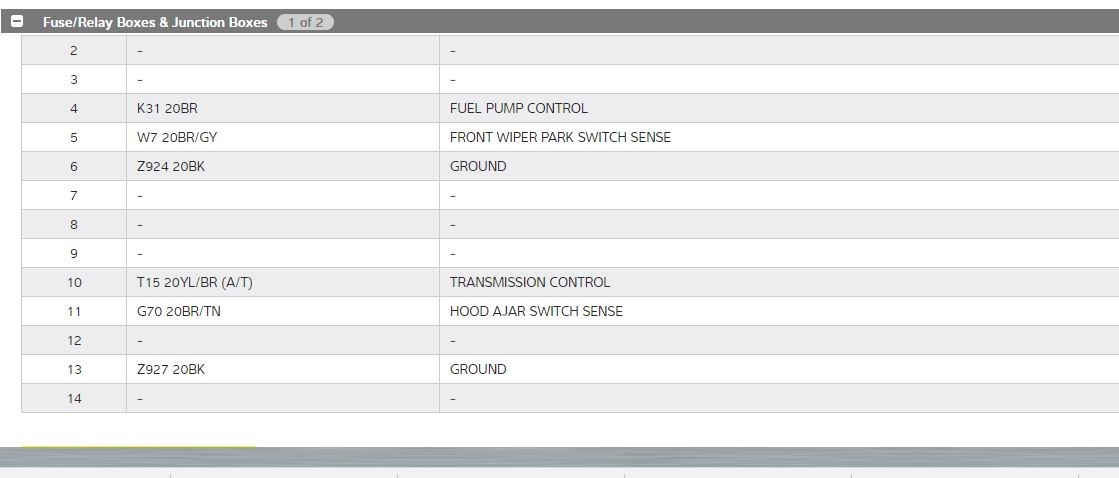

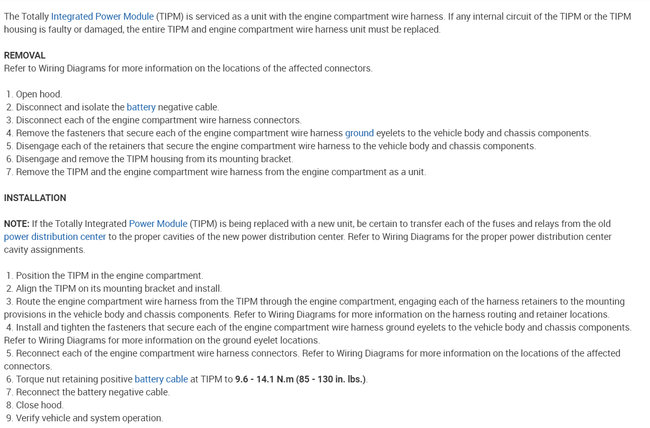

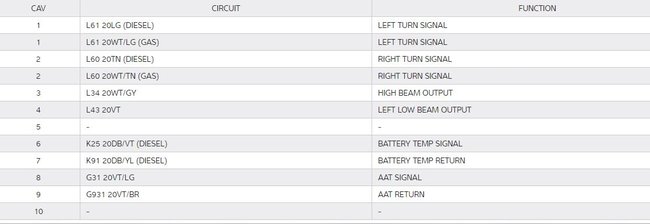

I am not sure what just happened, but I was not done uploading. Here are the remaining pictures.
Was this
answer
helpful?
Yes
No
Tuesday, July 10th, 2018 AT 8:46 PM
Tiny
LASTMAN
  • MEMBER
Thank you so much.
Was this
answer
helpful?
Yes
No
Wednesday, July 11th, 2018 AT 8:16 PM
Tiny
JACOBANDNICKOLAS
  • EXPERT
Not a problem. We are here to help. Let me know if you have questions or need something else. These TIPM things are a pain. Most times one of the pins corrodes or breaks causing a component failure.

Let me know if I can help.

Take care,
Joe
Was this
answer
helpful?
Yes
No
Thursday, July 12th, 2018 AT 7:38 PM
Tiny
LASTMAN
  • MEMBER
I have a p0882 code intermittently and sometimes p1603 and u0101. Today I noticed that the car shifts only up to 3rd gear. The gear shifter is on D
