schematic wiring for the TCM wiring pins colors and right pin hole placement of all the wires?

2006 PONTIAC G6
226,239 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
TREVETTE2011
I need the right an a right colored diagram for the wiring of a TCM wiring harness of the correct spits a colors of where the right colored pin out wires go through out to? Please!
Sep 14, 2025 at 8:17 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,494 POSTS
  • ASE Certified Mechanic

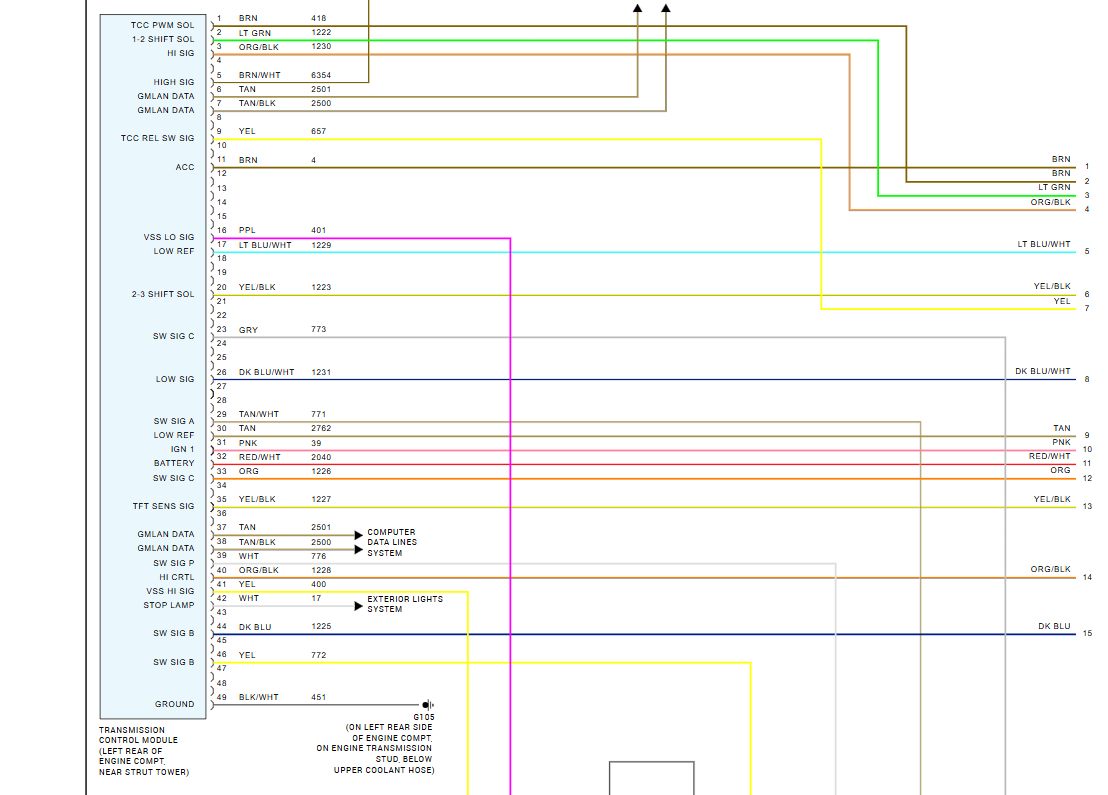

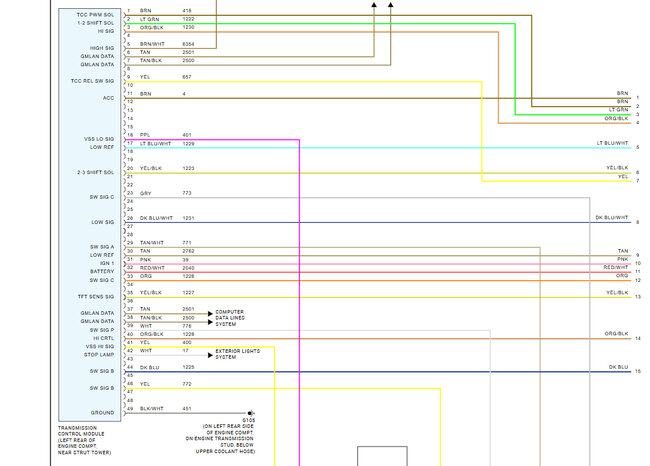

Sure, here you go, these are the wiring diagrams for the TCM connector and the wire locations inside the connector. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
