Taillight wiring diagram needed?

Tiny
STRONGBEE
  • MEMBER
  • 2019 LINCOLN MKZ
  • 2.0L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 45,000 MILES
I want to make tuning for Taillight and install running lights. So, I need learning wiring diagram and pin placement. I hope for your support.
Friday, September 19th, 2025 AT 8:55 AM

9 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS
I don't under stand "make tuning for Taillight and install running lights" can you please explain?
Was this
answer
helpful?
Yes
No
Friday, September 19th, 2025 AT 10:33 AM
Tiny
STRONGBEE
  • MEMBER
  • 6 POSTS
I'm trying to put the running turn signals on the rear lights.
Was this
answer
helpful?
Yes
No
Friday, September 19th, 2025 AT 10:39 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS
Do you have an image? Doesn't it have lights already?
Was this
answer
helpful?
Yes
No
Friday, September 19th, 2025 AT 10:40 AM
Tiny
STRONGBEE
  • MEMBER
  • 6 POSTS
https://youtu.be/5ZShFvp4UJI?feature=shared
Was this
answer
helpful?
Yes
No
Friday, September 19th, 2025 AT 10:53 AM
Tiny
STRONGBEE
  • MEMBER
  • 6 POSTS
https://m.youtube.com/watch?v=aLZTM-eqPPs&t=197s&pp=2AHFAZACAQ%3D%3D
Was this
answer
helpful?
Yes
No
Friday, September 19th, 2025 AT 11:15 AM
Tiny
STRONGBEE
  • MEMBER
  • 6 POSTS
I plan to do like in this video
Was this
answer
helpful?
Yes
No
Friday, September 19th, 2025 AT 11:16 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS

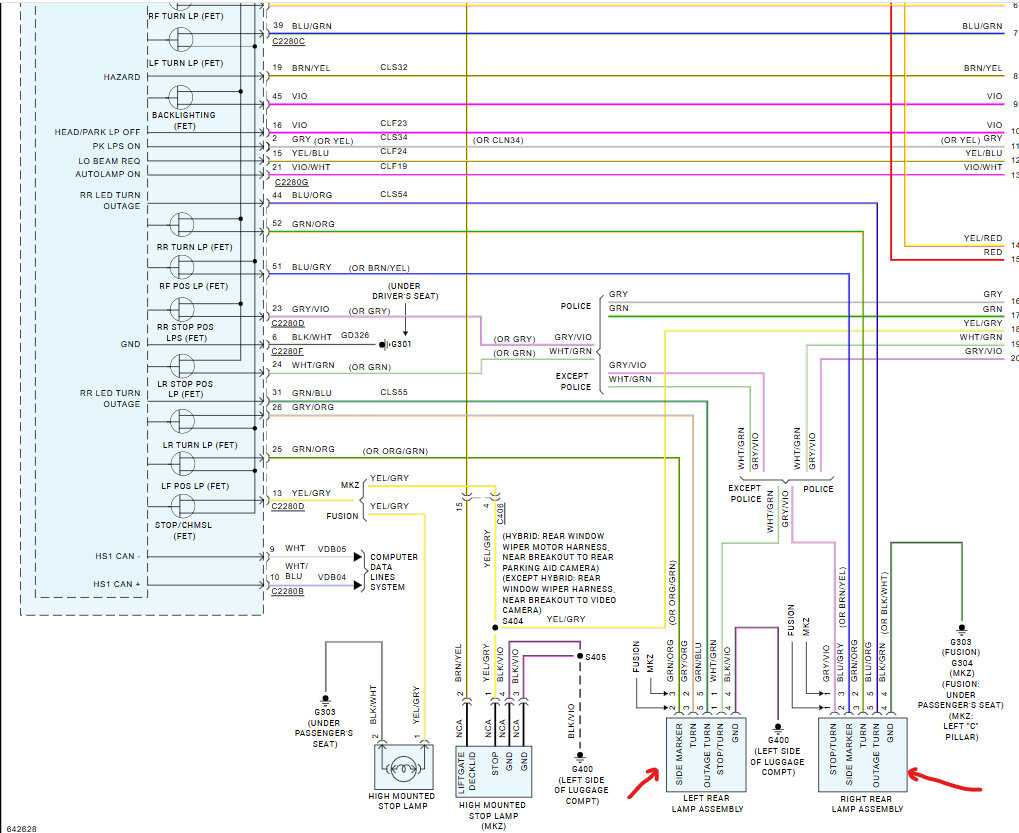

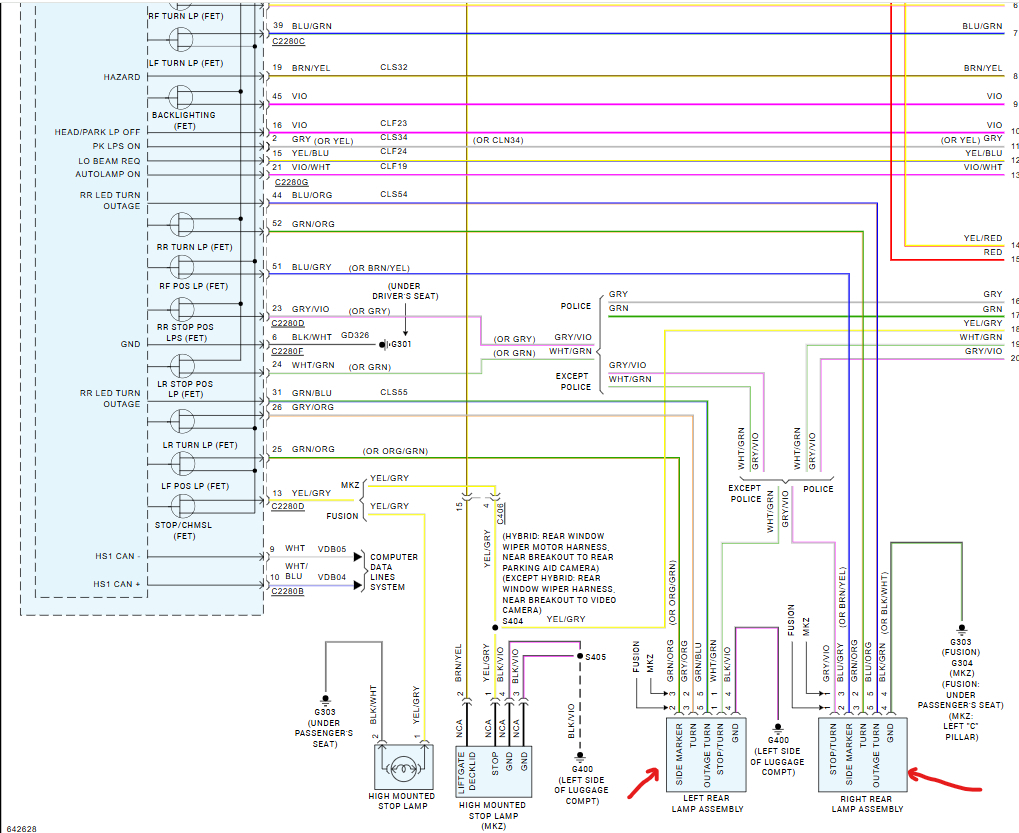

Gotcha, here are the wiring diagrams for the tail lights. Check out the images (below). Please upload pictures or videos in your response
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Friday, September 19th, 2025 AT 4:53 PM
Tiny
STRONGBEE
  • MEMBER
  • 6 POSTS
Yes, of course. But it won't happen quickly. Please, tell me, the microcontroller needs to be sealed in the headlight or can it be install under the lining of the luggage compartment?
Was this
answer
helpful?
Yes
No
Saturday, September 20th, 2025 AT 1:57 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS
The microcontroller needs to be out of the way of moisture, so I would mount it in a place that it will stay dry as possible.
Was this
answer
helpful?
Yes
No
Saturday, September 20th, 2025 AT 7:16 PM
