Spark plug wires diagram needed?

Tiny
MCKZIE26
  • MEMBER
  • 2006 GMC SIERRA
  • 5.3L
  • V8
  • 4WD
  • AUTOMATIC
  • 155,000 MILES
I mixed up my spark plug wires. No idea what goes where, what should I do?
Saturday, April 15th, 2023 AT 9:25 PM

1 Reply

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 108,254 POSTS
Hi,

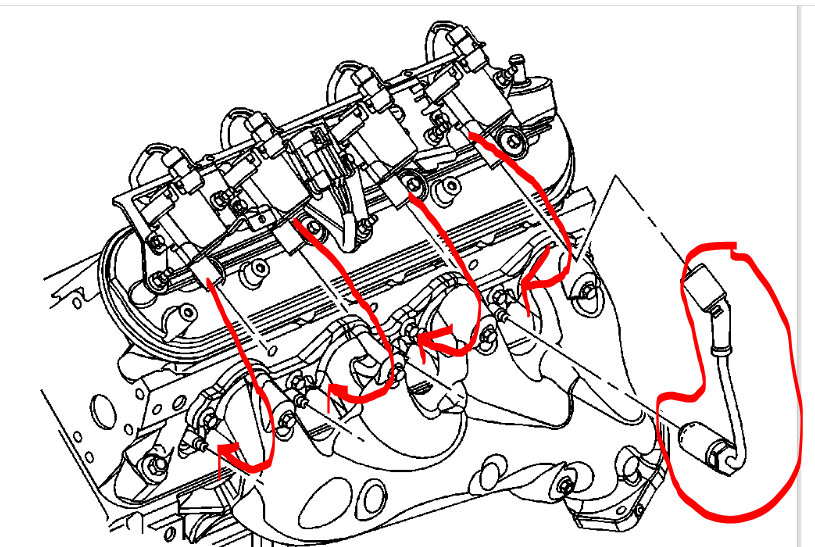

I'm not sure what you mixed up. Each cylinder has a coil pack and the wire from the coil goes to the spark plug which is below that coil. See pic 1 below

Do you mean you mixed up the connectors to the coils?

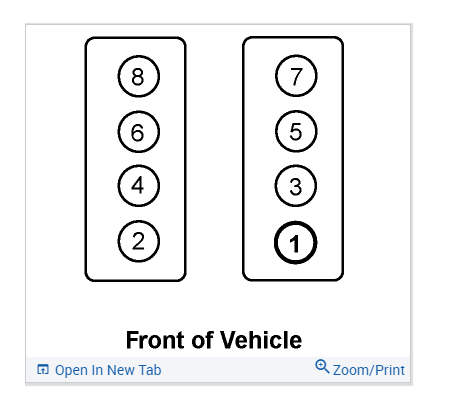

I attached a pic below showing cylinder locations if needed as well (pic 2).

Let me know if this helps or if I'm not understanding.

Take care,

joe

See pics below.
Images (Click to make bigger)
Thumb
Thumb
