Sliding door wiring diagrams please?

PCULQUI

MEMBER
2005 TOYOTA SIENNA
3.3L
V6
4WD
AUTOMATIC
105,600 MILES

Do you have an schematic of the sliding doors? Just want to check out the mechanism on the glass window function. The window goes down but towards the bottom it makes a cracking noise. Then I just roll it right up before anything "breaks".

Wednesday, April 15th, 2020 AT 6:23 PM

3 Replies

JACOBANDNICKOLAS

MECHANIC
110,176 POSTS

Hi,

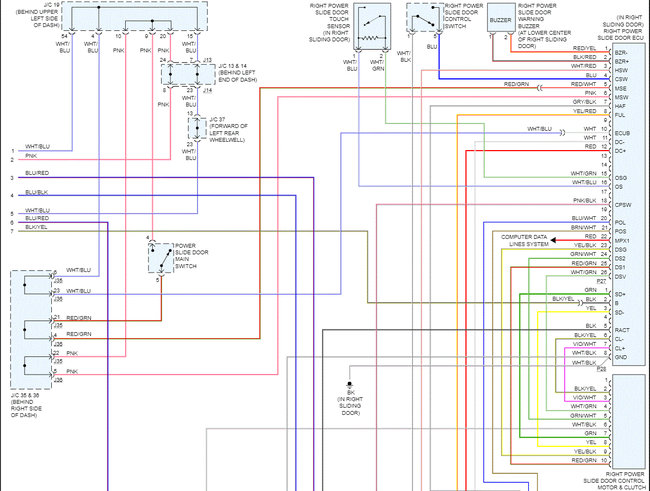

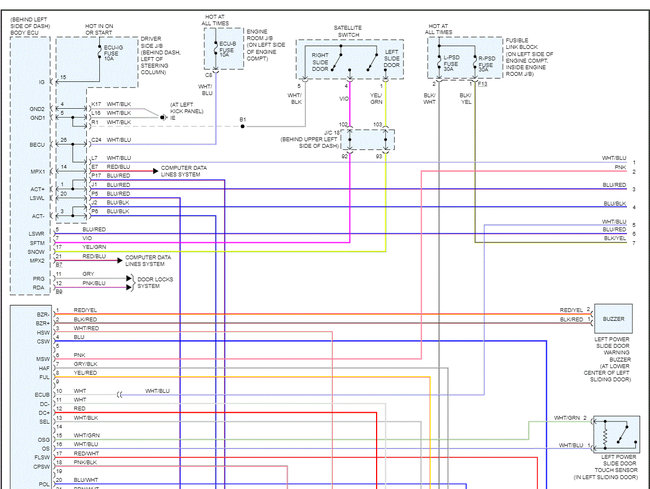

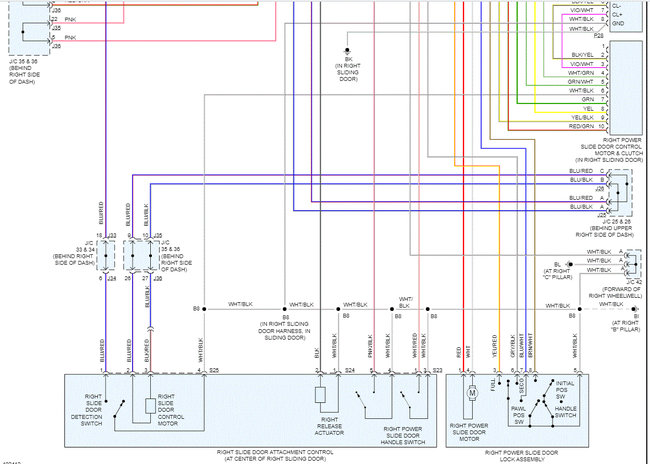

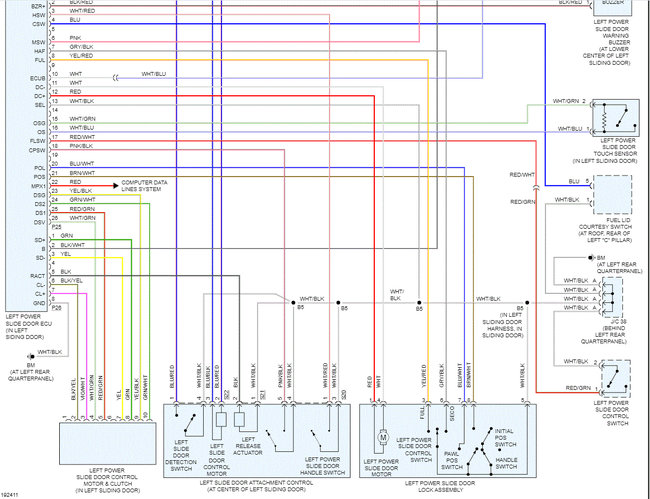

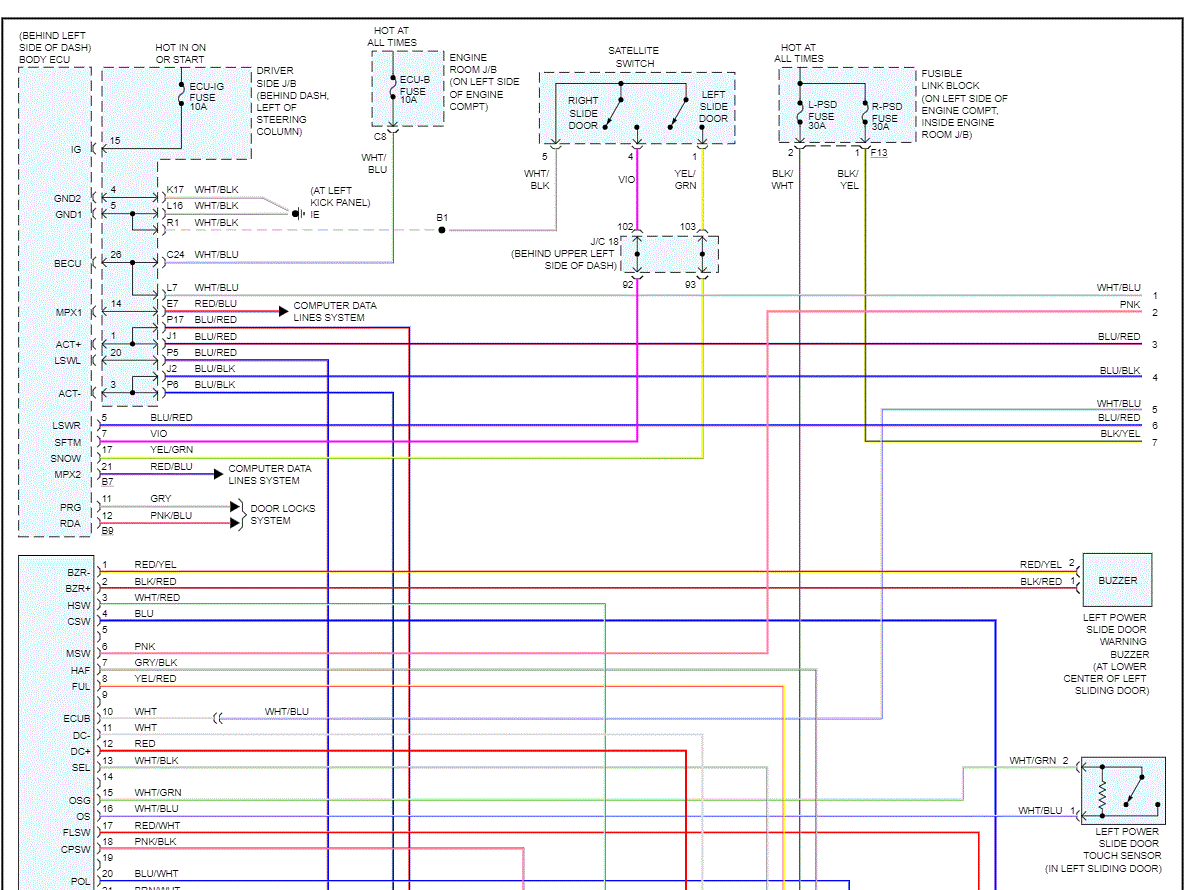

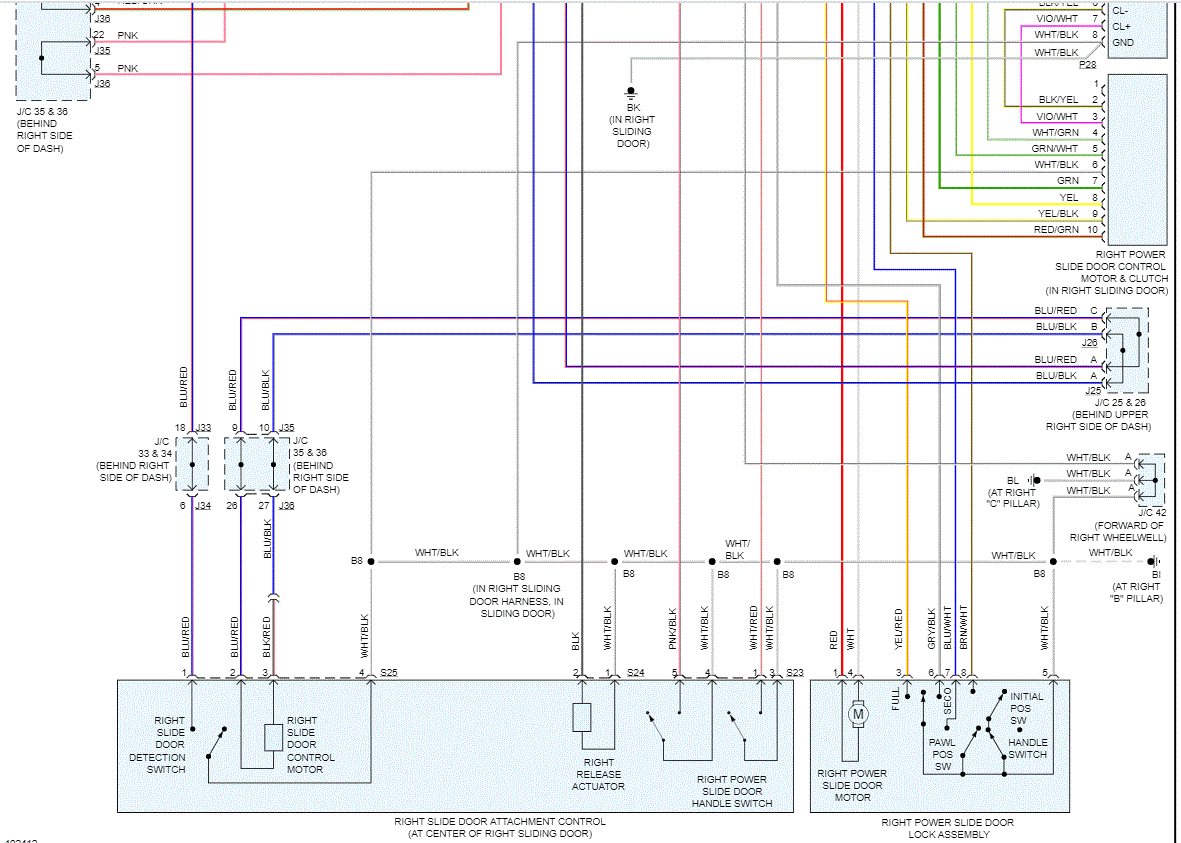

I'm not sure I understand what you are asking for. When you say schematic, I think electrical. So, I have attached the entire wiring schematic for the sliding doors. It that isn't what you needed, let me know.

Note that I had to cut each page in half to make it readable. However, I did overlap them so you can follow.

Let me know if this helps.

Joe

Images (Click to make bigger)

Was this

answer

helpful?

Yes

No

+2

Wednesday, April 15th, 2020 AT 7:03 PM

PCULQUI

MEMBER
354 POSTS

Yes, I mis-communicated my request. I meant to say an actual photo of the door panel with the aesthetic cover off. I just want to see where the tracking harnesses are that hold the window up and down, if this makes sense.

Was this

answer

helpful?

Yes

No

Thursday, April 16th, 2020 AT 4:12 AM

JACOBANDNICKOLAS

MECHANIC
110,176 POSTS

Hi,

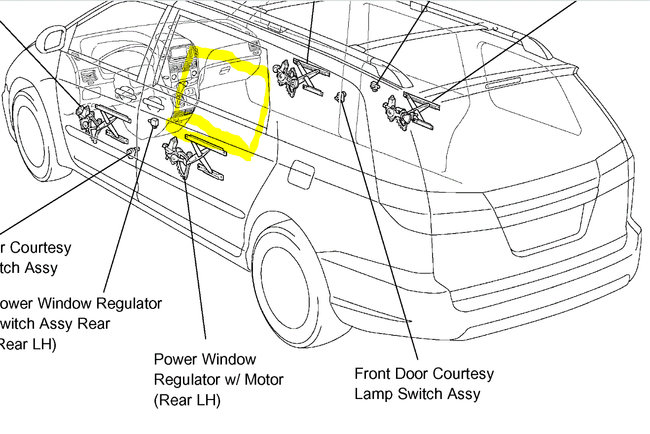

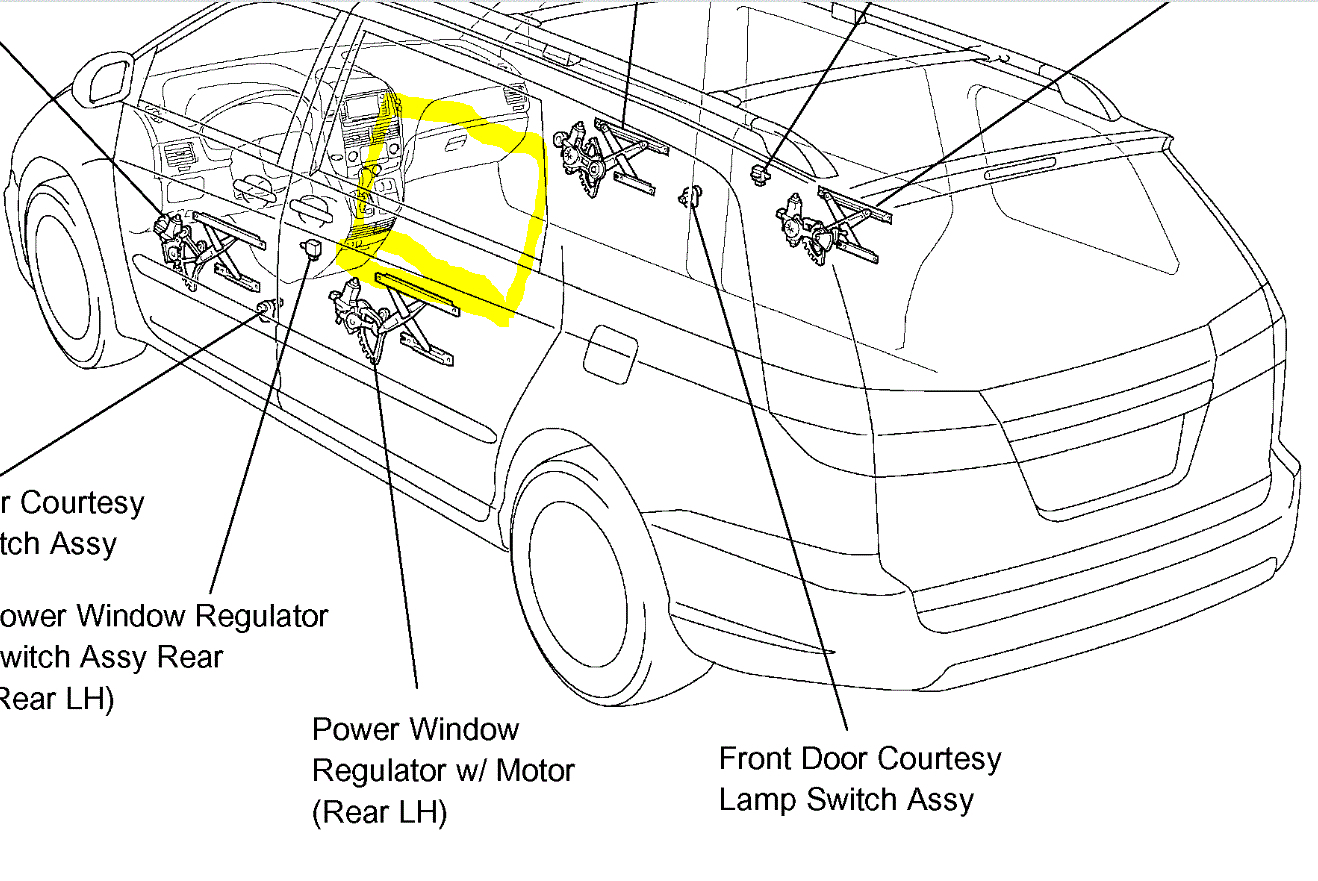

I have pics for the front, but not the rear. The only one I was able to find was a general pic that shows how the window motor and regulator are in the door. Don't laugh, but in yellow is where the glass would be. I tried to help you see where the glass attaches to the regulator.

Now, if you are having a noise when you lower it, I would remove the panel and see if something is loose or hitting when the glass is put down. I have a feeling once the panel is removed, you will see what is making the noise simply because there isn't a lot there.

Let me know if this helps. Sorry for the first poor coloring. LOL Let me know if I can help.

Joe

Image (Click to make bigger)
