Serpentine Belt diagram needed?

Tiny
ROCOOP
  • MEMBER
  • 2017 KIA SORENTO
  • 3.3L
  • V6
  • AUTOMATIC
  • 120,000 MILES
I need a Serpentine belt diagram.
Friday, July 4th, 2025 AT 3:59 PM

1 Reply

Tiny
STEVE W.
  • MECHANIC
  • 14,663 POSTS

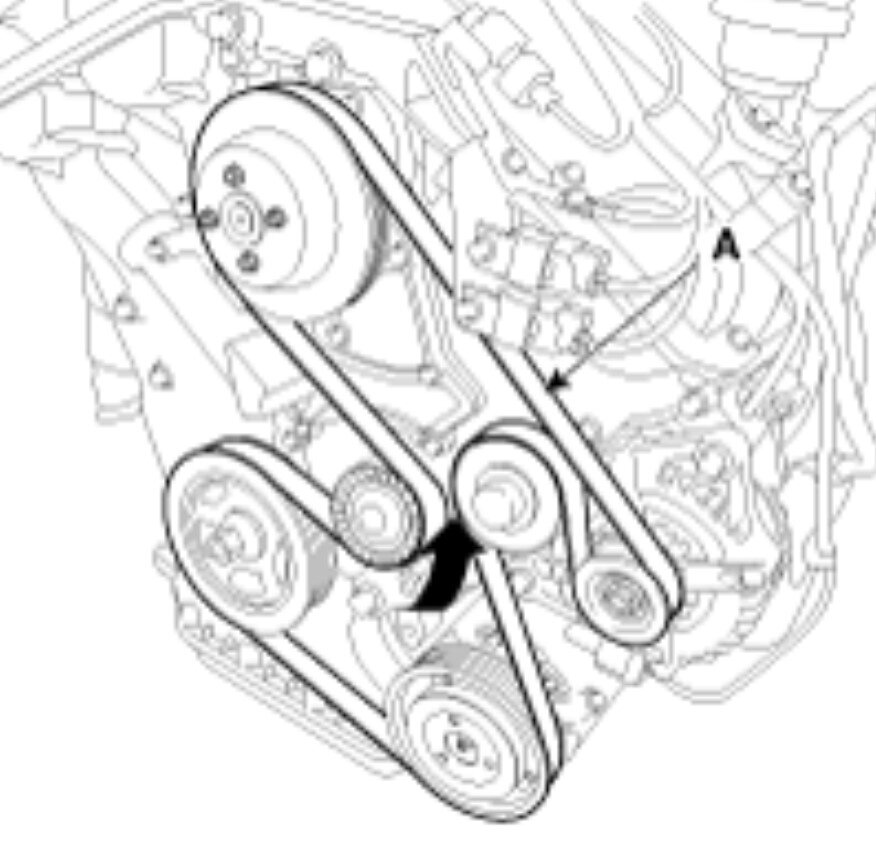

This should be the 3.3 belt routing. That tensioner will fight you some. Using a long ratchet and socket can make it easier.
