Can I get a Serpentine belt diagram?

DAN BRIEN

MEMBER
2006 FORD ESCAPE
260,000 MILES

I need a serpentine belt image configuration for my vehicle listed above 3.0l v6, so I can properly install a new serpentine belt.

Thank you

Tuesday, August 9th, 2022 AT 12:23 PM

4 Replies

JACOBANDNICKOLAS

MECHANIC
108,205 POSTS

Hi,

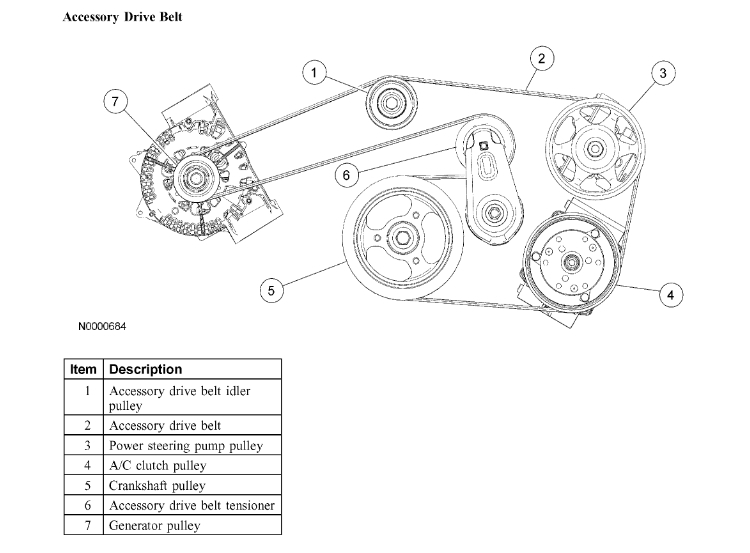

I looked through my manual and found very little. I did find the accessory drive belt, but it is somewhat vague. However, it should be correct.

Take a look at the pic and let me know if it helps or if you have questions.

Take care,

Joe

See pic below.

Image (Click to make bigger)

SPONSORED LINKS

Was this

answer

helpful?

Yes

No

+1

Tuesday, August 9th, 2022 AT 1:11 PM

DAN BRIEN

MEMBER
2 POSTS

Thank you!
I eventually located the proper configuration before your generous reply, and, with much additional help from Ford Motors in Astoria Oregon, I was able to install belt.

Your image is correct!
Thanks again. Now we'll see if the original cause of problem may be a sticky A/C Compressor pulley, which might have resulted in belt overworking, and eventual breakage?
I hope not? After installing a new serpentine belt, everything is working fine! God was gracious!

Have a great day, friend!

Was this

answer

helpful?

Yes

No

Tuesday, August 9th, 2022 AT 8:08 PM

JACOBANDNICKOLAS

MECHANIC
108,205 POSTS

You are very welcome. I'm glad to know you got everything together. If the A/C compressor is causing the issue, chances are you will hear a belt squeal. If it has too much resistance or locks up, you should know.

Regardless, please feel free to come back anytime in the future if you have questions or need help. You are always welcome here.

Take good care of yourself.

Joe
