Serpentine belt

Tiny
TREMAYNE
  • MEMBER
  • 2020 JAGUAR F-PACE
  • 122,117 MILES
Hello I cannot find the diagram for putting in my serpentine belt it has 2 but only one is broken
Friday, August 15th, 2025 AT 6:15 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 54,137 POSTS

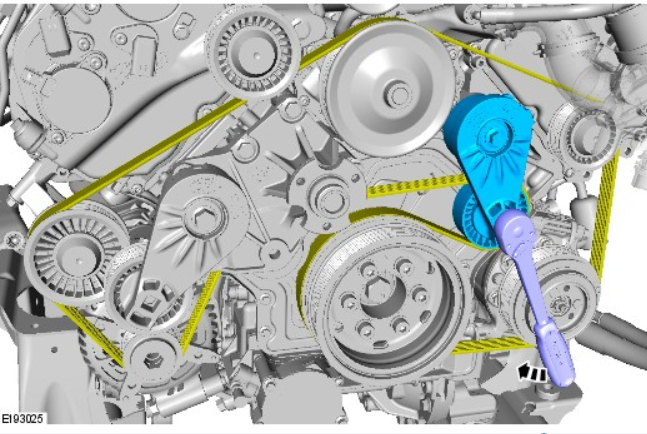

Well, there are three engines which one do you have? Here is the diagram for the 3.0 Super charged. Let me know if I guessed the right one :) Check out the images (below). Let us know how it goes
