Power relay diagram

1996 MITSUBISHI MONTERO
100,000 MILES • V6 • 4WD • AUTOMATIC
Avatar
PHILMAN53
  • MEMBER
  • 2 POSTS
I cracked a head on my vehicle and the diagram on the cover of the fuse box under the hood is all worn away. Does anyone have a picture or diagram of what that is supposed to look like?
May 1, 2018 at 1:28 PM
Advertisement
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Avatar
JACOBANDNICKOLAS
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 110,190 POSTS

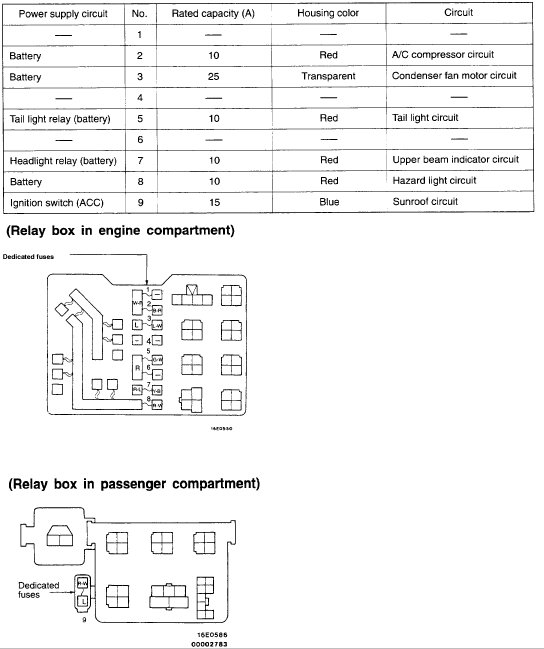

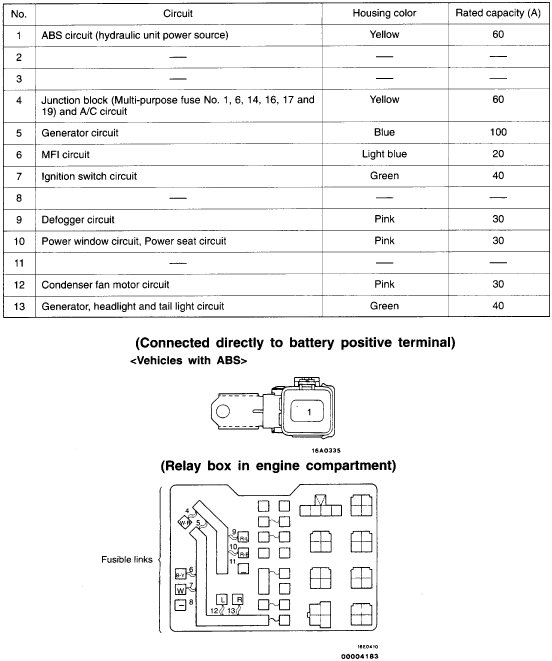

Let me know if these help.
Images (Click to enlarge)
Attached Media
Attached Media
May 1, 2018 at 7:19 PM
Avatar
PHILMAN53
  • MEMBER
  • 2 POSTS
Just what I needed, thanks so much!
May 5, 2018 at 10:52 AM
Advertisement
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,128 POSTS
Here is a guide to help you test the relay:

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
