1989 Plymouth Horizon need a diagram for where all vaccum l

1989 PLYMOUTH HORIZON
Avatar
SLO LEARNER
  • MEMBER
  • 1 POST
Engine Performance problem
1989 Plymouth Horizon 4 cyl Front Wheel Drive Automatic ? miles

need a diagram for where all vaccum lines go bought old car that sat for years restoring with my uncle but all the line were rotten so bad they fell apart ,to repeat i beg you to find me a detail diagram where all vaccum lines for a 1989 plymouth horizon 2.2 liter engine
Apr 29, 2009 at 1:49 PM
Advertisement
Avatar
RASMATAZ
  • CAR REPAIR CONTRIBUTOR
  • 75,992 POSTS

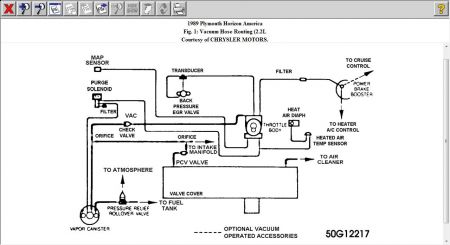

There you go fast leaner 2.2L Federal


https://images.2carpros.com/forum/automotive_pictures/12900_vac1_2.jpg

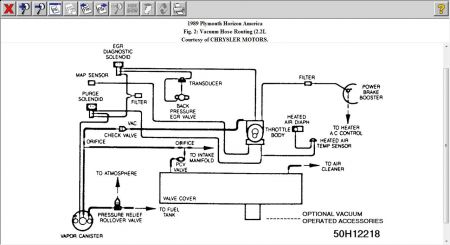

2.2L California


https://images.2carpros.com/forum/automotive_pictures/12900_vac2_3.jpg

Apr 30, 2009 at 6:57 AM
Avatar
FATEDDIE
  • MEMBER
  • 1 POST
I also need this, do you have a bigger picture and it distorts when I try to zoom in?

I also have an issue with bad vibration since I had the engine mount replaced.
Mar 18, 2015 at 5:32 PM
